XNX-AMAI-NNIC1 Honeywell XNX Universal Transmitter Gas Detector IR CO2

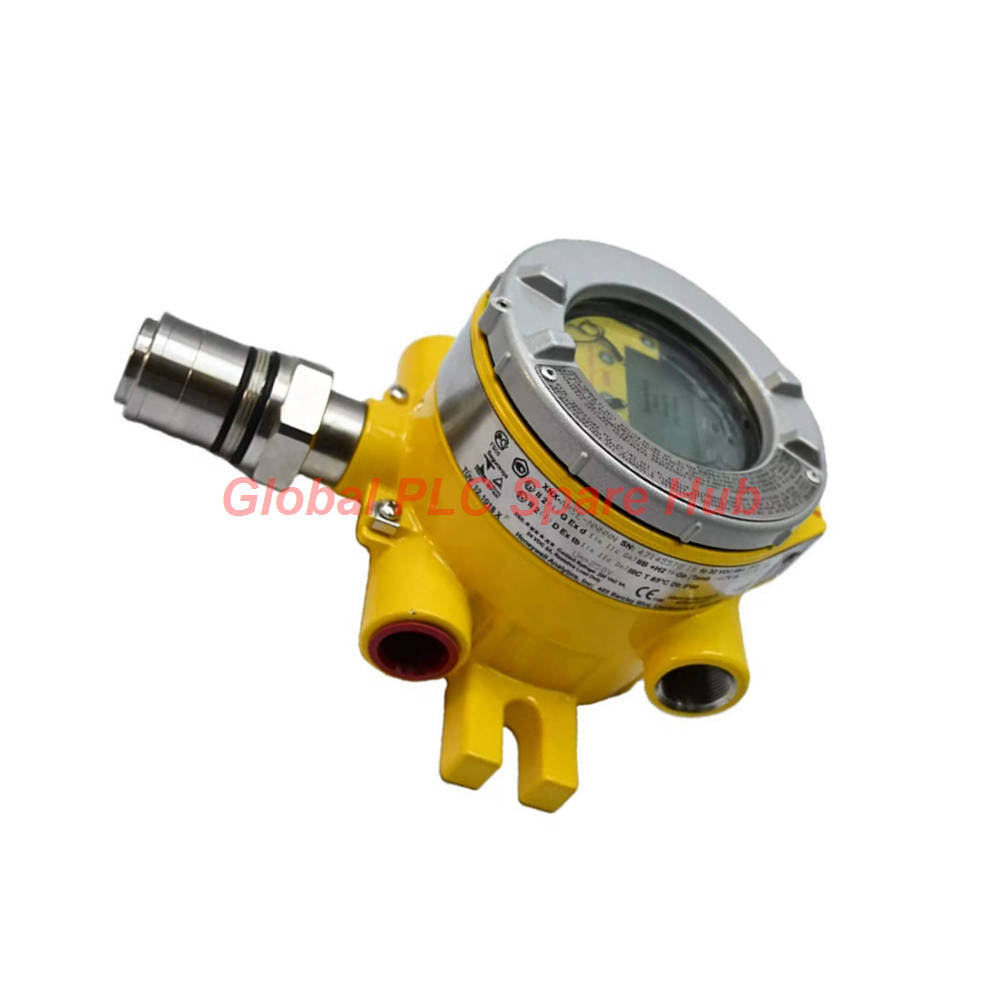

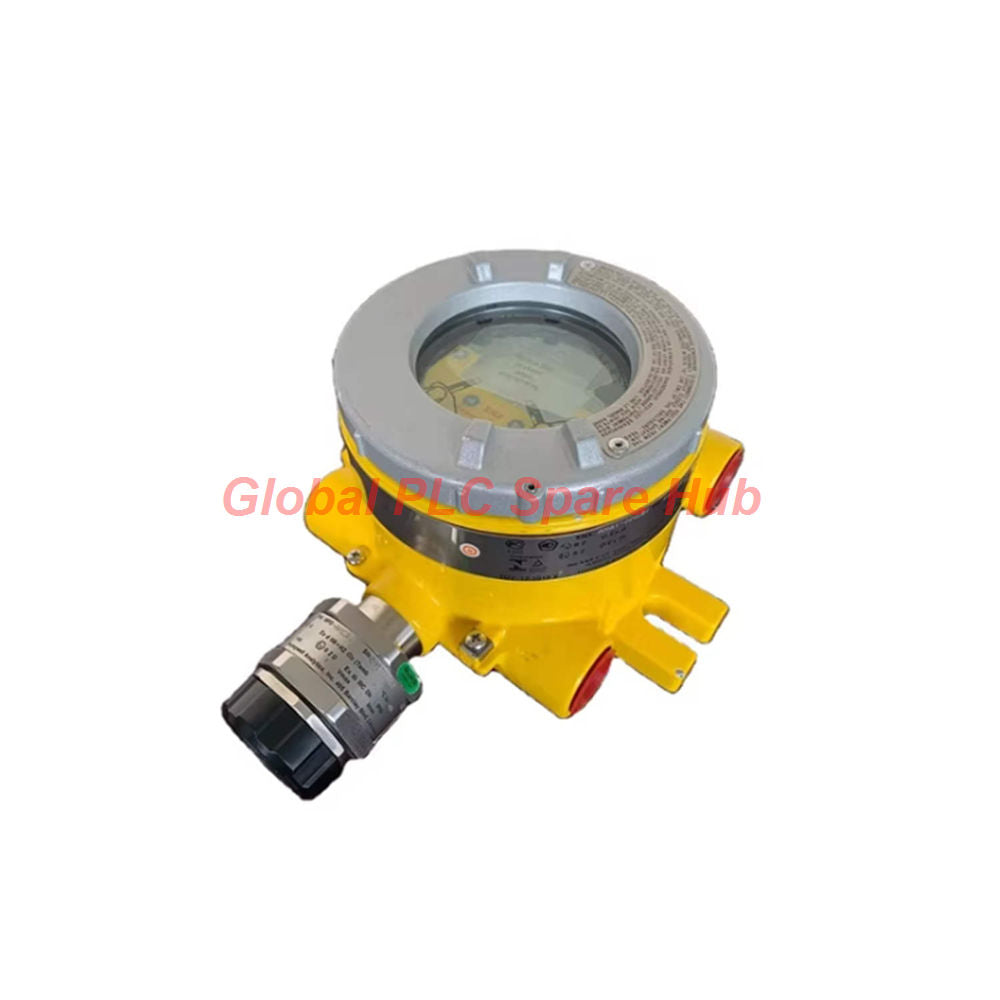

XNX-AMAI-NNIC1 Honeywell XNX Universal Gas Transmitter Architecture

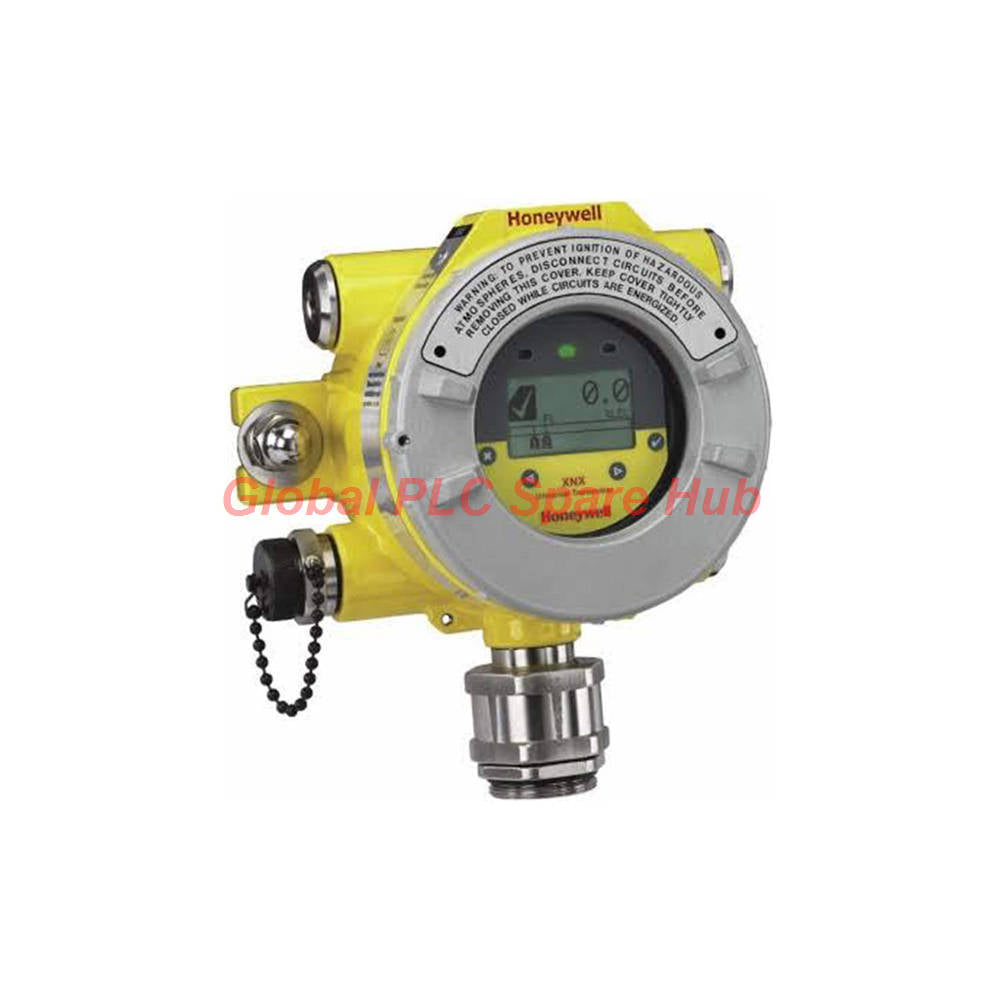

The Honeywell XNX-AMAI-NNIC1 provides centralized, explosion-proof monitoring for hazardous industrial gas environments. Engineered around a common transmitter architecture, this XNX Universal Transmitter standardizes field wiring, operating interfaces, and control room integration across multiple gas detection technologies. Industrial automation engineers deploy this marine-grade aluminum platform to continuous sub-surface monitoring stations and chemical containment loops to reduce operational complexity and installation overhead.

This specific configuration features an integrated Infrared (IR) Carbon Dioxide sensor cartridge rated for 0-5% Vol. concentrations. Equipped with a versatile multi-purpose interface, the unit handles local optical IR sensing while simultaneously accommodating Honeywell Searchline Excel, Searchpoint Optima, or external generic 3-wire 4-20mA sensor loops. The integrated HART over 4-20mA signal transmission delivers continuous analog process values alongside full dynamic digital diagnostics back to Distributed Control Systems (DCS) and Programmable Logic Controllers (PLC).

XNX-AMAI-NNIC1 Model Configuration Breakdown

• [XNX] Platform: Honeywell XNX Transmitter Core with HART over 4-20mA Output Circuitry
•   └── [A] Approval Standard: ATEX / IECEx Hazardous Area Directives
•       └── [M] Entry Type: 5 x M25 Metric Cable Conduit Entry Ports
•           └── [A] Housing Material: LM25 Marine-Grade Painted Aluminum
•               └── [I] Personality Interface: Infrared Products (Searchline Excel, Searchpoint Optima, Generic 4-20mA Input)
•                   └── [N] Option Slot: No Option Installed
•                       └── [N] Local Interface: Standard Enclosure (No External Local HART Port)
•                           └── [IC1] Integrated Sensor: Infrared Carbon Dioxide Cell (0 to 5% Vol. Range)

Technical Parameters & Environmental Tolerances

Control Systems Compatibility & Field Diagnostics

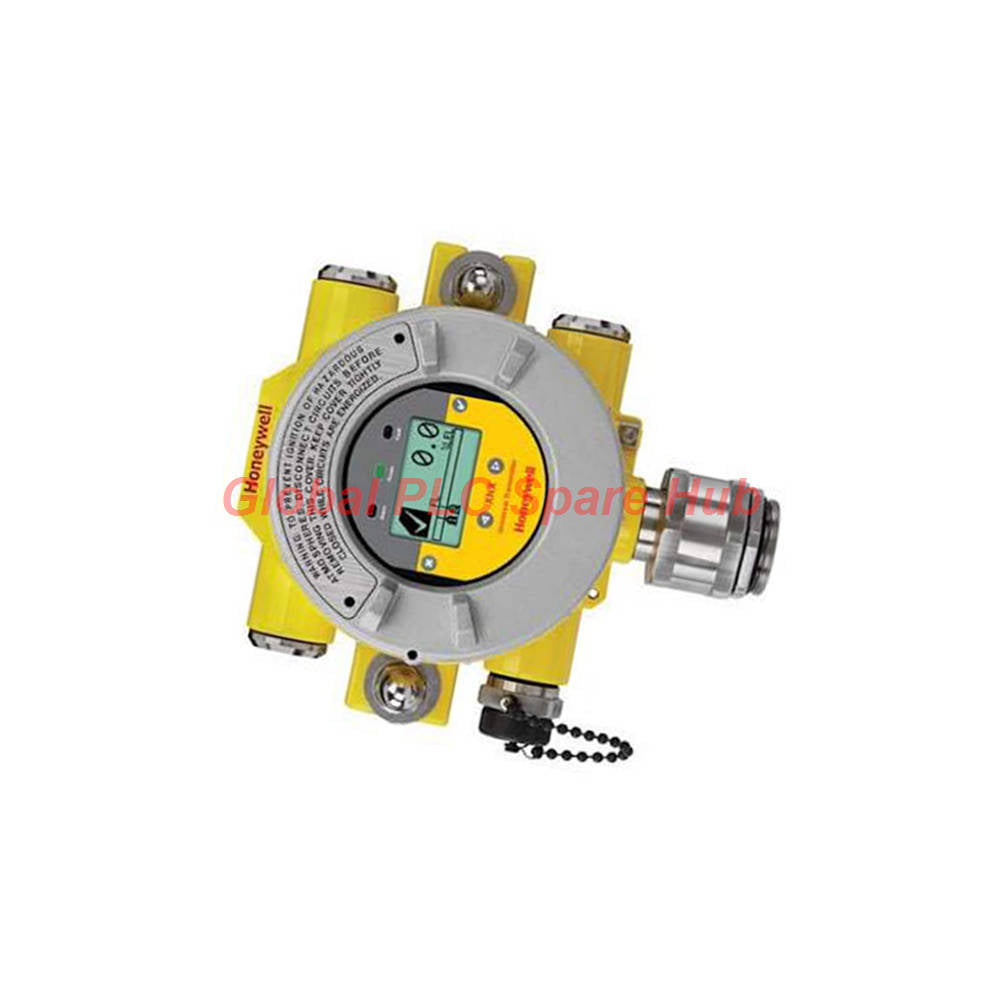

The Honeywell XNX-AMAI-NNIC1 features a backlit LCD readout with real-time numeric gas values, bar graphs, and explicit system status icons. Non-intrusive magnetic switches allow instrumentation teams to adjust operational parameters, initiate zero baseline procedures, and run full scale calibrations without unsealing the hazardous housing envelope.

Continuous internal diagnostics track optical mirror cleanliness, thermal drift, sensor bridge symmetry, and loop supply stability. Diagnostics map seamlessly to HART Device Description (DD) files for remote asset monitoring via plant asset management systems. Alarm matrices report standard operational codes:

• Fault 01 (Beam Blocked / Lens Dirty): Optical baseline light transmission fell below threshold limits; optics require external cleaning.
• Fault 04 (Loop Current Error): Field terminal voltage dropped below operational threshold or loop resistance exceeds loop drive capacity.
• Warning 12 (Drift Exceeded): Zero baseline drifted out of initial calibration bounds, prompting routine span re-adjustment.

Target Equipment & Application Scenarios

• Industrial Refrigeration Systems: Large-scale ammonia and CO2 industrial chiller rooms, cold storage hubs, and food processing lines.
• Carbon Capture & Storage (CCS): High-pressure gas compression skids, carbon transport pipelines, and underground injection manifolds.
• Brewing & Fermentation Vessels: CO2 blanket monitoring over fermentation vats, bottling halls, and bulk storage vaults.
• Enclosed Hazardous Facilities: Battery storage banks, biogas anaerobic digester rooms, and inert gas purging chambers.

Logistics, Packaging & Warranty Terms

• Standard Package Contents: Complete factory-assembled XNX-AMAI-NNIC1 unit, pre-installed IC1 IR CO2 module, weather housing splash guard, magnetic key, and technical manual.
• Express Global Shipping: Warehouse orders process and dispatch within 24 to 48 hours via premium air express carriers (FedEx, UPS, DHL).
• Warranty Assurance: Fully covered by a comprehensive 12-month operational warranty replacement plan starting from the shipment dispatch date.

Global PLC Spare HUB Field Engineering Insight

In our field commissioning projects involving high-humidity CO2 extraction facilities, installing optical infrared sensors like the XNX-AMAI-NNIC1 requires dedicated moisture mitigation measures. During an installation at a beverage bottling plant, humidity condensation on the internal optical mirror produced recurring baseline zero-drift alarms during night-shift temperature swings.

Our engineering team resolved the issue by installing an external sunshade/weather housing assembly combined with internal heater logic verification via the HART handheld communicator. The built-in mirror optics heater in the XNX Series transmitter prevents fogging when properly powered. We strongly recommend verifying that field power supplies deliver a clean, continuous 24VDC with minimal line drop to ensure optics heating circuits operate efficiently under cold environmental shifts.

Selection Guide & Variant Model Comparison

Selecting the precise hardware variant within the Honeywell XNX Gas Detector Family is essential to ensure atmospheric resistance and regional conduit compliance. Compare the aluminum metric XNX-AMAI-NNIC1 against alternate housing builds below:

Engineering Selection Advice: For general industrial plants, food processing facilities, and inland utility rooms, the aluminum XNX-AMAI-NNIC1 offers an economical, easy-to-mount solution. If your mounting location involves severe offshore marine spray, aggressive acidic washdowns, or exposed chemical processing platforms, specify the 316 stainless steel XNX-AMAV-NNIC1 variant to prevent galvanic casing pitting over long service lifespans.

Frequently Asked Questions & Practical Field Advice

Q: How does infrared (IR) sensing for CO2 outperform standard catalytic or electrochemical sensors?

A: The IC1 IR sensor cartridge installed in the Honeywell XNX-AMAI-NNIC1 does not require oxygen to operate and cannot be poisoned by airborne chemical contaminants. Catalytic sensors fail to detect carbon dioxide altogether, while electrochemical CO2 cells suffer from short operating lifespans and cell saturation under high-concentration events.

Q: Why does the unit housing feature 5 x M25 entry ports, and how should unused ports be handled?

A: Multiple conduit entries provide installation flexibility for routing power, 4-20mA signals, auxiliary relay options, and remote sensor cabling. Field crews must seal all unused entries with certified Ex-d explosion-proof blind plugs using approved thread sealant to maintain the IP66 hazardous area rating.

Q: What cable specifications prevent HART digital communication dropped frames on long cable runs?

A: Use twisted, individually shielded instrumentation cable (16 AWG to 18 AWG) with a loop resistance under 250 Ohms. Ground the cable shield wire strictly at the control system panel side to prevent earth loop ground currents from distorting the digital HART carrier frequency.

Q: What is the recommended zero-point baseline verification interval for the IC1 CO2 cell?

A: Perform a fresh air zero check every 6 months during routine preventive maintenance schedules. In closed indoor plants where ambient background CO2 elevated levels exist, purge the sensor housing with pure nitrogen gas (99.99%) to set an accurate 0% Vol. reference point.

Q: Can the 0-5% Vol. IC1 sensor cartridge be re-ranged to measure toxic carbon monoxide (CO) instead?

A: No. The internal optical cell optical filters inside the IC1 sensor block are specifically matched to the 4.26-micron absorption band of Carbon Dioxide. To monitor Carbon Monoxide, you must replace the sensor block with an electrochemical CO cell and update the XNX Universal Transmitter personality software profile.
