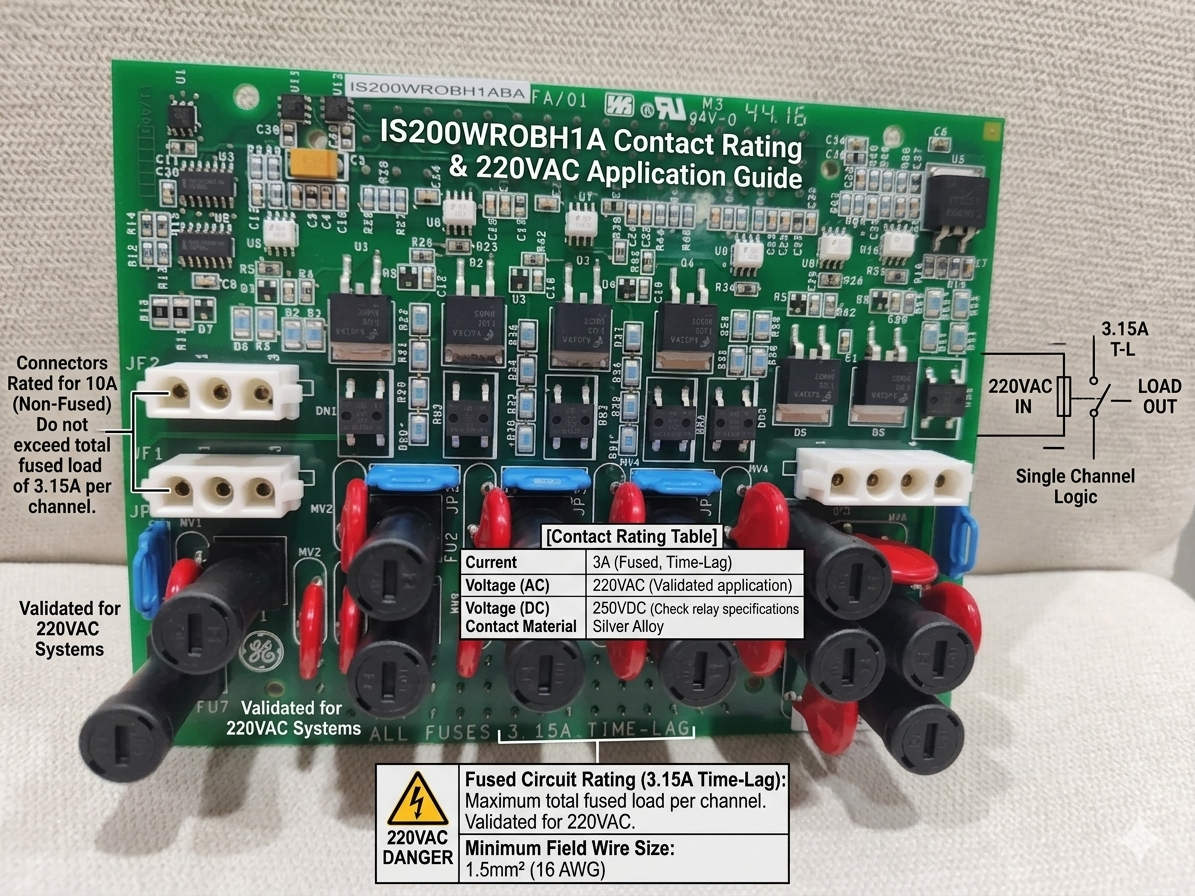

IS200WROBH1A Contact Rating and 220VAC Industrial Automation Application Analysis
Evaluating Relay Board Capabilities in Control Systems
The IS200WROBH1A and its revision IS200WROBH1AAA serve as vital relay output terminal boards in GE EX2100 excitation systems. These boards also operate reliably within Mark VI and Mark VIe turbine control platforms. Automation engineers frequently debate whether these specific boards can safely switch 220VAC loads directly. These loads typically include solenoid valves, heavy-duty contactors, and external alarm horns. To answer this question, engineers must analyze the underlying technical specifications. They must consider nominal voltage ratings, circuit capacity, and the nature of the connected load. A clear understanding prevents premature component failure in complex factory automation environments.
Core Application Value of Relay Terminal Boards
The primary design intent of the IS200WROBH1A involves isolating low-level control systems from unpredictable field-side electrical surges. This isolation safeguards sensitive CPU components against harmful back-EMF spikes and field wiring faults. Consequently, the relay interface significantly improves overall system maintainability and fault tolerance. In power generation and petrochemical facilities, this architecture protects critical infrastructure. Technicians can easily verify relay performance independently from the main processor during scheduled plant shutdowns. This diagnostic advantage reduces troubleshooting times in time-sensitive industrial automation environments.
Can You Switch 220VAC Directly with WROB Relay Boards?
The onboard relays handle low-to-medium power switching tasks rather than high-current machinery control. Most GE terminal boards support resistive loads up to 5A at 120/240VAC. However, inductive loads lower this allowable threshold significantly. Engineers must look beyond simple voltage ratings when designing these interfaces. High switching frequencies and localized thermal accumulation can degrade contact materials over time. Therefore, directly switching 220VAC inductive loads like contactors will rapidly shorten relay lifespans. According to industry reliability data, inductive arcing causes over 40% of premature relay contact failures.
Implementing Best Engineering Practices for Inductive Loads
Experienced control system designers rarely connect high-inrush field devices directly to the WROB board. Instead, they utilize interposing relays or miniature contactors to handle the heavy electrical switching. This strategic approach isolates the terminal board from severe inductive stress. Furthermore, this method aligns with globally recognized industry standards. These standards include IEC 60947 and UL industrial control panel installation guidelines. Using an intermediate interface module ensures cleaner signal path execution. Ultimately, this best practice increases the reliability of the entire DCS layout.
Galvanic Isolation Design Enhances System Reliability
Galvanic isolation represents a massive advantage that mechanical relays hold over standard transistor outputs. Long field cable runs in industrial plants often introduce significant ground potential differences. These cables also pick up electromagnetic noise from nearby motor control centers. The mechanical isolation on the WROB board prevents these electrical disturbances from corrupting the VME controller. However, field experience indicates that improper shield grounding can diminish this protection. Engineers must never route 220VAC control lines inside the same conduit as sensitive analog signals.
Managing Contact Lifespan Under Severe Inductive Stress
The physical composition of the field load dictates the ultimate lifespan of the mechanical relay contacts. For example, resistive alarm lamps create very little electrical stress during actuation. Conversely, large solenoid coils release massive arc energy when the circuit opens. Without external suppression, this energy creates continuous electrical arcs across the contacts. Over time, this arcing results in contact welding and carbonized terminal damage. This degradation becomes highly problematic in high-cycle burner management systems and anti-surge logic. Therefore, engineers must carefully evaluate switching frequencies before final deployment.
Comprehensive Field Installation and Maintenance Guide
Optimizing control cabinet reliability requires systematic adherence to proven field engineering procedures.
- Verify that all inductive 220VAC field coils utilize external RC snubber networks to absorb dangerous voltage spikes.
- Install metal oxide varistors close to the field device to suppress harmful back-EMF immediately at the source.
- Re-torque all terminal block screws during annual plant outages to prevent loose connections caused by cabinet vibration.
- Use insulated wire ferrules on all stranded conductors to ensure clean terminations and prevent intermittent short circuits.
- Separate high-voltage AC control wiring from low-level instrumentation cables to minimize cross-talk and diagnostic errors.
Technical Compatibility and Revision Comparison
The IS200WROBH1AAA revision maintains functional backward compatibility with the original base IS200WROBH1A platform. Therefore, plants can utilize the newer revision as a direct replacement component during emergency maintenance. Nevertheless, engineering teams should verify current firmware revision compatibility before finalizing the installation. They must cross-reference original cabinet wiring drawings to ensure exact terminal assignment consistency. In older control system retrofit projects, customized software configurations might require minor I/O mapping adjustments. Checking these parameters beforehand prevents unexpected logic mismatches upon system startup.
Optimized Solution Scenario for Refinery Infrastructure
Consider a large-scale refinery utilizing a Mark VIe system to manage critical automated cooling tower valves. The design requires the control system to actuate several 220VAC inductive solenoid valves frequently. Directly wiring these valves to the IS200WROBH1A board would cause rapid contact degradation. To solve this issue, the engineering team installs a dedicated interposing relay panel between the board and the field. The WROB board drives low-current 24VDC interposing relay coils safely. These external relays then switch the high-voltage 220VAC power to the heavy solenoids. This design isolates the GE hardware from stress and ensures continuous plant operation.
Industrial Application Troubleshooting FAQ
What is the most effective way to protect WROB contacts when switching high-voltage alternating current?
Always route the terminal board output to an external interposing relay rather than the final device. This arrangement keeps high currents away from the GE terminal board entirely. Additionally, install a high-quality RC snubber circuit across the external inductive coil to suppress arc energy.
How can maintenance teams identify a relay contact that is nearing the end of its operational life?
Measure the voltage drop across the closed relay contacts while the circuit is fully energized and under load. A rising voltage drop indicates increased contact resistance caused by severe carbonization or pitting. Replace the board or utilize a spare channel if the resistance deviates from original specifications.
What key documentation should an engineer review before replacing an older hardware revision during an outage?
Examine the system configuration files within the software environment to confirm exact I/O hardware definitions. Review the latest technical product circulars from the original manufacturer regarding specific suffix changes. Finally, verify that the physical terminal block layout matches the existing cabinet schematics perfectly.
