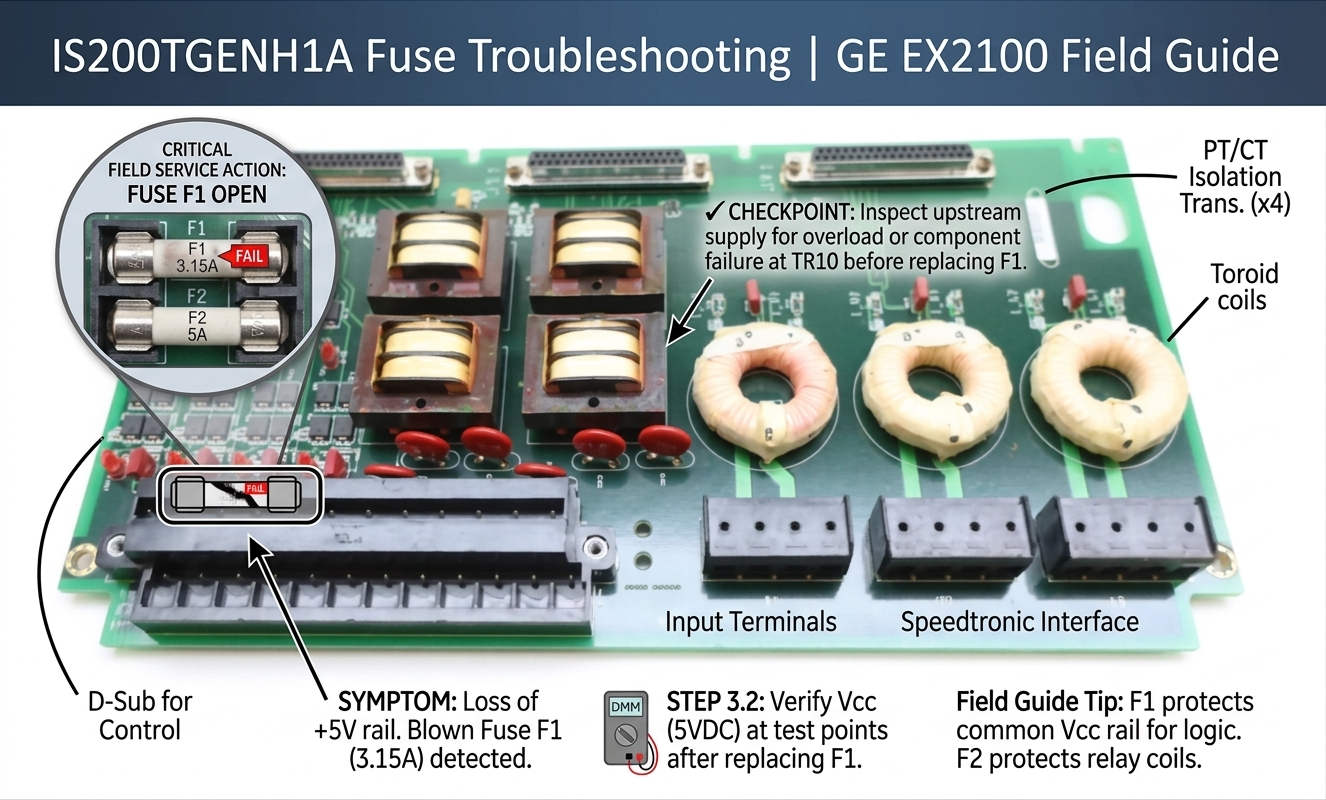

Troubleshooting Frequent IS200TGENH1A Fuse Failures in GE EX2100 Control Systems

Understanding the Role of TGEN Boards in Industrial Automation

The IS200TGENH1A terminal board manages generator synchronization and vital signal conditioning within GE EX2100 excitation systems. Modern control systems rely heavily on these boards to ensure stable feedback loops during critical breaker operations. In large-scale factory automation setups, even minor signal disruptions can cause instant generator trips. Therefore, plant operators must maintain these boards carefully to prevent costly un-programmed production downtime. Field data indicates that unexplained onboard fuse trips rarely stem from a defective fuse itself. Instead, peripheral system anomalies usually trigger these overcurrent events during active operation.

How Frequency Discrepancies Stress Synchronization Boards

An excessive slip frequency between the generator and the main busbar creates massive electrical stress. When the circuit breaker closes under high phase-angle deviation, large circulating currents rush through the PT secondary circuits. Field measurements show that a frequency mismatch above 0.2 Hz generates dangerous transient voltage spikes. These recurring out-of-sync close attempts weaken the fuse element over time until it fails completely. Consequently, engineers should regularly check the sync-check relay pickup settings on their DCS platforms. Ensuring proper breaker closing delay compensation protects the board from premature electrical fatigue.

Eliminating Ground Loops in Complex Control Systems

Improper voltage transformer secondary grounding frequently causes recurring fuse failures on the IS200TGENH1A board. Unintended circulating ground currents develop when technicians ground shield drains at both cable ends. According to IEEE 142 grounding standards, control systems must utilize a single-point reference ground. Multiple ground points across separate panels create dangerous loops during sudden generator load rejections. Moreover, recent industry reports indicate that ground loops cause over 25% of intermittent control hardware errors. Technicians must isolate and correct these floating neutral references during annual plant maintenance.

Managing Transient Surges and Component Aging Effects

Many legacy Mark VI systems have operated continuously for more than fifteen years in harsh environments. Consequently, aging metal oxide varistors and deteriorated insulation increase transient exposure on the input stage. In coastal chemical facilities, conductive contamination on terminal surfaces further accelerates leakage current buildup. Operators usually notice these fuse failures exclusively during high-voltage switching operations or regional lightning storms. Therefore, maintenance teams should deploy infrared thermography to identify overheating components before a complete blowout occurs. Keeping control cabinets clean and dry minimizes unexpected diagnostic alarms.

Essential Field Guidelines for Pre-Energization Testing

Field teams must follow a strict electrical validation workflow before replacing a suspect terminal board. This proactive approach prevents immediate damage to new hardware assets during startup sequences.

  • Verify the PT phase rotation using a calibrated phase-angle meter.
  • Validate all field wiring polarity with live, hands-on measurements.
  • Compare measured vector relationships against the active system configuration.
  • Inspect internal circuit board traces for latent thermal discoloration.

Implementing Advanced Transient Protection Infrastructure

Older industrial automation installations often lack modern surge suppression networks on their PT secondary wiring. In regions with frequent lightning activity, adding external DIN-rail surge suppressors provides essential protection. These secondary suppressors absorb massive voltage spikes before they reach the delicate IS200TGENH1A circuit pathways. Furthermore, technicians must always match the exact current and speed ratings when replacing blown fuses. Using a slow-blow substitute instead of a fast-acting OEM fuse can permanently destroy the PCB traces.

Real-World Application Solution Scenario

A combined-cycle power plant experienced chronic fuse failures on an EX2100 synchronization circuit. The site team replaced the IS200TGENH1A board twice, but the replacement fuses blew during the next startup. An external automation consultant performed a thorough vector analysis on the potential transformer inputs. The investigation revealed an incorrect shield termination following a recent protection panel upgrade. This wiring error created a 15-volt ground potential difference during breaker closure. Correcting the shield configuration to a single-point ground completely resolved the issue.

Practical Procurement and Technical FAQ

How can an engineer differentiate between an external wiring fault and an internal hardware failure?

Disconnect the PT input wires and measure the steady-state resistance across the downstream circuit. If a fresh fuse blows while the external field wiring is disconnected, internal component degradation exists. In this situation, engineers must replace the entire terminal board rather than just changing the fuse.

What criteria ensure full backwards compatibility when sourcing a replacement board?

Buyers must match the specific functional revision suffix found on the original product label. Additionally, check the firmware version compatibility using your system software to avoid signal scaling mismatches. Mismatched board revisions can cause erratic voltage feedback and trigger emergency turbine trips during synchronization.

What alternative steps can reduce component stress if ideal synchronization parameters are unattainable?

Optimize the automatic synchronizer advance-time settings to compensate for slow breaker mechanisms. Install external fast-acting fuses with higher interrupting capacities directly upstream of the terminal board connections. Finally, upgrade cabinet ventilation systems to prevent thermal degradation of aging onboard varistors.
