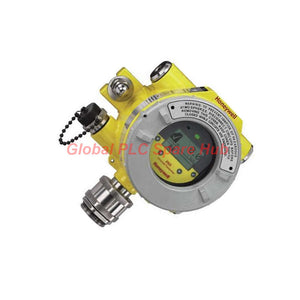

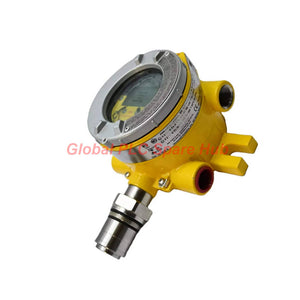

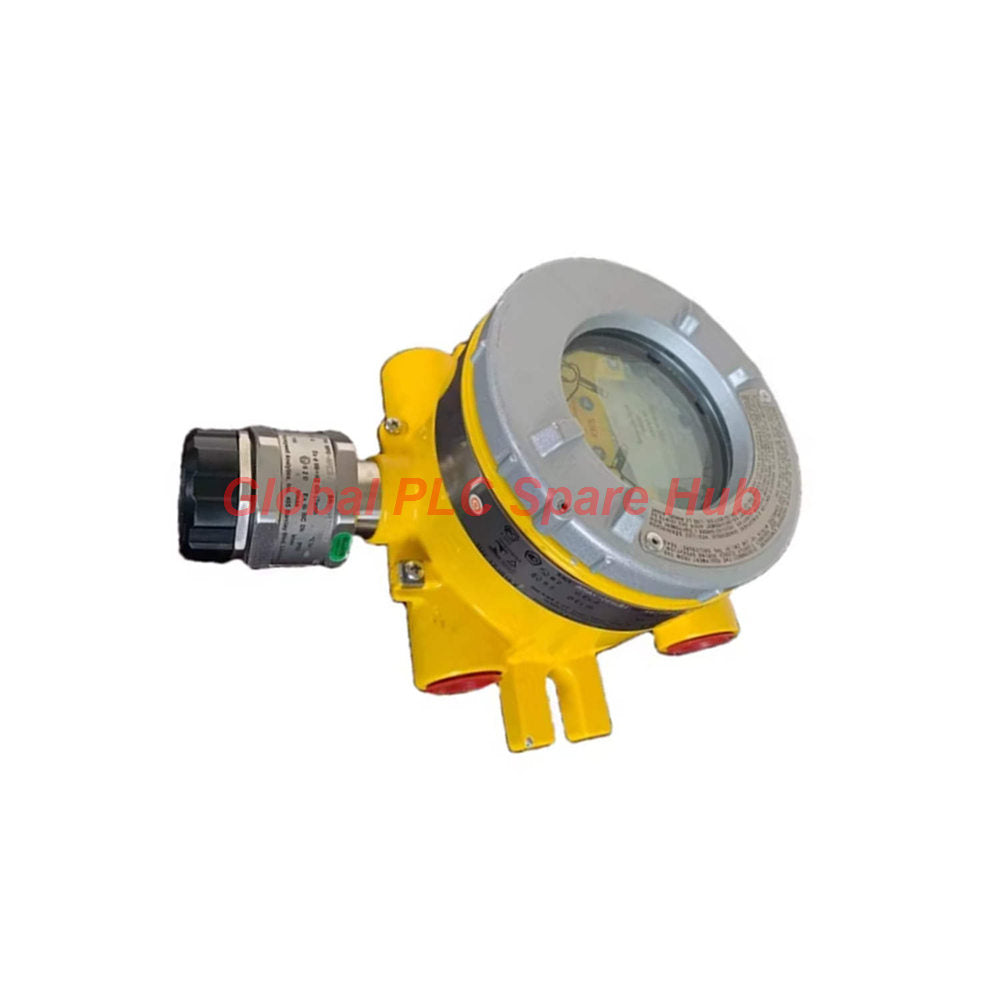

XNX-AMAI-RHCB1 Honeywell XNX Universal Transmitter Gas Detector In Stock

Product Summary & Operational Overview

The XNX-AMAI-RHCB1 is an industrial-grade gas detection transmitter built by Honeywell for high-hazard environments.

Belonging to the proven XNX Universal Transmitter family, this unit processes combustible gas signals via an integrated catalytic bead sensor cell.

It integrates direct relay outputs along with a dedicated local HART interface port for field diagnostics and setup.

Designed for severe industrial exposure, the heavy-duty enclosure features certified explosion-proof construction with M25 entry threads.

Global PLC Spare HUB's Insight

In offshore gas turbine enclosure installations, signal stability under thermal cycling is vital for plant uptime.

During a field retrofit, our technicians deployed the XNX-AMAI-RHCB1 to replace aging single-purpose gas monitors.

The local HART port allowed instrument technicians to perform loop checks directly at the sensor head without opening junction boxes.

Configuration Breakdown & Model Nomenclature

• Honeywell XNX Universal Transmitter Series Architecture:
  • Approval Class: A — ATEX / IECEx Explosion-Proof Certified for Zone 1 and Zone 2
  • Conduit Port Threads: M — M25 Standard Threaded Entry Ports
  • Enclosure Housing Material: A — LM25 Marine-Grade Epoxy Painted Aluminum
  • Personality Interface Board: I — Interface for Searchline Excel, Searchpoint Optima, and standard 4-20mA devices
  • Internal Option Card: R — Built-in Relay Option Board (3 programmable relays)
  • HART Communication Interface: H — Equipped with Local HART Port Interface
  • Target Sensor Module: CB1 — Catalytic Bead Combustible Gas Sensor Cell

Technical Specifications Matrix

Model Comparison & Engineering Recommendation

Choosing between variant models depends on required field outputs and local communication protocols:

• XNX-AMAI-RHCB1: Includes local HART access port plus integrated relay contacts for direct alarm horn control.
• XNX-AMAI-NNCB1: Standard 4-20mA configuration omitting local HART port and output relays.

Technical Selection Advice: Select XNX-AMAI-RHCB1 when field instruments require local handheld communicator connections or independent shutdown relays.

Target Equipment & Application Scenarios

• Gas Turbine Enclosures & Mechanical Equipment Rooms:
  • Monitors flammable gas build-up around fuel valves and high-pressure manifold joints.
• Petrochemical Storage & Pump Stations:
  • Detects hydrocarbon vapors around pipeline pumps, manifold pits, and processing skids.
• Compressor House Installations:
  • Provides local audio-visual warning via direct relay activation during gas release incidents.

Advanced Diagnostic Capabilities

• Continuous element health self-checking alerts system operators to catalytic bead poisoning or drift.
• Backlit dot-matrix display presents gas concentration readings, fault codes, and calibration prompts.
• Local HART output enables full predictive maintenance tracking using handheld calibrators.

Warranty Clause & Dispatch Logistics

• 12-Month Comprehensive Warranty: Covers operational defects and hardware performance guarantees.
• Dispatch Lead Time: Ships globally within 24 to 48 hours from order confirmation.
• International Shipping Options: Express air delivery handled via FedEx, UPS, or DHL.

Frequently Asked Questions (FAQ)

Q: What is the operational benefit of selecting catalytic bead sensing over optical infrared?

A: Catalytic bead sensors detect hydrogen gas efficiently, whereas infrared sensors cannot detect non-infrared absorbing gases like hydrogen.

Q: How does the local HART port (H option) simplify routinely scheduled maintenance?

A: Technicians plug a HART communicator directly into the exterior port to read diagnostics without opening the main enclosure cover.

Q: Can the internal relay contacts drive external alarm sirens directly?

A: Yes. The onboard relays provide SPDT dry contacts capable of triggering local beacons, horns, or ventilation fans.

Q: What installation step prevents sensor poisoning in catalytic detector cells?

A: Avoid using silicone sealants or lubricants near the sensor inlet during installation, as volatile silicones permanently deactivate pellistors.

Q: How should I determine whether to specify local HART versus standard 4-20mA configurations?

A: Specify local HART if your calibration workflow relies on handheld field communicators at the transmitter junction site.
