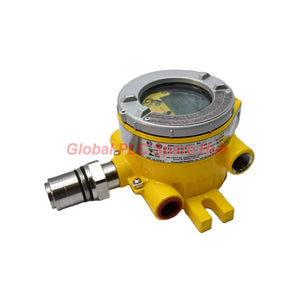

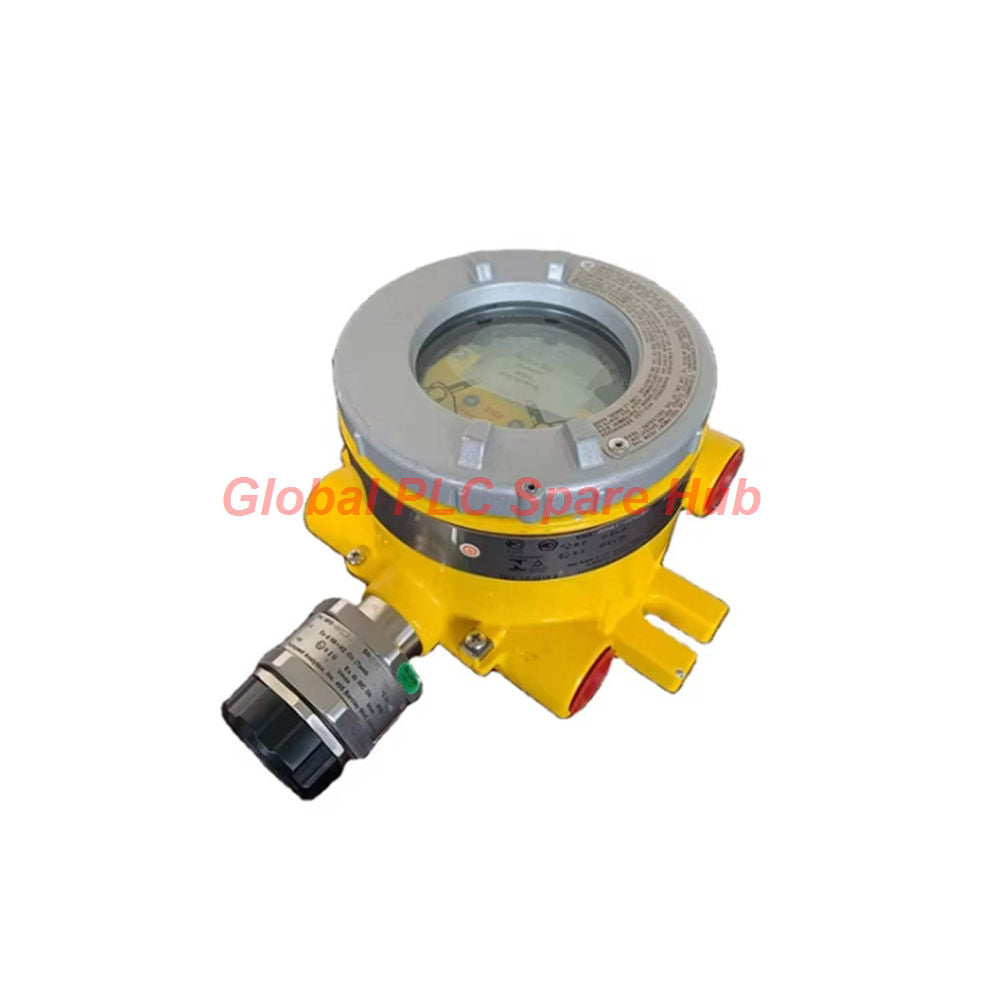

XNX-AMAI-NNCB1 Honeywell XNX Universal Gas Transmitter Aluminum

Honeywell XNX-AMAI-NNCB1 Universal Gas Transmitter Overview

The Honeywell XNX-AMAI-NNCB1 serves as an industrial-grade universal gas monitoring solution designed for hazardous field environments. Engineers deploy this standard aluminum transmitter platform to streamline flammable and toxic gas detection across heavy manufacturing plants. The module standardizes field wiring across diverse sensor technologies, which significantly simplifies installation and long-term maintenance standard operating procedures.

This standard unit integrates an advanced multi-purpose interface that supports Honeywell high-performance optical gas detectors. Technicians seamlessly pair the XNX-AMAI-NNCB1 with Searchline Excel and Searchpoint Optima infrared sensors alongside standard generic 4-20mA devices. The transmitter includes a pre-configured catalytic bead sensor module that delivers immediate detection capability for flammable atmospheric hazards upon field commissioning.

XNX-AMAI-NNCB1 Complete Technical Specifications

System Compatibility & Field Wiring Guidelines

• Infrared Optical Compatibility: Connects directly to Honeywell Searchline Excel open-path gas detectors.
• Optima Series Integration: Supports Honeywell Searchpoint Optima Plus point infrared sensors with zero interface adjustments.
• Generic Transmitter Loop: Accepts standard 3-wire 4-20mA current loop signals from secondary third-party instruments.
• Conduit Installation Note: Use standard M25 cable glands with certified explosion-proof sealing fittings during field glanding.
• Grounding Requirements: Ensure solid internal and external earth grounding connections to protect delicate digital signal processors.

Commissioning, Maintenance & Advanced Diagnostics

The Honeywell XNX-AMAI-NNCB1 features a backlit custom LCD display with high-contrast graphic icons. Maintenance technicians perform full routine non-intrusive calibrations without opening the hazardous enclosure, using magnetic wands through the front window glass. This safe method completely eliminates the need to request hot-work permits in classified gas zones.

Integrated self-diagnostics continuously monitor internal board temperatures, supply voltages, and sensor cell integrity. The unit outputs localized status text and standard fault codes when sensing performance drifts or ground loops occur. Technicians quickly clear fault conditions and complete bump tests within minutes to maximize facility operational uptime.

Typical Industrial Application Scenarios

• Offshore & Onshore Oil & Gas: Offshore drilling platforms, FPSO vessels, and upstream oil processing gathering hubs.
• Petrochemical Processing Plants: Hydrocarbon storage tank farms, pump stations, gas compression facilities, and refining towers.
• Gas Turbine Power Plants: Fuel skid enclosures and natural gas compressor buildings requiring fast catalytic bead detection.
• Chemical Storage Warehouses: Bulk flammable solvent handling zones requiring ATEX/IECEx explosion-proof field transmitters.

Logistics, Packaging & Warranty Terms

• Standard Package Includes: Factory-sealed XNX-AMAI-NNCB1 aluminum assembly, CB1 catalytic bead sensor module, and user documentation manual.
• Rapid Global Shipping: Processed orders dispatch within 24-48 hours via fast express carriers (FedEx, UPS, DHL).
• Comprehensive Warranty: Includes a full 12-month replacement warranty backed by our global supply network.

Global PLC Spare HUB Field Engineering Insight

From our extensive field deployment experience, installing catalytic bead transmitters like the Honeywell XNX-AMAI-NNCB1 requires strict attention to atmospheric contaminants. In a recent offshore gas compression site project, field engineers experienced unexpected zero-drift on catalytic bead sensors due to trace airborne silicone vapors from neighboring valve lubricant sprays. Catalytic bead poisoning permanently degrades sensor sensitivity.

Our engineering team advised isolated enclosure positioning, proper splash-guard installation, and routine bump-testing schedules. For facilities facing persistent catalytic poisons or background volatile organic compounds, we strongly recommend leveraging the XNX-AMAI-NNCB1 built-in IR interface to integrate optical point detectors like the Searchpoint Optima Plus. This upgrade ensures zero poisoning risk while retaining your standardized XNX Transmitter Series control infrastructure.

Model Selection & Cross-Reference Comparison Guide

Selecting the correct model configuration within the Honeywell XNX Series ensures seamless integration with your plant control system architecture. Review the specification comparison below between the standard XNX-AMAI-NNCB1 and related variants:

Selection Recommendation: Specify the XNX-AMAI-NNCB1 for installations following standard metric (M25) glanding practices and European/International ATEX requirements. If your project installation calls for 3/4" NPT conduit piping or aggressive offshore corrosion protection, choose the stainless steel XNX-UTAV-RNCB1 variant instead.

Frequently Asked Questions & Practical Field Advice

Q: Can I upgrade the sensor type on the Honeywell XNX-AMAI-NNCB1 without replacing the whole transmitter chassis?

A: Yes. The Honeywell XNX Universal Transmitter Platform features modular plug-and-play personality cards and sensor cartridges. You can field-reconfigure the transmitter by swapping sensor cartridges and updating software settings via the internal display board.

Q: What is the primary difference between M25 metric entries and standard NPT conduit entries?

A: The XNX-AMAI-NNCB1 uses M25 metric threaded cable entries standard in ATEX and IECEx regions. Using incorrect NPT adapters without certified thread converters voids the explosion-proof ingress rating and compromises plant safety safety audits.

Q: How frequently should maintenance crews calibrate the integrated CB1 catalytic bead sensor?

A: Field engineers recommend bump testing the catalytic sensor every 3 to 6 months depending on ambient dirt levels. Perform full span calibration using standard calibration test gas bottles once annually or immediately after exposure to high gas surges.

Q: What causes low baseline current loop signals on newly commissioned XNX units?

A: Check for common field installation errors, such as excess voltage drop across long 24VDC supply cables or improper shield wire grounding. Ensure power supply terminal voltage stays above 16VDC under full load conditions when infrared heaters activate.
