Product Overview

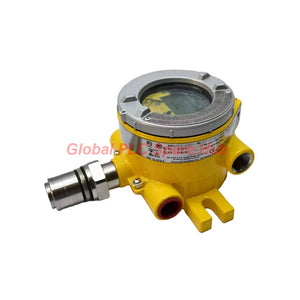

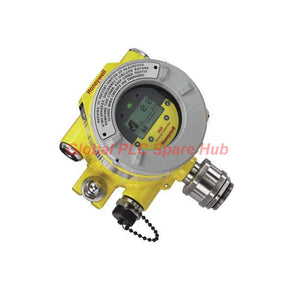

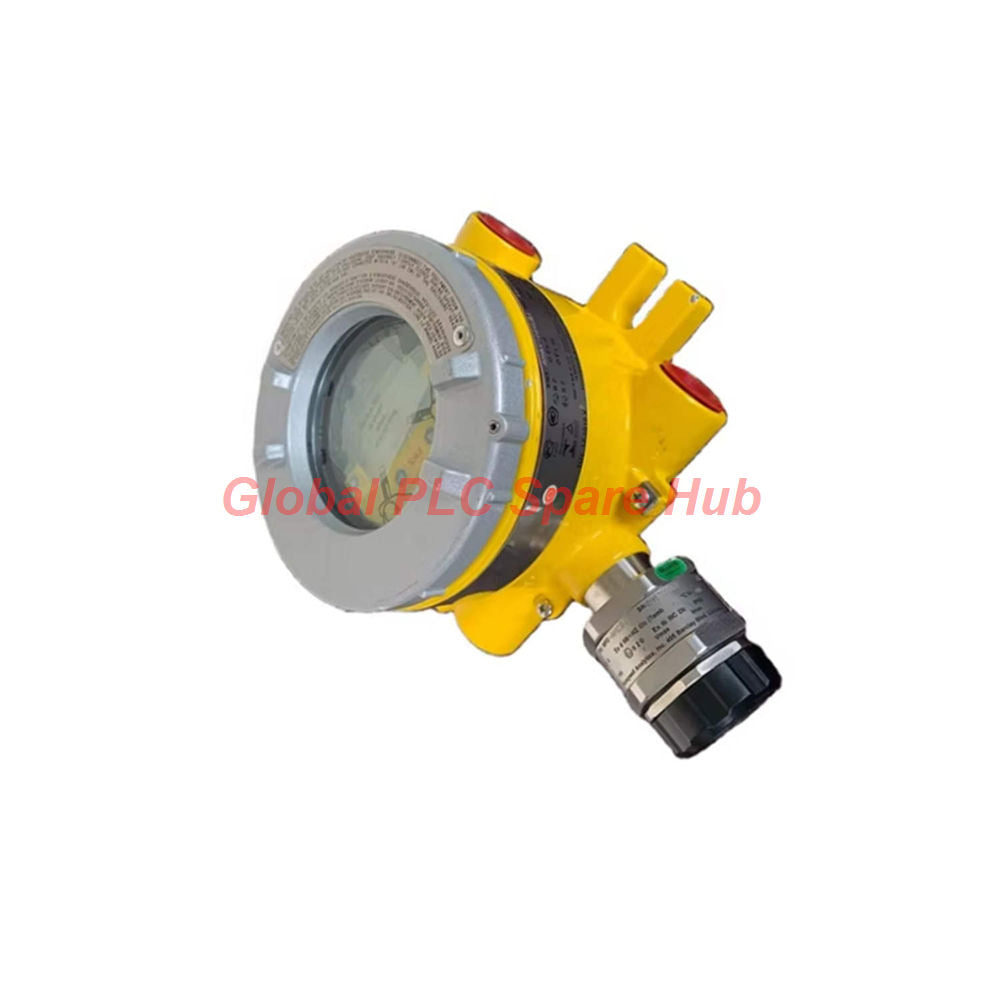

Global PLC Spare HUB's Insight highlights that advanced safety loops demand precision instruments. The Honeywell XNX-AMAI-NHIF1 transmitter provides hazardous area gas monitoring with integrated HART communication. Designed around a robust aluminum housing, this unit handles harsh industrial atmospheres efficiently. Plant engineers rely on its direct infrared sensor interface for combustible gas detection. Furthermore, built-in diagnostic routines ensure reliable loop validation during active plant cycles.

Configuration Breakdown Tree

• Base Series: Honeywell XNX Universal Gas Transmitter
  • Approval: A (ATEX / IEC hazardous area certified)
  • Cable Entry: M (M25 thread entries)
  • Enclosure Material: A (Rugged painted aluminum)
  • Infrared Personality: I (Interface for Searchline Excel, Searchpoint Optima, and 4-20mA inputs)
  • Hardware Options: N (No additional standard option installed)
  • HART Protocol: H (Equipped with Local HART communication module)
  • Sensor Range: IF1 (Infrared Hydrocarbons calibrated for 0 to 100 percent LEL Propane)

Technical Specifications Table

Logistics, Warranty, and Compliance

• Fulfillment Carriers: Secure international shipping managed through FedEx, UPS, and DHL.
• Dispatch Window: Fast processing with orders leaving warehouse within 24 to 48 hours.
• Quality Assurance: Backed by a full 12-month operational warranty.
• Certifications: ATEX and IEC compliant for explosive zone placement.

Compatible Equipment and Application Scenarios

• Compatible Sensors: Searchline Excel open-path detectors, Searchpoint Optima Plus, and standard 4-20mA loop devices.
• Upstream Oil Extraction: Offshore production platforms and wellhead monitoring stations.
• Downstream Refining: Hydrocracker units, compressor sheds, and storage tank farms.
• Chemical Processing: Solvent recovery units and flammable gas distribution lines.

Selection Guide and Model Comparison

When engineering safety loops, selecting between HART and non-HART variants depends on your control architecture. The XNX-AMAI-NHIF1 features local HART communication for remote parameter tracking. For installations lacking digital HART requirements, review the alternative configuration linked below:

• Honeywell XNX-AMAI-NNIF1 Universal Gas Transmitter

Frequently Asked Questions

How does the Local HART feature benefit field technicians?

Local HART communication enables engineers to run diagnostic checks, adjust configuration settings, and pull calibration logs remotely via handheld communicators without opening the enclosure.

What is the primary advantage of choosing the IF1 infrared sensor range?

The IF1 sensor uses optical infrared absorption technology, which resists poisoning in harsh chemical environments where traditional catalytic beads might degrade.

Can the M25 entry ports accommodate standard armored cable glands?

Yes, the dual M25 metric entries accept standard industrial cable glands designed for hazardous area armored cabling.

What field diagnostic steps should be taken if a zero drift occurs?

Field experience shows that minor optical surface dust can cause signal drift; clean the lens carefully and perform a fresh zero calibration using certified span gas.

Why is aluminum chosen over stainless steel for this specific model variant?

Aluminum provides a lightweight yet durable structural enclosure that reduces overall support weight while maintaining high explosion-proof integrity in non-corrosive industrial zones.
