STBDDI3420K Schneider Modicon STB Digital Input Kit | Distributed I/O

System Architecture & Technical Profile

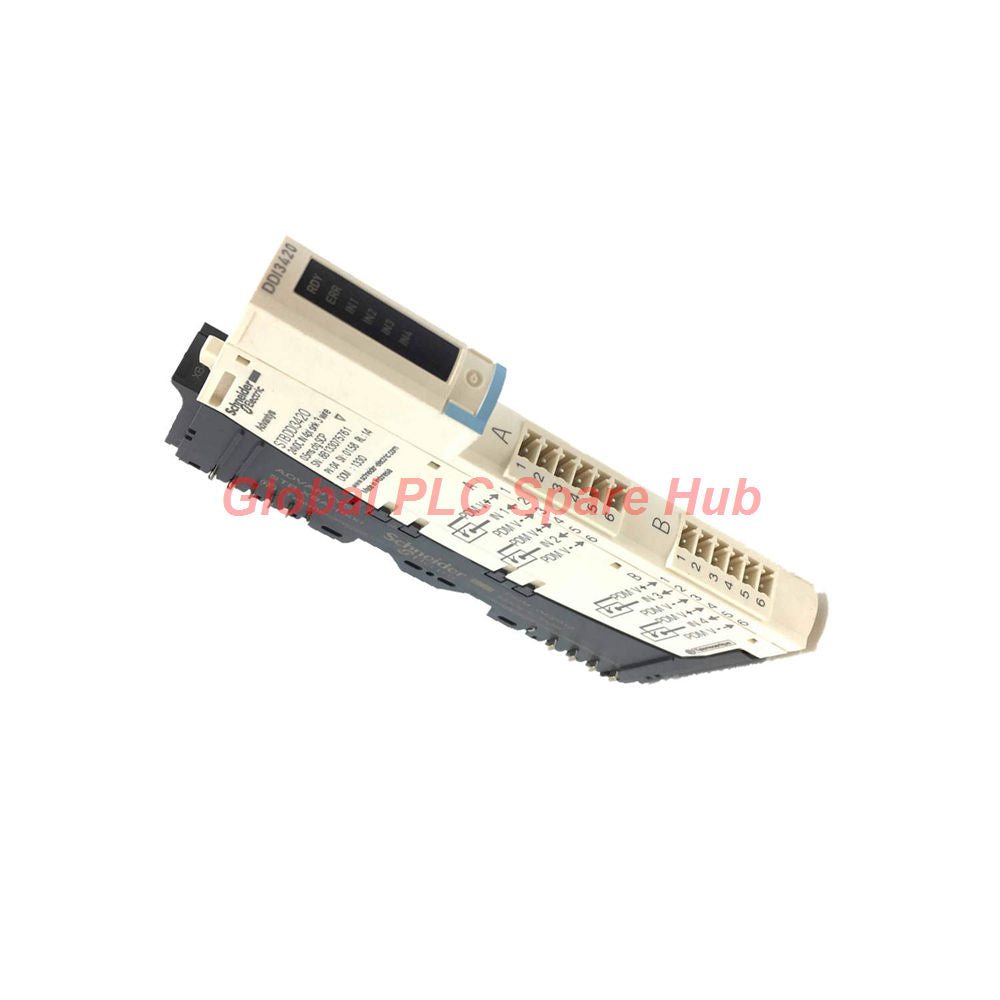

The STBDDI3420K constitutes a comprehensive digital input kit designed for the Modicon STB distributed I/O solution. This all-in-one assembly simplifies procurement and installation by bundling the STBDDI3420 module with the essential STBXBA1000 base and both screw/spring-clamp terminal connectors (STBXTS1100/STBXTS2100). Engineered for 24V DC logic environments, it provides four isolated input channels with programmable filtering, ensuring signal integrity in high-EMI industrial zones.

Technical Specifications & Performance

• Manufacturer: Schneider Electric
• Series: Modicon STB Distributed I/O
• Model: STBDDI3420K
• Inputs: 4 Discrete DC Inputs (Positive/Negative Logic)
• Operating Voltage: 24V DC (11-30V range for State 1)
• Isolation: 1500V dielectric strength between channels and logic bus
• Filtering: Configurable (0.5ms to 16ms) for transient suppression
• Protection: Reverse polarity, resistor-limited inputs, and PDM-integrated fuse
• Environmental: IP20 rated; -25°C to 70°C operating temperature

Global PLC Spare HUB Insight

The STBDDI3420K stands out for its "Hot-Swap" capability, allowing maintenance teams to replace modules without powering down the entire network island—a critical feature for continuous process manufacturing. Our engineering review highlights the robust shock and vibration resistance (30 gn) of this unit, making it an ideal candidate for cabinet-mounted applications in mobile machinery or heavy-vibration stamping environments. It seamlessly integrates with standard NIMs, providing a scalable backbone for decentralized control architectures.

Installation & Maintenance Capabilities

• Modular Design: Base-mounted architecture allows for rapid cold or hot swapping of the internal module.
• Diagnostic Feedback: Dedicated RDY (Green), ERR (Red), and per-channel status LEDs (IN1-IN4) provide immediate visual troubleshooting.
• Flexibility: Includes two connector types, allowing engineers to choose between secure screw terminals or vibration-resistant spring-clamp terminations.
• Compatibility: Perfectly fits the STBPDT3100/3105 power distribution modules for unified power delivery.

Logistics, Warranty, and Expert Support

• Expedited Dispatch: Global shipping options via FedEx, UPS, or DHL with 24-48 hour lead times.
• Performance Assurance: Every kit is backed by a 12-month quality warranty.
• Packaging: Shipped in shock-absorbent, anti-static industrial containers.
• Selection Guide: Verify that your rack is configured for STB island protocols before integrating into existing Modicon networks.

Professional Frequently Asked Questions

Question: Can I use the STBDDI3420K in applications requiring negative logic inputs?

Answer: Yes, the module supports both positive (sink) and negative (source) logic, providing flexibility for various sensor types.

Question: What are the primary indicators for a hardware malfunction?

Answer: An illuminated red ERR LED signals a module error; check for power distribution module (PDM) fuse integrity and logic bus voltage levels (45mA requirement).

Question: Why is the input filtering setting important in a production line?

Answer: Higher filter settings (up to 16ms) are essential to prevent "chatter" or false triggering caused by electrical noise in high-frequency switching environments.

Question: What is the advantage of the hot-swapping feature?

Answer: It allows you to replace a faulty module in an active STB island without interrupting the operation of other healthy modules on the same bus.

Question: Which connectors should I use for high-vibration applications?

Answer: The spring-clamp connector (STBXTS2100) is highly recommended for high-vibration environments, as it maintains constant pressure on the wire, unlike traditional screw-terminals which may loosen over time.
