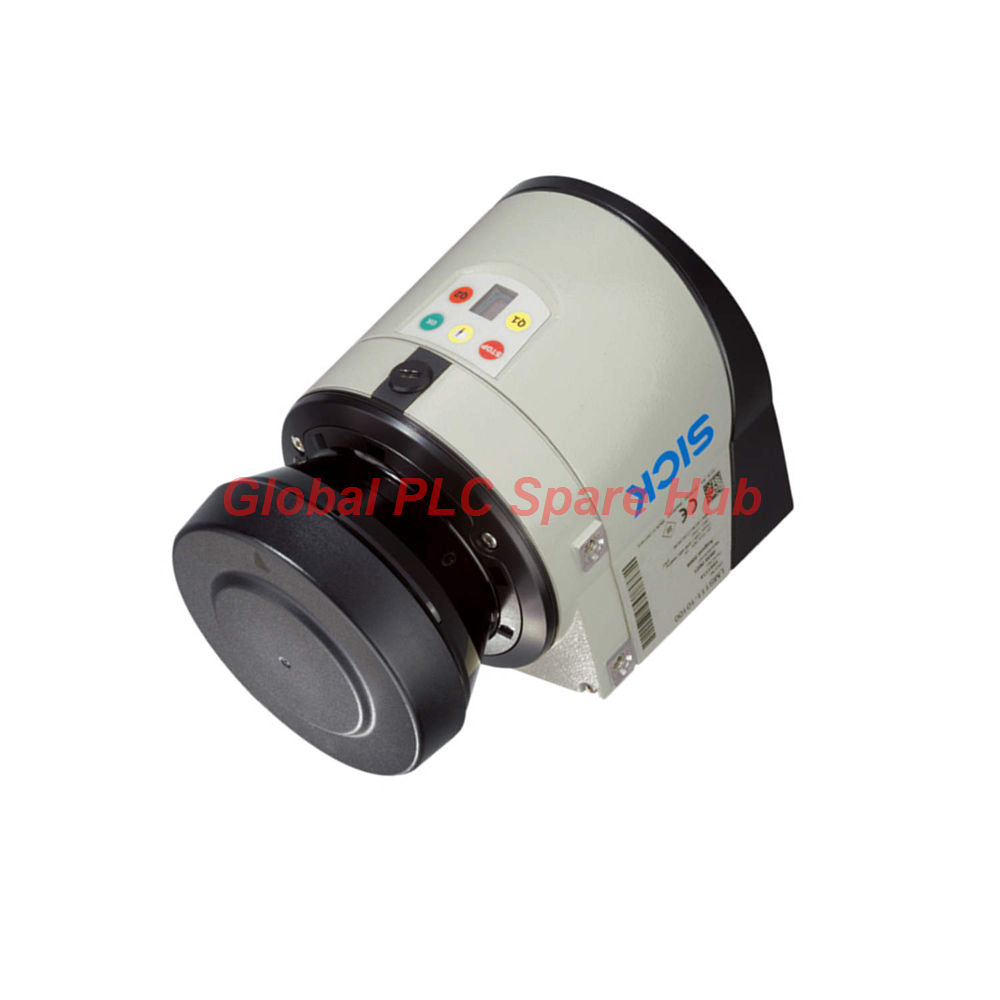

LMS123-10000 SICK 2D LiDAR Sensors LMS1xx Series | Get Quote

Global PLC Spare HUB's Insight

Precision perimeter protection and high-speed volume measurement require exceptional angular resolution and robust fog-correction algorithms. Based on our engineering telemetry reviews at Global PLC Spare HUB, deploying the SICK LMS123-10000 from the LMS1xx product family guarantees reliable optical detection across complex industrial layouts. During a recent multi-zone automated warehouse security retrofit, integrating this 2D LiDAR sensor successfully eliminated false tripping triggered by airborne dust particles, ensuring steady field evaluation and precise 2D position tracking without interrupting automated guided vehicle (AGV) flow.

Technical Architecture & Specifications Matrix

Engineering Deployment Guidelines

• Mount the LMS123-10000 securely using designated fixing points to prevent mechanical shifting in high-vibration zones.
• Ensure the 905 nm infrared optical window remains clean and unobstructed to maintain optimal 40,000 lx ambient light immunity.
• Connect the system plug securely to a stable 9V to 30V DC power source while verifying correct polarity.
• Utilize Easy Teach lite or pro software interfaces to configure up to 10 simultaneous field sets for area monitoring.

Built-in Diagnostics & Operational Health Checks

• Features an integrated 7-segment display paired with 5 status LEDs for instant visual verification of device readiness and contamination levels.
• Supports remote diagnostic data output via the built-in Ethernet TCP/IP interface for real-time error logging and monitoring.
• Performs automated internal checks to flag optical degradation or structural occlusion before safety margins are compromised.

Target Equipment & Industrial Application Sectors

• Automated perimeter intrusion detection for high-value industrial buildings and infrastructure yards.
• Navigation, collision avoidance, and position mapping for warehouse mobile robots and logistics vehicles.
• Volume measurement and level tracking inside automated material handling silos.
• Indoor security zoning and area surveillance for automated manufacturing cells.

Commercial Logistics & Quality Guarantee

• Express Global Fulfillment: Fast and dependable dispatch via FedEx, UPS, and DHL.
• Processing Turnaround: Stocked inventory packed and shipped within 24 to 48 hours.
• Contractual Protection: Backed by a comprehensive 12-month quality warranty from date of purchase.

Frequently Asked Questions

Q: What makes the LMS123-10000 effective in outdoor or dusty indoor environments?

A: It features built-in fog correction technology and evaluates dual echoes, allowing the unit to filter out airborne moisture or dust particles for accurate target detection.

Q: Can this 2D LiDAR sensor be used as a primary safety component for machinery guarding?

A: No, this specific model is designed for standard security and measurement applications and does not constitute a certified safety component under relevant machine safety legislation.

Q: What steps should I take if the contamination warning LED activates on the device?

A: Carefully wipe the optical glass cover with a soft, non-abrasive lint-free cloth and mild cleaning solution to restore optimal laser transmission.

Q: How do I choose between setting the scanning frequency to 25 Hz or 50 Hz?

A: Use 25 Hz for standard resolution scanning over larger profiles, and switch to 50 Hz when tracking fast-moving objects where rapid response time (≥ 20 ms) is critical.

Q: Is network configuration difficult when integrating this sensor into an existing PLC architecture?

A: Not at all; the standard Ethernet TCP/IP interface allows straightforward IP addressing and parameterization using SICK configuration software.
