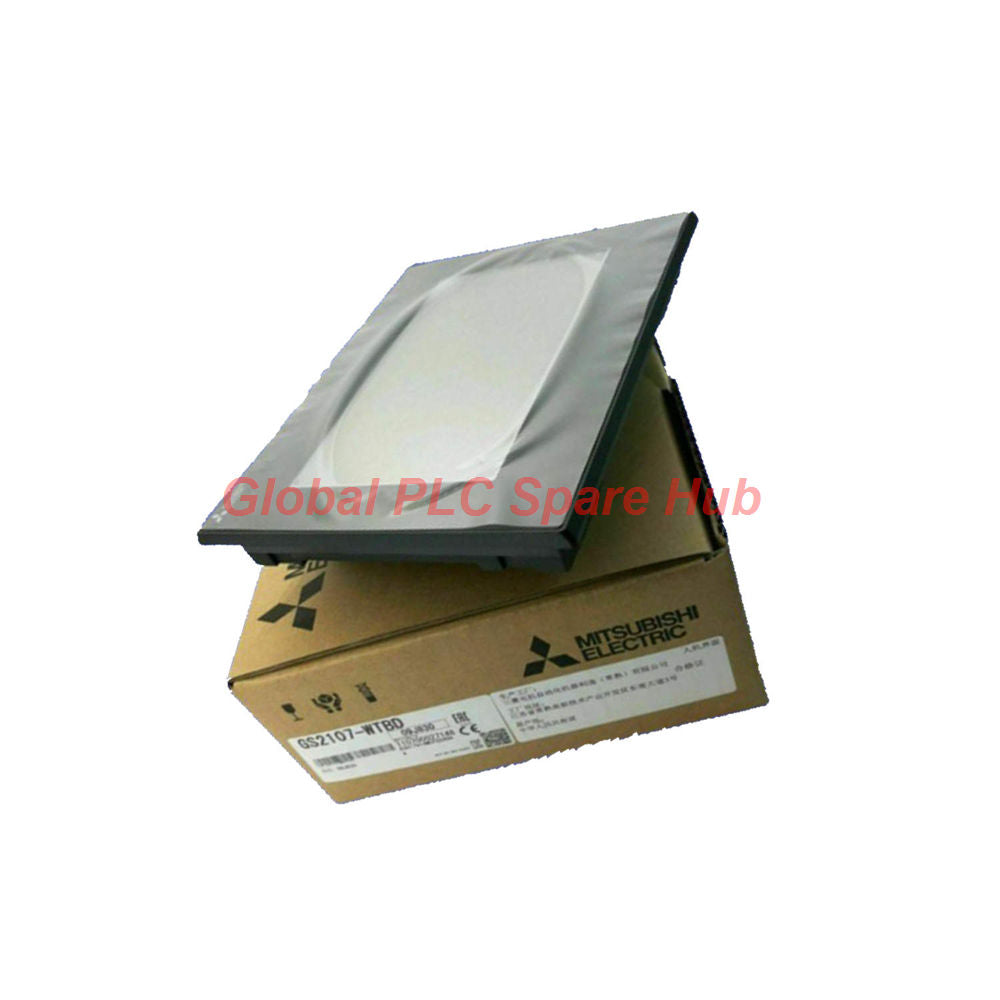

GS2107-WTBD Mitsubishi GOT2000 Series 7-Inch TFT Touchscreen HMI Display

Global PLC Spare HUB's Insight

Industrial control operators frequently encounter visibility and communication bottlenecks when upgrading legacy operator interfaces on compact machine frames. Drawing from our hands-on control panel retrofit experience, the Mitsubishi GS2107-WTBD graphic operation terminal from the GOT2000 GOT Simple Series delivers crisp data visualization through its vibrant 7-inch TFT touchscreen. Featuring robust built-in Ethernet, serial, and SD card communication ports, it ensures seamless integration with diverse industrial controllers while maintaining a protected IP67 front face against harsh factory conditions.

Core Architecture & Technical Matrix

• Brand & Model: Mitsubishi GS2107-WTBD
• Series & Type: GOT2000 / GS21 Series (GOT Simple) / HMI Display Unit
• Display Specifications: 7-inch TFT color LCD, 800 x 480 pixel resolution, 65,536 colors, analog resistive touch panel
• Display Dimensions & Area: 206 × 155 × 50 mm physical dimensions; 154 × 85.9 mm active display area
• Electrical Ratings: 24V DC supply voltage, 6.5W maximum power consumption
• Memory & Storage: 9 MB internal Flash ROM memory, integrated SD card slot
• Connectivity Interfaces: Ethernet, RS-422, RS-232, USB host/device, and SD card slots
• Physical & Environmental: Approx. 0.68 kg to 0.9 kg weight, flush mounting mode, IP67 enclosure protection rating on the front panel

Installation & Panel Mounting Guidance

• Cut the panel opening precisely according to the GOT Simple template specifications to ensure proper gasket compression.
• Secure the GS2107-WTBD unit into the flush panel cutout using the provided mounting brackets, tightening evenly to maintain the IP67 seal.
• Connect the 24V DC power supply securely to the terminal block, verifying polarity before energizing.
• Route communication cables (Ethernet and serial) away from high-voltage motor lines to prevent electromagnetic signal interference.

Operational Diagnostics & Maintenance Protocols

• Utilize the integrated system menu and diagnostic error logs to quickly isolate communication timeouts with connected PLCs.
• Monitor the non-replaceable LED backlight status and internal memory capacity thresholds via configuration software tools.
• Clean the analog resistive touch film periodically with a soft, lint-free cloth dampened with isopropyl alcohol to maintain touch responsiveness.

Equipment Compatibility & Application Scenarios

• Mitsubishi MELSEC series programmable logic controllers (PLCs) and micro-automation architectures.
• Compact packaging machines, textile processing equipment, and automated material handling workstations.
• Water treatment skid units and factory floor process monitoring dashboards requiring reliable HMI visualization.

Logistics & Quality Assurance

• Dispatched rapidly via secure courier networks including FedEx, UPS, and DHL within 24 to 48 hours.
• Packaged securely in industrial-grade antistatic and shock-absorbent material to prevent transit damage.
• Backed by a comprehensive 12-month operational warranty covering manufacturing and electronic defects.

Frequently Asked Questions

Question: Can project screens be transferred to the GS2107-WTBD using a standard USB flash drive?

Answer: Yes, project data compiled via GT Works3 software can be loaded directly onto the terminal via its built-in USB port or an inserted SD card.

Question: What software package is required to program this specific HMI model?

Answer: The terminal is configured using Mitsubishi's GT Works3 engineering software environment, which supports the GOT Simple series architecture.

Question: How does the analog resistive touch panel behave in high-humidity factory floors?

Answer: The resistive film technology allows operators to interact with the screen accurately even while wearing industrial gloves or when moisture droplets are present on the surface.

Question: What troubleshooting steps should I take if the display powers on but fails to communicate with the PLC?

Answer: Verify that the communication protocol parameters match between GT Works3 and the PLC, check cable pinouts for RS-422/Ethernet, and confirm network IP addressing.

Question: Is the LED backlight replaceable if it eventually reaches the end of its operational lifespan?

Answer: No, the LED backlight is integrated directly into the display module assembly and is non-replaceable by the user.

Expert Buying Guide

• Confirm your control panel cutout dimensions match the physical mounting profile of the 7-inch GS21 series before cutting metal.
• Ensure your PLC control architecture supports the built-in Ethernet or serial communication drivers available in GT Works3 for this model.
• Evaluate your project data storage requirements to ensure the 9 MB internal ROM capacity is sufficient for your screen layouts and recipes.
