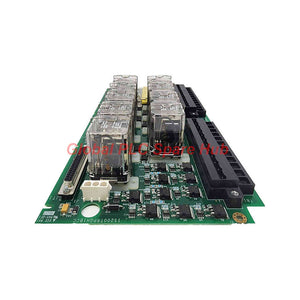

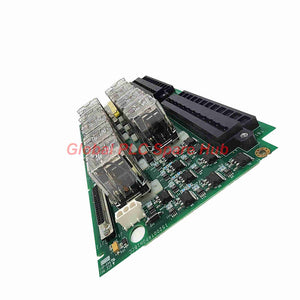

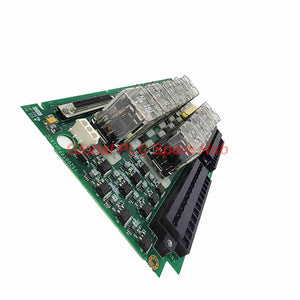

GE Mark VIe IS200TRPGH1B Primary Trip Terminal Board

Product Overview

The IS200TRPGH1B is a high-performance Primary Trip Terminal Board (TRPG) engineered by General Electric (GE) for the Mark VIe control platform. This module serves as the critical interface for executing turbine trip sequences by controlling main Trip Solenoid Valves (TSVs). It ensures maximum system availability through sophisticated voting logic and robust hardware architecture designed for demanding industrial environments.

Technical Specifications

• Brand: General Electric (GE)
• Part Number: IS200TRPGH1B
• Series: Mark VIe
• Module Type: Primary Trip Terminal Board
• Relay Configuration: 9 safety relays (3 channels) for TMR voting
• Voting Logic: Native 2-out-of-3 (2oo3) hardware-based redundancy
• Temperature Range: -20°C to +70°C operating environment
• Environmental Tolerance: High vibration and thermal shock resistance
• Signal Isolation: Galvanic separation between low-voltage logic and high-power solenoid loops
• EMI/RFI Immunity: Shielded architecture for superior noise rejection
• Certification: Built to international industrial safety standards

Installation, Maintenance, and Compatibility

• Installation: Designed for standard rack mounting with pluggable terminal block architecture.
• Maintenance: Barrier-style terminal strips allow rapid board replacement without re-wiring field cables.
• Compatibility: Fully compatible with Mark VIe I/O packs such as PTUR or PPRO.
• Diagnostics: Onboard helper contacts provide continuous health status feedback to diagnostic I/O packs.
• Error Handling: Instant flag generation for any relay failure during test sequences.

Global PLC Spare HUB Insight

The IS200TRPGH1B represents a vital safety component for mission-critical turbine management. In our assessment at Global PLC Spare HUB, this board excels in high-power applications where reliability is non-negotiable. It effectively bridges the gap between digital control commands and high-current physical turbine shutdowns. This module is ideal for operators managing large-scale gas, steam, and hydro turbine assets who require native hardware-based voting logic to prevent false trips.

Application Scenarios

• Primary turbine protection loops for gas and steam power generation.
• Emergency shutdown systems requiring high-power solenoid valve control.
• Triple Modular Redundant (TMR) control environments demanding high safety integrity.
• Industrial setups where manual wiring errors must be minimized via modular connectivity.

Shipping and Warranty

• Dispatch Time: Guaranteed 24-48 hour processing for all orders.
• Global Logistics: Secure delivery via FedEx, UPS, and DHL.
• Warranty: All units include a comprehensive 12-month quality assurance warranty.

Frequently Asked Questions

Can the IS200TRPGH1B be used in Simplex configurations?
Yes, the board supports both Simplex and TMR system architectures for maximum flexibility.

How does the board improve maintenance efficiency?
The pluggable barrier terminal blocks allow technicians to swap boards without disturbing complex field wiring.

What is the primary benefit of the 2oo3 voting logic?
It ensures that a single relay failure will not trigger an unnecessary shutdown or prevent a required trip.

Should I replace the fuses during routine maintenance?
Yes, we recommend checking the onboard fuses annually to ensure peak electrical protection.

Purchasing Guidance

• Verify your existing system revision to ensure seamless integration with the Mark VIe series.
• Confirm that your I/O pack firmware supports the specific relay voting configuration of the IS200TRPGH1B.
• Contact our technical support team at Global PLC Spare HUB if you require assistance with installation parameters or legacy system migration.
