GE IS200VVIBH1CAB Vibration Monitor Module for Mark VI Systems

Engineering Overview

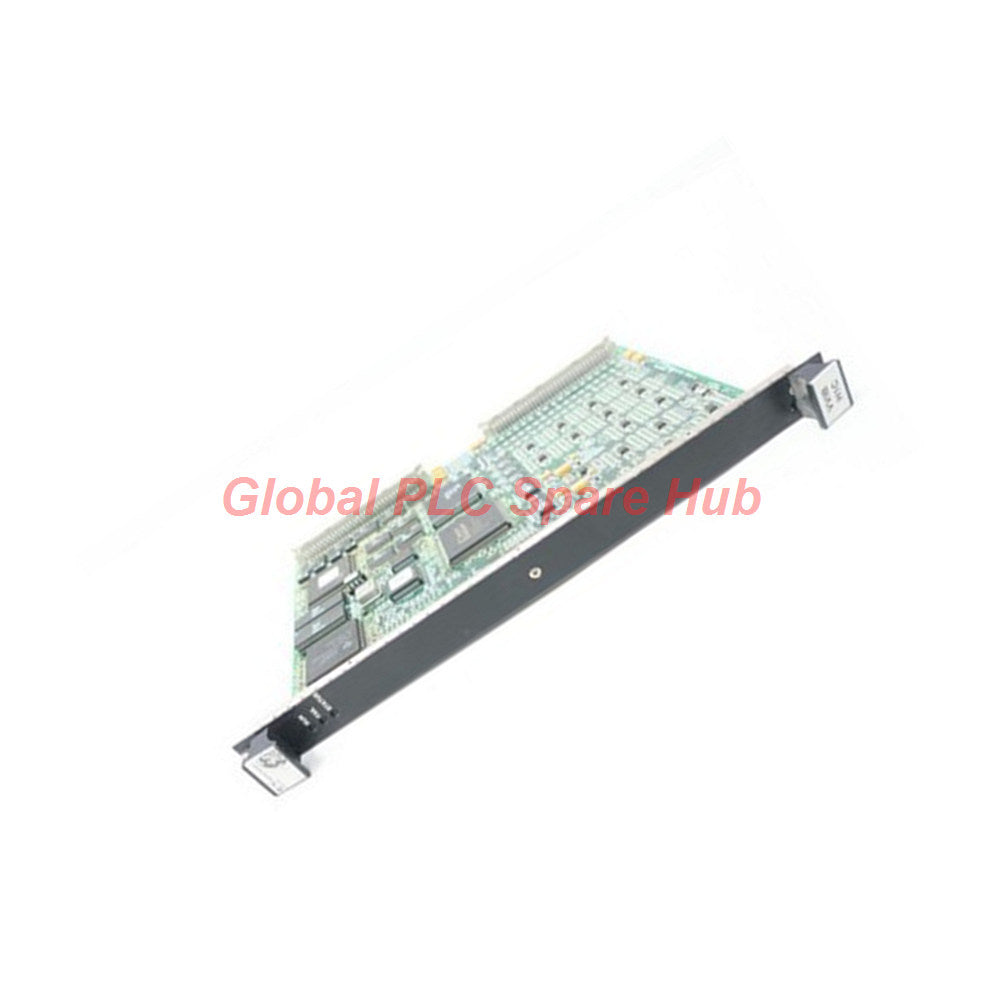

The IS200VVIBH1CAB acts as the high-speed processing engine for the Mark VI Speedtronic turbine control platform. Designed to interface directly with TVIB and DVIB terminal boards, this VME module digitizes complex analog data from up to 14 vibration probes. By leveraging 16-bit A/D conversion and robust VME bus communication, it provides the central controller with real-time, distortion-free insights into rotor dynamics, bearing health, and structural integrity.

Technical Performance Specs

• Model/Series: IS200VVIBH1CAB / Mark VI Speedtronic
• Primary Function: VME-based vibration signal processing and digitization
• Sampling Resolution: 16-bit A/D (14-bit effective)
• Sampling Rates: 4,600 sps (fast scan); 2,586 sps (standard)
• Probe Compatibility: Proximity, Velocity, Acceleration, Seismic, and Phase probes
• Buffered Output Accuracy: 0.1% amplitude precision for Bently Nevada 3500 integration
• Physical Dimensions: 33.0 cm x 17.8 cm
• Protective Coating: Conformal PCB finish for harsh environmental resilience

Diagnostic & Operational Capabilities

• Dynamic Monitoring: Tracks peak-to-peak radial shaft displacement, axial position, and differential expansion in real-time.
• Synchronized Acquisition: Simultaneous input sampling within 160 ms windows ensures precise phase relationship measurements between multiple sensors.
• Signal Integrity: Onboard voltage regulation steps down -28VDC bus power to a stable -24VDC for probe excitation with integrated current limiting.
• Advanced Logic: Utilizes Xilinx Spartan FPGAs to facilitate complex data extraction from rotational dynamics.

Logistics and Support

• Warranty: 12-month full performance guarantee.
• Global Logistics: Expedited dispatch via FedEx, UPS, and DHL.
• Lead Time: Rapid order processing within 24–48 hours.
• Transit Safety: Anti-static, industrial-grade packaging to preserve electronic component integrity.

Expert FAQ

How does the board handle signal degradation during turbine overspeed conditions?
The IS200VVIBH1CAB utilizes high-speed digital conversion at the source, which inherently eliminates the signal loss issues common in legacy long-run analog cabling.

Is there a specific configuration required for low-speed turning gear operations?
Yes, the board logic dynamically adjusts sampling rates and eccentricity calculation windows based on detected RPM, ensuring accurate monitoring even below 4,000 RPM.

What is the recommended procedure for validating buffered output accuracy?
Inject a known 0.1% precision signal into the probe input and verify the amplitude at the Bently Nevada buffered output terminals to ensure calibration integrity.

Can I mix different probe types (e.g., Seismic and Proximity) on the same board?
The board supports diverse probe types simultaneously; however, ensure channel allocation adheres to the RPM-based capacity limits described in the GEH-6421 system guide.

What does a "Revision C" designation signify for this specific board?
This indicates the board’s evolutionary hardware iteration, optimizing field-programmable gate array (FPGA) performance and noise immunity over original 'A' or 'B' versions.

Global PLC Spare HUB's Insight

At Global PLC Spare HUB, we view the IS200VVIBH1CAB as a critical reliability asset for TMR-based turbine management. This module is essential for facilities utilizing Bently Nevada systems for predictive maintenance. It is highly recommended for power generation sites where mechanical resonance or shaft bow risks are non-trivial. Its ability to provide diagnostic transparency into turbine foundations makes it a cornerstone of modern predictive maintenance strategies.

Selection Guide

• Check RPM Thresholds: If your turbine rated speed is below 4,000 RPM, you gain higher channel density; plan your layout accordingly.
• Verify Terminal Compatibility: Ensure your existing terminal boards (TVIB/DVIB) are compatible with this revision level before field integration.
• Load Planning: Account for the 12mA per-transducer load when calculating total power demand on your excitation bus.
