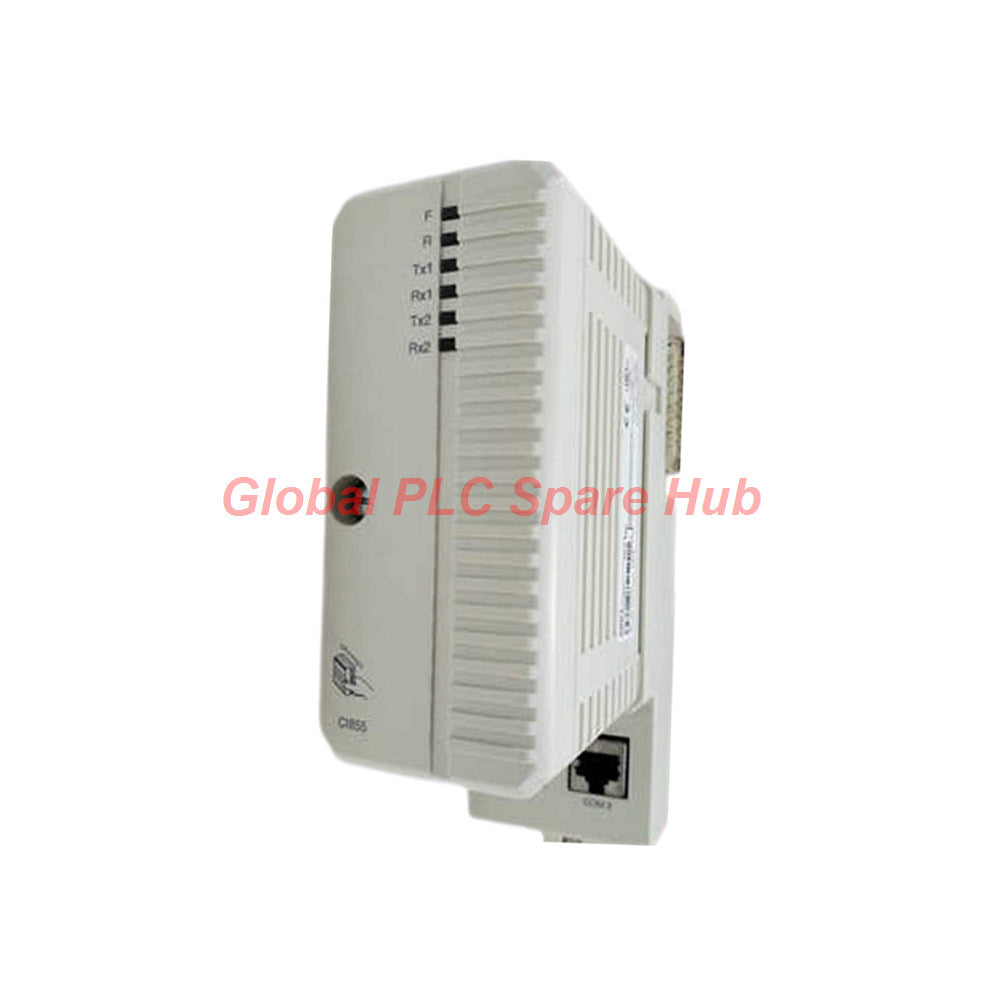

CI858 ABB DriveBus Protocol Communication Unit Controller Module

Global PLC Spare HUB's Insight

Rolling mill drive systems and high-speed paper manufacturing lines demand ultra-precise deterministic control and high-speed communication between controllers and heavy-duty drives. Drawing from our hands-on industrial automation deployment experience, the ABB CI858 DriveBus communication interface unit (Article Number: 3BSE018135R1) from the AC 800M controller ecosystem establishes robust 8 Mbit/s optical transmission links. By supporting up to 24 ABB drives per module via NDBU branching units and featuring G3 corrosion compliance, it solves complex multi-motor coordination challenges in corrosive and severe industrial environments.

Core Architecture & Technical Matrix

• Brand & Manufacturer: ABB (Article Number: 3BSE018135R1)
• Model & Protocol: CI858 / DriveBus Communication Protocol
• Controller Compatibility: ABB AC 800M controller (Max 2 units per controller via CEX-Bus)
• Drive Capacity: Up to 24 ABB drives per CI858 module (utilizing NDBU star-topology branching units)
• Transmission Speed: 8 Mbit/s optical communication
• Power Requirements: Powered internally via CEX-Bus processor unit (~200 mA typical 24V consumption)
• Environmental & Chemical Protection: +5°C to +55°C operating temperature, G3 harsh environment corrosion protection compliant to ISA 71.04, IP20 enclosure rating
• Physical Footprint & Weight: 59 × 185 × 127.5 mm dimensions, 700 g weight (including base)
• Global Compliance & Marine Approvals: CE marked, RoHS and WEEE compliant, plus ABS, BV, DNV-GL, and LR marine certifications

Installation & Optical Wiring Guidance

• Mount the CI858 module securely onto the CEX-Bus backplane connection adjacent to the AC 800M controller processor unit.
• Verify that internal power is supplied directly through the CEX-Bus, eliminating the need for external terminal power wiring.
• Connect optical fiber cables from the module's optical port to NDBU branching units, ensuring correct star-topology routing and preventing tight radius bends that could attenuate 8 Mbit/s signals.
• Confirm that no more than 24 drives are mapped per module loop to prevent communication bus congestion.

Operational Diagnostics & Maintenance Protocols

• Monitor optical link status LEDs on the module front face to instantly verify fiber-optic continuity and frame transmission integrity.
• Utilize AC 800M system diagnostic tools to track DriveBus traffic errors, node response times, and dropped packet logs during active production.
• Inspect G3 corrosion-rated conformal coating during scheduled cabinet overhauls when operating in sulfur-rich paper or metal processing mills.

Equipment Compatibility & Application Scenarios

• ABB AC 800M modular control systems deployed in heavy process industries.
• Sectional drive applications in rolling mills, metal processing lines, and tension control machinery.
• High-speed paper machine drives and winding control architectures requiring synchronized multi-motor coordination.

Logistics & Quality Assurance

• Dispatched rapidly via trusted global couriers including FedEx, UPS, and DHL within 24 to 48 hours.
• Packed securely in industrial antistatic and shock-proof packaging to protect sensitive optical components.
• Backed by a comprehensive 12-month operational warranty covering manufacturing and electronic defects.

Frequently Asked Questions

Question: Does the CI858 module require an external 24V power supply terminal connection?

Answer: No, the module draws its operating power (~200 mA typical) directly from the controller processor unit via the CEX-Bus backplane.

Question: How do you expand the connection limit beyond a single drive on the DriveBus loop?

Answer: You must use NDBU branching units, which allow you to construct a logical bus with a physical star topology supporting up to 24 drives per CI858 interface.

Question: What preventative maintenance is recommended for optical connectors in dusty paper mills?

Answer: Regularly clean optical fiber tips with specialized lint-free isopropyl alcohol wipes before insertion to prevent dust accumulation from degrading the 8 Mbit/s optical signal.

Question: Can the CI858 module be inserted or replaced while the AC 800M controller rack is powered on?

Answer: Yes, the module supports Hot Swap functionality, allowing replacement on the CEX-Bus without shutting down the entire controller rack, provided system configuration permits.

Question: What does the G3 corrosion protection compliance signify for this module?

Answer: G3 compliance per ISA 71.04 means the circuitry is ruggedized against severe corrosive airborne contaminants typically found in pulp, paper, and chemical processing facilities.

Expert Buying Guide

• Confirm your AC 800M controller configuration has available CEX-Bus slots, keeping in mind a maximum limit of 2 CI858 modules per controller.
• Verify your drive inventory utilizes native DriveBus communication cards compatible with the 8 Mbit/s optical protocol.
• Ensure NDBU branching units are accounted for in your bill of materials if connecting multiple sectional drives to a single interface module.
