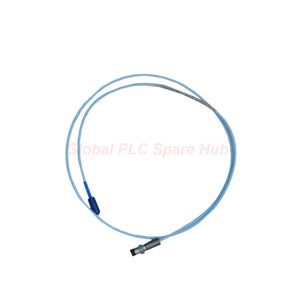

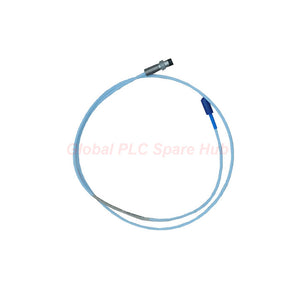

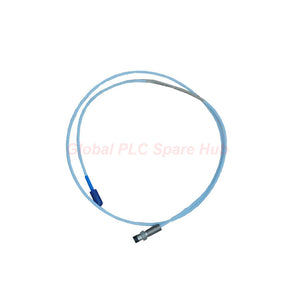

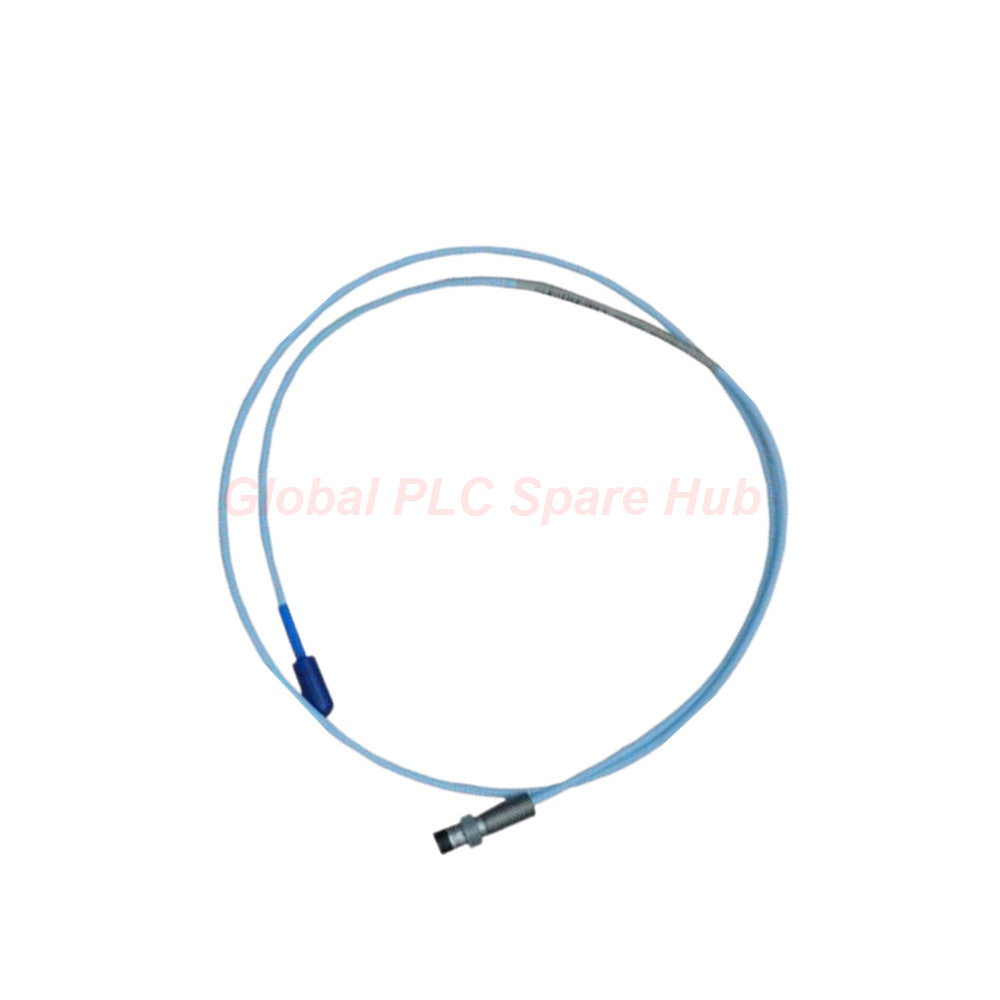

Bently Nevada 330171-00-12-50-02-05 3300 5mm Proximity Probe

Product Introduction

The Bently Nevada 330171-00-12-50-02-05 belongs to the advanced 3300 5mm Series proximity transducer system. It delivers precise vibration and position monitoring for critical industrial machinery. Engineers trust this sensor for high-reliability rotating equipment protection.

Technical Specifications

Installation Guidelines

• Drill and tap mounting holes using a #3 or larger tap drill.
• Thread the 1/4-28 UNF probe case carefully into the target housing.
• Limit maximum thread engagement depth to 0.375 inches.
• Apply recommended probe case torque of 5.1 N·m (45 in·lb).
• Never exceed the maximum torque limit of 7.3 N·m (65 in·lb).
• Maintain a minimum cable bend radius of 25.4 mm (1.0 inch).

Debugging & Maintenance Convenience

• Check DC resistance from center to outer conductor for fault tracing.
• Verify standard 7.45 ohms resistance value during routine checks.
• Inspect ClickLoc connectors regularly for secure mechanical lock.
• Monitor power supply voltage to prevent linear range reduction.

Compatibility Information

• Engineered for seamless integration with standard 3300 Series Proximitor sensors.
• Matches standard 75-ohm triaxial extension cables perfectly.
• Works reliably with standard AISI 4140 steel machinery targets.

Certification Information

• Features multiple global hazardous area approvals.
• Complies with EPL Ga, Gc, and Dc safety classifications.
• Supports wide ambient temperature schedules up to +232°C.

Package List & 12-Month Warranty

• One 330171-00-12-50-02-05 Proximity Probe unit.
• Factory calibration and compliance documentation.
• Backed by a comprehensive 12-month quality warranty.

Shipping & Logistics Support

• Fast dispatch within 24 to 48 hours globally.
• Reliable courier delivery via FedEx, UPS, and DHL.
• Secure industrial packaging ensures safe transit arrival.

Typical Application Scenarios & Diagnostic Capabilities

• Measures shaft radial vibration in large industrial turbines.
• Monitors axial thrust position in heavy centrifugal compressors.
• Detects rotor unbalance and misalignment in gearboxes.
• Aids vibration analysts in early bearing wear diagnosis.

Global PLC Spare HUB's Insight

Field experience shows that proper probe gapping prevents signal clipping during high-speed machinery startup. Always verify cable routing away from high-voltage motor lines to eliminate electromagnetic noise interference in demanding plant environments.

Frequently Asked Questions

Q: What causes premature pressure seal failure in this probe?

A: Exposing the probe tip below –34°C (-30°F) damages internal pressure seal integrity.

Q: Can I use extension cables of different lengths?

A: Always match system calibration lengths to maintain precise measurement accuracy.

Q: How do I select the right thread size for installation?

A: Use a 1/4-28 UNF tap drill as specified in mechanical guidelines.

Q: What is the best buying guidance for replacement sensors?

A: Verify cable length options, thread specs, and hazardous area approvals before ordering.
