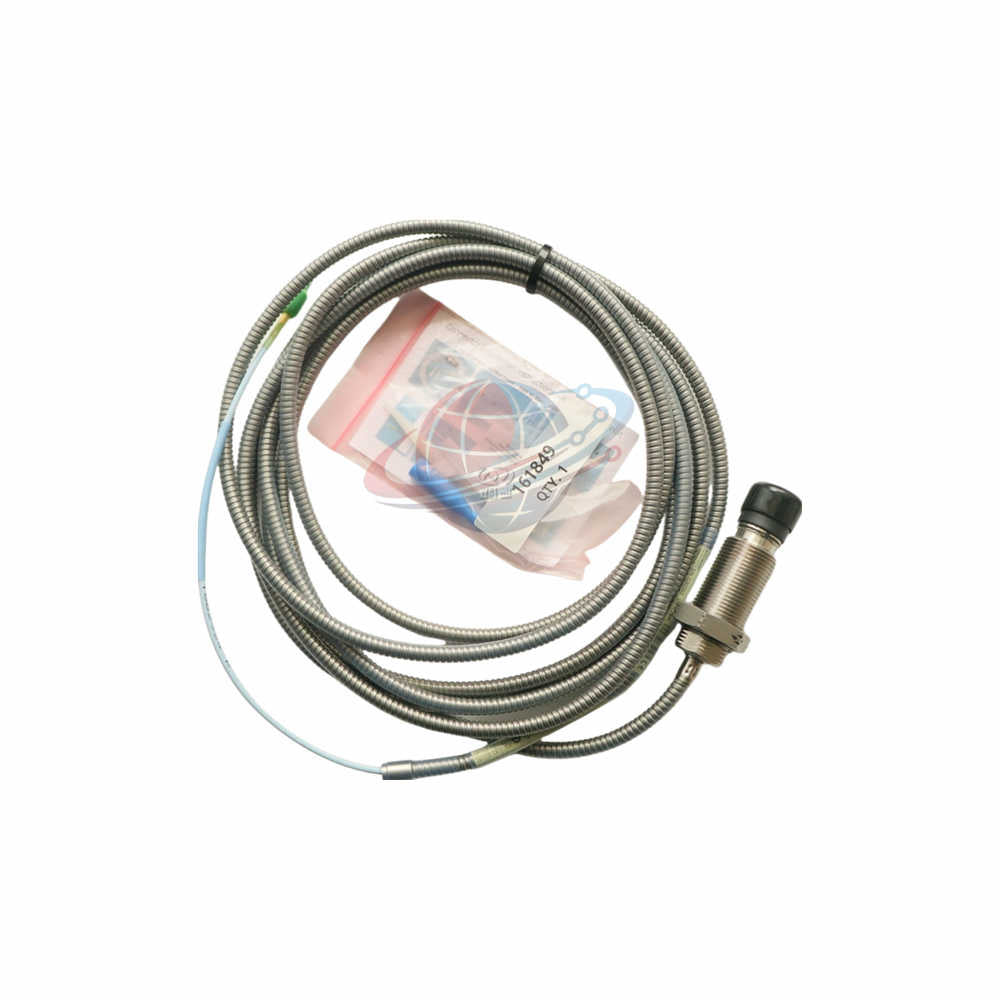

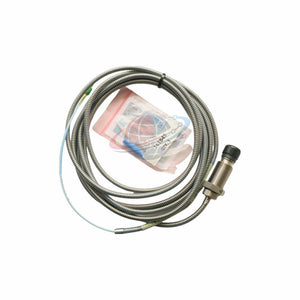

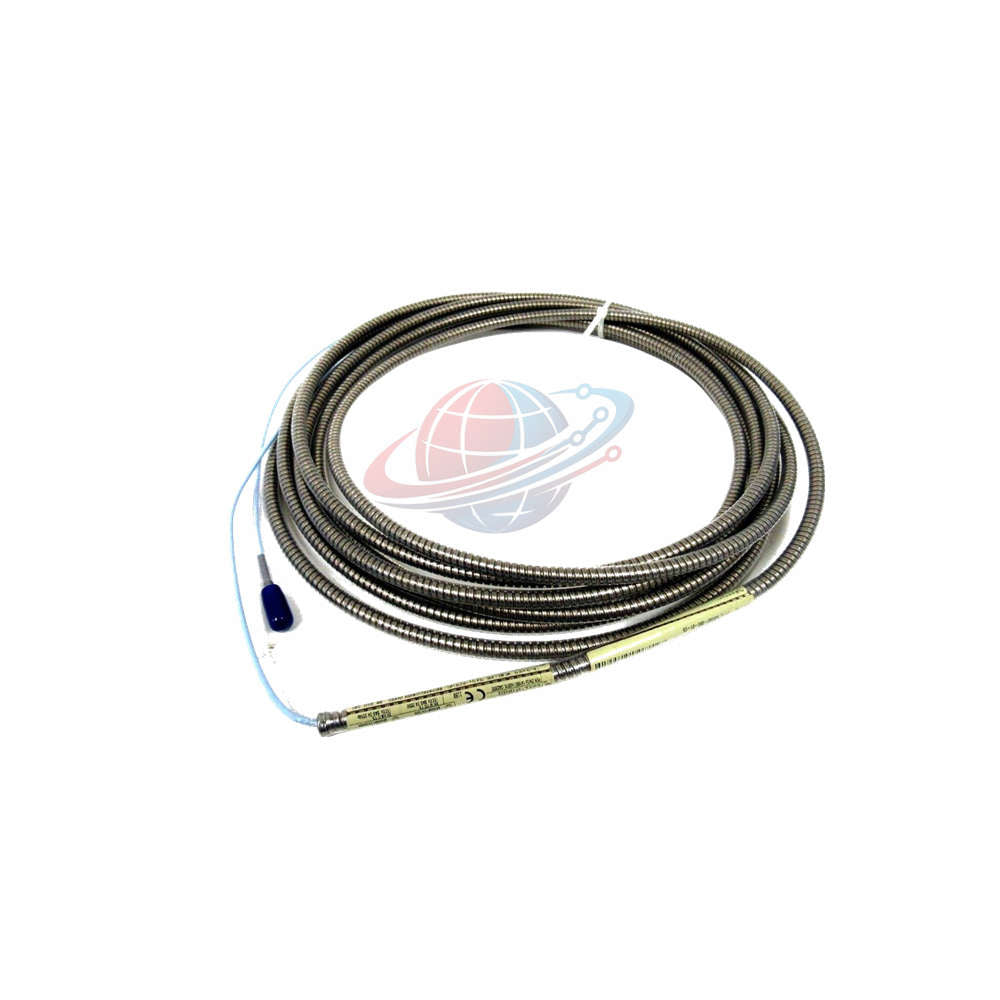

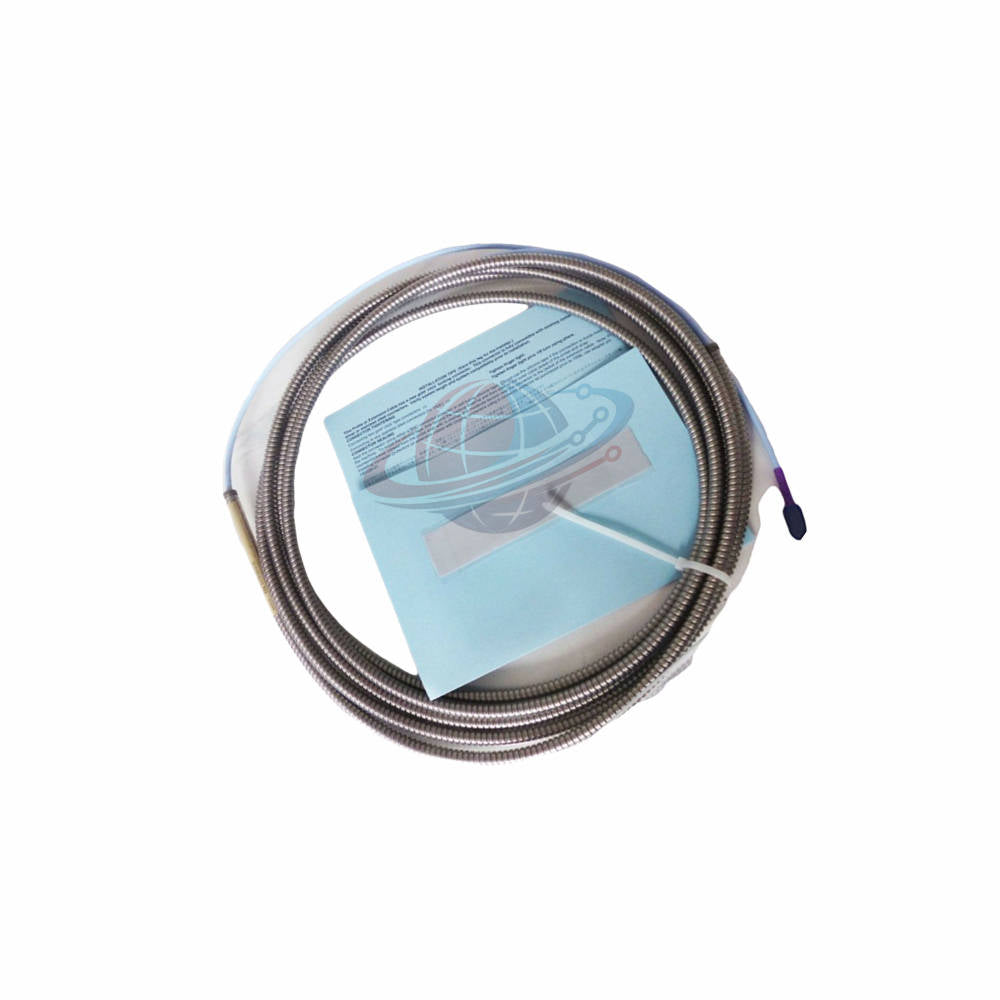

330930-065-04-00 Bently Nevada 3300 NSv Extension Cable 6.5m Armored Module

Product Overview

The 330930-065-04-00 is a premium 3300 NSv extension cable engineered by Bently Nevada. This 3300 NSv Extension Cable connects proximity probes to Proximitor sensors in high-precision vibration monitoring systems. Manufactured in the U.S.A., it delivers robust signal transmission in demanding industrial environments.

Technical Specifications

• Brand: Bently Nevada
• Product Number: 330930-065-04-00
• Product Type: 3300 NSv Extension Cable
• Measurement Range: 1.5 mm (60 mils) linear range from 0.25 to 1.75 mm
• Frequency Response: Dependent on field wiring length and signal rolloff parameters
• Sensitivity: Standard for 3300 NSv proximity transducer systems
• Linearity: Highly linear output spanning -1 to -13 Vdc
• Resolution: High-resolution gap measurement for vibration analysis
• Temperature Range: -51°C to +177°C (-60°F to +351°F) operational limits
• Environmental Tolerance: Resistant to harsh industrial elements via FEP jacket and armor
• Interference Immunity: 75-ohm coaxial design with shielded triad cable compatibility
• Shipping Weight: 1.5 Kg

Configuration Breakdown

• Cable Length Option (065): 6.5 meters (21.3 feet) total length
• Connector and Cable Option (04): Stainless steel armor with FEP jacket and connector protectors
• Agency Approval Option (00): Standard configuration with no hazardous location approvals required

Installation Guidelines

• Ensure the extension cable length plus probe length equals the total Proximitor sensor length requirement.
• Use a maximum field wiring length of 305 meters (1,000 feet) between sensor and monitor.
• Deploy three-conductor shielded triad cable for optimal noise rejection.
• Utilize 0.2 to 1.5 square millimeters (16 to 24 AWG) field wiring, or 0.25 to 0.75 square millimeters with ferrules.
• Maintain the recommended gap setting of 1.0 mm (40 mils) during initial setup.

Commissioning, Maintenance, and Compatibility

• Verify dc resistance values (0.220 Ω/m for center conductor, 0.066 Ω/m for shield) before startup.
• Inspect gold-plated brass connectors routinely for oxidation or physical wear.
• Compatible with standard 3300 NSv Proximitor sensors and monitoring systems.

Certifications, Shipping, and Warranty

• Origin: Made in U.S.A.
• Shipping Carriers: FedEx, UPS, and DHL
• Processing Time: 24-48 hours rapid dispatch
• Warranty Terms: Comprehensive 12-month warranty included

Typical Applications and Diagnostic Capabilities

• Applications: Steam turbines, centrifugal compressors, gas turbines, and critical rotating machinery.
• Diagnostics: Detects shaft vibration, axial position, and radial displacement anomalies before catastrophic mechanical failure occurs.

Global PLC Spare HUB's Insight

Engineers often overlook impedance matching when swapping extension cables in legacy vibration racks. Changing cable lengths without recalculating total system length shifts the electrical length, introducing calibration errors in high-speed machinery protection loops. Always verify system components match exact electrical specifications.

Model Selection and Comparison

• 330930-065-04-00: Features a 6.5-meter length with stainless steel armor and FEP jacket. Ideal for longer cable routing runs requiring heavy mechanical protection.
• Comparison Model: 330930-045-01-00: Features a shorter 4.5-meter length. Recommended if your total physical distance allows a shorter run, reducing unnecessary signal attenuation.


Frequently Asked Questions

Question

What happens if my total system cable length does not match the Proximitor sensor calibration?

Answer

Mismatching lengths alters the resonant frequency and phase shift of the high-frequency radio signal, leading to inaccurate gap and vibration voltage readings.

Question

Can I splice or cut the 330930-065-04-00 cable to fit a shorter route?

Answer

No. Altering coaxial cable length changes its specific electrical capacitance and resistance, permanently invalidating system calibration.

Question

What is the primary advantage of choosing option 04 over standard unarmored cables?

Answer

Option 04 includes stainless steel armor and an FEP jacket, providing superior defense against physical crushing, chemical exposure, and abrasion in harsh plant environments.

Question

How do I select between a 4.5m and a 6.5m extension cable during system design?

Answer

Measure the exact physical distance from the probe terminal box to the Proximitor enclosure, accounting for routing twists, and select the cable length that prevents excess coiling while avoiding tension.

Question

What shipping options are available for urgent plant outages?

Answer

We dispatch orders within 24 to 48 hours using reliable global couriers including FedEx, UPS, and DHL to minimize downtime.
