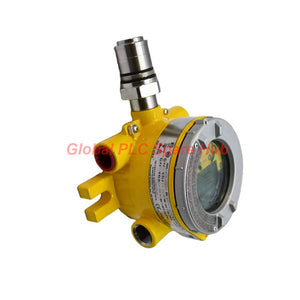

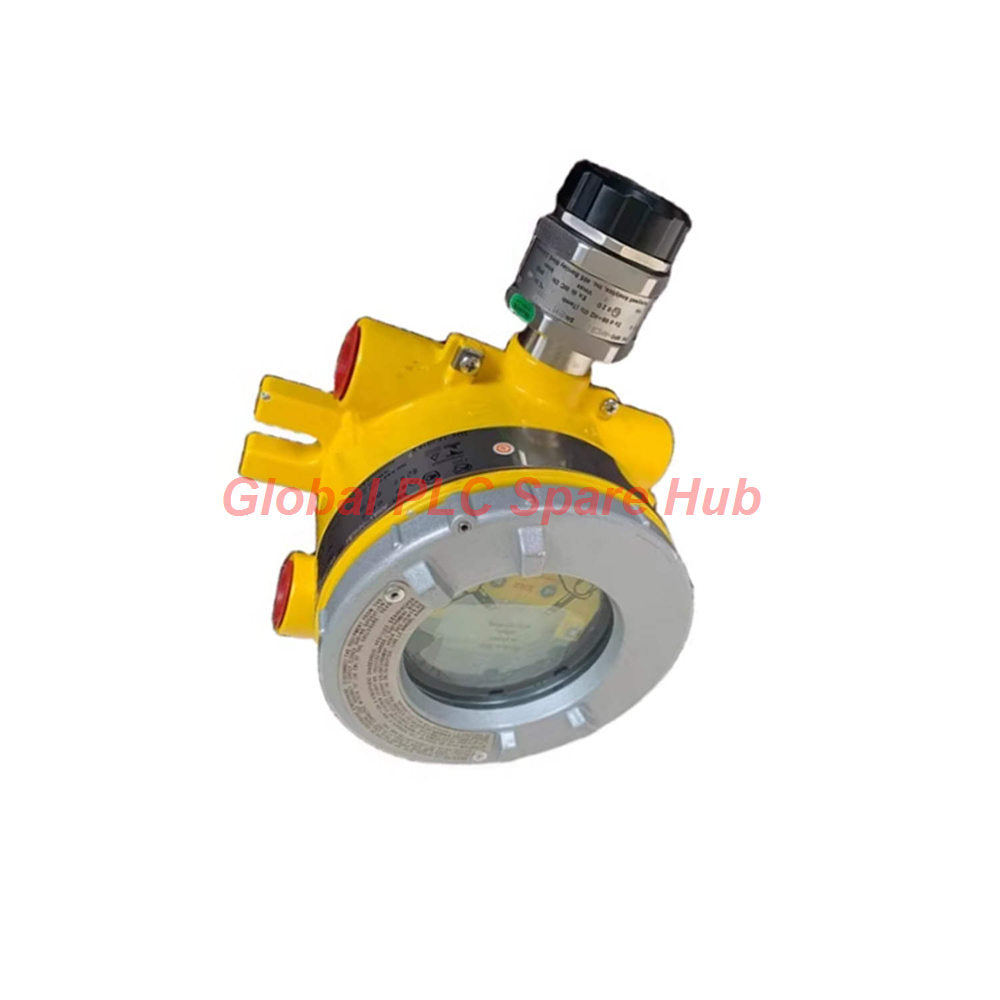

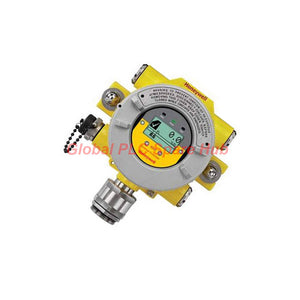

XNX-AMAI-RNIV1 Honeywell XNX Series Universal Transmitter
Manufacturer: Honeywell
Product No.: XNX-AMAI-RNIV1
Condition： In stock
Product Type: Universal Transmitter
Product Origin: USA
Payment: T/T, Western Union
Weight: 4400g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Product Overview
The XNX-AMAI-RNIV1 Honeywell XNX Series Universal Transmitter drives reliable combustible gas monitoring across hazardous facilities.
Engineers integrate this transmitter with optical infrared sensors for continuous Methane detection in critical process zones.
The unit features an internal relay board for direct local alarm control and emergency shutdown tripping.
Its rugged aluminium housing withstands corrosive industrial atmospheres while ensuring operational stability.
Part Number Suffix & Configuration Tree Breakdown
The tree structure below maps every digit of the XNX-AMAI-RNIV1 configuration code using MECE principles:
-
XNX — Honeywell XNX Universal Transmitter Platform
- A — Approval Rating: ATEX / IECEx Hazardous Area Certified
- M — Thread Entry Type: Metric M25 Conduit Ports
- A — Enclosure Material: Heavy-Duty Painted Aluminium
- I — Personality Module: Infrared Interface (Searchline Excel / Searchpoint Optima / 4-20mA)
- R — Optional Output: Factory-Fitted Alarm & Fault Relay Board (3 x SPDT Relays)
- N — Port Configuration: Standard Housing (No Local HART Interface Port)
- IV1 — Sensor & Range Spec: IR Optical Methane (0-100% LEL / 0-5% Vol.)
Technical Specifications Table
| Functional Category | Parameter | Engineering Value / Specification |
|---|---|---|
| Identity | Brand & Manufacturer | Honeywell |
| Model Designation | XNX-AMAI-RNIV1 | |
| Interface & Signals | Primary Output | 4-20mA analog signal loop (source or sink selectable) |
| Relay Outputs | 3 programmable relays (Alarm 1, Alarm 2, Fault) | |
| Performance & Range | Target Gas Spec | Methane (CH4) |
| Measurement Scale | 0 to 100% LEL (0 to 5% Vol. equivalent) | |
| Response Speed | T90 < 10 seconds for rapid trip actuation | |
| Mechanical Construction | Housing Material | Marine-grade coated Aluminium (4.4 kg / 9.7 lbs) |
| Conduit Entry Ports | Dual M25 metric cable entries | |
| Ingress Rating | IP66 weather and dust enclosure protection |
Target Equipment & Application Scenarios
- Offshore Production Platforms: Protects wellhead towers and hydrocarbon processing decks from explosive gas leaks.
- Gas Turbine Enclosures: Monitors fuel lines inside turbine acoustic enclosures for rapid leak detection.
- Petrochemical Storage Vaults: Triggers localized horns and ventilation fans directly via internal relay contacts.
Self-Diagnostics & System Reliability
Continuous internal routines check optical path integrity, microprocessor state, and relay contact health.
The backlit LCD displays clear fault codes and warning indicators during sensor obstruction or low supply voltage.
Model Selection & Technical Comparison
Review the design differences between these two Honeywell XNX Series units before specifying your system:
| Engineering Feature | XNX-AMAI-RNIV1 | XNX-AMAI-NHIV1 |
|---|---|---|
| Relay Output Board | Integrated 3 x SPDT Relay contacts (Option R) | No relay board installed (Option N) |
| Local HART Port | No local HART port on housing (Option N) | External Local HART port installed (Option H) |
| Autonomous Trip Capability | Drives local beacons/sirens directly without DCS | Requires central controller for alarm activation |
Engineering Advice: Select the XNX-AMAI-RNIV1 when your site requires physical relay contacts for direct local alarm tripping.
Global PLC Spare HUB's Insight & Field Experience
During a gas compressor station overhaul, an engineering client required localized emergency fan tripping.
The control room DCS had limited spare digital input cards for immediate auxiliary wiring expansion.
Our team recommended deploying the Honeywell XNX-AMAI-RNIV1 with its internal SPDT relay board.
Technicians wired the relay contacts directly to the local exhaust fan starters for immediate activation.
This design eliminated additional cabinet wiring costs while fulfilling strict safety shutdown response times.
Packaging, Delivery & Warranty Terms
We test and pack every XNX-AMAI-RNIV1 transmitter securely for global dispatch.
Orders ship within 24 to 48 hours using express couriers including FedEx, UPS, and DHL.
Every unit includes standard 12-month warranty coverage against manufacturing defects.
Frequently Asked Questions (FAQ)
Q1: How do the internal relays operate on the XNX-AMAI-RNIV1 transmitter?
A1: The internal relay card provides three programmable SPDT contacts for Low Alarm, High Alarm, and Fault conditions.
Q2: Can field teams configure alarm thresholds without opening the transmitter enclosure?
A2: Yes, technicians use non-intrusive magnetic switches to navigate menus through the front glass window.
Q3: How does this unit differ from model XNX-AMAI-NHIV1 during field maintenance?
A3: The XNX-AMAI-RNIV1 includes internal relays, while model XNX-AMAI-NHIV1 adds an external local HART port.
Q4: Is an additional transmitter module required to connect Searchpoint Optima sensors?
A4: No, the "I" personality module natively processes digital inputs from Searchpoint Optima and Searchline Excel detectors.
Q5: What cable gland type fits the M25 entry ports on this enclosure?
A5: Install certified M25 x 1.5 explosion-proof cable glands to maintain ATEX/IECEx compliance and IP66 sealing.
