X-BLK 03 HIMA HIMax Blank Module | High-Current SB Slot

Global PLC Spare HUB's Insight

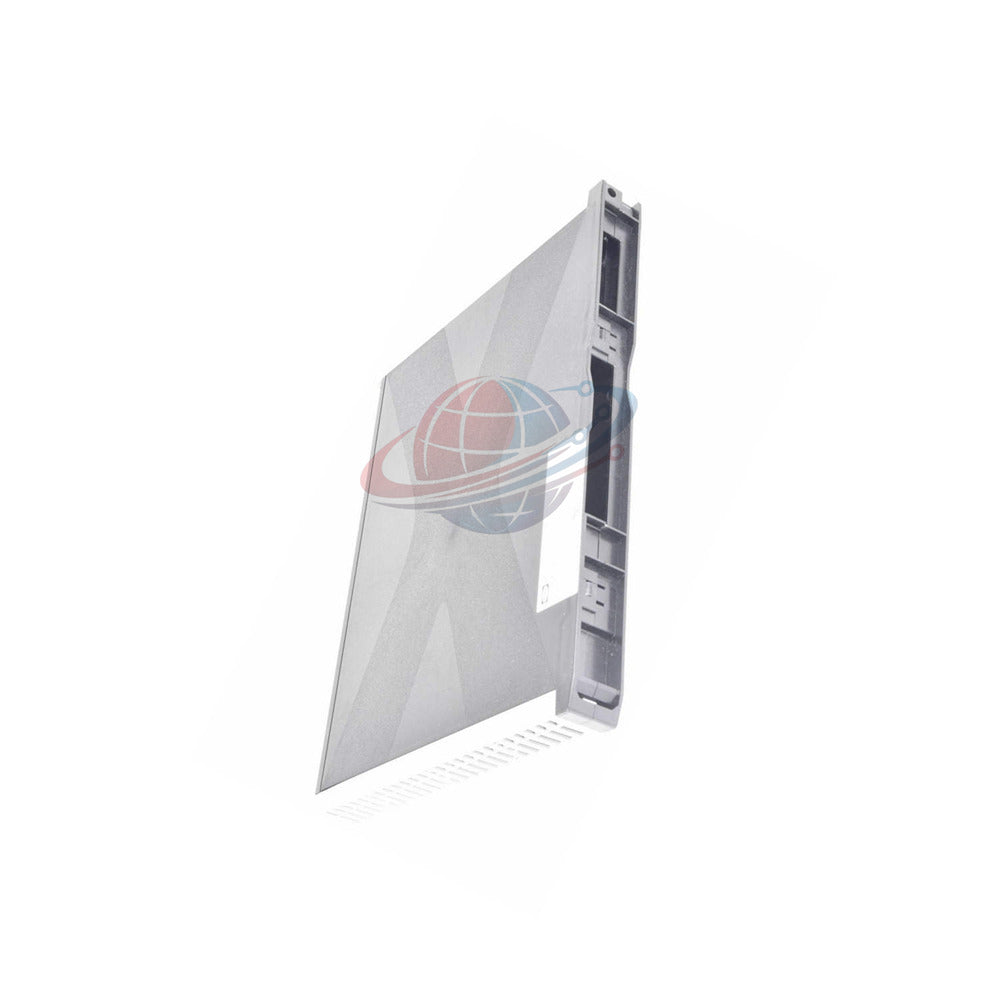

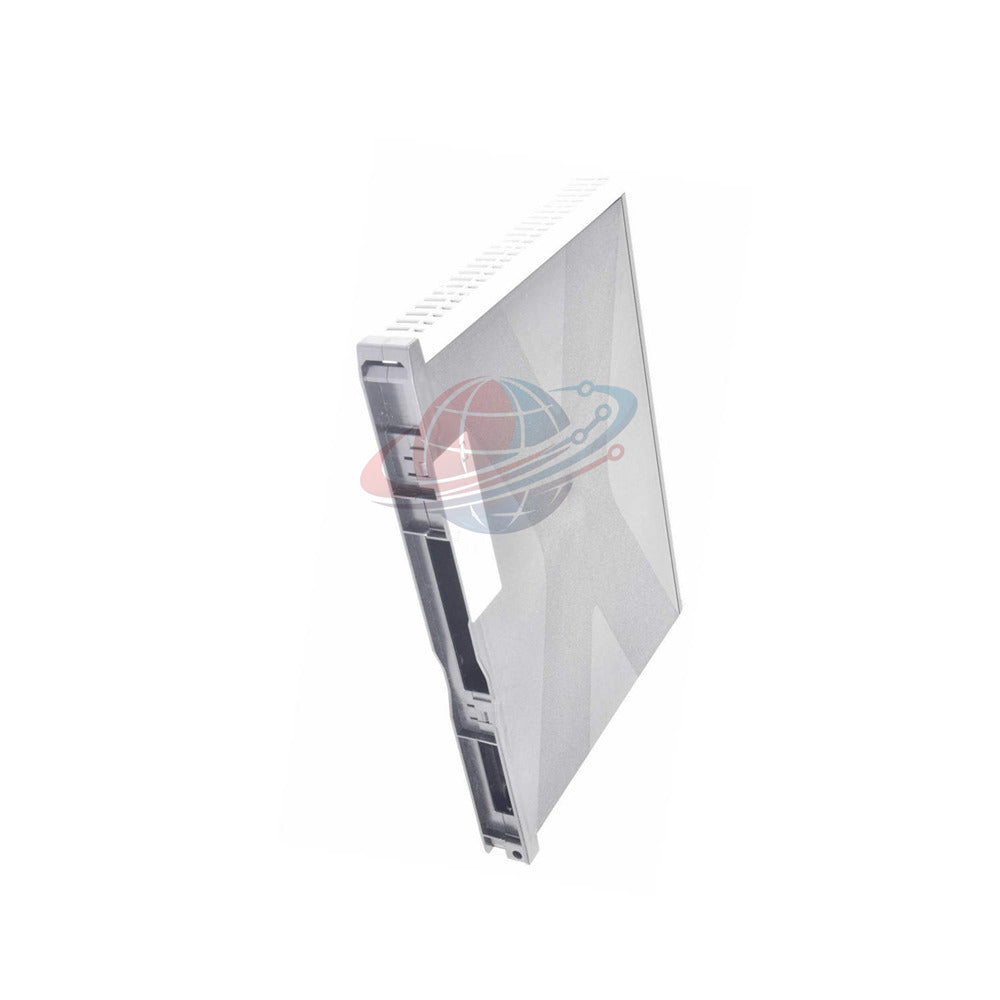

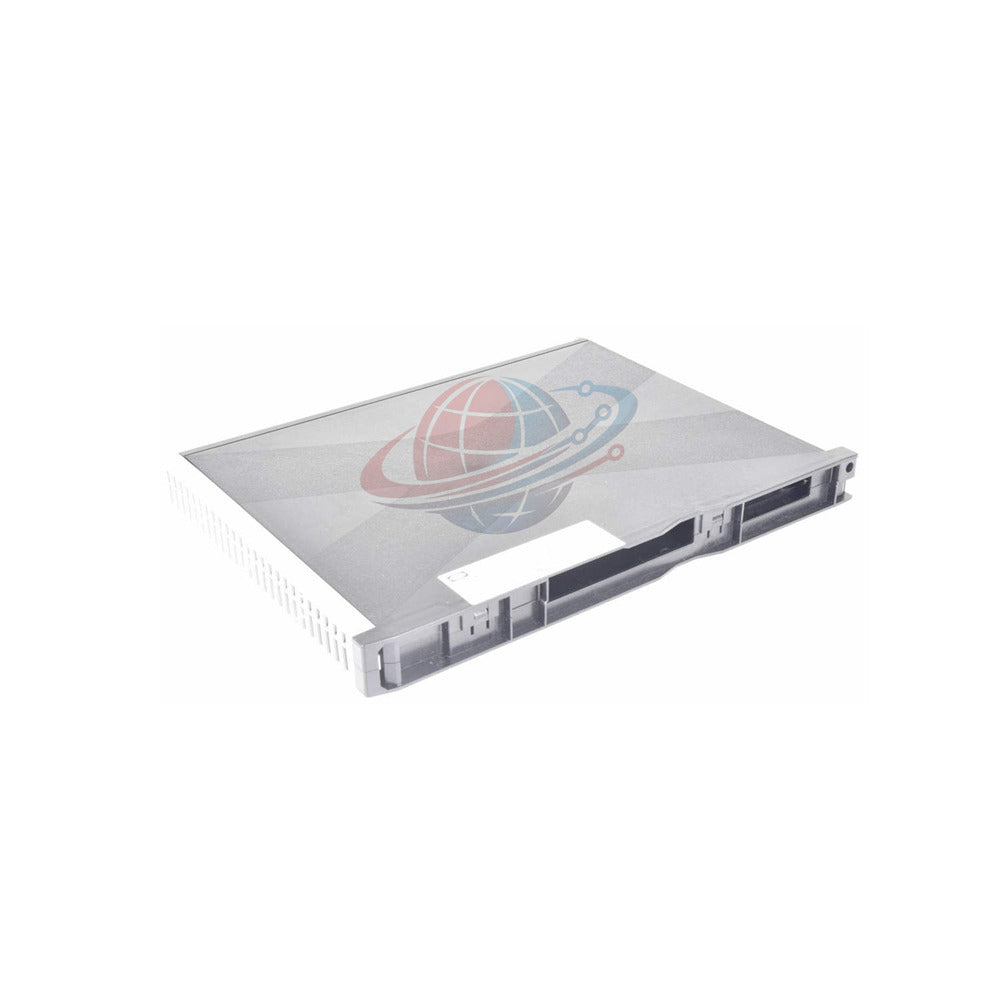

The HIMA X-BLK 03 is a critical structural and electrical component within the HIMax safety system. Unlike standard plastic fillers, the X-BLK 03 features a robust stainless steel backplane designed to maintain the integrity of the power bus across empty SB slots. It supports a massive 63 A total current throughput, ensuring that redundant power rails (L1+/L2+) remain bridged and protected against environmental interference while maintaining the required IP20 airflow characteristics for neighboring safety modules.

Engineering Specifications

• Brand: HIMA
• Model Designation: X-BLK 03
• Module Type: Blank Module for SB Slots
• System Voltage: 24 VDC (-15% to +20%)
• Current Capacity: 63 A Maximum (Redundant L1+/L2+)
• Backplane Construction: Stainless Steel
• Mechanical Hardware: High-Grade Aluminum
• External Protection: 63 A Line Protection Fuse (Required)
• Ingress Rating: IP20
• Operational Range: 0 °C to +60 °C
• Storage Resilience: -40 °C to +85 °C
• Environmental Humidity: 95% RH (Non-condensing)

Targeted Equipment & Installation

• HIMax Safety Racks: Essential for filling empty slots in base plates to maintain EMC shielding and bus integrity.
• Redundant Power Architectures: Necessary for systems utilizing dual-rail power distribution to ensure no break in the 63A bus flow.
• Critical Safety Loops: Used in SIL 3 environments where slot integrity and backplane protection are mandatory.

System Integrity & Diagnostic Utility

• Bus Continuity: The X-BLK 03 ensures that power for subsequent modules is not interrupted by unpopulated slots.
• Thermal Management: Properly directs airflow across the HIMax rack to prevent hot spots in high-density safety logic configurations.
• Mechanical Stability: The aluminum and stainless steel build prevents vibration-induced fatigue on the backplane connectors.

Logistics & Shipping Protocol

• Carrier Options: Express delivery via FedEx, UPS, and DHL.
• Fulfillment Speed: Ready for dispatch within 24-48 hours after order verification.
• Protection: Shipped in industrial-grade anti-static packaging for maximum electronic security.
• Warranty Support: All X-BLK 03 units include a comprehensive 12-month warranty.

Selection & Procurement Guidance

• Current Matching: Verify that your external line protection does not exceed the 63 A rating of the module backplane.
• Slot Compatibility: Specifically engineered for HIMA HIMax SB slots; confirm your rack series before purchase.
• Redundancy Planning: Ensure both L1 and L2 feeds are correctly terminated to leverage the redundant power bridge capabilities.

FAQ: Professional Engineering Support

• Question: Is the X-BLK 03 just a cosmetic cover?
• Answer: No, it is a functional electrical component that bridges the 63 A power bus across empty slots to maintain system continuity.
• Question: Does this module require internal configuration or addressing?
• Answer: The X-BLK 03 is a passive mechanical and electrical bridge; it requires no software programming or I/O addressing.
• Question: What is the benefit of the stainless steel backplane?
• Answer: It provides superior electromagnetic compatibility (EMC) and mechanical rigidity compared to plastic alternatives used in non-safety systems.
• Question: Can I use this in a 48V power system?
• Answer: No, the X-BLK 03 is strictly rated for 24 VDC operations in accordance with IEC 61131-2.
• Question: Why is the 63A external fuse mandatory?
• Answer: The fuse protects the module's stainless steel backplane and the overall rack power bus from overcurrent conditions that could cause thermal damage.
