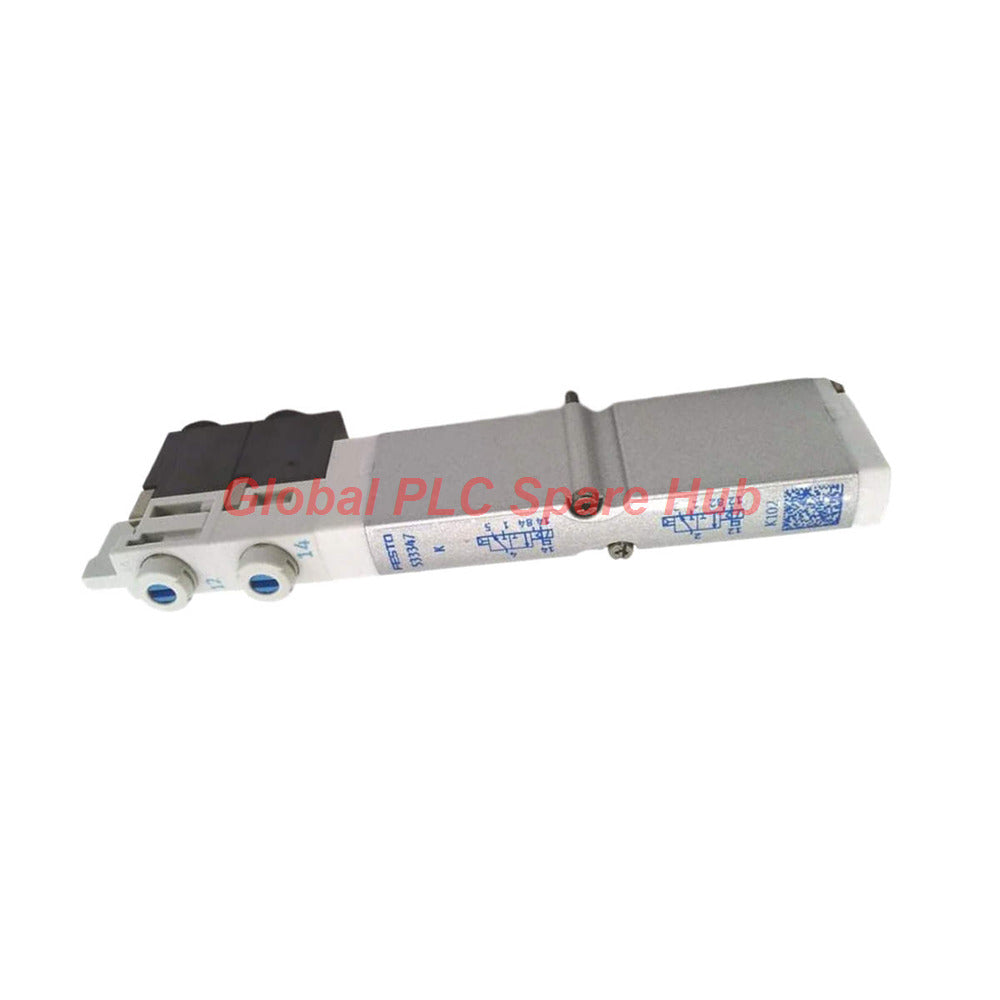

VMPA1-M1H-K-PI Festo Pneumatic Valve VMPA1-M1H-K-PI Series

Engineering Overview & Expert Insight

The VMPA1-M1H-K-PI is a high-performance pneumatic valve engineered by Festo within the modular MPA-FB-VI Series. This 2x3/2 closed monostable piston slide unit delivers a robust 230 l/min flow rate under 3 to 10 bar operating pressures, utilizing an efficient air spring reset mechanism. Global PLC Spare HUB's Insight highlights that pneumatic system designers select this valve when compact manifold spaces demand high-speed actuation coupled with IP65 environmental protection. During a recent high-speed packaging machinery refit, our engineering group integrated the VMPA1-M1H-K-PI into a multi-axis valve terminal to control dual-acting vacuum ejectors, eliminating sluggish response times under heavy duty cycles.

Configuration Breakdown & Technical Specifications

Deployment Environment & System Compatibility

• Engineered for integration onto Festo MPA-FB-VI modular pneumatic valve manifolds.
• Deployed extensively in automated assembly fixtures, pharmaceutical sorting lines, and robotic end-effectors.
• Compatible with filtered, lubricated, or unlubricated compressed air fluid types.
• Meets rigorous industrial shock and vibration resistance standards (EN 60068-2-27 and EN 60068-2-6).

Advanced Diagnostics & Operational Monitoring

• Integrated electrical LED indicators show active solenoid coil energization status instantly.
• Fast piston slide response allows cycle monitoring through controller input feedback loops.
• Modular design permits individual station isolation without depressurizing the entire pneumatic island.

Fulfillment, Logistics & Warranty Commitment

• Global Shipping Network: Rapid dispatch via trusted carriers including FedEx, UPS, and DHL.
• Processing Window: Verified orders ship securely within 24 to 48 hours of confirmation.
• Warranty Protection: Fully backed by a 12-month comprehensive replacement warranty against mechanical defects.

Expert FAQs & Procurement Guide

Q: What specific pilot pressure threshold is required to ensure reliable air spring reset on the VMPA1-M1H-K-PI?

A: The system operating pressure must remain strictly within the 3 to 10 bar window to guarantee proper pneumatic return force against the internal piston slide.

Q: How can maintenance personnel diagnose a sluggish valve response on an active production manifold?

A: Check the supply pressure regulator for drops below 3 bar, inspect inline air filters for moisture blockage, and verify that the 24 VDC coil voltage remains stable.

Q: What critical criteria should guide my selection when expanding an existing Festo valve terminal?

A: Always verify the electrical sub-base pinout compatibility, ensure your manifold can supply adequate flow capacity, and match the exact part number VMPA1-M1H-K-PI to maintain system logic.

Q: Can this valve operate safely in washdown environments with high humidity levels?

A: Yes. The aluminium housing, NBR soft seals, and IP65 protection class allow reliable operation in humid environments up to 90% RH when properly connected.

Q: Why does the valve experience minor leakage across ports during extended idle periods?

A: Extended exposure to unconditioned air containing aggressive compressor oils can degrade NBR seal flexibility, requiring seal replacement or air filtration upgrades.
