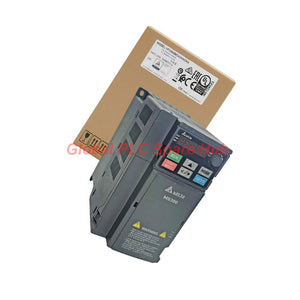

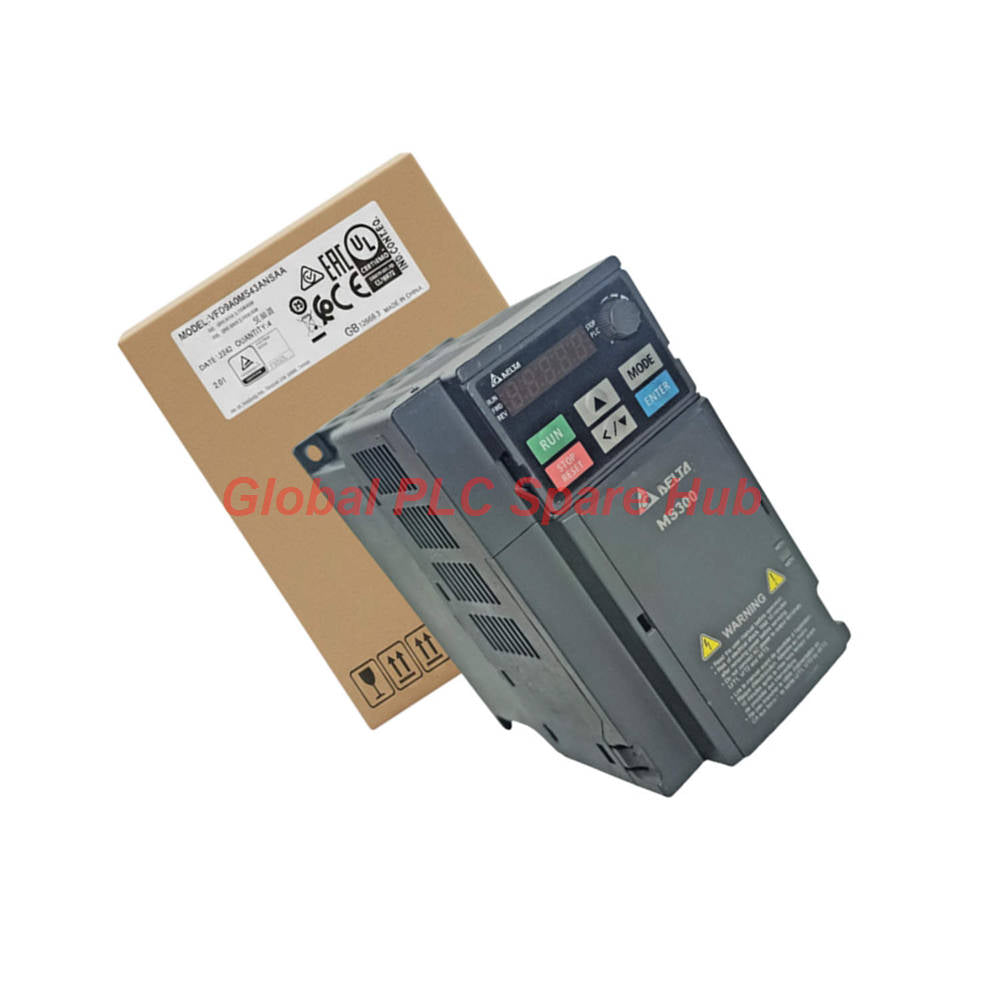

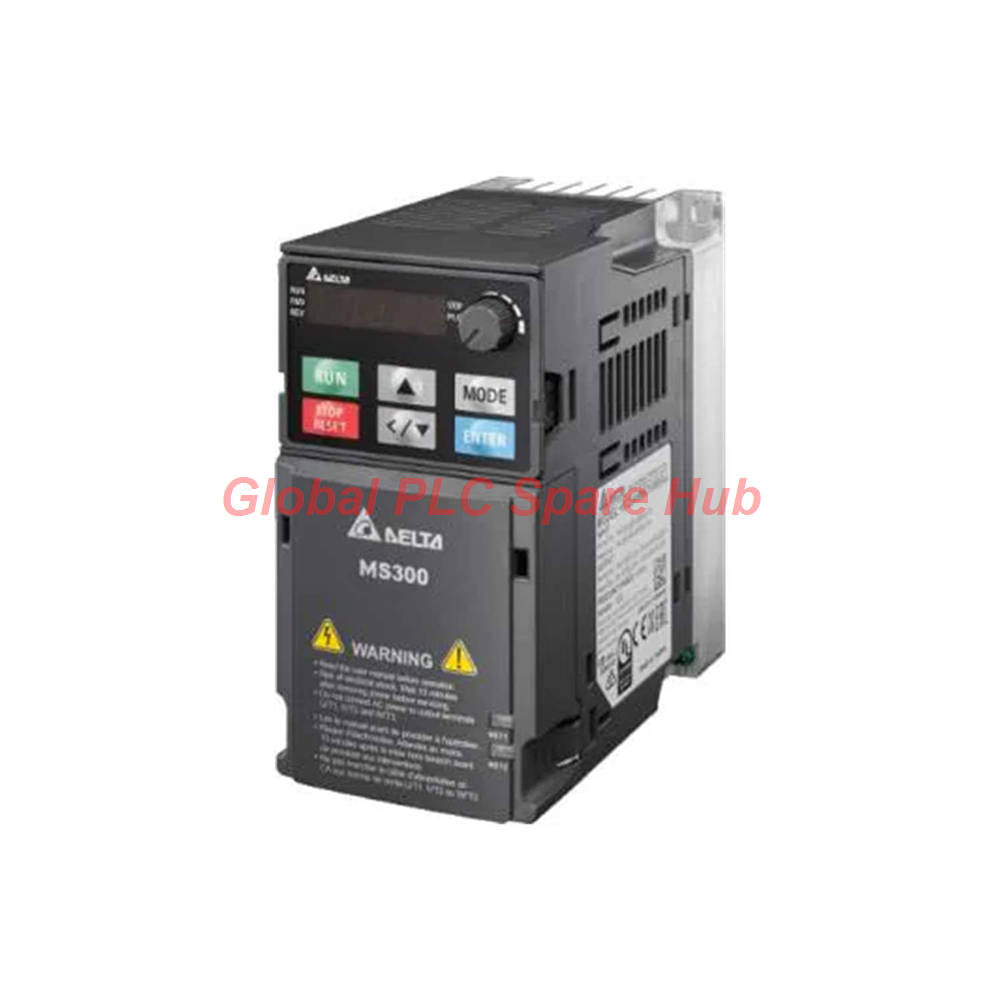

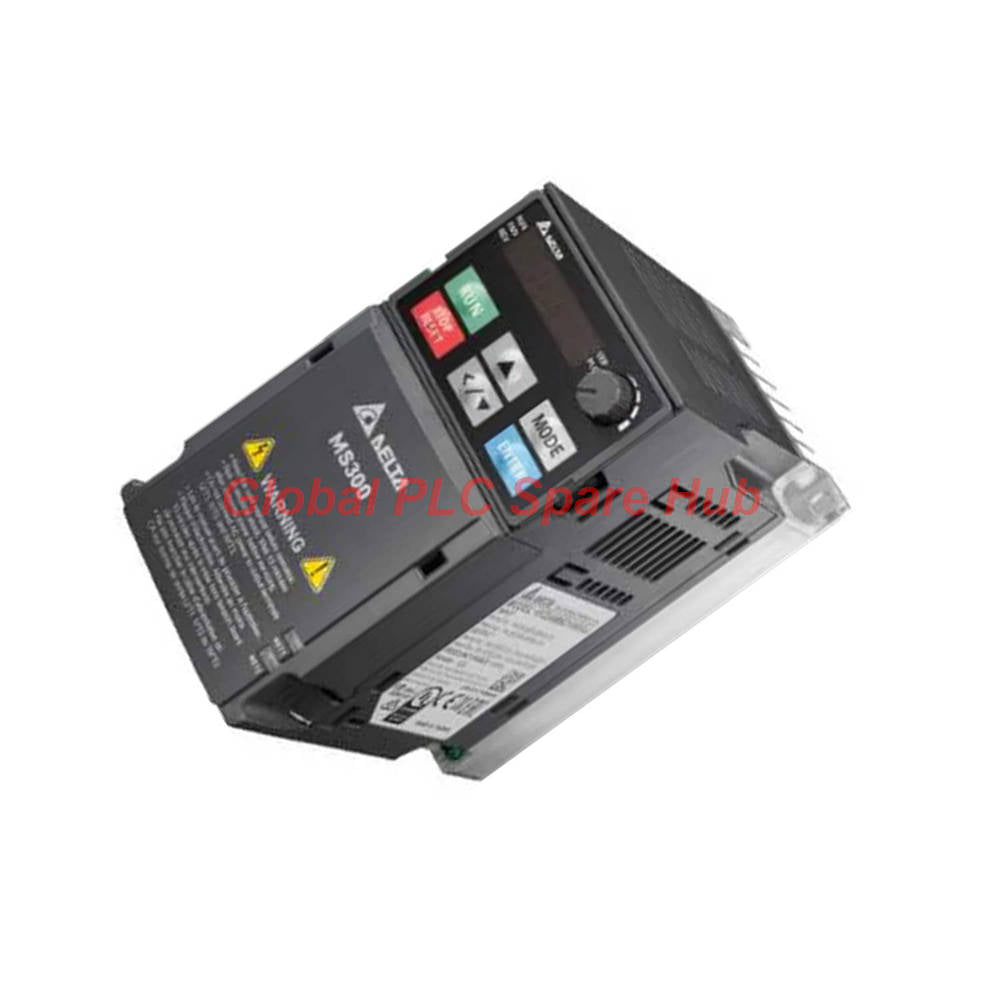

VFD9A0MS43ANSAA Delta 4KW Vector Drive MS-300 Series AC Inverter

Overview

VFD9A0MS43ANSAA Delta MS-300 series 5HP 460V variable frequency drive engineers precise vector control for high-performance industrial motion tasks. Built for spatial efficiency, this VFD9A0MS43ANSAA unit drives both induction and permanent magnet motors while maintaining reliable thermal stability in compact enclosures.

Engineering Specifications Summary

• Brand: Delta
• Model: VFD9A0MS43ANSAA
• Series: MS-300 Series
• Input Voltage: 460 V, 3-Phase
• Motor Power: 5 HP / 4 KW
• Output Frequency: 0 to 599 Hz
• Normal Duty Output: 10.5 A (120% for 60s, 150% for 3s)
• Heavy Duty Output: 9.0 A (150% for 60s, 200% for 3s)
• Frame Size: C1
• Enclosure Rating: IP20
• Weight: 2.8 Lbs
• Dimensions: 3.43 in x 6.18 in x 5.98 in

Mechanical Integration and Clearance Setup

Mount the VFD9A0MS43ANSAA onto a grounded backplate inside a control panel, ensuring a minimum clearance of 10 cm above and below the C1 frame chassis. Route high-voltage AC input lines to terminals R, S, and T separately from encoder and control signal wires to prevent electromagnetic signal coupling.

Operational Parameterization and Upkeep

Configure base frequency, motor pole count, and V/f curves using the removable 5-digit LED remote operator. Inspect the internal heatsink cooling channels annually and clean accumulated dust using dry compressed air to maintain optimal thermal dissipation.

Bus Architecture and Fieldbus Compatibility

The VFD9A0MS43ANSAA features an integrated RS-485 port supporting Modbus RTU protocol for direct PLC linking. Plant engineers integrate optional communication expansion boards for industrial networks including CANopen, PROFIBUS DP, DeviceNet, MODBUS TCP, EtherNet/IP, EtherCAT, and PROFINET.

Industrial Regulatory Standards

• UL Safety Certification Compliant
• CE Low Voltage Directive Approved
• RoHS Environmental Standards Met

Shipment Contents and Warranty Protection

• One VFD9A0MS43ANSAA Vector Inverter Module
• Removable 5-Digit LED Keypad Operator
• Removable Control Terminal Blocks
• Quick Installation Reference Guide
• Full 12-Month Factory Replacement Warranty

Logistics and Dispatch Protocols

Orders containing the VFD9A0MS43ANSAA ship within 24 to 48 hours following payment confirmation. We utilize expedited international freight carriers including FedEx, UPS, and DHL for secure doorstep delivery.

Target Machinery and Industrial Sectors

• Precision Wire Drawing Machinery
• Automated Cable Coil Winding Systems
• Compact Film Slitter and Rewinder Units
• Light Industrial Printing Presses
• Automated CNC Woodworking Routers

Real-Time Fault Monitoring and Diagnostics

The internal diagnostic firmware of the VFD9A0MS43ANSAA tracks instantaneous current spikes, output phase loss, DC bus voltage fluctuations, and thermal overloads. Active fault codes log directly onto the LED screen for immediate troubleshooting without extra hardware.

Global PLC Spare HUB's Insight

Global PLC Spare HUB automation experts recommend setting the carrier frequency parameter between 8 kHz and 10 kHz when running high-speed spindle motors with the VFD9A0MS43ANSAA, effectively reducing acoustic motor noise without inducing excessive thermal stress on the output IGBT stages.

Frequently Asked Questions

What considerations apply when sizing the external braking resistor for this drive?

Calculate required ohmic value and wattage rating based on peak regenerative braking torque requirements and deceleration frequency during high-cycle machine indexing.

How can I back up drive parameters before replacing a unit?

Use Delta copy card accessories or PC-based software tools via the RS-485 port to export and store complete parameter sets.

Is an external power source necessary for control circuit debugging?

The terminal supports an optional DC 24V external power input to keep the control board active during main power interruptions.

What guidance helps determine whether to select normal duty or heavy duty mode?

Select normal duty (10.5A) for variable torque loads like centrifugal fans, and select heavy duty (9.0A) for constant torque applications requiring high starting torque.

How does side-by-side mounting affect the ambient operating temperature threshold?

When installing multiple C1 frame units without horizontal gaps, ensure cabinet internal temperature remains below 40°C by adding auxiliary panel ventilation.
