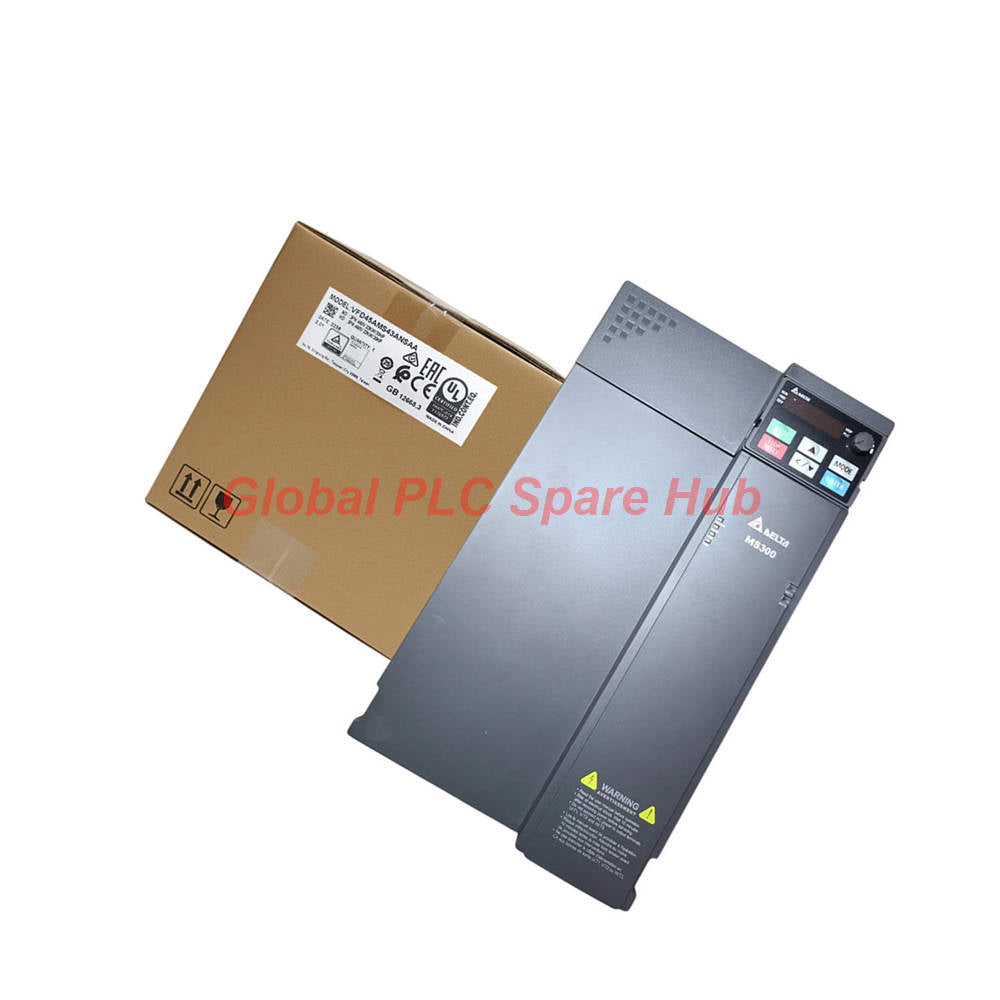

VFD45AMS43ANSAA Delta MS-300 Series 30HP 3-Phase Inverter Drive

Overview

VFD45AMS43ANSAA Delta MS-300 series 30HP 3-phase inverter drive delivers heavy-duty motor control for complex industrial automation infrastructure. Featuring robust vector processing capabilities, this VFD45AMS43ANSAA unit optimizes high-torque mechanical operations across large-scale machinery setups.

Technical Specifications Overview

• Brand: Delta
• Model: VFD45AMS43ANSAA
• Series: MS-300 Series
• Input Voltage: 460 V, 3-Phase
• Motor Power: 30 HP / 22 KW
• Output Frequency: 0 to 599 Hz
• Normal Duty Output: 49 A (120% for 60s, 150% for 3s)
• Heavy Duty Output: 45 A (150% for 60s, 200% for 3s)
• Frame Size: F1
• Enclosure Rating: IP20
• Weight: 14 Lbs
• Dimensions: 6.89 in x 11.81 in x 7.56 in

Mechanical Mounting and Wiring Guidelines

Install the VFD45AMS43ANSAA inside a ventilated control cabinet using M6 mounting hardware. Ensure a minimum vertical clearance of 15 cm and horizontal clearance of 5 cm to maintain adequate thermal dissipation for the F1 frame size. Connect robust 3-phase input lines directly to terminals R/L1, S/L2, and T/L3 while separating low-level control wiring from high-voltage power conduits to minimize electromagnetic interference.

System Commissioning and Upkeep Protocols

Initialize the VFD45AMS43ANSAA by configuring motor nameplate parameters through the detachable 5-digit LED remote keypad. Perform routine thermal inspections on the main heat sink and clear internal cooling fans of particulate debris every six months to sustain operational longevity.

Industrial Network Compatibility

The VFD45AMS43ANSAA features native RS-485 Modbus communication ports for seamless PLC integration. Engineers expand network flexibility by plugging in optional communication cards supporting PROFIBUS DP, DeviceNet, MODBUS TCP, EtherNet/IP, EtherCAT, or PROFINET protocols.

Standards and Regulatory Compliance

• UL Recognized Standard Compliance
• CE Low Voltage Directive Compliant
• RoHS Environmental Compliance

Shipment Contents and Warranty Terms

• One VFD45AMS43ANSAA AC Vector Drive Unit
• Detachable 5-Digit LED Digital Operator Keypad
• Control Terminal Plug Blocks
• Hardware Installation Manual
• Full 12-Month Factory Warranty Coverage

Logistics and Dispatch Information

We process and dispatch the VFD45AMS43ANSAA within 24 to 48 hours of order verification. Expedited global shipping is available through premier logistics carriers including FedEx, UPS, and DHL.

Targeted Industrial Equipment and Applications

• High-Capacity Heavy Extrusion Lines
• Large Industrial Wire Drawing Machines
• High-Speed Metal Slitting Systems
• Heavy-Duty Industrial Printing Presses
• Continuous Coil Winding Apparatus

Advanced Fault Diagnostics and Protection Architecture

The internal diagnostic engine of the VFD45AMS43ANSAA continuously monitors phase imbalance, output short-circuits, over-temperature conditions, and dynamic braking overloads. Fault codes display immediately on the keypad interface, allowing maintenance technicians to execute rapid root-cause analysis.

Global PLC Spare HUB's Insight

Global PLC Spare HUB field specialists emphasize that when commissioning the VFD45AMS43ANSAA on high-inertia loads like large winders, enabling the Deceleration Energy Backup (DEB) function prevents undesirable overvoltage trip events during rapid emergency stops.

Frequently Asked Questions

How do I select between normal duty and heavy duty modes on the VFD45AMS43ANSAA?

Technicians adjust parameter settings within the drive configuration menu to match application load profiles, selecting 49A normal duty for centrifugal pumps or 45A heavy duty for constant torque machinery.

What is the recommended cable shielding practice for the control terminals?

Always use twisted-pair shielded cables for analog and digital control inputs, ensuring the shield braid grounds properly at the drive earth terminal only.

Can the VFD45AMS43ANSAA drive both induction and permanent magnet motors?

Yes, firmware configuration supports open-loop and closed-loop control for both standard induction motors and permanent magnet synchronous motors.

What factors should I consider when selecting this drive for retrofitting older machinery?

Verify physical panel dimensions, verify transformer capacity for the 460V 3-phase supply, and ensure your control PLC supports compatible Modbus or fieldbus expansion cards.

How does the built-in brake chopper assist in high-inertia applications?

The internal brake chopper routes excess regenerative energy into an external braking resistor during rapid deceleration, protecting internal DC bus components from overvoltage failure.
