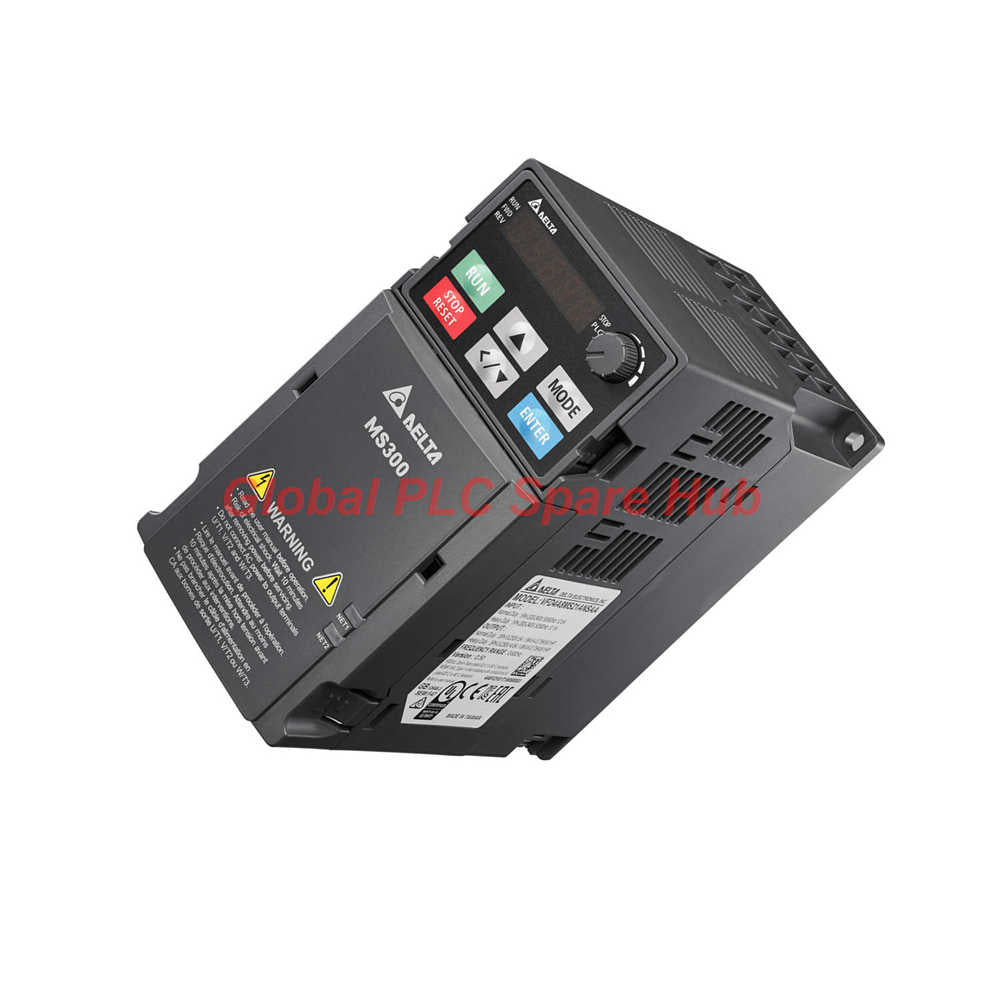

VFD1A7MS53ANSAA Delta Electronics MS300 0.75kW 575V

Product Overview

The Delta Electronics VFD-MS300 series, specifically model VFD1A7MS53ANSAA, represents a sophisticated standard compact vector control drive. This 1HP (0.75kW) unit utilizes advanced technology for precise motor control in demanding industrial environments. It supports V/f, sensorless vector, and closed-loop vector control modes. The drive optimizes energy usage while maintaining high torque output. Engineers value its compact footprint and high-speed operation capabilities up to 599Hz.

Technical Specifications

• Brand: Delta Electronics
• Series: VFD-MS300
• Model: VFD1A7MS53ANSAA
• Power Rating: 1HP / 0.75kW
• Voltage Input: 575V, 3-phase
• Output Current: 1.7A Heavy Duty (HD)
• Frequency Range: 0 to 599Hz (Programmable up to 2000Hz)
• Control Modes: V/f, Sensorless Vector, Closed-loop Vector
• Overload Capacity: Adjustable up to 120% of nominal capacity
• Protection Rating: IP20
• Communication: Built-in RS-485 (Modbus RTU/ASCII)
• I/O Configuration: 11 Digital Inputs, 3 Analog Inputs, 4 Digital Outputs, 1 Analog Output, 1 Digital Frequency Output
• Dynamic Braking: Built-in braking transistor included
• Temperature Range: -10°C to 50°C (derating required above 40°C)
• Environmental Tolerance: High vibration resistance and conformal coated PCBs

Installation, Commissioning, and Maintenance

• The compact design facilitates easy panel integration and side-by-side mounting.
• Detachable cooling fans simplify routine cleaning and replacement tasks.
• The intuitive keypad interface allows for rapid parameter configuration and diagnostics.
• Standardized Modbus protocol ensures seamless integration into existing PLC architectures.
• Built-in diagnostic tools provide real-time status monitoring and error logging.

Compatibility and Certifications

• Compatible with standard asynchronous and permanent magnet motors.
• Compliant with global industrial standards including CE, UL, and cUL.
• Supports flexible fieldbus expansion cards for diverse industrial networks.

Logistics and Warranty

• Shipping Partners: FedEx, UPS, and DHL for global delivery.
• Dispatch Time: Orders ship within 24 to 48 hours of confirmation.
• Warranty: Includes a comprehensive 12-month quality guarantee.
• Packaging List: VFD1A7MS53ANSAA unit, quick-start guide, and terminal connectors.

Typical Application Scenarios

• High-speed spindles in CNC machinery.
• Conveyor systems requiring precise constant torque control.
• Textile machinery and packaging equipment.
• Pumps and fans requiring energy-efficient operation.

Frequently Asked Questions

• Question: Can this drive handle high-speed motor applications?
• Answer: Yes, the VFD-MS300 supports programmable output frequencies up to 2000Hz for high-speed tasks.
• Question: How do I perform a factory reset on this unit?
• Answer: Use parameter 00-02 in the settings menu to restore the drive to factory default values.
• Question: Is the built-in RS-485 port isolated?
• Answer: Yes, the onboard communication port features electrical isolation to prevent interference.
• Question: What are the recommended motor cable lengths?
• Answer: We recommend keeping motor cables under 50 meters to minimize capacitive leakage and EMI issues.

Buying Guide

• Ensure the motor voltage matches the VFD1A7MS53ANSAA 575V input requirements.
• Verify the full load amperage (FLA) of your motor is within the 1.7A rating.
• Assess if your control application requires closed-loop feedback, which may require an encoder card.
• Check your cabinet ventilation to maintain ambient temperatures below 40°C for optimal lifespan.

Global PLC Spare HUB's Insight

At Global PLC Spare HUB, we prioritize the reliability of your automation infrastructure. The Delta VFD-MS300 series is ideal for users needing a balance of high-performance vector control and compact physical dimensions. This model excels in environments where space is premium but motor control requirements are strict. It is particularly well-suited for machine tool builders and system integrators who demand rapid installation and stable communication protocols. Our team tests these units for performance consistency, ensuring your production uptime remains maximized.

Are you looking to integrate this drive into a specific motor control loop, or are you replacing an existing legacy unit?
