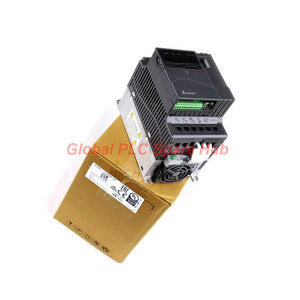

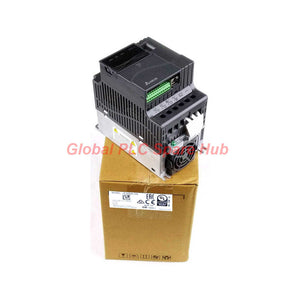

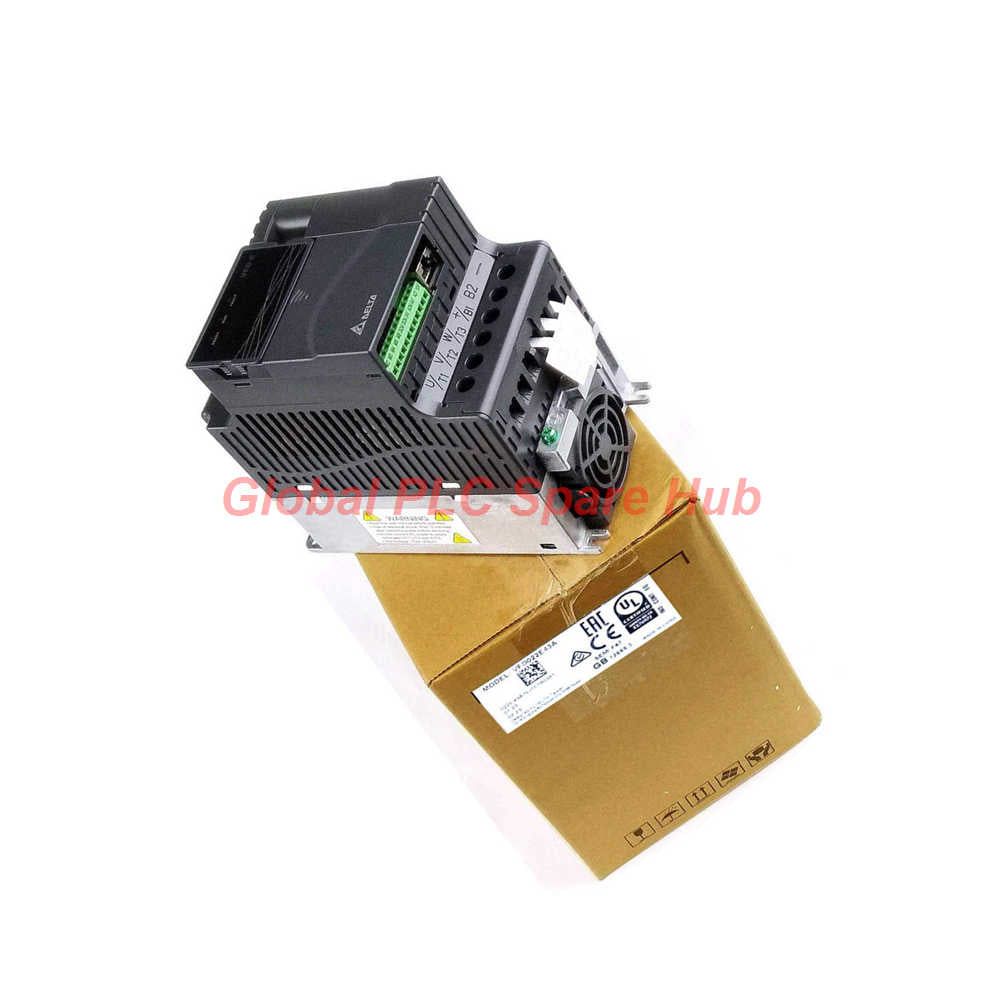

VFD022E43A Delta 2.25KW Vector Drive VFD-E Series Motor Controller

VFD022E43A Delta 2.25KW Vector Drive VFD-E Series Motor Controller

Manufacturer: Delta
Product No.: VFD022E43A
Condition： In stock
Product Type: AC Drive
Product Origin: CN
Payment: T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Quantity

Selected quantity: 1

Estimate delivery times: 12-26 days (International), 3-6 days (United States).

Return within 30 days of purchase. Duties & taxes are non-refundable.

Guaranteed Safe Checkout

Overview

VFD022E43A Delta VFD-E series 3HP 460V micro drive delivers sensorless vector control for flexible industrial machinery automation. Engineered with a modular hardware architecture, this VFD022E43A unit incorporates an embedded PLC engine to execute custom ladder logic programs directly at the machine level.

Engineering Specifications Data Sheet

Manufacturer: Delta Products
Model Item: VFD022E43A
Product Series: VFD-E Series
Input Voltage Range: 380 to 480 VAC, 3-Phase
Motor Power Rating: 3 HP / 2.25 KW
Constant Torque Output Amps: 5.5 A
Maximum Output Frequency: 600 Hz
Enclosure Protection Class: IP20
Physical Frame Size: Frame B
Unit Dimensions: 3.94 in (W) x 6.85 in (H) x 5.35 in (D)

Mechanical Mounting and Panel Integration

Secure the VFD022E43A onto a vertical control panel backplate using standard M4 hardware, keeping a minimum vertical gap of 12 cm to optimize convective airflow. Terminate incoming 3-phase lines to input terminals while keeping low-voltage control signals routed through separate metal wire ducts to eliminate electrical noise interference.

Firmware Parameterization and Upkeep

Access parameter configuration trees via an attachable digital keypad or PC configuration software linked to the communication port. Inspect cooling fan vents annually and clear dust accumulation from the internal heat sink fins to sustain long-term thermal reliability.

Communication and Expansion Architecture

The VFD022E43A supports modular extension cards for advanced network protocols, allowing seamless connection into factory communication loops. The built-in dynamic braking transistor handles high-inertia deceleration cycles without requiring external chopper add-ons.

Industrial Compliance Standards

CE Low Voltage Directive Compliance
UL Industrial Equipment Recognized
RoHS Hazardous Substance Restriction

Shipment Contents and Warranty Coverage

One VFD022E43A AC Micro Drive Unit
Built-in LED Status Indicator Module
Plug-in Control Terminal Strip Connectors
Hardware Setup Instruction Manual
Complete 12-Month Factory Replacement Warranty

Logistics and Expedited Dispatch

We process and dispatch the VFD022E43A within 24 to 48 hours following order clearance. We partner with premier global courier services including FedEx, UPS, and DHL for secure tracking and rapid delivery.

Dedicated Machinery and Application Sectors

Small Conveyor Assembly Lines
Packaging and Labeling Machinery
Compact Food Processing Mixers
Ventilation Fans and Blowers
Automated Gate and Door Systems

Built-In Diagnostic and Protection Suite

The internal monitoring processor of the VFD022E43A continuously evaluates output short circuits, ground faults, overvoltage conditions, and electronic thermal overload. Diagnostic error codes register instantly on the status display for rapid technician troubleshooting.

Global PLC Spare HUB's Insight

Global PLC Spare HUB technical specialists recommend utilizing the internal PLC ladder logic function of the VFD022E43A to execute basic interlock routines locally, reducing overall system response latency and minimizing reliance on the main system controller.

Frequently Asked Questions

Does the VFD022E43A ship with a digital keypad included as standard?

The unit features a built-in LED status indicator, but remote operator keypads are ordered separately depending on panel mounting preferences.

How does the integrated dynamic braking transistor function during operation?

The internal braking transistor channels regenerative electrical energy directly into an optional external braking resistor during fast motor deceleration.

Can this drive execute custom automation logic without an external PLC?

Yes, the embedded PLC function allows engineers to write and execute simple ladder logic routines directly within the drive memory.

What guidelines help determine proper sizing when replacing older variable frequency drives?

Verify that your supply voltage matches the 380V to 480V range and ensure the 5.5A continuous output matches your motor's full-load current rating.

Why is maintaining clearance around the Frame B chassis critical?

Proper spacing prevents thermal pocketing inside tight electrical cabinets, protecting internal power switching components from premature heat degradation.
