TWDXCPODM Schneider Electric Twido Display Module

Schneider Electric TWDXCPODM Technical Profile

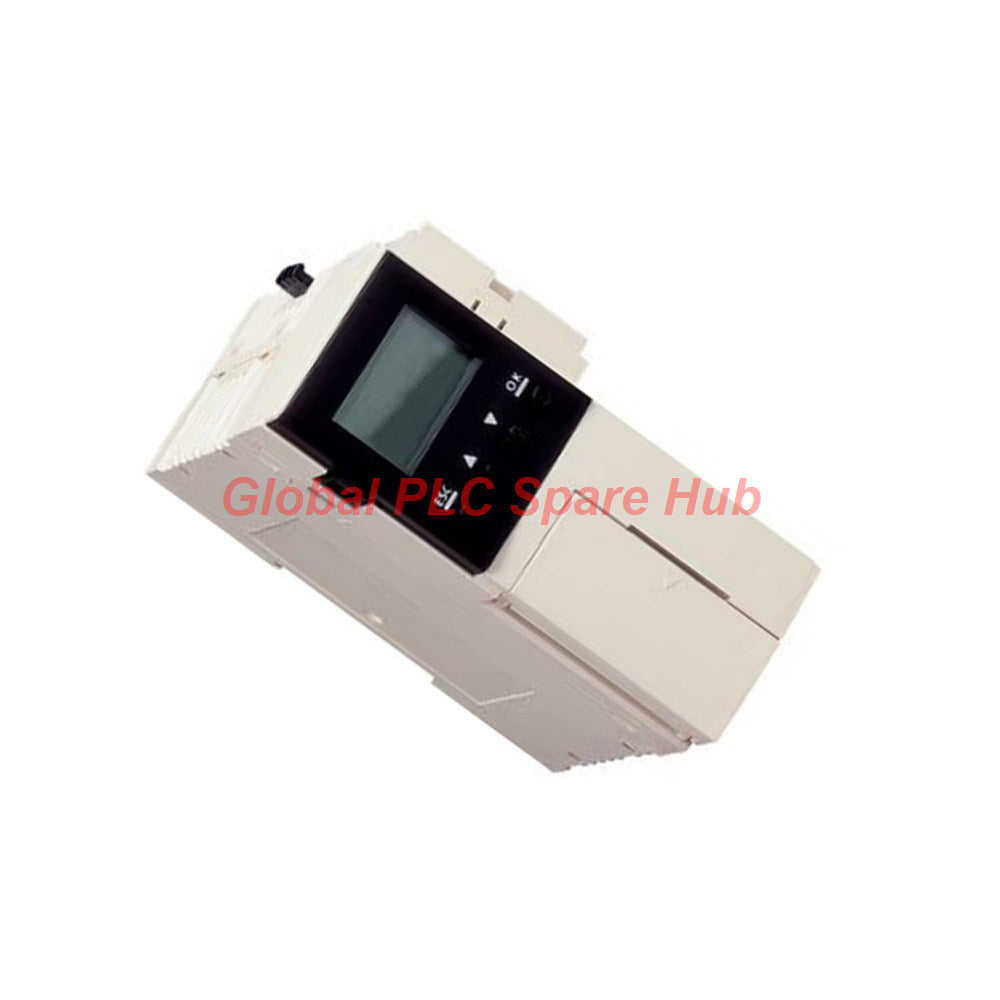

The Schneider Electric TWDXCPODM is a left-side mounted, integrated digital display module designed specifically for the Twido programmable logic controller (PLC) platform. It provides a direct, hardware-level interface for local monitoring and field modification of internal PLC registers without requiring an external PC connection.

This compact diagnostic accessory mounts directly to the left side of compatible Twido base controllers. It features an expansion pass-through interface, allowing the integration of serial communication adapters such as the TWDNAC232D, TWDNAC485D, or TWDNAC485T directly through the display housing. Power is drawn internally from the PLC backplane, maintaining a clean cabinet layout without external power wiring.

Global PLC Spare HUB's Insight

The Schneider Electric TWDXCPODM display module is a highly practical asset for field commissioning and localized troubleshooting. In compact control panels where space limits HMI installation, this unit offers a cost-effective, local operator interface.

Maintenance technicians value this module because it displays system status, error codes, and register values directly at the controller. The mechanical integration is straightforward—it clips securely onto the left side of the controller block, and its built-in port allows you to add a serial adapter in the future without losing your communication options.

Configuration Breakdown (Part Number Structural Tree)

The physical and functional layout of the TWDXCPODM system architecture is structured below:

• TWD — Schneider Electric Twido Compact and Modular PLC Controller Platform
  • XCP — Operator Interface and Display Accessory Series Classification
  • ODM [This Model] — Integrated Digital Display Module featuring parameter adjustment and diagnostic capabilities
• Hardware & Mounting Integration:
  • Mounting Position: Dedicated left-side bus extension port attachment
  • Sub-Slot Compatibility: Accepts optional TWDNAC serial adapter modules (RS232C / RS485)
  • Enclosure Profile: Low-profile industrial resin housing, weighing 0.231 lb (0.105 kg)

Target Equipment & Plant Applications

• Modular Twido PLC Systems: Serving as the main local interface for TWDLMDA20DRT, TWDLMDA40DTK, and TWDLMDA20DUK base units.
• Standalone Packaging Machinery: Allowing operators to adjust timer presets, counter limits, and system variables directly on the factory floor.
• Pump Control Stations: Providing quick diagnostic access to error logs and system status in small water treatment or fluid distribution panels.
• HVAC Control Panels: Monitoring localized temperature setpoints, digital I/O status, and communication link health.

Diagnostic Capabilities & System Adjustment

• Real-Time Register Editing: Allows direct adjustment of internal memory words (%MW) and system bits without software.
• System Error Visualization: Displays active PLC fault codes, helping technicians quickly identify hardware or application errors.
• I/O Status Monitoring: Provides a visual check of physical input and output states to speed up wiring and sensor troubleshooting.

Technical Specifications Table

Global Logistics, Delivery & Warranty Terms

• Courier Network: Express international dispatch via DHL, FedEx, and UPS loops.
• Dispatch Timeline: Orders are packaged and shipped within 24 to 48 hours of verification.
• Warranty Protection: Includes a full 12-month replacement warranty from Global PLC Spare HUB.

Strategic Procurement & Selection Guide

• Verify PLC Part Number: The TWDXCPODM is designed for Twido Modular (TWDLMDA) bases. It does not fit Twido Compact (TWDLCAC or TWDLCDE) controllers, which have different physical layouts.
• Communication Port Planning: If your system uses a TWDNAC serial adapter, install it directly into the slot on the front of the TWDXCPODM to maintain both serial connectivity and display functions.
• Backplane Power Margin: The module runs on internal power from the base controller. Check your PLC power budget, especially if you have several I/O expansion modules connected to the right side of the base.

Industrial Frequently Asked Questions (FAQ)

Q: Can the TWDXCPODM display module be hot-swapped while the Twido PLC is powered and running?

A: No. Always power down the Twido base controller before mounting or removing the left-side display module. Hot-swapping can damage the logic bus interface and cause a controller fault.

Q: How do I write-protect system variables to prevent unauthorized changes via the display?

A: You can restrict access through your TwidoSuite/TwidoSoft application configuration. Setting up password protection or adjusting software privileges prevents unauthorized changes to critical memory words (%MW) from the physical keypad.

Q: Does mounting this display on the left side limit my ability to add standard Twido I/O expansion modules?

A: No. Twido expansion modules mount on the right side of the base controller. The TWDXCPODM mounts on the left, so it does not affect your right-side I/O expansion limit.

Q: What is the purpose of the front-facing slot on the TWDXCPODM housing?

A: That slot is an integrated expansion port. It lets you plug in a TWDNAC series serial communication adapter (like the TWDNAC485D) directly through the display module, keeping your communication options open.

Q: Why does the display module screen remain blank when the main PLC RUN light is on?

A: Check the mechanical connection between the module and the left-side bus port. If it is secure, verify that the controller's system bit %S40 (which controls the display backlight and communication) is properly configured in your PLC program.
