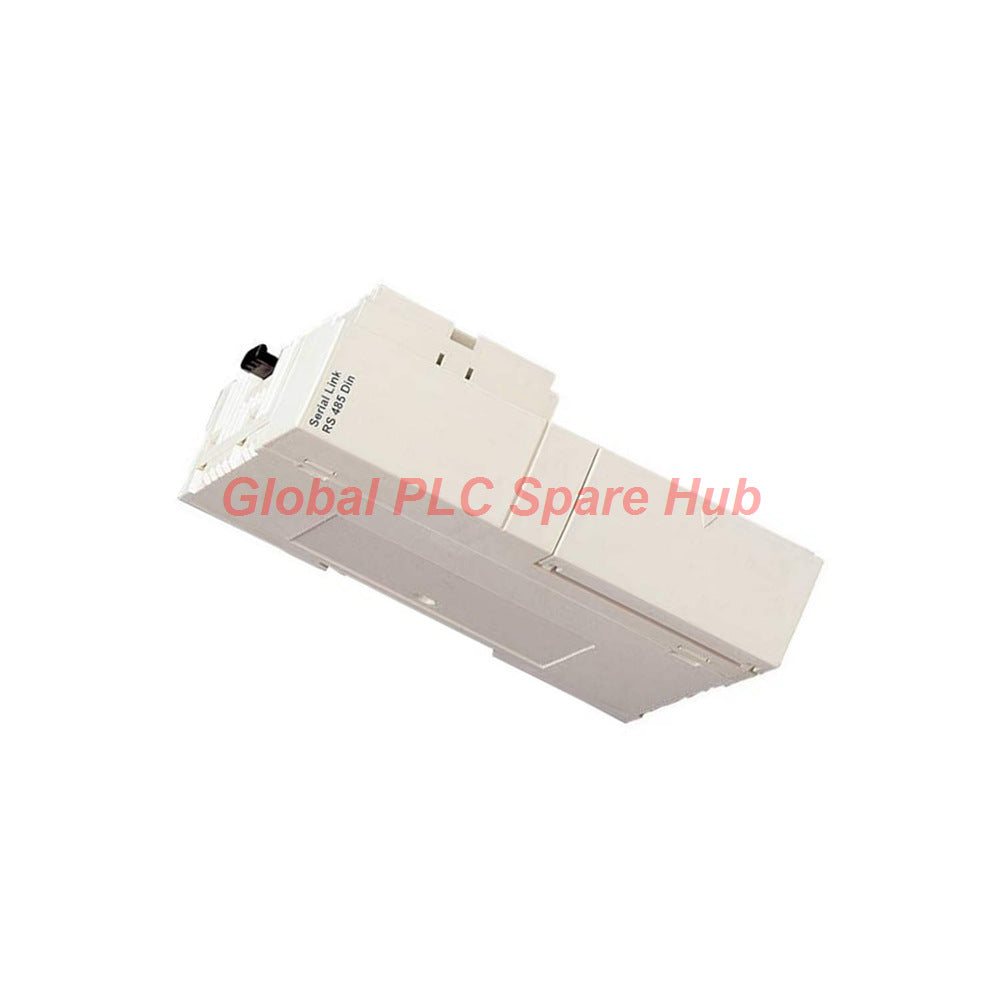

TWDNOZ485D Schneider Twido RS485 Communication Module

Connectivity Expansion: The TWDNOZ485D Adaptor

The Schneider Electric TWDNOZ485D is a precision-engineered communication module designed to bridge the gap between Twido modular base controllers and external serial networks. By leveraging an integrated RS485 interface via a robust 8-pin mini-DIN connector, this module facilitates seamless master/slave data exchange in distributed control architectures.

Technical Specifications

• Brand: Schneider Electric
• Model: TWDNOZ485D
• Category: Communication Module (Serial Link Adaptor)
• Port Protocol: RS485
• Physical Interface: 8-pin Mini-DIN connector
• Controller Compatibility: TWDLMDA20DTK, TWDLMDA40DTK, TWDLMDA40DUK, TWDLMDA20DUK, TWDLMDA20DRT
• Weight: 0.085 kg (0.187 lb)
• Origin: Manufactured in Japan (JP)

Global PLC Spare HUB's Insight

In our technical evaluation, the TWDNOZ485D serves as the primary gateway for expanding Twido serial capabilities. It is essential for engineers needing to daisy-chain multiple PLC nodes or interface with HMI touchscreens that utilize standard Modbus protocols. Its direct-mount design ensures minimal signal interference in electrically noisy industrial cabinets.

Diagnostics and Performance

• Diagnostics: When paired with the base controller, this module supports real-time monitoring of packet integrity and communication status bits.
• Reliability: Designed for high-duty cycles, ensuring persistent link availability in demanding factory environments.
• Installation: Plug-and-play architecture allows for immediate recognition by the Twido OS without complex re-addressing.

Typical Application Scenarios

• Multi-node data acquisition systems using Modbus RS485.
• Connecting HMI panels to monitor machine status in real-time.
• Integration with VFDs (Variable Frequency Drives) for synchronized speed control.
• Remote telemetry applications requiring long-distance serial transmission via shielded twisted-pair cabling.

Shipping and Warranty

• Warranty: Industry-leading 12-month quality assurance guarantee.
• Logistics: Secure global shipping via FedEx, UPS, and DHL.
• Dispatch: Efficient processing with 24-48 hour lead times for all stock units.

Professional FAQ

What is the maximum cable length recommended for this RS485 link?
Under ideal conditions with shielded twisted-pair cable, the RS485 link can extend up to 1,200 meters (approx. 4,000 ft), though speed and interference may dictate shorter practical runs.

Does this module require external power to operate?
No, the TWDNOZ485D draws power directly from the host Twido modular base controller through the dedicated communication slot.

How can I diagnose if the serial link is broken?
Utilize the diagnostic registers in your software suite. A "Comm Loss" error code typically indicates either a wiring break at the 8-pin mini-DIN or a termination resistor mismatch between nodes.

Should I use termination resistors at the ends of the serial line?
Yes, for stable communication, especially in high-speed applications or long cable runs, place 120-ohm termination resistors at both extreme ends of the RS485 network.

Selection Guide: Which Twido base models benefit most from this module?
While compatible with many, this module is highly recommended for the TWDLMDA series to offload communication overhead and free up native ports for specialized local I/O tasks.
