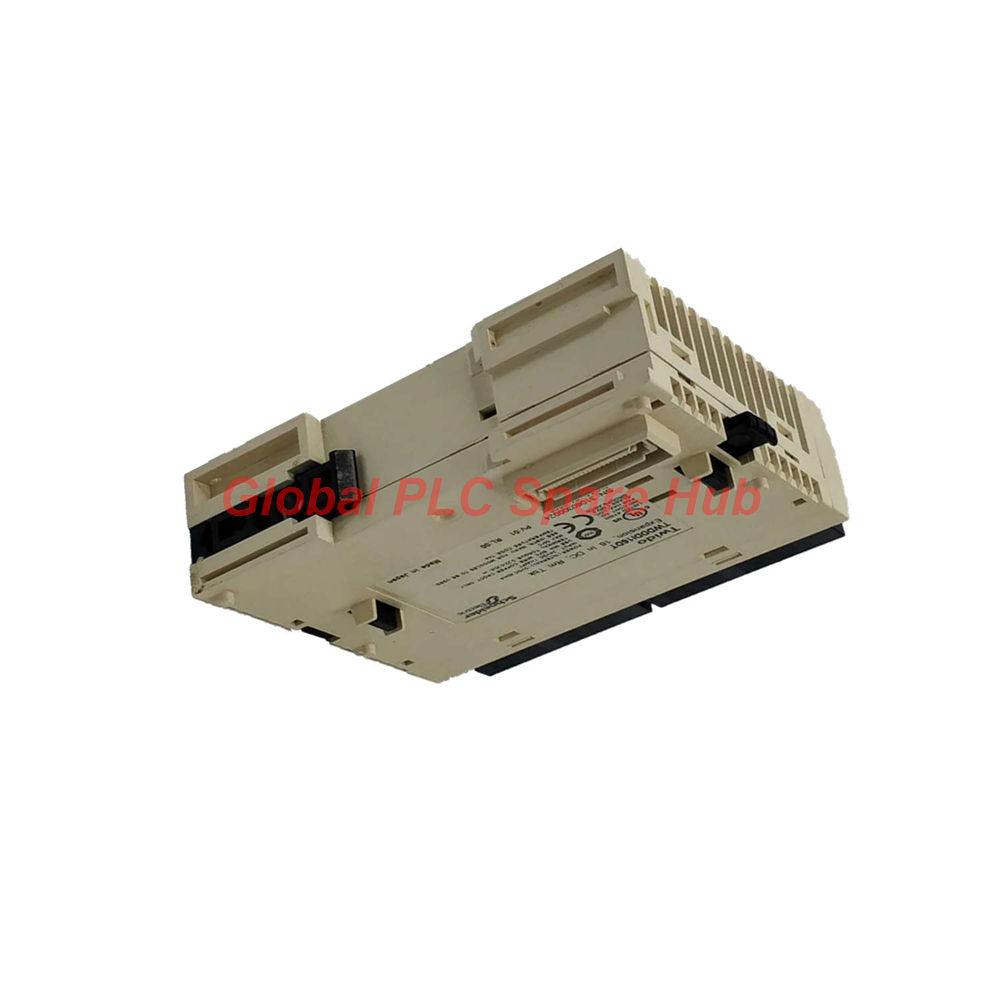

TWDDDI16DT Discrete Input Expansion Schneider Electric Twido

Product Overview

The TWDDDI16DT expands industrial control capabilities as a dedicated digital input mechanism for Schneider Electric automation architectures. This specific Twido expansion hardware interfaces directly with field sensors, switches, and proximity devices. It converts external operational statuses into reliable internal logic signals. The module incorporates 16 distinct input channels operating at a nominal 24 V DC threshold. Engineers deploy this dense hardware configuration to maximize cabinet space efficiency without sacrificing system granularity.

Global PLC Spare HUB's Insight

Our engineering assessment confirms that the TWDDDI16DT offers exceptional logic adaptability through its dual sink and source configuration options. The design utilizes a single common point architecture to simplify distribution topologies across extensive field wiring networks. An integrated 8 millisecond hardware filter effectively dampens contact bounce and electromagnetic noise spikes. The robust photocoupler isolation rated at 1500 Vrms safeguards internal Twido processor circuitry against unpredictable field surges. This component remains a dependable choice for retrofitting existing industrial infrastructure.

Technical Specifications

• Brand: Schneider Electric
• Model: TWDDDI16DT
• Product Series: Twido
• Module Type: Discrete Input Module
• Discrete Input Number: 16 channels
• Nominal Input Voltage: 24 V DC
• Input Voltage Limits: 20.4 V to 28.8 V DC
• Discrete Input Logic: Sink or source capability
• Discrete Input Current: 7 mA per channel
• Input Impedance: 3.4 kOhm
• Hardware Filter Time: 8 ms at state 0, 8 ms at state 1
• Electrical Insulation: 1500 Vrms for 1 minute via internal photocoupler
• Internal Current Consumption: 40 mA at 5 V DC (all inputs active), 5 mA at 5 V DC (all inputs inactive)
• Wiring Connection Type: Removable screw terminal block
• Common Point Configuration: 1 shared common point
• Terminal Identification: IN_DIS#0 through IN_DIS#15 with flexible COM_POS and COM_NEG terminal mappings
• IP Protection Class: IP20
• Operational Temperature Range: 0 to 55 degrees Celsius
• Storage Temperature Range: -25 to 70 degrees Celsius
• Physical Module Weight: 0.1 kg

Compatible Equipment

• Twido Compact Base Controllers
• Twido Modular Programmable Controllers
• Industrial Pushbuttons, Limit Switches, and Safety Interlocks
• Two-wire and Three-wire Proximity Sensors (PNP or NPN)

Diagnostic Capabilities

• LED status indicators present instantaneous visualization of individual input channel states.
• The host Twido controller executes software diagnostics to detect module hardware detachment.
• Integrated filter metrics isolate transient signal fluctuations from authentic system processing states.

Typical Application Scenarios

• Sorting and indexing conveyor systems tracking product presence via photoelectric sensors.
• Packaging machinery requiring rapid monitoring of mechanical limit switch configurations.
• Assembly line validation workstations processing distributed operator panel commands.
• Pneumatic cylinder stroke verification via reed switch feedback integration.

Certification and Standards

• UL Listed
• CSA Certified
• CE Marking compliant

Shipping, Packaging, and Warranty

• Packaging List: One factory-sealed Schneider Electric TWDDDI16DT input module, technical wiring documentation sheet.
• Shipping Window: Dispatched reliably within 24 to 48 hours from our central distribution hub.
• Logistics Carriers: Express global transport managed by premium couriers including FedEx, UPS, and DHL.
• Warranty Coverage: Guaranteed performance secured under a comprehensive 12-month commercial warranty policy.

Procurement Guide

• Verify your field sensor transistor orientation to configure the common terminal appropriately for sink or source logic.
• Ensure the 8 millisecond hardware filter time matches your minimum operational input pulse width specifications.
• Allocate sufficient 5 V DC internal backplane current capacity within your controller power budget calculation.

Frequently Asked Questions

Does this hardware require external power for the input channels?

Yes, the input loops demand an external 24 V DC power supply to energize the 7 mA sensor circuits.

How do I switch the module from sink logic to source logic?

You alter the logic configuration by changing the polarity connected to the common terminal layout during wiring.

Can this module capture high-speed counting pulses from encoders?

No, the 8 millisecond filter time limits this module to standard frequency discrete state monitoring applications.

What size field wiring does the removable screw terminal block accept?

The terminal block accommodates standard control panel wiring up to 1.5 square millimeters securely.

How do I troubleshoot an input channel that fails to register in the PLC register?

Measure the voltage across the specific input terminal and common to ensure it exceeds 20.4 V DC.
