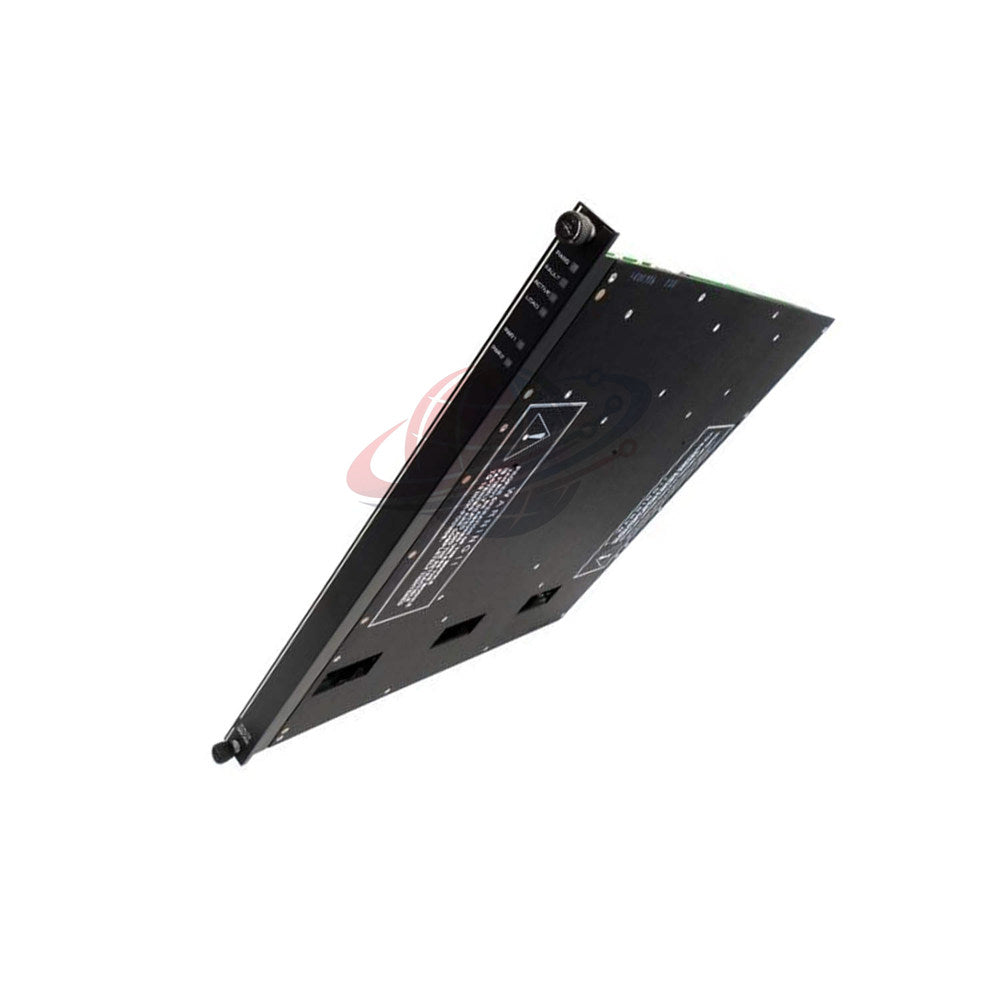

Triconex 3806E Analog Output Module | TMR High Current AO

Product Overview

Triconex 3806E is a high-performance Analog Output Module for critical industrial control systems.

The module belongs to the Triconex Tricon Series safety platform.

It supports Triple Modular Redundant (TMR) architecture for high system reliability.

The module delivers stable analog output signals for turbomachinery and process automation applications.

3806E supports online hot-spare replacement without interrupting system operation.

The module continuously monitors channel health and output integrity.

Integrated diagnostics improve system availability and reduce maintenance downtime.

The design prevents inactive channels from sending unintended field signals.

Users can deploy the module in high-demand safety and mission-critical environments.

Core Functional Features

• Triple Modular Redundant architecture increases fault tolerance.
• Supports both low-current and high-current analog outputs.
• Built-in current loopback verifies signal accuracy continuously.
• Fast channel switchover minimizes process interruption.
• Supports redundant loop power connections.
• Provides open-loop detection for field wiring diagnostics.
• Supports online module replacement during operation.
• Optimized for turbomachinery control applications.
• Integrated self-calibration improves output precision.
• Continuous internal diagnostics enhance operational safety.

Technical Specifications

• Brand: Triconex
• Series: Tricon Series
• Model: 3806E
• Module Type: Analog Output Module
• Architecture: TMR (Triple Modular Redundant)
• Output Signal Range: 4-20 mA and 20-320 mA
• Output Channels: 6 channels at 4-20 mA
• High Current Channels: 2 channels at 20-320 mA
• Resolution: 12-bit analog resolution
• Output Accuracy: Less than 0.25% of full-scale range
• Measurement Range: 0-21.2 mA and 0-339.2 mA
• Frequency Response: Fast response for real-time control systems
• Sensitivity: High signal sensitivity for precise analog regulation
• Linearity: Stable linear output across the full operating range
• Switch Time on Leg Failure: Typical response below 10 ms
• Isolation: Commoned return, DC coupled
• External Loop Voltage: 24 VDC nominal
• Maximum Loop Voltage: 42.5 VDC
• Reverse Voltage Protection: Supported
• Operating Temperature: 0°C to 60°C
• Temperature Range: 32°F to 140°F
• Environmental Tolerance: Designed for industrial environments
• Anti-Interference Capability: Advanced diagnostics reduce signal disturbance risks
• Power Requirement: Up to 1 amp at 24-42.5 VDC
• Status Indicators: PASS, FAULT, ACTIVE, LOAD, PWR1, PWR2
• Color Code: Light Green

Load Capability

• 20 VDC: Up to 275 Ohms at 4-20 mA
• 24 VDC: Up to 475 Ohms at 4-20 mA
• 28 VDC: Up to 650 Ohms at 4-20 mA
• 32 VDC: Up to 825 Ohms at 4-20 mA
• 20 VDC: Up to 15 Ohms at 20-320 mA
• 24 VDC: Up to 25 Ohms at 20-320 mA
• 28 VDC: Up to 40 Ohms at 20-320 mA
• 32 VDC: Up to 50 Ohms at 20-320 mA

Installation Guidelines

• Install the module in a compatible Tricon chassis.
• Use the correct External Termination Panel for field wiring.
• Verify loop power polarity before energizing the system.
• Ensure proper ventilation inside the control cabinet.
• Use shielded industrial cables in noisy environments.
• Confirm module keying before installation.
• Follow grounding practices for stable analog performance.

Commissioning And Maintenance Advantages

• Hot-spare capability reduces process downtime.
• Front-panel indicators simplify troubleshooting tasks.
• Automatic diagnostics detect channel abnormalities quickly.
• Self-calibration improves long-term operational stability.
• Loopback monitoring validates output signal integrity continuously.
• Online replacement supports continuous plant operation.

Compatibility Information

• Compatible with Triconex Tricon safety systems.
• Supports integration with distributed control systems.
• Suitable for turbine and compressor control platforms.
• Works with industrial process automation architectures.
• Supports external loop power configurations.

Typical Application Scenarios

• Turbomachinery control systems
• Emergency shutdown systems
• Oil and gas processing facilities
• Power generation plants
• Chemical processing automation
• Safety Instrumented Systems (SIS)
• Critical analog signal regulation
• Compressor and turbine monitoring

Diagnostic And Monitoring Capability

• Continuous channel diagnostics improve system reliability.
• Current loopback validates analog output accuracy.
• Open-loop detection identifies field wiring issues.
• Power indicators monitor redundant supply conditions.
• Fault indicators help isolate abnormal channels quickly.
• Automatic healthy-channel selection supports uninterrupted operation.

Global PLC Spare HUB's Insight

Triconex 3806E delivers reliable analog control for critical process industries.

The module performs well in turbine and compressor applications.

Engineers value its fast diagnostics and high-current output capability.

The TMR architecture improves operational continuity in demanding environments.

The module suits safety-critical systems requiring stable analog regulation.

It integrates effectively into modern industrial automation infrastructures.

Certifications And Compliance

• Designed for industrial automation applications.
• Supports safety-oriented control architectures.
• Manufactured according to industrial quality standards.
• Suitable for critical process environments.

Packing List

• 1 × Triconex 3806E Analog Output Module
• Protective industrial packaging
• Product inspection and identification label
• Shipment documentation

Shipping And Warranty

• Fast shipping within 24-48 hours.
• Worldwide delivery available.
• Courier options include FedEx, UPS, and DHL.
• Secure export packaging protects the module during transit.
• 12-month warranty coverage included.
• Technical support available for installation assistance.

FAQ

What systems support the Triconex 3806E module?

The module supports Tricon safety and process control systems.

Can the module operate during channel failure?

Yes. TMR architecture allows continued operation during channel faults.

Does the module support hot replacement?

Yes. Users can replace the module online without shutdown.

Why is open-loop detection important?

It helps engineers identify wiring disconnections rapidly.

Which industries commonly use this module?

Oil and gas, power generation, and turbomachinery industries use it widely.

What should users check before installation?

Verify power voltage, chassis compatibility, and field wiring integrity.

How does the module improve maintenance efficiency?

Integrated diagnostics reduce troubleshooting time significantly.

What output types does the module provide?

The module supports both standard and high-current analog outputs.

How should users select compatible loop power supplies?

Choose stable industrial 24 VDC supplies within supported voltage ranges.

Which application benefits most from high-current outputs?

Turbomachinery control systems benefit from high-current analog capability.

Selection Guidance

• Choose 3806E for high-reliability analog control applications.
• Select this module for turbine and compressor automation systems.
• Use the module where TMR redundancy is mandatory.
• Consider output current requirements before selection.
• Verify chassis and termination compatibility before deployment.
• Choose this model for continuous operation environments.
