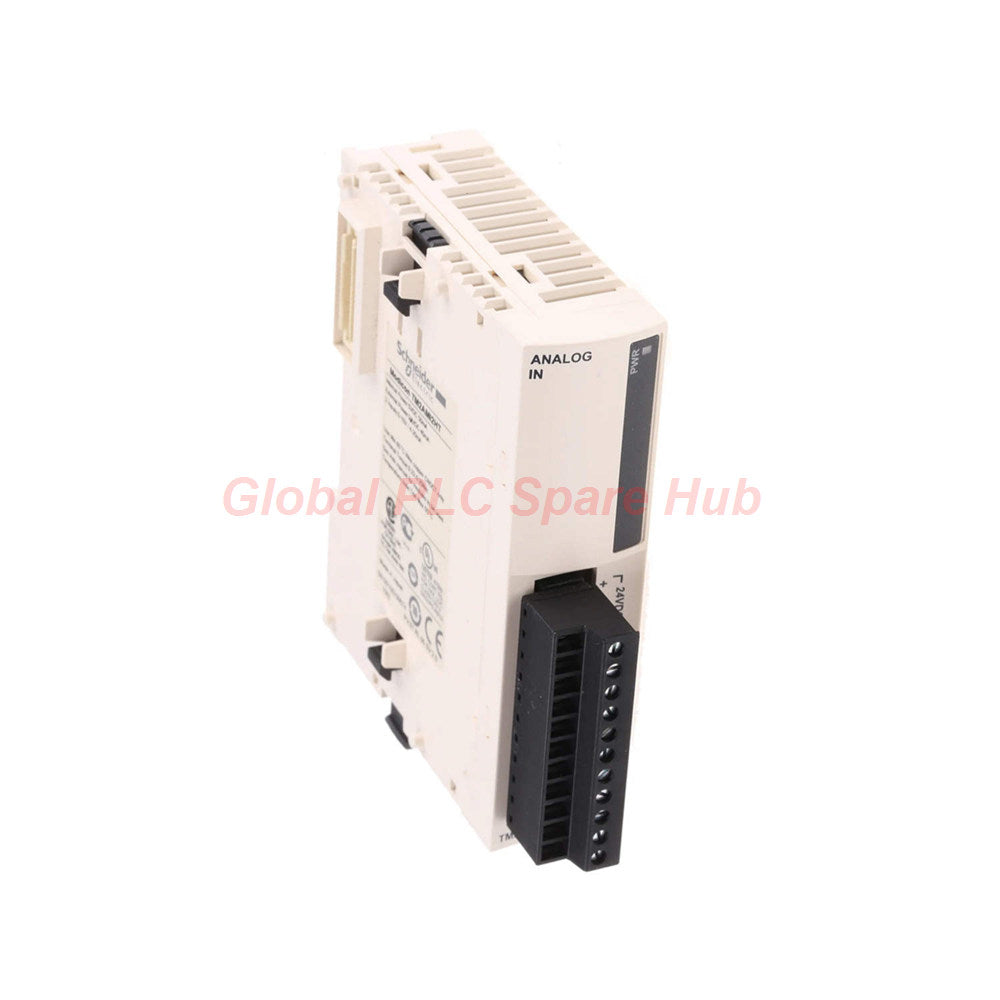

TM2AMI2HT Schneider Modicon M238 Analog Input Module 2-Channel 12-Bit

Engineering Precision: The TM2AMI2HT Module

The TM2AMI2HT serves as a vital expansion component for the Modicon M238 logic controller architecture. This high-level analog module processes two distinct signals, providing high-fidelity conversion for industrial sensing applications. Engineered for reliability, it bridges the gap between field sensors and digital controllers with a 12-bit resolution, ensuring your control loops remain stable and responsive.

Technical Performance Matrix

• Brand/Series: Schneider Electric / Modicon M238
• Component ID: TM2AMI2HT
• Signal Inputs: 2 Channels (Non-differential)
• Input Types: Voltage (0–10V) / Current (4–20mA)
• Resolution: 12-bit (2.5 mV / 4.8 µA LSB sensitivity)
• System Accuracy: ±0.2% FS at 25 °C; ±1% FS Total Error
• Input Impedance: ≥1 MΩ (Voltage) / 10 Ω (Current)
• Cycle Time: 10 ms per channel + controller cycle time
• Isolation: Photocoupler between I/O and logic (500V dielectric)
• Power Requirements: 24V DC External (20.4–28.8V)
• Form Factor: 23.5mm compact profile for high-density rail mounting

Deployment and Diagnostics Capability

The TM2AMI2HT is built for mission-critical industrial diagnostics. Its internal filtering and high common-mode rejection ensure data integrity in noisy environments. Users can leverage the controller's scan cycle to monitor bit status, quickly identifying open-circuit conditions (current mode) or over-range voltage spikes. The module's compact design simplifies panel layout, while the removable screw terminal block facilitates rapid wiring and field maintenance.

Global PLC Spare HUB Insight

From our engineering perspective, the TM2AMI2HT is a workhorse for legacy and active Modicon M238 deployments. It is perfectly suited for process monitoring, such as pressure transducer feedback, flow rate control, and temperature monitoring. Its ability to toggle between current and voltage inputs makes it a versatile spare for maintenance teams managing varied field instrumentation.

Service, Delivery, and Warranty

• Global Logistics: We ensure rapid fulfillment via FedEx, UPS, and DHL.
• Shipment Window: All orders dispatched within 24–48 hours.
• Quality Assurance: Every TM2AMI2HT is backed by a 12-month performance warranty.

Expert Selection and FAQ

What is the recommended cabling practice to prevent noise?
Always utilize high-quality shielded cabling and ground the shield at a single point to minimize electromagnetic interference (EMI) on the 12-bit signal.

Why is my reading fluctuating significantly?
Check your common ground reference; while the input is non-differential, fluctuations often stem from potential differences between the sensor power and the PLC supply.

Can I mix a voltage signal on channel one and current on channel two?
Yes, the module architecture allows for independent configuration of input types per channel, providing flexibility in mixed-sensor environments.

How does the module handle a 4-20mA sensor burnout?
The system will detect a value falling below the lower bound; verify your PLC ladder logic to trigger a "sensor fault" alarm when the input falls below 4mA.

What is the primary benefit of the 10ms sampling rate?
This rate ensures high-speed capture for process variables, effectively reducing the "aliasing" effect in fast-paced batch processing applications.

Integration Guide for Engineers

• Verify Supply Voltage: Ensure your external 24V DC source is stable between 20.4V and 28.8V.
• Terminal Wiring: Confirm wire gauges are suitable for the screw terminals to prevent intermittent connectivity.
• Calibration: Periodically perform a zero-scale and full-scale calibration check to maintain the ±0.2% FS accuracy over time.
