TM221C24R Schneider Modicon M221 PLC TM221C24R Controller In Stock
Manufacturer: Schneider Electric
Product No.: TM221C24R
Condition： In stock
Product Type: Controller
Product Origin: DE
Payment: T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Product Overview

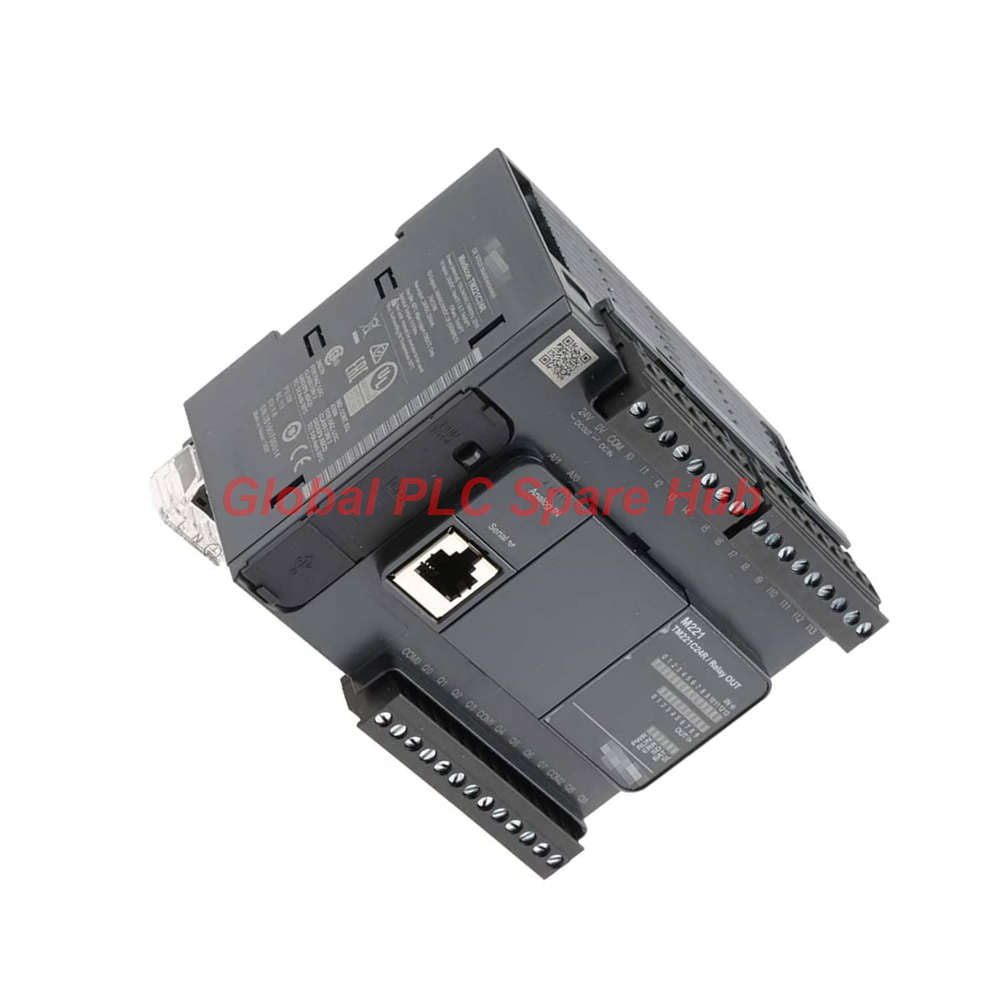

The TM221C24R is a high-performance programmable logic controller.
It belongs to the Schneider Electric Modicon M221 series for industrial machine automation.
This controller integrates 14 digital inputs, 10 relay outputs, and 2 analog voltage inputs.
An advanced 32-bit RISC processor executes commands at 22 nanoseconds per instruction.
The unit operates on a 24 V DC system power supply.
It provides 256 kB of program memory and 64 kB of data retention.
Technical Specifications
The following MECE table outlines core parameters for the TM221C24R controller:
| Category | Specification Parameter | Details & Engineering Values |
|---|---|---|
| Identity & Physical | Brand & Series | Schneider Electric Modicon M221 |
| Model Part Number | TM221C24R (EAN: 3606480648717) | |
| Physical Dimensions & Weight | 130 mm (L) x 95 mm (W) / 0.45 kg (1.00 lbs) | |
| Mounting & Climate Rating | Standard DIN Rail mount (-10°C to 55°C operation) | |
| Processing & Memory | Processor Type & Speed | 32-bit RISC CPU (22 ns per instruction execution) |
| Memory Architecture | 256 kB Program Memory / 64 kB Retentive Data Storage | |
| Real-Time Tracking | Built-in Real-Time Clock (RTC) for scheduled events | |
| I/O Integration | Digital Inputs | 14 Channels (24 V DC sink/source configuration) |
| Digital Outputs | 10 Channels (Relay type switching contacts) | |
| Analog Inputs | 2 Channels (0 to 10 V DC voltage range) | |
| Power & Expansion | Supply Voltage | 24 V DC main system power supply |
| System Expansion | Supports Modicon TM3 and TM2 I/O expansion modules |
Compatible Equipment & Application Scenarios
The TM221C24R controller integrates seamlessly across automated plant environments:
- Schneider Modicon TM3 Expansion Modules: Expands digital, analog, and functional safety channels via side-bus.
- ProFace & Magelis HMIs: Communicates via Modbus serial/USB ports for real-time machine visualization.
- HVAC & Building Automation: Processes 0-10V temperature sensor signals and controls fan starter relays.
- Material Handling Systems: Executes fast sensor processing and motor contactor switching on conveyor belts.
Diagnostic Capabilities
Onboard diagnostic features support continuous hardware verification and rapid troubleshooting:
- Onboard LED array signals power status, execution health, and discrete I/O activity states.
- Integrated 0-10V analog inputs monitor continuous voltage supply lines for threshold warnings.
- Firmware detects I/O expansion bus faults and RTC battery status automatically.
- SoMachine Basic software isolates execution faults down to specific program logic tasks.
Global PLC Spare HUB Insights & Field Experience
Engineers at Global PLC Spare HUB frequently implement the Modicon M221 series in OEM panel designs.
Built-in analog inputs eliminate external transmitter cards for basic 0-10V sensor monitoring.
Field Case Example: A commercial HVAC contractor needed to monitor supply duct pressure while controlling three damper relays. Implementing the TM221C24R controller allowed direct 0-10V pressure sensor wiring into onboard analog channels. This eliminated two costly analog expansion modules and simplified control panel wiring significantly.
Selection Guide
Review these operational criteria before selecting this logic controller for your control cabinet:
- Onboard Analog Need: Select this unit when requiring 2 basic 0-10V inputs without extra modules.
- Power Rail Specs: Verify your enclosure panel delivers a steady 24 V DC voltage supply.
- Output Load Type: Choose relay outputs when switching mixed voltage contactor coils up to 2 A.
- Processing Demands: Utilize the 22 ns instruction speed for fast-cycle packaging operations.
Package List, Warranty & Logistics
Every shipment contains fully tested, factory-sealed hardware ready for immediate installation:
- 1 x Schneider Electric TM221C24R Controller Module
- 1 x Factory Quality Inspection Certificate
- 12-Month Comprehensive Warranty: Covers full technical replacement against manufacturing defects.
- Rapid Express Shipping: Dispatches within 24 to 48 hours via FedEx, UPS, or DHL express.
Frequently Asked Questions (FAQ)
Q1: What analog signal ranges do the onboard inputs accept on the TM221C24R?
A: The two built-in analog channels accept 0 to 10 V DC voltage signals directly.
Q2: Can I expand the I/O capacity of this Modicon M221 controller?
A: Yes, it connects directly to Schneider Modicon TM3 and TM2 expansion modules.
Q3: How do experienced automation engineers protect relay contacts when switching heavy inductive loads?
A: Engineers install suppression diodes for DC coils or RC snubbers across AC contactor terminals.
Q4: How does the built-in real-time clock benefit automated plant scheduling?
A: The RTC triggers time-stamped logging and executes automatic time-of-day control routines seamlessly.
Q5: How quickly will my order ship during emergency machine downtime?
A: We process and dispatch orders within 24 to 48 hours via DHL, FedEx, or UPS express carriers.
