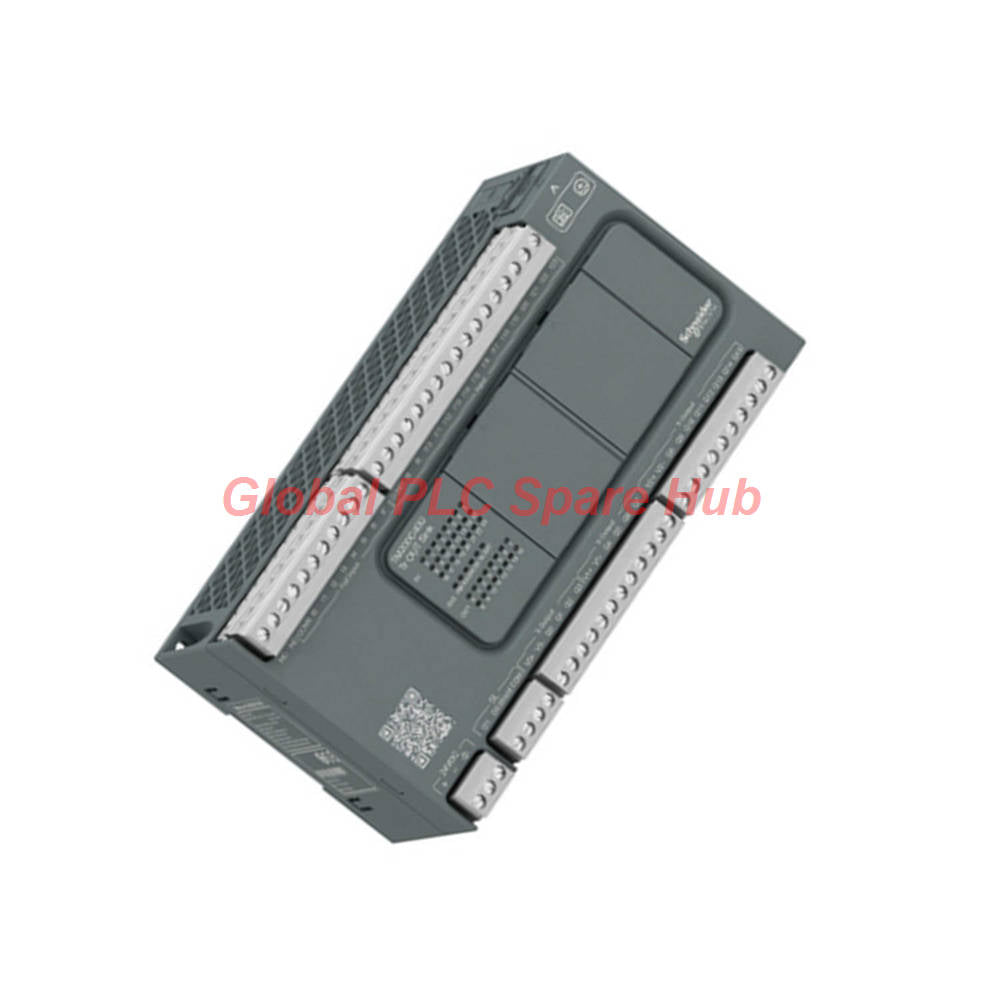

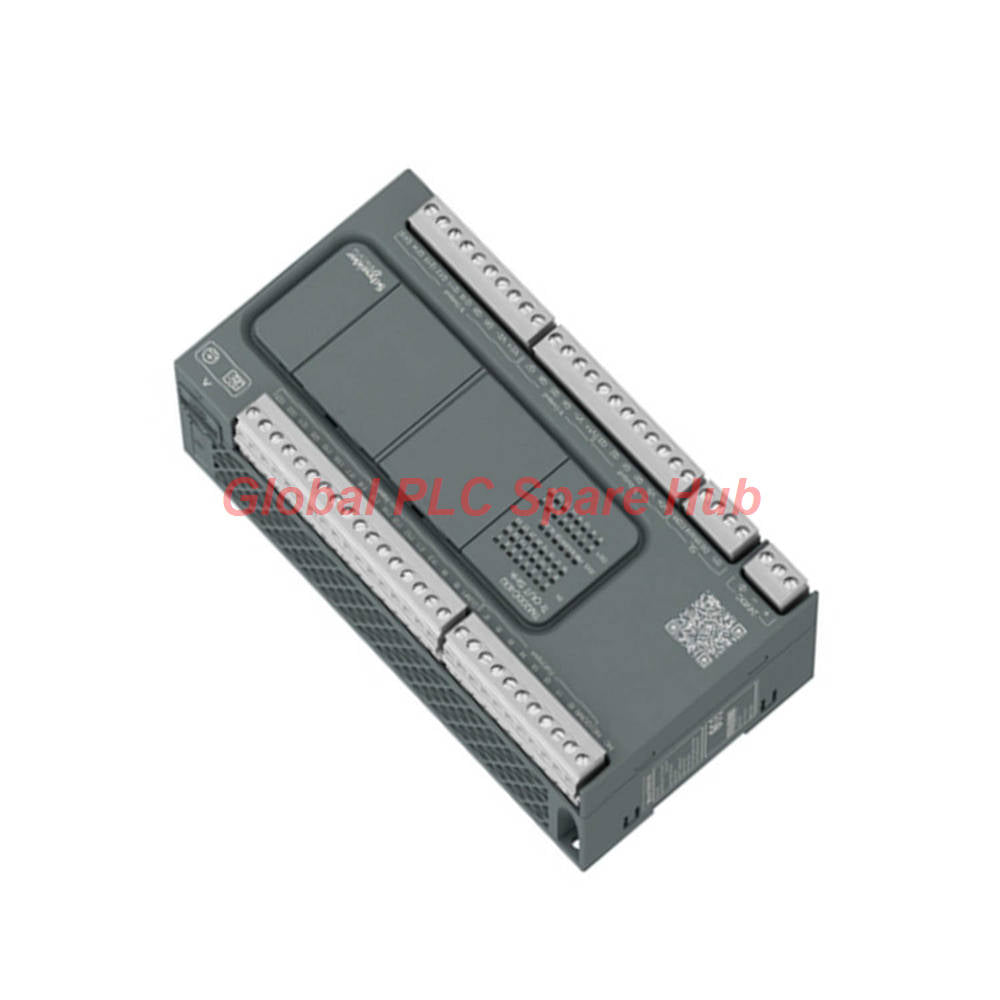

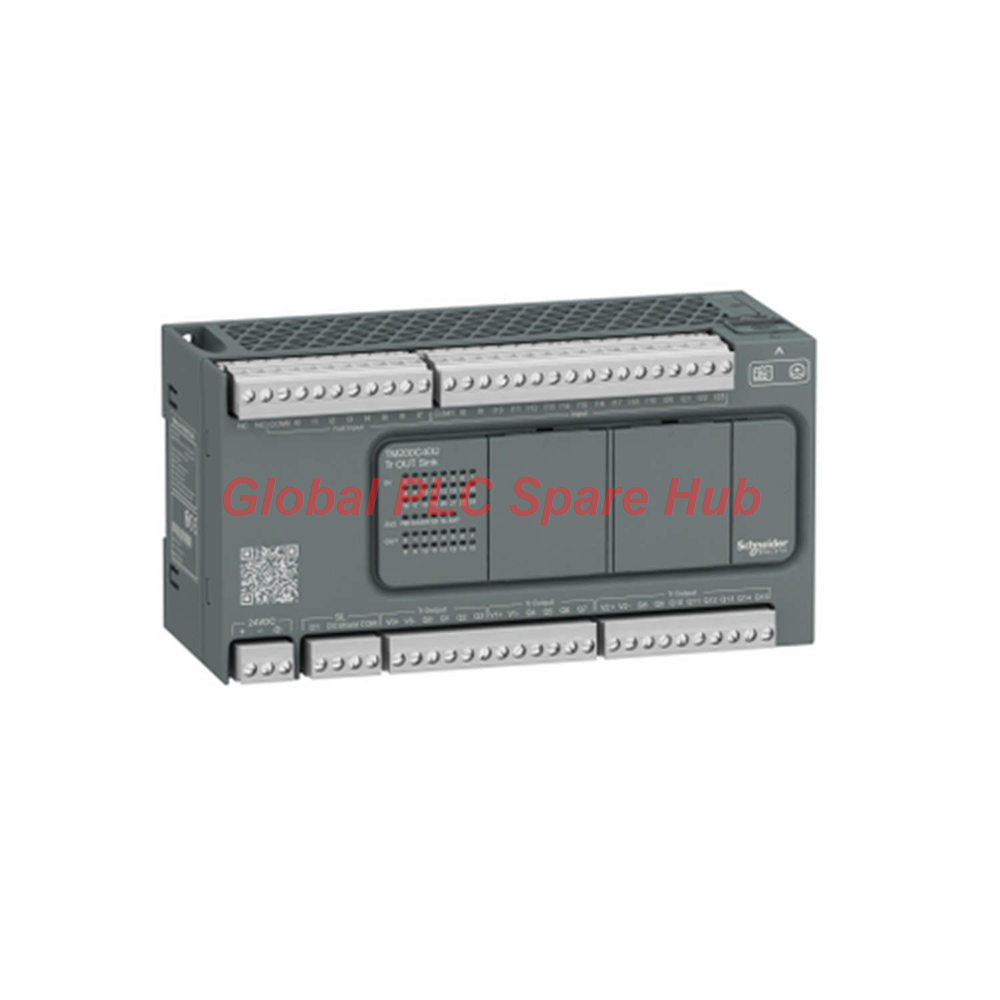

TM200C40U Schneider M200 Controller | 40 I/O Transistor PLC Module

TM200C40U Schneider Easy Modicon M200 Logic Controller

TM200C40U Global PLC Spare HUB Review: Commissioning high-speed motion and multi-axis synchronizations demands robust onboard interrupt capabilities. Based on our practical diagnostic logs, the TM200C40U transistor-sink controller processes 100 kHz high-speed counter streams seamlessly while executing PID loops without cycle jitter. Its dual serial links and micro SD backup slot ensure minimal downtime during firmware replication and runtime parameter updates.

Core Architecture & Technical Matrix

Advanced Diagnostic Capabilities & LED Signaling

• RUN / PWR States: Green indicators confirm system health and execution loop status.
• ERR & BAT Indicators: Dedicated red error flags and battery monitoring (BR2032 Li-CFx) alert engineers to memory backup depletion or internal faults.
• Per-Channel I/O Status: Individual green LEDs provide real-time verification of active transistor outputs and discrete input switching states.
• SD Card Status: Dedicated activity logging indicator tracks micro SD data transfers and backup routines.

Target Devices & Industrial Application Scenarios

• Multi-axis stepper and servo positioning systems utilizing 100 kHz pulse-train outputs (PTO/PWM).
• Conveyor tracking networks requiring high-speed quadrature encoder feedback (HSC mode up to 100 kHz).
• OEM packaging machines and automated assembly lines needing up to 14 simultaneous closed-loop PID thermal or pressure controls.

Logistics, Fulfillment & Coverage

• Rapid Dispatch: Securely packaged and shipped within 24 to 48 hours.
• Global Carriers: Delivered reliably worldwide via FedEx, UPS, and DHL.
• Quality Guarantee: Fully backed by a 12-month standard replacement warranty.

Engineering FAQ

Q: How does the TM200C40U handle high-speed encoder inputs without missing pulse counts in noisy environments?
A: The controller features dedicated hardware fast inputs (I0 to I7) supporting up to 100 kHz filtering thresholds, coupled with required shielded cabling under 10 meters to eliminate electromagnetic interference.

Q: What happens to user application logic if the internal BR2032 lithium battery fails during a power outage?
A: While volatile RAM relies on the battery and backup capacitor, the built-in 512-byte internal flash memory and optional 32 GB micro SD card preserve compiled program backups and critical retentive data.

Q: Can expansion modules be mixed arbitrarily with the TM200C40U base unit?
A: Yes, the controller supports up to 4 expansion modules, allowing configuration up to 64 discrete relay outputs or 144 transistor outputs depending on your localized load demands.

Q: Why do the fast outputs (Q0, Q1) experience thermal limitations when driving inductive loads?
A: Transistor outputs are rated for 0.5 A max per channel with built-in overload protection at 3.8 A; inductive actuators require external flyback diodes to prevent voltage spike degradation.

Q: Buying Guide: When should an automation engineer choose the TM200C40U over smaller modular controllers?
A: Choose the TM200C40U when your machine architecture requires a high-density 40 I/O footprint with native transistor-sink capabilities, dual serial communication lines, and multi-axis pulse train generation without adding separate expansion cards.
