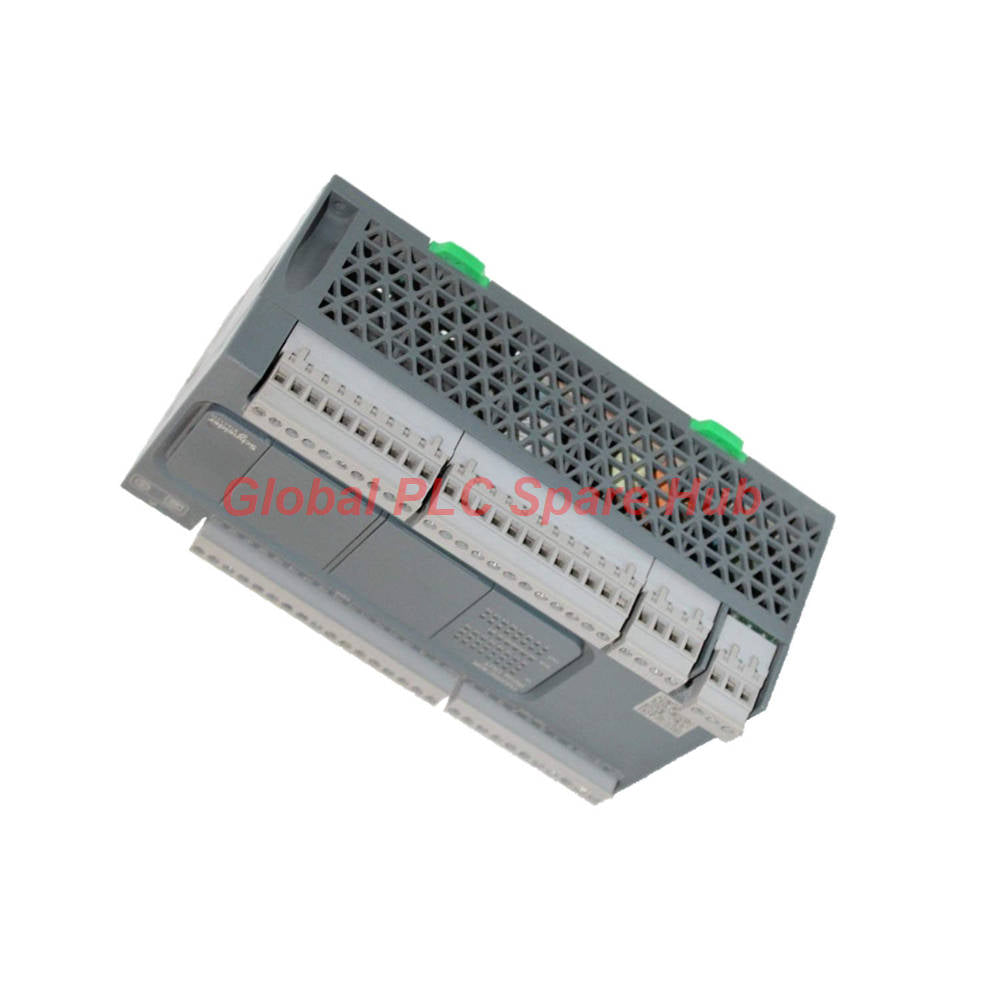

TM200C40R Easy Modicon M200 PLC Schneider Logic Controller
Manufacturer: Schneider Electric
Product No.: TM200C40R
Condition： In stock
Product Type: Logic Controller
Product Origin: DE
Payment: T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Engineering Profile & Core Architecture
The TM200C40R logic controller represents a core component of the Schneider Electric Easy Modicon M200 series, engineered for scalable machine automation. Global PLC Spare HUB's Insight: This 40 I/O unit integrates high-speed counting up to 100 kHz across 4 fast inputs, making it exceptionally reliable for precise pulse-train positioning tasks in compact manufacturing cells.
Technical Specification Hierarchy
| Functional Domain | Parameter Details |
|---|---|
| Brand & Series | Schneider Electric Easy Modicon M200 |
| Model Identifier | TM200C40R |
| Power Rating & I/O | 100-240V AC Supply, 40 Discrete I/O (24 Inputs / 16 Relay Outputs) |
| Processing & Memory | 0.2 µs Boolean execution, 512-byte internal flash, optional 32 GB Micro SD |
| Communication Ports | USB Mini-B, Non-isolated/Isolated RS485 & RS232 Serial Interfaces |
| Physical Footprint | 175 mm (W) x 90 mm (H) x 70 mm (D), Weight: 0.504 kg |
Advanced Diagnostic Capabilities
- Multi-Channel LED Status Monitoring: Real-time visual tracking via dedicated indicators for module run state (RUN), power (PWR), hardware errors (ERR), battery backup (BAT), and individual I/O channel states.
- HSC Fault Tracking: Monitors high-speed counter pulse integrity up to 100 kHz on fast inputs to prevent encoder slippage detection errors.
- Micro-Break Resilience: Built-in tolerance handles up to 10 ms power micro-breaks without triggering unexpected controller shutdowns.
Target Equipment & Application Scenarios
The TM200C40R controller is deployed widely in conveyor sorting loops, packaging machinery, HVAC automated control panels, and small-scale pump stations requiring tight PID regulation loops (up to 14 simultaneous loops).
Global Fulfillment & Warranty Assurance
- Expedited Courier Services: Rapid 24 to 48-hour dispatch routing through FedEx, UPS, and DHL.
- Quality Protection: Fully backed by a robust 12-month commercial warranty.
Engineering FAQ & Field Troubleshooting
Q: What causes the red BAT LED indicator to illuminate on the controller faceplate?
A: This indicates that the internal BR2032 Lithium-Carbon Monofluoride backup battery voltage has dropped below operational thresholds and requires replacement to safeguard RAM data retention.
Q: How does the controller handle high-speed inputs during heavy electromagnetic interference?
A: Global PLC Spare HUB Review notes that utilizing properly shielded twisted-pair cables under 10 meters for fast inputs ensures compliance with EN/IEC 61000-4 immunity standards against electrical bursts.
Q: Can I expand the discrete output capacity beyond the onboard 16 relays?
A: Yes. The system supports up to 4 expansion modules, accommodating up to 80 discrete relay outputs or 128 transistor outputs depending on your hardware selection.
Q: What is the recommended strategy when replacing the real-time clock battery in the field?
A: Always back up your project program to the optional micro SD card before hot-swapping or powering down the unit for an extended period beyond the 3-year backup window.
Q: Selection Guidance: When should an engineer choose the relay output version over transistor variations?
A: Opt for the relay output configuration when driving mixed AC/DC loads up to 250V AC or 30V DC directly without requiring intermediate isolation interposing relays.
