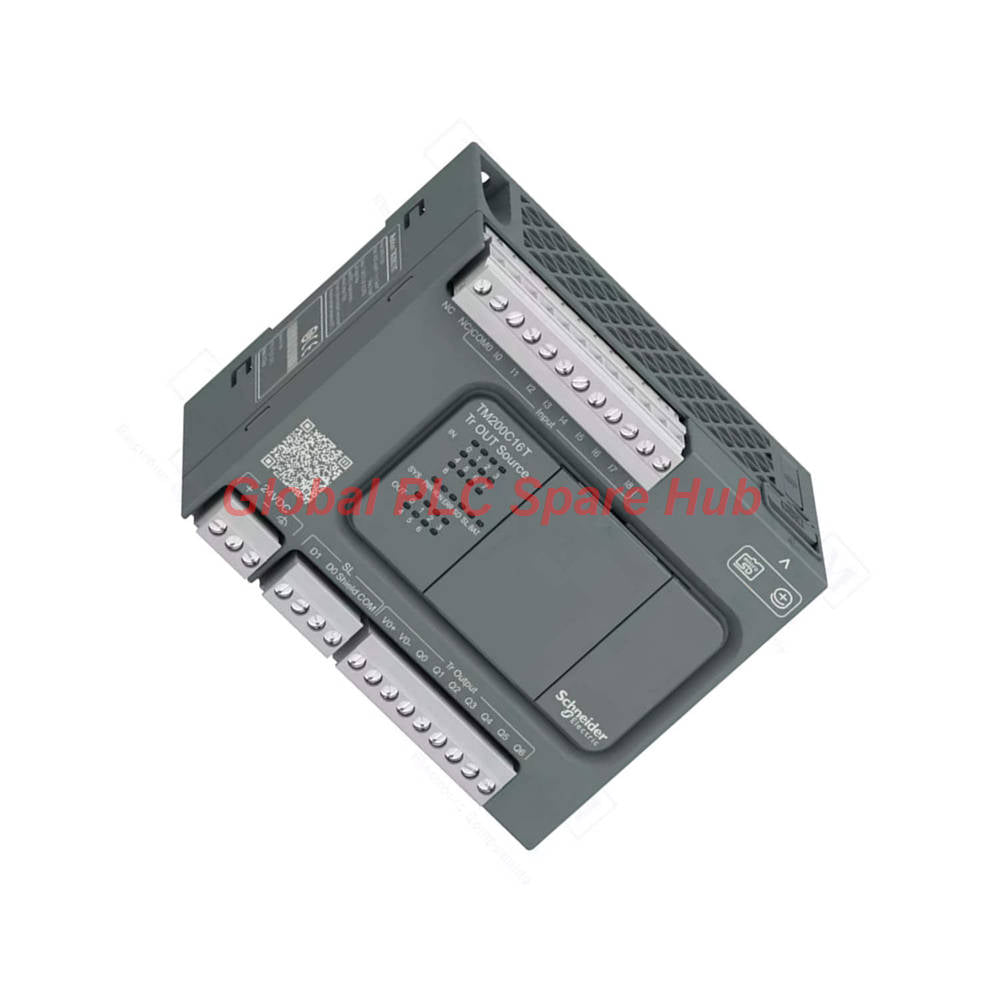

TM200C16T Controller M200 Schneider Electric 16 I/O Source Unit

Product Engineering Profile

The Schneider Electric TM200C16T Easy Modicon M200 Logic Controller is an advanced 16-I/O compact automation processor designed for precise discrete event processing and high-speed motion tasks. Featuring transistor source outputs and dedicated high-speed counting channels, it handles multi-axis positioning loops and rapid machine cycle operations seamlessly.

Global PLC Spare HUB's Insight: In high-speed packaging machinery retrofits, leveraging the built-in 100 kHz pulse outputs of the TM200C16T eliminates external motion card dependencies, ensuring tight synchronization between stepper drivers and core application logic.

Core Technical Architecture & Specifications Matrix

• Identification & Core Parameters
  • Brand: Schneider Electric
  • Model / Ordering Code: TM200C16T
  • Product Series: Easy Modicon M200 Series
  • Device Type: Logic Controller / CPU Module
  • Rated Supply Voltage: 24 V DC (limits: 20.4 to 28.8 V DC)
• Discrete I/O Allocation & Performance
  • Total Channels: 16 discrete I/O (9 inputs, 7 outputs)
  • Input Configuration: 1 regular (I8), 4 fast (I2...I5), and 4 high-speed inputs (I0, I1, I6, I7) supporting sink/source logic
  • Output Configuration: 5 standard transistor outputs (Q2...Q6) and 2 fast transistor outputs (Q0...Q1) supporting PWM/PLS/PTO modes at 100 kHz
  • Electrical Ratings: 24 V DC input voltage; 0.5 A max current per transistor output with positive source logic
• Processing & Memory Architecture
  • Execution Speed: 0.2 µs per Boolean instruction; 0.3 ms for periodic task execution
  • Memory Storage: 512 bytes internal flash backup; optional 32 GB micro SD card expansion
  • Battery Backup: BR2032 Li-CFx coin cell delivering up to 3 years of retention at 25 °C power interruption
• Communication & Physical Attributes
  • Ports: Mini-B USB 2.0 programming interface, non-isolated RS485 serial link, and dual RS232/RS485 terminal block connections
  • Protocols: Modbus Master/Slave (RTU/ASCII) and SoMachine-Network
  • Dimensions & Weight: 110 mm (Width) x 90 mm (Height) x 70 mm (Depth); Net weight: 0.365 kg
  • Mounting Standards: DIN rail TH35-15 / TH35-7.5 or direct panel installation via fixing kit

Equipment Compatibility & Application Scenarios

• Target Hardware Integration: Compatible with Modicon M200 expansion modules (supporting up to 4 local discrete I/O expansion racks), SoMachine software environments, and standard industrial HMI panels.
• Primary Industrial Scenarios:
  • Precision conveyor sorting systems utilizing high-speed quadrature encoder feedback (up to 100 kHz HSC modes).
  • Compact multi-axis positioning stages requiring integrated Pulse/Direction or CW/CCW motion control loops.
  • Standalone OEM machinery automation requiring PID temperature or pressure regulation across up to 14 simultaneous loops.

Diagnostic Capabilities & Maintenance Protocol

• LED Status Indicator Tree:
  • PWR (Green): Indicates valid 24V DC internal rail power supply status.
  • RUN (Green): Confirms active user program execution cycle.
  • ERR (Red): Highlights internal hardware faults, configuration mismatches, or system watchdog trips.
  • SD (Green): Flashes during active micro SD card data logging or backup transfers.
  • BAT (Red): Warns of depleted BR2032 lithium battery voltage requiring immediate replacement.
  • SL1 (Green): Monitors serial link communication traffic.
  • I/O LEDs (Green, per channel): Reflect individual real-time digital state logic.
• Troubleshooting & Maintenance:
  • Monitor the ERR LED during high electromagnetic interference events; severe transient spikes on unshielded lines require verification of proper panel earth grounding.
  • Inspect removable terminal block torque annually to prevent high-resistance contact drops on 24V power supply inputs.

Logistics, Fulfillment & Warranty Terms

• Fulfillment Speed: Dispatched within 24 to 48 hours from order validation.
• Express Carriers: Secure global shipping handled via FedEx, UPS, and DHL.
• Warranty Coverage: Backed by a comprehensive 12-month industrial replacement warranty covering non-artificial manufacturing defects.

Expert Buying Guide & Frequently Asked Questions

Q: How do the fast inputs (I0-I7) differ from regular inputs during high-speed counting tasks?

A: Fast and high-speed inputs feature dedicated 5 µs response times and hardware filtering capabilities, allowing them to capture rapid 100 kHz encoder pulses without missing pulses that would overwhelm standard 1 ms regular inputs.

Q: What specific condition triggers the red BAT LED indicator on the front panel?

A: The red BAT LED illuminates when the internal BR2032 lithium battery voltage drops below safe threshold levels, signaling that RAM data and real-time clock retention are at risk during a power loss.

Q: Can I expand the discrete output capacity beyond the base unit's native configuration?

A: Yes. The architecture allows up to 4 expansion modules, providing a maximum extension of 135 discrete transistor outputs or 64 relay outputs depending on your system load requirements.

Q: Why are shielded cables strictly required for high-speed counter (HSC) inputs over 10 meters?

A: Field experience shows that unshielded lines acting over longer spans pick up high-frequency plant noise from nearby variable frequency drives, resulting in false pulse triggers and encoder count drift.

Q: What is the primary software environment required to program and configure this controller?

A: The controller is engineered to interface with Schneider Electric's SoMachine software suite, utilizing USB or serial Modbus communication protocols for parameter configuration and ladder logic deployment.
