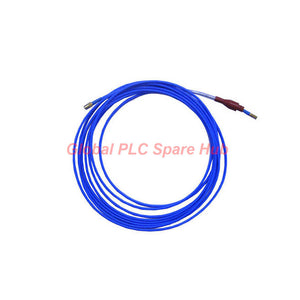

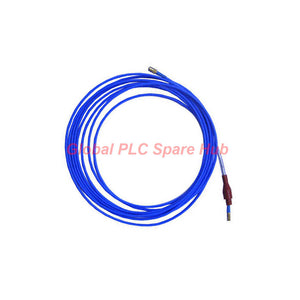

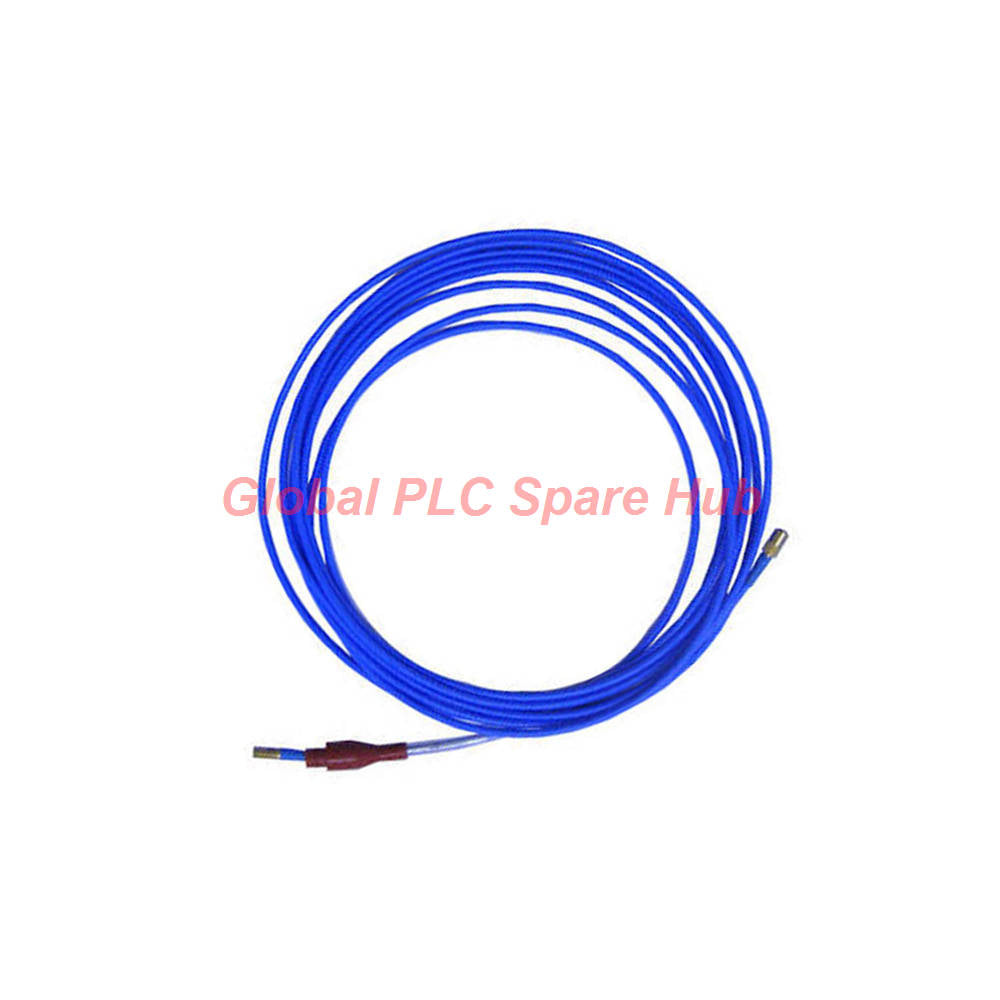

TM0181-080-00 ProvibTech TM0181 Proximity Probe Extension Cable 8.0m

TM0181-080-00 ProvibTech Proximity Probe Extension Cable Overview

The ProvibTech TM0181-080-00 is a premium, high-integrity extension cable engineered specifically for industrial proximity transducer systems. This 8.0-meter unarmored cable serves as the critical impedance-matched link between a standard 5mm or 8mm eddy current probe and the corresponding driver or transmitter. Designed to meet the stringent mechanical and electrical requirements of the API 670 standard, the TM0181-080-00 minimizes signal attenuation, eliminates phase distortion, and guarantees maximum system linearity across high-frequency industrial environments. Its robust physical architecture ensures a long operating lifespan and stable calibration metrics under relentless thermal and mechanical stress.

Global PLC Spare HUB's Insight

From a machinery diagnostics standpoint, the ProvibTech TM0181-080-00 stands out because of its exceptional electrical cross-compatibility. Proximity probe loops are notoriously sensitive to tuning changes; even slight variations in cable capacitance can destroy the calibration of a 200 mV/mil system. ProvibTech resolves this by engineering their TM0181 series to tight electrical tolerances, making this cable fully compatible with other major API 670 compliant eddy current systems on the market. For maintenance teams, this cross-brand interchangeability reduces warehouse stock overhead while providing a highly reliable, cost-effective alternative during critical turnarounds without forcing a complete system recalibration.

Configuration and Part Number Breakdown

The part number TM0181-080-00 is built via a structured, modular nomenclature to match precise field measurements:

• Base Model Series [TM0181]: Designates standard compatibility with 5mm and 8mm proximity probe systems.
• Cable Length Option [080]: Specifies a physical cable length of exactly 8.0 meters (26.25 feet).
• Armor Protection Code [-00]: Confirms a standard unarmored configuration, optimized for flexible conduit routing.

Technical Specifications Matrix

Target Equipment and Application Scenarios

The TM0181-080-00 cable is deployed on high-speed critical machinery asset sets:

• Steam and gas power generation turbines for radial vibration and axial thrust measurements.
• Multi-stage centrifugal process gas compressors within petrochemical refineries.
• Large industrial boiler feed water pumps and multi-stage fluid machinery.
• High-speed turbo-expanders, gearboxes, and industrial air separation machinery.
• Main bearing housing assemblies of large induced-draft and forced-draft fans.

Diagnostic and Condition Monitoring Capabilities

• Ensures zero-attenuation transmission of raw AC/DC voltage signals representing dynamic shaft movement.
• Maintains low impedance bounds to prevent high-frequency noise from masking subsynchronous oil whirl or whip anomalies.
• Supports continuous monitoring of structural vibration frequencies up to 10.0 kHz to capture high-order blade pass events.
• Preserves high signal-to-noise ratios over long physical runs back to the machine protection monitor rack.

Procurement and Selection Guidance

• Total Loop Length Matching: You must combine this 8.0-meter cable with a 1.0-meter unarmored probe to achieve the exact 9.0-meter calibrated system architecture. Mixing it with a 5.0-meter probe will corrupt the sensor drive frequency.
• Routing Constraints: Because the TM0181-080-00 lacks external stainless steel armor, always route it through dedicated flexible conduit or cable trays to prevent insulation cuts during commissioning.
• Target Material Check: Factory calibration assumes an AISI 4140 steel target surface. If your machinery uses a different shaft material, application-specific cross-calibration will be required.

Logistics, Packaging, and Warranty Provisions

• Packaging Standards: Shipped in an anti-static protective enclosure containing one coiled TM0181-080-00 cable with integrated coaxial connectors, complete with technical inspection compliance tags.
• Shipping Turnaround: Immediate dispatch from open stock warehouses within 24 to 48 hours of commercial checkout.
• Global Logistics Channels: Expedited international air freight fulfilled by premium networks including DHL, FedEx, and UPS.
• Warranty Assurance: Includes a full 12-month industrial quality warranty coverage against structural or material defects.

Frequently Asked Questions

What happens if the combined length of my probe and this extension cable does not equal exactly 9.0 meters?

Proximity sensor drivers operate on a tuned RF tank circuit where the cable capacitance directly dictates the resonant frequency. If you use a non-matching total length, the absolute scale factor of 200 mV/mil will shift significantly, rendering the system calibration invalid and triggering false machine alarms.

How do I ensure the coaxial connectors do not loosen or short out in oil-filled bearing housings?

Experienced field technicians should use specialized connector silicone sleeves or oil-resistant self-bonding tape over the connection joint. This prevents oil migration into the coaxial core and protects the connection against high-frequency physical casing vibration.

Can this unarmored cable version be field-installed without a protective junction box?

While the cable insulation withstands high temperatures and fluids, an unarmored configuration is vulnerable to physical crushing during routine plant maintenance. For field longevity, always terminate the connection inside an isolated, environmentally sealed proximity probe housing or local junction box.

Is this extension cable backward compatible with standard Bently Nevada 3300 XL 8mm transducer systems?

Yes. The physical connector geometry and electrical capacitance specifications conform directly to the universal API 670 standard, allowing direct interchangeability with alternative 9-meter 3300 XL series hardware loops without changing system accuracy parameters.

What is the maximum torque specification when tightening the miniature coaxial connectors?

These specialized gold-plated connectors should only be finger-tightened, followed by a slight quarter-turn using specialized connector wrenches. Never use standard pliers, as over-torquing will deform the internal pin contacts and lead to intermittent open-circuit faults.
