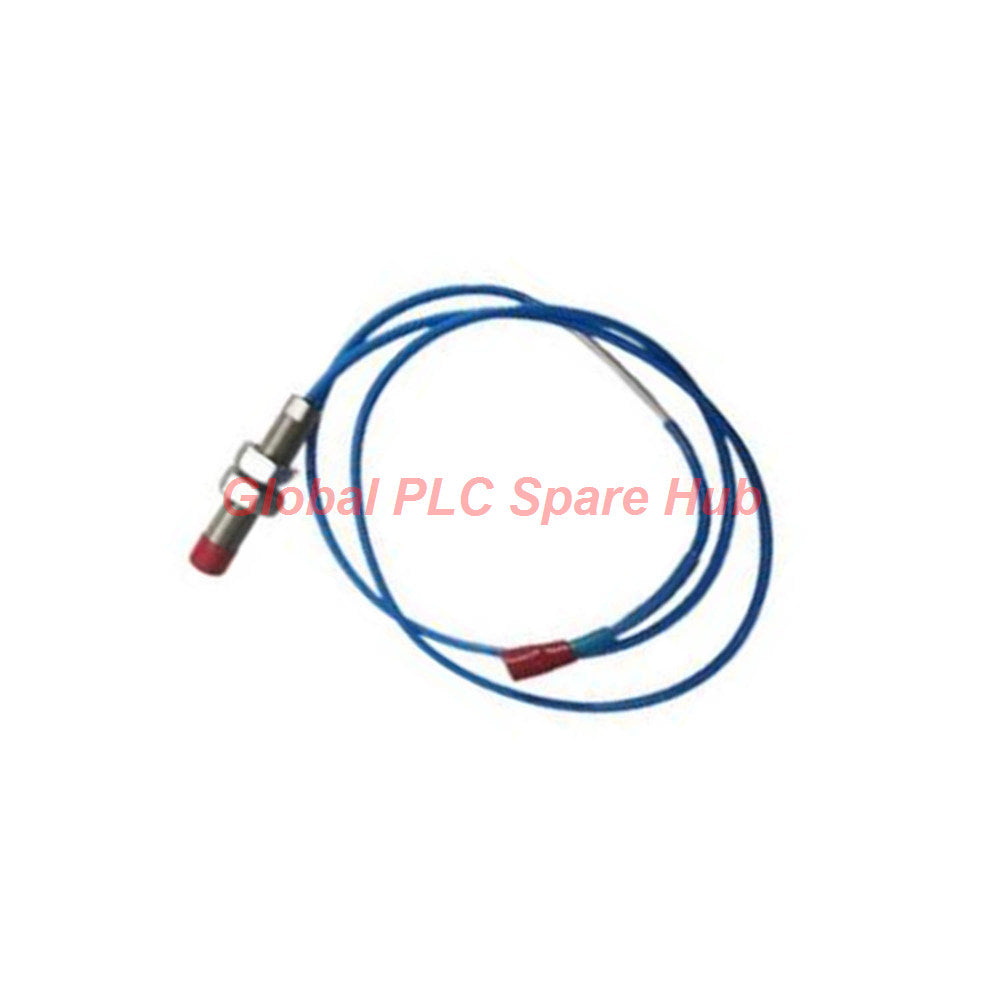

TM0180-07-00-04-10-02 ProvibTech 8mm Proximity Probe

Product Overview

The TM0180-07-00-04-10-02 by ProvibTech is a high-precision standard 8mm proximity probe engineered for demanding industrial vibration monitoring. This sensor utilizes a rugged, corrosion-resistant cable jacket designed to prevent ground loops and isolation loss, ensuring signal integrity in harsh, oil-rich environments. The probe features an integrated design that protects critical connectors with a heavy-duty rubber boot.

Configuration Breakdown

The TM0180 series utilizes a specific coding structure for precise engineering requirements:

• Model: TM0180
• Probe Type: 07 (Standard 8mm, M10x1 thread, non-armored)
• Unthreaded Length: 00 (0 mm)
• Case Length: 04 (40 mm)
• Total Cable Length: 10 (1.0 meter)
• Connector Type: 02 (Standard connector included)

Technical Specifications

• Sensitivity: 7.87 mV/µm (200mV/mil)
• Linear Range: 0.25 mm to 2.25 mm (10–90 mils)
• Frequency Response: 0 to 10.0 kHz (±3dB)
• Linearity: ±0.0254 mm (±1.0 mil) systemic deviation
• Operating Temp (Probe): -40°C to +177°C
• Operating Temp (Driver): -40°C to +80°C
• Approvals: ATEX, CSA (Intrinsically Safe), PCEC, GOST R
• Target Requirements: Minimum 15mm (0.6 inch) diameter

Diagnostics and Predictive Maintenance

This ProvibTech sensor enables real-time diagnostics for rotating machinery. It identifies shaft axial position, radial vibration, and rotational speed fluctuations. By detecting sub-synchronous or non-synchronous vibrations early, the TM0180-07-00-04-10-02 provides the data density required for root-cause failure analysis in critical turbo-machinery.

Global PLC Spare HUB Insight

The TM0180-07-00-04-10-02 is a top-tier solution for hazardous area monitoring. Global PLC Spare HUB highlights its unique cable jacket as a significant advantage over standard sensors, as it virtually eliminates premature failure caused by chemical erosion. We recommend this unit for primary integration into gas turbine and large compressor protection systems where hazardous area certification is non-negotiable.

Logistics and Warranty

• Warranty: Comprehensive 12-month quality assurance.
• Shipping Partners: Reliable logistics via FedEx, UPS, or DHL.
• Dispatch: Rapid processing ensures dispatch within 24-48 hours.

Expert FAQ

Q: Does the TM0180-07-00-04-10-02 require a specific gap voltage for calibration?
A: Yes, ensure your monitoring system is calibrated to the nominal -23V to -30VDC range for optimal linearity at the 1.25mm center gap.

Q: Can I use this probe in a standard non-hazardous environment?
A: Absolutely; the hazardous area ratings are backward compatible and ensure higher material quality standards, which benefits any industrial application.

Q: How do I minimize interference from nearby electrical cables?
A: Always run probe cables in dedicated, grounded metallic conduits to maintain the signal-to-noise ratio required by the 10kHz frequency response.

Q: Why is the target material specified as AISI4140?
A: The probe sensitivity is calibrated for 4140 steel. Using a different target material will shift the output sensitivity, requiring a recalibration or an offset correction factor.

Q: Selection Guide: When should I choose the reverse mount option instead of this standard type?
A: Choose reverse mount only if your housing configuration (e.g., TM0393) requires the connector to be inside the terminal box for hazardous area containment; otherwise, this standard configuration is the industry preference.
