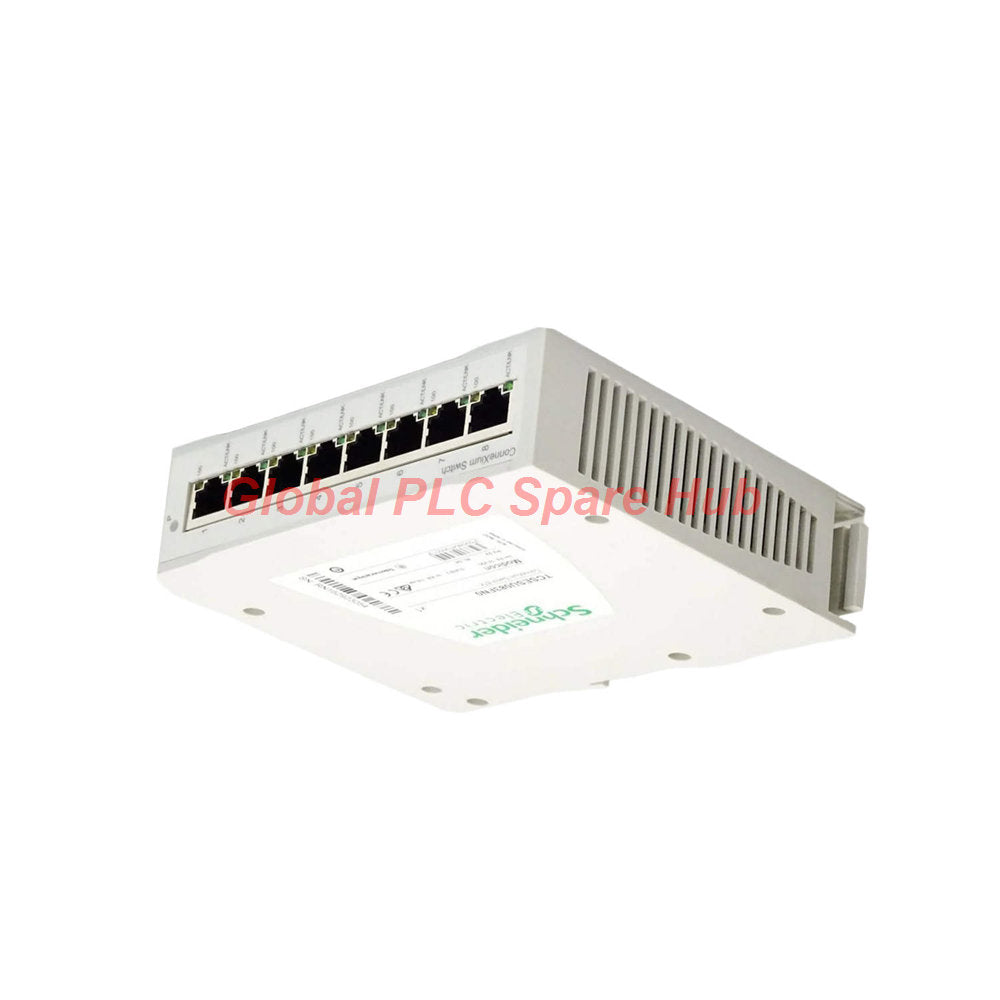

TCSESU083FN0 Schneider ConneXium Ethernet Switch | 8-Port DIN Rail Module
Manufacturer: Schneider Electric
Product No.: TCSESU083FN0
Condition： In stock
Product Type: Ethernet Switch
Product Origin: DE
Payment: T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
TCSESU083FN0 Global PLC Spare HUB Review
In high-density industrial control cabinets, unmanaged switch reliability depends heavily on thermal dissipation and robust voltage filtering. Based on our deployment records, the TCSESU083FN0 handles fluctuating 24V DC bus rails exceptionally well without packet loss. Its narrow 35mm profile saves critical DIN rail space while maintaining stable 10/100 link integrity across multi-node architectures.
Structural Overview & Architecture
The TCSESU083FN0 operates as an unmanaged Ethernet TCP/IP networking node belonging to the ConneXium product family. Built for Transparent Ready infrastructures, it features 8 copper ports supporting automated speed detection and polarity correction.
Technical Specification Matrix
| Brand | Schneider Electric (ConneXium) |
| Model / Series | TCSESU083FN0 / ConneXium Series |
| Device Type | Ethernet TCP/IP Unmanaged Switch |
| Port Configuration | 8 Ports (10BASE-T / 100BASE-TX Shielded RJ45) |
| Supply Voltage | 24 V DC (Limits: 9.6 to 32 V DC SELV) |
| Power Draw & Rating | 4.1 W max, IP30 Protection Class |
| Thermal Envelope | 0°C to 60°C operating temperature |
| Physical Dimensions | Width 35mm, Height 138mm, Depth 121mm (Weight: 0.246 kg) |
Diagnostic Capabilities & Signaling
- Power Status LED: Monitors continuous primary input status from the removable 3-way connector.
- Per-Channel Activity LED: Provides immediate visual verification of data transmission packets on individual copper segments.
- Data Rate LED: Distinguishes operational speeds between 10 Mbit/s and 100 Mbit/s links at a glance.
Target Devices & Application Scenarios
- Distributed PLC node consolidation involving Modicon Quantum or Premium controllers.
- Factory floor HMI panel cluster interlinking via shielded CAT 5E cabling.
- Substation automation and localized SCADA data collection loops.
Logistics, Fulfillment & Coverage
- Expedited Dispatch: Fast 24-48 hour fulfillment cycle.
- Global Carriers: Secure transit managed through FedEx, UPS, and DHL.
- Protection Policy: Backed by a full 12-month standard replacement warranty.
Engineering FAQ
Q: How does the TCSESU083FN0 handle network loops given that it is an unmanaged switch?
A: Because the TCSESU083FN0 lacks STP (Spanning Tree Protocol) features, network designers must manually ensure tree topologies are structured without physical ring loops to avoid broadcast storms.
Q: Can the switch operate safely on unregulated 12V DC automotive or solar power supplies?
A: Yes, the wide supply threshold of 9.6 to 32V DC permits safe operation on alternative low-voltage architectures while maintaining internal regulation.
Q: What is the benefit of the unmanaged Auto MDI/MDX feature during commissioning?
A: It eliminates the need for crossover cables, allowing technicians to use standard straight-through CAT 5E patch cords regardless of whether connecting to a workstation, PLC, or another switch.
Q: How should panel builders mount and space the TCSESU083FN0 for optimal thermal management?
A: Snap the unit onto a 35mm symmetrical DIN rail. Ensure vertical clearance above and below the housing to accommodate natural convection cooling within the 0°C to 60°C operational limit.
Q: Buying Guide: When should an engineer select the TCSESU083FN0 over a managed alternative?
A: Choose the TCSESU083FN0 when plug-and-play determinism is required in isolated cell networks that do not demand VLAN segmentation, port mirroring, or remote SNMP network management software tracking.
