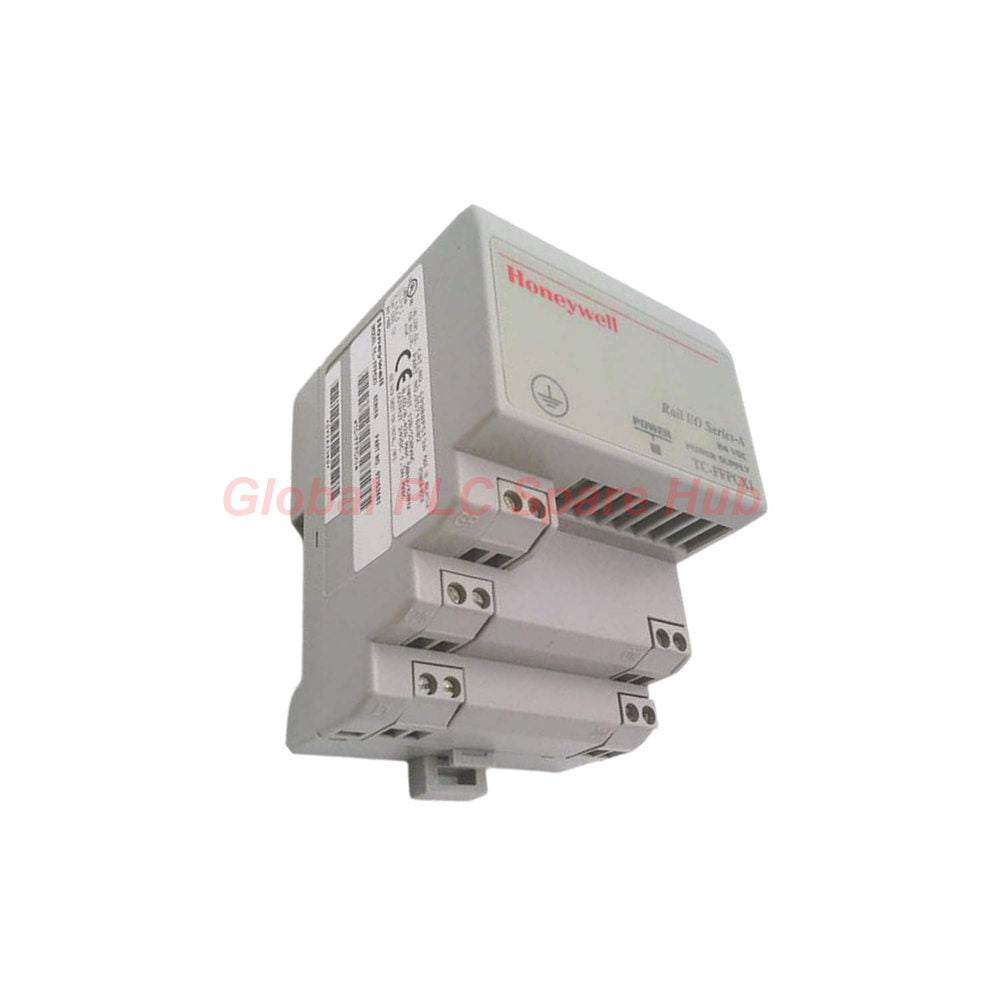

TC-PIB161 Honeywell Digital Input Module 16-Point I/O

TC-PIB161 Intrinsically Safe Digital Input Interface

Honeywell TC-PIB161 is engineered for hazardous-area digital signal acquisition in industrial automation systems.

The module provides intrinsically safe input processing for demanding process environments.

TC-PIB161 supports high-integrity field signal monitoring with fast channel response capability.

The architecture is optimized for NAMUR-compatible industrial sensing devices.

This module performs reliably in applications requiring fault monitoring and explosion-protection compliance.

Industrial Signal Acquisition Advantages

• 16 single-ended sinking digital input channels
• Intrinsically safe input architecture
• Compatible with NAMUR industrial sensors
• Fast 1 ms channel response performance
• Integrated lead breakage diagnostics
• Short-circuit monitoring capability
• Configurable digital filter functionality
• Independent fault-detection group settings

Technical Platform Specifications

• Brand: Honeywell
• Model: TC-PIB161
• Module Type: Digital Input Module
• Input Channels: 16
• Input Configuration: Single-ended sinking inputs
• Input Standard: EN 50227 NAMUR
• Quiescent Voltage: Approximately 8 VDC
• Short-Circuit Current: Approximately 8 mA
• Switching Threshold: 1.2 to 2.1 mA
• Switching Hysteresis: Approximately 0.2 mA
• Maximum Switching Frequency: 1 kHz
• Input Delay: 1 ms
• Bus Update Time: 1 to 64 ms
• Power Dissipation: 2.8 W
• Power Consumption: 0.33 PSU Load
• Protection Class: IP20
• Weight: 0.238 kg
• Dimensions: 76 × 94 × 46 mm
• Keyswitch Position: 6

Intrinsic Safety and Hazardous Area Capability

• Certified for hazardous industrial environments
• Supports EEx ia and EEx ib applications
• Suitable for gas groups IIB and IIC
• Designed for intrinsically safe field instrumentation
• Stable operation in process-critical installations

Field Signal Monitoring Functions

• Lead breakage detection improves maintenance visibility
• Short-circuit monitoring protects connected circuits
• Channel LED flashing indicates fault conditions
• Fault alarms transmit through backplane communication
• DIP-switch configuration simplifies fault management

Electrical and Environmental Protection

• Galvanic isolation between backplane and power supply
• Designed for industrial EMC environments
• Supports 95% non-condensing humidity conditions
• Shock resistance rated at 15g
• Vibration resistance according to IEC 68-2-6
• Pollution gas resistance meets ISA-S71.04-1985 G3 level

Recommended Compatible Equipment

TC-PIB161 integrates into industrial process automation infrastructures requiring intrinsic safety compliance.

• Honeywell process automation systems
• Industrial NAMUR sensor networks
• Hazardous-area process control cabinets
• Oil and gas monitoring systems
• Chemical processing plants
• Industrial burner management systems
• Tank farm automation platforms
• Pharmaceutical process environments

Typical Industrial Application Areas

• Explosion-protected process monitoring
• Industrial sensor signal acquisition
• Hazardous-area automation systems
• Refinery instrumentation control
• Gas processing facilities
• Industrial safety shutdown systems
• Chemical production automation
• Distributed field instrumentation networks

Global PLC Spare HUB's Insight

Honeywell TC-PIB161 delivers reliable intrinsically safe digital monitoring for industrial process systems.

The module performs effectively in hazardous locations requiring stable NAMUR signal acquisition.

Its integrated fault diagnostics improve operational awareness during continuous process operation.

Engineers commonly deploy this module in applications requiring explosion-protection compliance.

The configurable filtering structure improves input stability in electrically noisy environments.

The module supports long-term operation in critical process control infrastructures.

Installation and Engineering Recommendations

• Use shielded multicore cable for EMC compliance
• Install inside IP54 or higher protective enclosures
• Verify hazardous-area classification before commissioning
• Configure DIP-switch fault settings before startup
• Inspect field wiring regularly during maintenance intervals

Compliance and Certifications

• ATEX Certified
• DMT 98 ATEX E 037 X
• DIN EN 50014 compliant
• DIN EN 50020 compliant
• DIN EN 50284 compliant
• DIN EN 50081-2 EMC compliant
• DIN EN 50082-2 EMC compliant
• NAMUR NE21 compliant
• CE Marked

Package Contents

• 1 × TC-PIB161 Digital Input Module
• Industrial protective packaging
• Inspection and product identification labeling

Shipping and Warranty Service

• Fast dispatch within 24 to 48 hours
• Worldwide shipping available
• FedEx, UPS, and DHL delivery supported
• Protective export-grade packaging included
• 12-month warranty coverage provided
• Technical support assistance available

Professional FAQ

• Why are NAMUR-compatible inputs preferred in hazardous environments?

  NAMUR sensors provide stable low-power signaling suitable for intrinsically safe installations.

• How can engineers improve EMC performance during installation?

  Use shielded multicore cable and maintain proper grounding practices.

• What applications benefit most from intrinsic safety certification?

  Oil, gas, chemical, and pharmaceutical industries require explosion-protected signal monitoring.

• How should buyers evaluate hazardous-area input modules?

  Confirm certification class, sensor compatibility, fault diagnostics, and environmental ratings.

• What maintenance practice improves long-term module reliability?

  Regularly inspect field wiring integrity and verify diagnostic alarm functionality.
