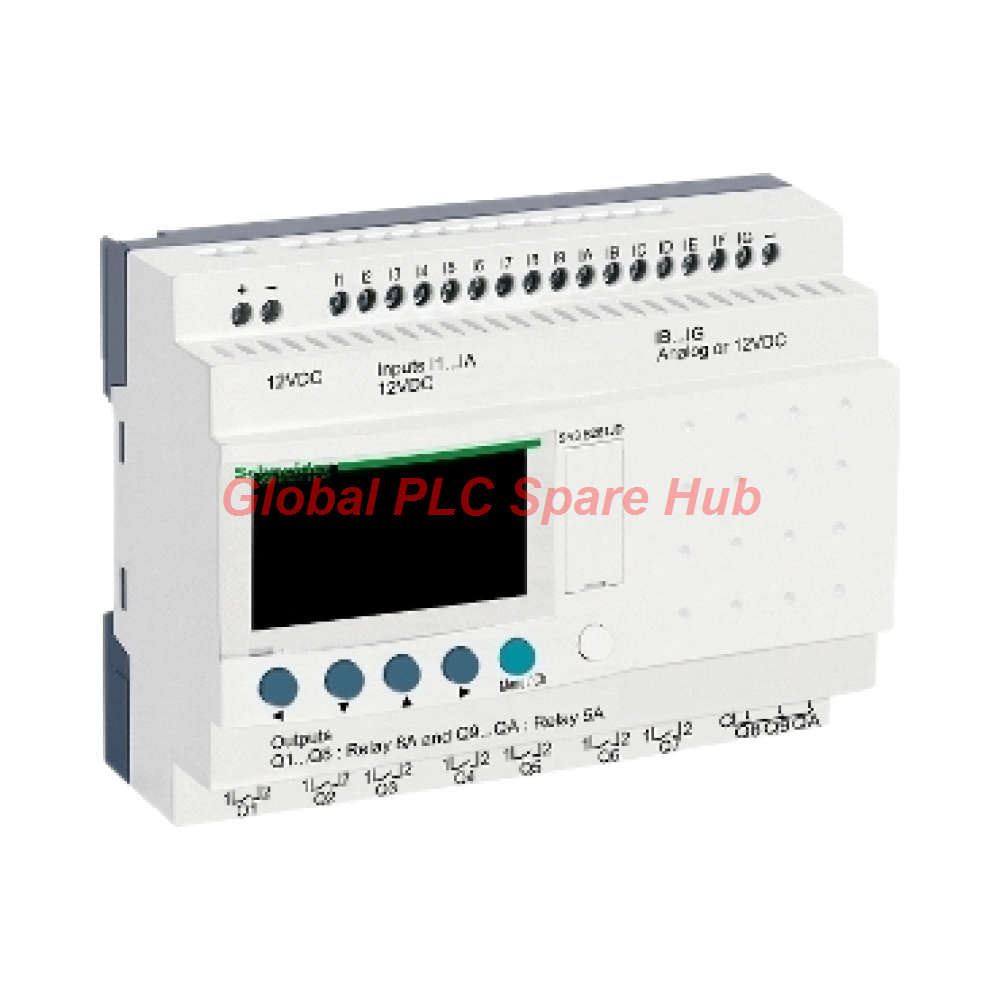

SR3B261JD Schneider Electric Zelio Logic Smart Relay 26 I/O 12V DC Controller Unit

Engineering Overview

The SR3B261JD Schneider Electric Zelio Logic smart relay provides compact, reliable control for small-scale automation tasks. Designed as a modular 26 I/O controller operating on 12V DC, this SR3B261JD unit features an integrated real-time clock and an onboard LCD screen for direct parameter adjustments.

Core Technical Architecture

Installation & Panel Wiring Guidelines

• Mount the unit securely onto a standard 35 mm DIN rail inside a protective electrical enclosure.
• Ensure power supply voltage remains strictly within the 10.4V to 14.4V DC window to prevent reset loops.
• Connect 12V DC power lines to dedicated supply terminals with appropriate overcurrent fusing.
• Wire digital and analog sensor inputs to designated terminals, ensuring proper shielding for analog signals.
• Connect actuator loads to relay output terminals, keeping switching currents below the 5 A threshold.

Commissioning & Parameter Optimization

• Program control logic directly via the front LCD panel or upload code using Zelio Soft 2 software.
• Configure real-time clock parameters to schedule time-based automated operational cycles.
• Calibrate analog input scaling factors when interfacing with 12V DC pressure or temperature transmitters.
• Test relay output switching states manually through diagnostic menu options during initial dry-runs.

Built-In Diagnostic Capabilities

• Real-time status monitoring of active digital and analog I/O points via the LCD display.
• Internal cycle time tracking and memory error detection during program execution.
• Diagnostic flags for supply voltage fluctuation warnings outside acceptable tolerance levels.

Commercial Terms, Fulfillment & Warranty

• Expedited global dispatch processed within 24 to 48 hours.
• Trusted courier networks: FedEx, UPS, and DHL.
• Backed by a reliable 12-month operational warranty.

Global PLC Spare HUB's Insight

In mobile machinery and battery-powered remote pumping stations, 12V DC power supplies frequently experience voltage sags during heavy motor startup. Field engineers can prevent unexpected controller reboots on the SR3B261JD by installing an auxiliary smoothing capacitor or a regulated DC-DC buffer on the main supply input line.

Frequently Asked Questions

What factors should guide my choice between ladder logic and FBD programming?

Use ladder logic for straightforward relay replacement tasks up to 240 lines, and choose Function Block Diagram (FBD) when implementing complex timing or analog math functions within the 500-block limit.

How can I utilize the 6 configurable analog inputs effectively?

Connect 0-10V or potentiometer-based 12V sensors to inputs I1 through I6, then configure their scaling parameters in the software to monitor process variables like tank levels.

What is the maximum electrical lifespan of the relay output contacts?

The relay outputs deliver up to 500,000 operations under standard AC-12 inductive loads (230V, 1.5A), and significantly more under resistive low-voltage DC loads.

Why does the LCD display show a communication error when adding expansion modules?

This typically occurs if the side connector bus pins are misaligned or if power was left active during physical module connection.

How do I maintain accurate time scheduling during power outages?

The integrated real-time clock features a built-in backup capacitor that maintains time settings for days without external power; ensure the unit is powered periodically to recharge it.
