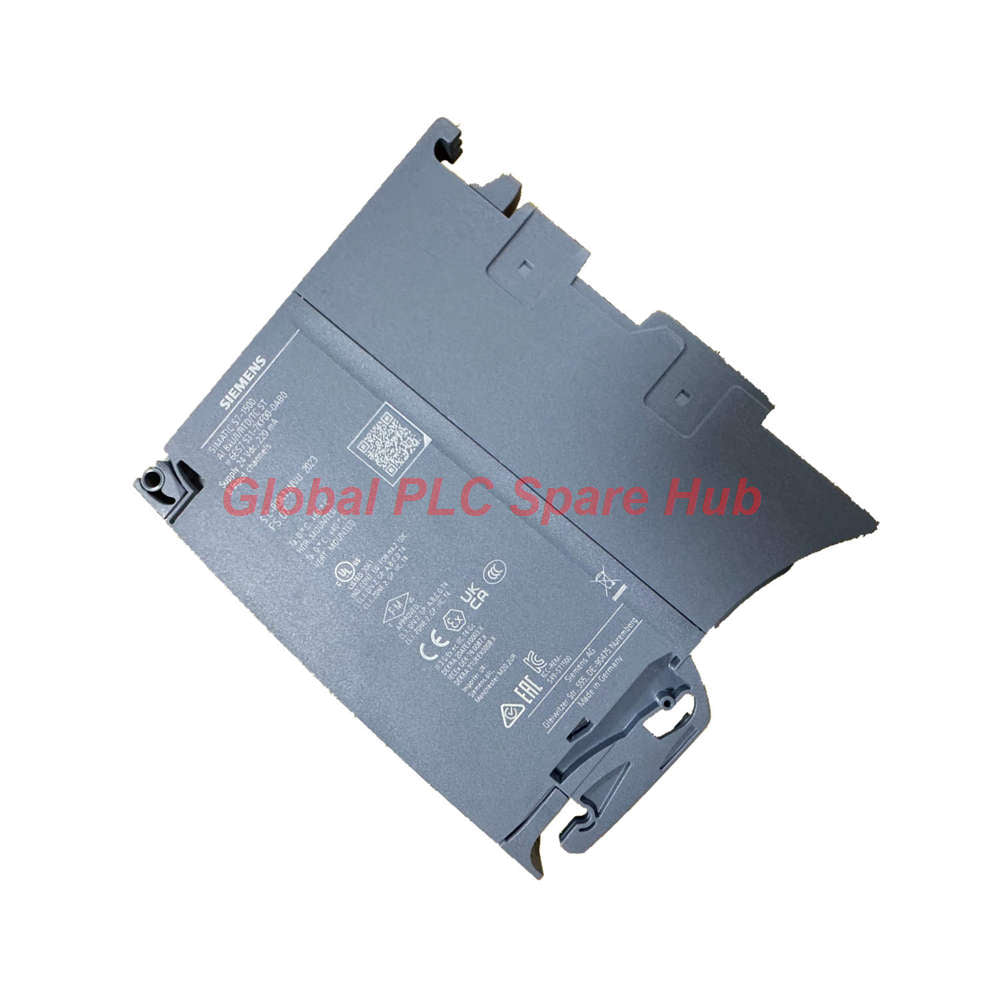

Siemens 6ES7531-7KF00-0AB0 Analog Input 8-Channel ST Module

High-Precision Signal Acquisition

The 6ES7531-7KF00-0AB0 is a core component of the SIMATIC S7-1500 ST (Standard) series, designed for versatile and accurate analog data processing. Featuring 16-bit resolution and a 0.3% operational accuracy, this module provides the stability required for complex process control. It integrates seamlessly into high-performance automation architectures, managing 8 analog channels with full support for voltage, current, resistance, and temperature sensor inputs.

Engineered Specifications

• Device Model: 6ES7531-7KF00-0AB0
• Resolution: 16-bit high-resolution conversion
• Channel Configuration: 8 channels grouped for U/I/RTD/TC sensing
• Diagnostic Features: Wire-break detection, over/underflow monitoring, and supply voltage checks
• Sampling Versatility: Parametric integration times (2.5ms to 100ms) for interference frequency suppression
• Isolation: Channel-to-backplane bus separation (707V DC type test)
• Physical Dimensions: 35mm x 147mm x 129mm (310g)

Global PLC Spare HUB's Insight

Our technical team views the 6ES7531-7KF00-0AB0 as a "universal workhorse" for industrial measurement. Unlike limited-function modules, this ST variant handles thermocouple and RTD sensors with exceptional linearity (0.02%). It is the preferred choice for boiler temperature monitoring, chemical flow rates, and precision pressure sensing in automated production cells. Its robust diagnostic suite drastically simplifies troubleshooting by isolating signal errors to specific channels in real-time.

Operational Utility and Diagnostics

• Fault Identification: Immediate LED status reporting for channel-specific diagnostics.
• Sensor Compatibility: Supports 2-wire/4-wire transmitters and multi-wire resistance thermometers.
• Interference Resilience: Advanced filtering for 10Hz/50Hz/60Hz/400Hz noise rejection.
• Efficiency: Integrated calibration and reparameterization support during RUN mode to minimize downtime.

Shipping and Warranty Commitment

• Expedited Fulfillment: Priority dispatch within 24-48 hours via FedEx, UPS, and DHL.
• Warranty Protection: Every module is backed by our comprehensive 12-month quality guarantee.
• Packaging: Securely packed with standard infeed element, shield bracket, and terminals.

Technical FAQ

Can I use this module to measure different sensor types simultaneously?
Yes, the 8 channels are flexible, allowing you to configure different measuring ranges (e.g., current on one, thermocouple on another) per the TIA Portal configuration.

What is the purpose of the "Common Mode Voltage" specification?
It allows the module to maintain signal accuracy even when a voltage difference exists between the sensor ground and the module's reference ground, up to 10V.

How should I handle unused channels to avoid error messages?
Disable the unused channels in the TIA Portal hardware configuration to prevent the module from reporting wire-break diagnostics.

Is this module suitable for safety-rated applications?
No, this is a Standard (ST) module; please refer to the Safety (F) series modules for functional safety requirements.

Expert Tip: How do I choose between 2-wire and 4-wire connections?
Use 4-wire connections for long cable runs to eliminate the impact of cable resistance on your measurement accuracy. Use 2-wire only for shorter, controlled environments where cost-efficiency is the priority.

Strategic Selection Guide

When integrating the 6ES7531-7KF00-0AB0, ensure your power supply remains stable within the 20.4V to 28.8V DC range. Proper use of the included shield bracket is mandatory to achieve the specified interference suppression. Always perform a baseline calibration in your TIA Portal project for new installations to ensure absolute measurement precision.
