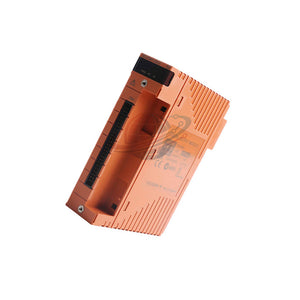

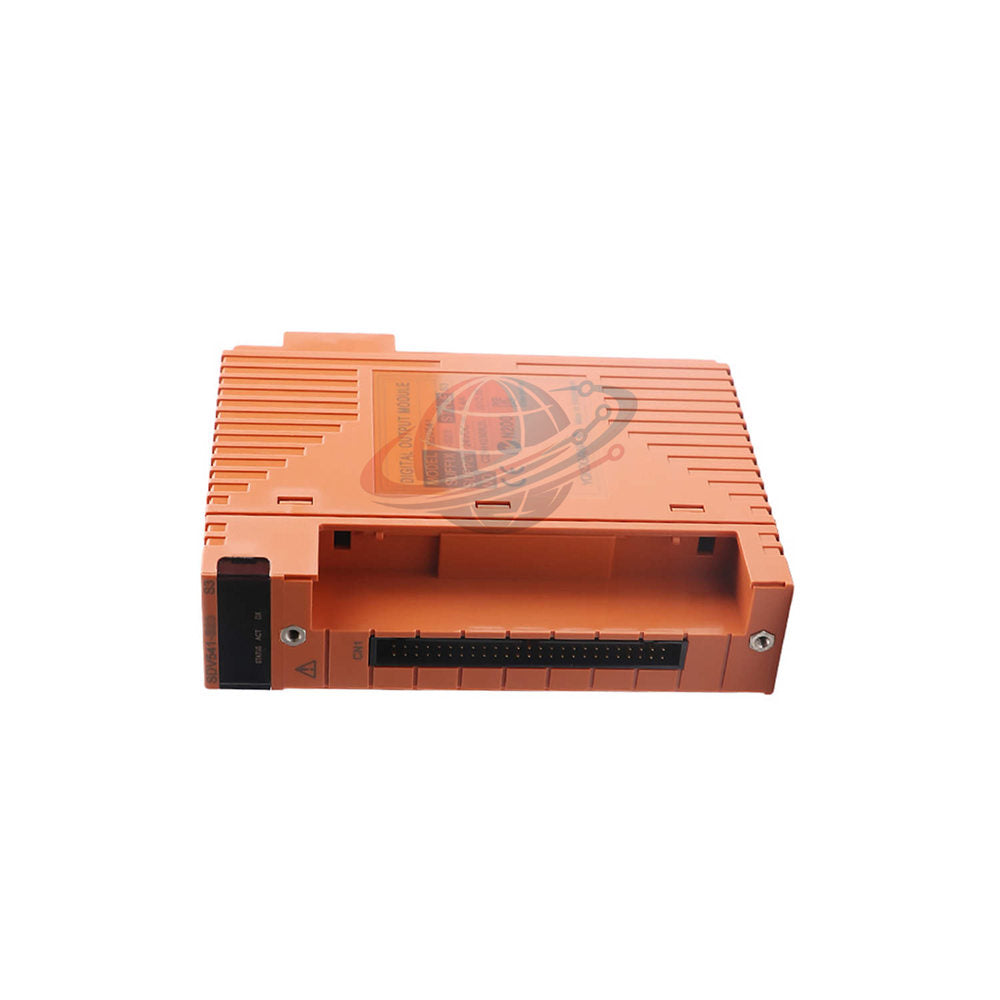

SDV541-S63/PRP Yokogawa DO Module 16-Channel Control Output

High-Reliability Digital Output Control Module

SDV541-S63/PRP delivers stable multi-channel digital output control.

This module belongs to the Yokogawa SDV541 Series.

It is designed for industrial automation and distributed control systems.

Engineers deploy it for precise and reliable output switching.

Configuration Breakdown

• SDV541-S63/PRP
• SDV541
  • 16-channel digital output module with isolation
  • 24 V DC output, current source type
• -S
  • Standard type module
• -6
  • Includes signal cable interface adapter
  • No explosion protection
• -3
  • ISA Standard G3 compliance
  • Operating temperature range -20°C to 70°C
• /PRP
  • Prevention pin for incorrect insertion

Output Performance Characteristics

• 16 isolated output channels ensure reliable signal separation.
• Output voltage rated at 24 V DC.
• Maximum load current 0.2 A per channel.
• Total output current capacity up to 3.2 A.
• Minimum load current requirement is 35 mA.
• Output response time within 30 milliseconds.

Electrical Specifications

• External power supply range 24 V DC ±20%.
• Minimum power supply capacity 3.4 A.
• Maximum voltage drop limited to 1 V.
• Leakage current at OFF state up to 1.6 mA.
• Load resistance range from 120 to 685 ohms.

Isolation and Protection

• 2 kV AC isolation between outputs and system circuits.
• Ensures safe operation in industrial environments.
• Prevents signal interference across channels.
• Enhances system reliability and protection.

Power Consumption

• Consumes up to 300 mA at 5 V DC.
• Consumes up to 150 mA at 24 V DC.
• Optimized for efficient system integration.

Mechanical and Connection Options

• Supports pressure clamp terminal connections.
• Compatible with MIL cable interface.
• Supports dedicated signal cables AKB331 and AKB651.
• Compact module design for dense installations.

Environmental Capability

• Operates within -20°C to 70°C range.
• Complies with ISA G3 environmental standards.
• Suitable for harsh industrial environments.
• Designed for long-term operational stability.

Application Scenarios

• Distributed control systems (DCS).
• PLC-based industrial automation systems.
• Process control in oil and gas industries.
• Manufacturing and production line control.
• Power plant automation systems.

Diagnostic Capability

• Provides stable switching signals for monitoring systems.
• Supports fault detection through output status behavior.
• Helps identify abnormal load conditions.
• Improves system reliability and maintenance efficiency.

Global PLC Spare HUB's Insight

The SDV541-S63/PRP offers consistent digital output performance.

It suits applications requiring stable multi-channel control.

Engineers prefer it for DCS and PLC integration.

It performs well in demanding industrial environments.

Recommended for process control, automation systems, and plant operations.

Logistics and Delivery

• Includes one SDV541-S63/PRP module.
• Industrial-grade protective packaging.
• Shipping via FedEx, UPS, and DHL.
• Dispatch within 24–48 hours.

Warranty Terms

• 12-month warranty coverage.
• Applies under normal operating conditions.
• Technical support available during warranty period.

FAQ

• What is the main advantage of module isolation?
  It prevents electrical interference between output channels.
• How to ensure stable output performance?
  Use a stable 24 V DC power supply with sufficient current capacity.
• What should be considered when selecting load resistance?
  Ensure it falls within 120 to 685 ohms for proper operation.
• What installation option is best for high-density systems?
  Use dedicated signal cable adapters for compact wiring.
• How to choose the correct module variant?
  Select suffix codes based on environmental and interface requirements.
