SDV531-L63 Yokogawa Digital Output Module | Long Distance DO Module

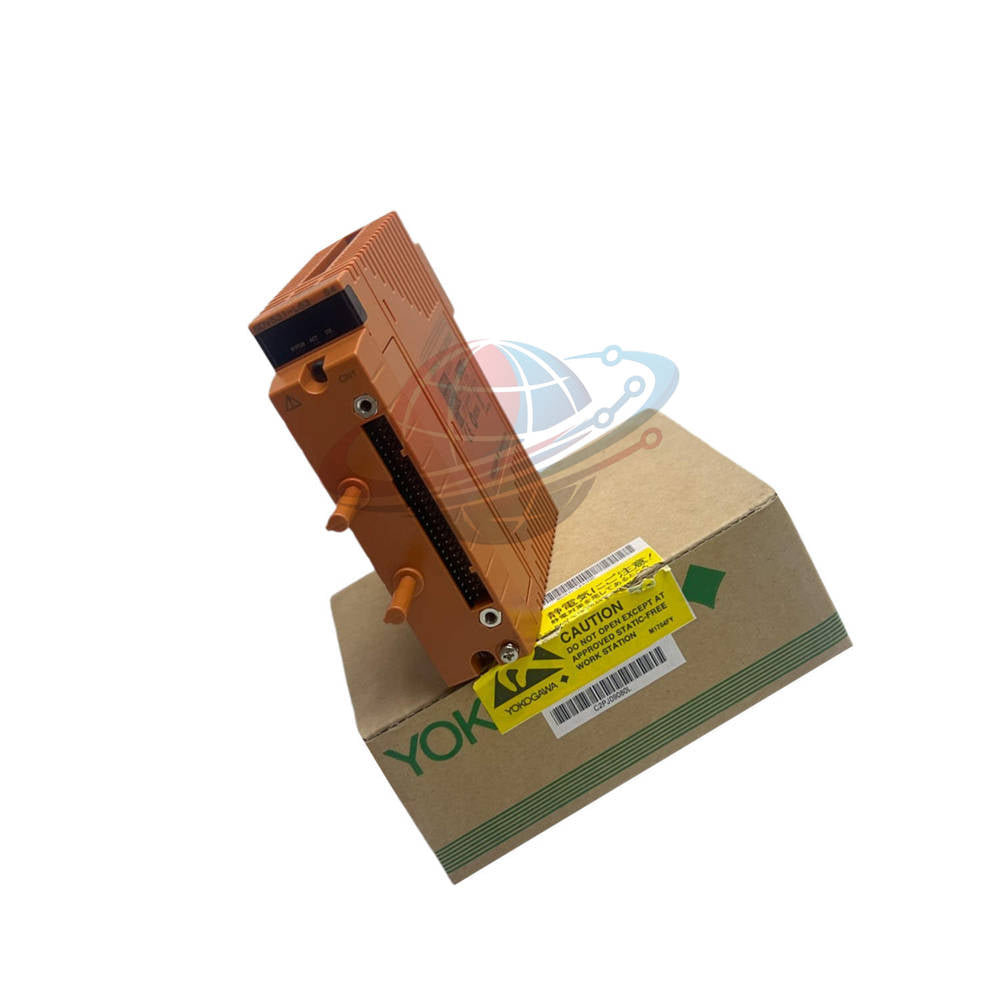

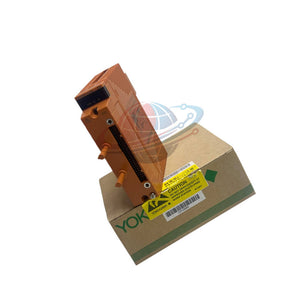

SDV531-L63 Yokogawa Digital Output Module

SDV531-L63 delivers reliable digital output control for industrial automation and DCS architectures.

The module supports stable ON/OFF signal transmission to field control devices.

Yokogawa SDV531 Series integrates module isolation with advanced field wiring diagnostics.

The architecture improves operational continuity in process-critical applications.

Its long-distance design supports distributed industrial control environments effectively.

The module eliminates additional wiring diagnosis components through integrated diagnostics.

Functional Architecture Overview

• 8-channel digital output structure supports process automation tasks.
• Module isolation improves electrical protection performance.
• Integrated field wiring diagnostics simplify troubleshooting procedures.
• Long-distance communication architecture supports remote installations.
• Current source output design improves signal stability.
• Industrial temperature rating supports harsh operating environments.
• Dedicated signal cable compatibility improves installation flexibility.
• Dual-redundant configuration capability improves system availability.

Technical Specification Profile

• Brand: Yokogawa
• Model: SDV531-L63
• Product Type: Digital Output Module
• Output Channels: 8-channel
• Isolation Type: Module isolation
• Output Voltage: 24 V DC
• Output Voltage Drop: 1 V maximum
• Output Format: Current source
• Maximum Load Current: 0.6 A per output line
• Total Output Current: 4.8 A maximum
• Minimum Load Current: 35 mA
• Load Resistance Range: 40 to 685 Ω
• Maximum Leak Current: 1.6 mA at output OFF status
• Output Response Time: 30 ms maximum
• External Power Supply: 24 V DC +20% / -10%
• Power Supply Capacity: 5 A minimum
• Current Consumption: 280 mA maximum at 5 V DC
• Current Consumption: 140 mA maximum at 24 V DC
• Withstand Voltage: 2 kV AC for 1 minute
• Operating Temperature: -20°C to 70°C
• Connection Type: Pressure clamp terminal / MIL cable
• Compatible Cables: AKB331, AKB651
• Weight: Approx. 0.28 kg to 0.34 kg

Configuration Breakdown

• SDV531
  • Digital Output Module
  • 8-channel configuration
  • 24 V DC output architecture
  • Module isolation design
• -L
  • Long distance communication type
  • Supports distributed industrial layouts
• -6
  • Includes signal cable interface adapter
  • No explosion protection specification
• -3
  • ISA Standard G3 compliant configuration
  • Industrial temperature support from -20°C to 70°C

Compatible Equipment Integration

• Yokogawa CENTUM control systems
• Distributed control system cabinets
• Industrial process automation panels
• Remote field output stations
• Plant shutdown control systems
• Industrial relay interface assemblies
• Process valve control architectures

Recommended Industrial Applications

• Oil and gas process automation
• Power generation facilities
• Chemical production systems
• Refinery process control applications
• Industrial utility monitoring systems
• Large-scale distributed automation projects
• Safety-related switching applications

Diagnostic And Reliability Features

• Integrated field wiring diagnostics reduce maintenance complexity.
• Module isolation improves electrical protection reliability.
• Leak current control improves output stability.
• Fast response capability supports real-time switching applications.
• Long-distance architecture supports distributed system monitoring.
• Industrial-grade withstand voltage improves operational safety.

Global PLC Spare HUB's Insight

Yokogawa SDV531-L63 performs effectively in large-scale distributed automation systems.

The module suits process industries requiring reliable field output control.

Engineers value its integrated diagnostics and stable switching performance.

The long-distance specification improves flexibility in remote cabinet deployments.

ISA G3 environmental support increases durability in demanding industrial environments.

The module integrates efficiently into Yokogawa DCS infrastructures.

Engineering Installation Notes

• Verify external power supply stability before commissioning.
• Maintain proper grounding for noise-sensitive installations.
• Use approved signal cables for long-distance applications.
• Confirm load resistance compatibility before deployment.
• Inspect terminal connections during scheduled maintenance cycles.

Shipping And Warranty Support

• Fast dispatch within 24-48 hours after order confirmation.
• Global shipping available through FedEx, UPS, and DHL.
• Industrial protective packaging improves transportation safety.
• Export-ready handling supports international industrial projects.
• 12-month warranty service included.
• Technical support available for integration assistance.

Professional FAQ

Why does module isolation matter in distributed control systems?

Module isolation improves electrical separation between system circuits.

It also reduces interference risks in industrial installations.

How should engineers select output modules for remote applications?

Review communication distance and environmental conditions carefully.

Long-distance specifications improve installation flexibility significantly.

What advantages do integrated wiring diagnostics provide?

Integrated diagnostics simplify maintenance and fault identification procedures.

They also reduce external troubleshooting hardware requirements.

Which applications benefit from fast output response performance?

Valve control and shutdown logic applications require rapid switching capability.

Fast response improves process reaction efficiency.

What should users verify before connecting field devices?

Check load resistance, output current limits, and cable compatibility first.

Proper electrical matching improves long-term operational stability.

Selection Recommendations

• Choose SDV531-L63 for distributed DCS output control systems.
• Select long-distance configurations for remote field installations.
• Use module-isolated outputs in electrically sensitive environments.
• Choose ISA G3 specifications for harsh industrial conditions.
• Verify cable interface requirements before project integration.
• Confirm current load compatibility during system design stages.
