SCOUT240IS-05 Bently Nevada Scout Series Vibration Tool

Product Introduction

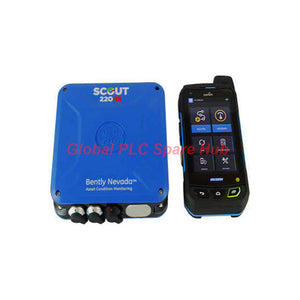

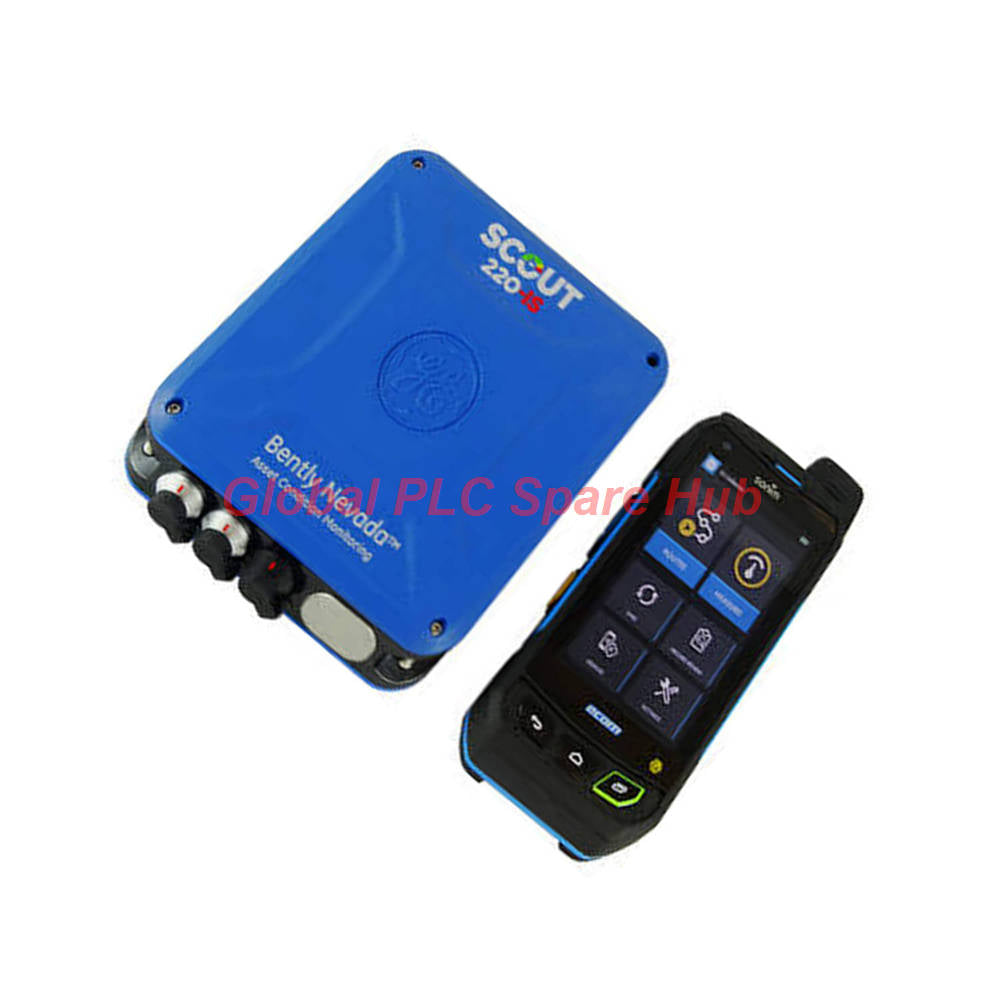

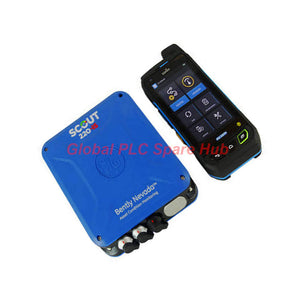

The SCOUT240IS-05 represents the pinnacle of hazardous-area machinery diagnostics within the Bently Nevada Scout Series. This intrinsically safe SCOUT240IS-05 portable data collector allows reliability engineers to execute advanced vibration analysis directly in volatile field environments. The rugged hardware features ATEX Zone 1 / Zone 21 and CSA Class 1 / Div 1 multi-approvals. It captures precise multi-channel dynamic signals and syncs seamlessly with System 1 software to optimize your predictive maintenance workflows.

Technical Specifications

• Brand: Bently Nevada
• Model Part Number: SCOUT240IS-05
• Product Type: Portable Data Collectors
• Data Collection Layout: 4-channel simultaneous sampling plus dedicated Tachometer / Keyphasor input.
• Spectral Resolution: Up to 12,800 lines of spectral resolution with an 80 kHz Fmax frequency response.
• Signal Conversion: High-precision 24-bit Analog-to-Digital Converter (ADC) for maximum waveform fidelity.
• Sensor Input Compatibility: Supports IEPE/ICP-type accelerometers, velocity sensors, displacement probes, and AC/DC voltage inputs.
• AC Coupled Range: 16 V peak-to-peak signal swing allowing for a linear ±80 g accelerometer threshold.
• DC Coupled Ranges: Configurable spans of 0 to 20 V, -10 to 10 V, and -20 to 0 V for gap voltage tracking.
• Sensor Excitation: Configurable current source of 0 mA or 2.2 mA with a 24 V maximum ceiling.
• Fault Detection: Embedded bias voltage measurement flags short circuits or uncoupled sensor leads instantly.
• Connectivity Hardware: Dual LEMO connectors for primary channels alongside integrated Bluetooth 4.0/5.0 communication chips.
• Power System: Factory-replaceable 7.4 V, 3920 mAh Lithium-Ion pack delivering 10 hours of typical route collection.

Advanced Analysis & Diagnostic Capabilities

• Cross-Channel Spectrum: Computes Coherence and Frequency Response Functions (FRF) across one reference channel and three response channels.
• Modal Impact Testing: Drives channel 1 for structural hammers up to 10 kHz to calculate structural accelerance, mobility, and compliance.
• Universal File Format: Exports processed FRF data via UFF structure for direct injection into ODS and specialized Modal Analysis software.
• Dynamic Balancing: Corrects rigid rotor systems across 2 planes using 2 sensors over an operational speed range of 3 to 12,000 RPM.
• Advanced Data Plotting: Records phase angles from 0° to 360° with automated weight recalculation routines for precise field corrections.

Target Equipment & Industrial Application Scenes

The SCOUT240IS-05 instrument provides critical machinery diagnostics for capital assets operating in high-risk zones. It is ideal for monitoring high-speed centrifugal compressors, multi-stage boiler feed pumps, induced draft fans, and steam turbine generator trains. Field teams deploy this tool inside chemical processing units, offshore drilling platforms, and oil refining complexes where explosive gases or conductive dust prevent the use of standard test instruments.

Global PLC Spare HUB's Insight

From the perspective of Global PLC Spare HUB's field engineering group, the SCOUT240IS-05 bridges the historical gap between hazardous area safety compliance and uncompromised diagnostic depth. While older handheld tools restricted field groups to basic overall velocity checks, this device provides true 4-channel cross-channel analysis in an ATEX Zone 1 envelope. The transition to an Android-driven platform allows seamless firmware scaling. This design makes the instrument an essential asset for engineering consultancies executing strict contract machinery health audits.

Logistics, Delivery & Warranty Terms

Field Installation & Operational Safety Guide

• Always employ the integrated safety breakaway mechanisms on the shoulder straps and sensor cables during active routes.
• Limit use to an ambient temperature maximum of 50°C when operating inside certified Ex hazardous areas.
• Charge the custom Lithium-Ion battery pack only within safe-zone environments between 0°C and 25°C.
• Utilize the specialized LEMO connectors to preserve the IP65 water and dust sealing integrity.
• Verify that the configured sensor bias voltage matches the attached accelerometer specification before running a high-resolution route.

Expert Experience Frequently Asked Questions (FAQ)

Question: How does the instrument alert the user to a sensor fault during an active data route?

Answer: The device actively samples the sensor bias voltage. It automatically triggers an on-screen warning if it encounters a short circuit or an open sensor circuit line.

Question: Can this unit stream high-resolution data directly to iOS or iPadOS tablets in the field?

Answer: iOS configurations are only supported on units with serial numbers equal to or greater than 101600. These specific devices require a Bluetooth 5.0 BLE hardware link to operate stably.

Question: What structural testing formats does the data collector support for structural resonance verification?

Answer: The unit supports standard Universal File Format (UFF) exports. This allows engineers to transfer raw impact test and coherence data straight into external ODS software.

Question: Is the internal 3920 mAh Lithium-Ion battery pack field-replaceable when capacity degrades?

Answer: To preserve the strict intrinsic safety certification seals, the battery housing is completely sealed. It must be returned to an authorized facility for factory replacement.

Question: Why does the operating temperature ceiling drop from 60°C down to 50°C in hazardous locations?

Answer: The 50°C restriction is a mandatory intrinsic safety parameter. It ensures the thermal signature of the device housing never approaches the ignition point of ambient gases.

Procurement and Selection Guide

When specifying your hardware variant, confirm that your target region maps to the 05 multi-approval package. This package covers CSA, IECEx, and ATEX standards concurrently. If your routes require structural cross-talk checking or triaxial sensor paths, verify that your field accelerometers match the pin-outs of the included channel 2-4 breakout cable. For older legacy systems running System 1, contact Global PLC Spare HUB to ensure your software database version supports 24-bit ADC data packet uploads.
