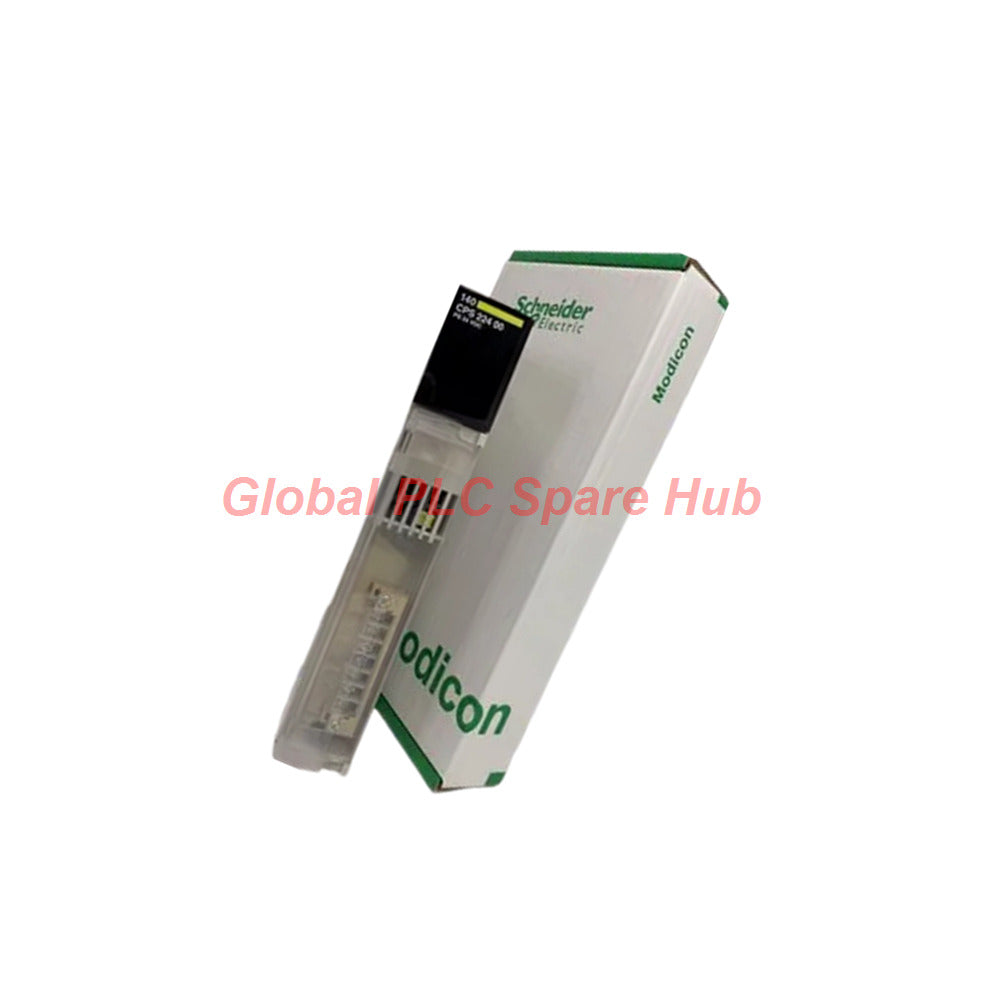

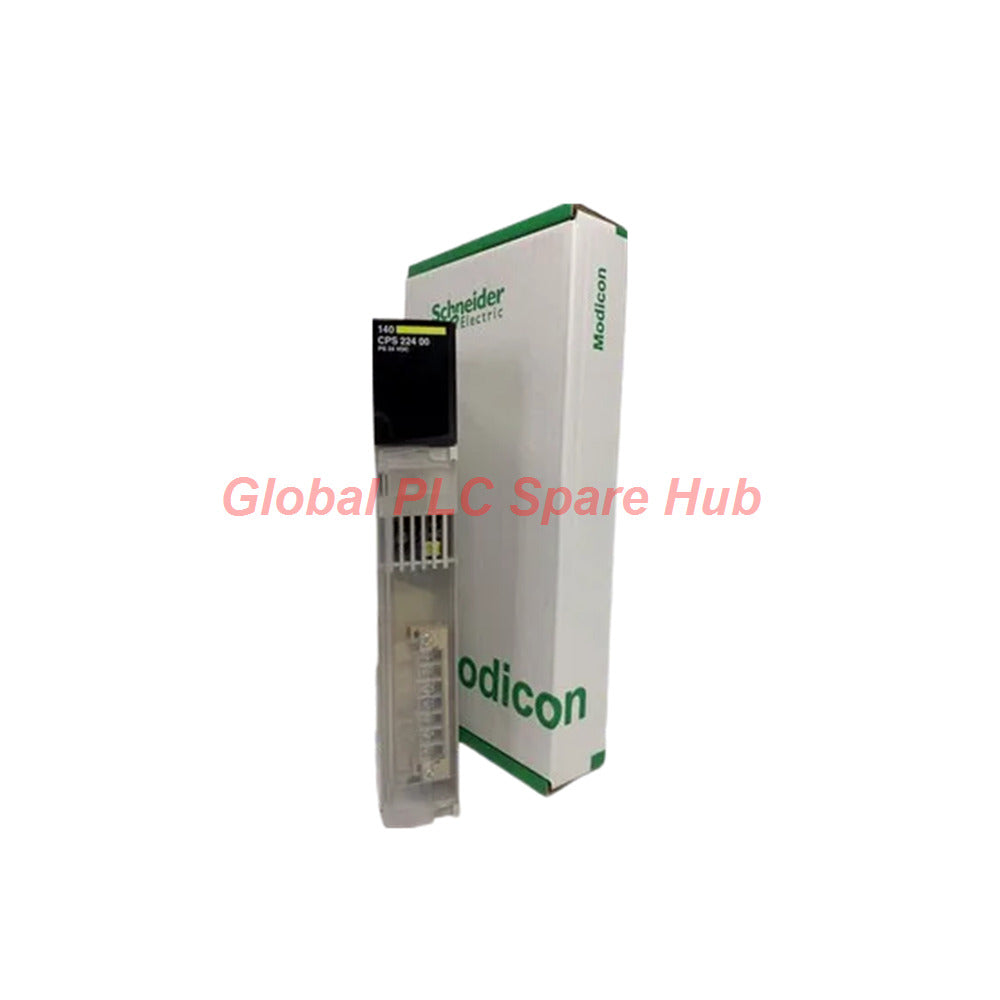

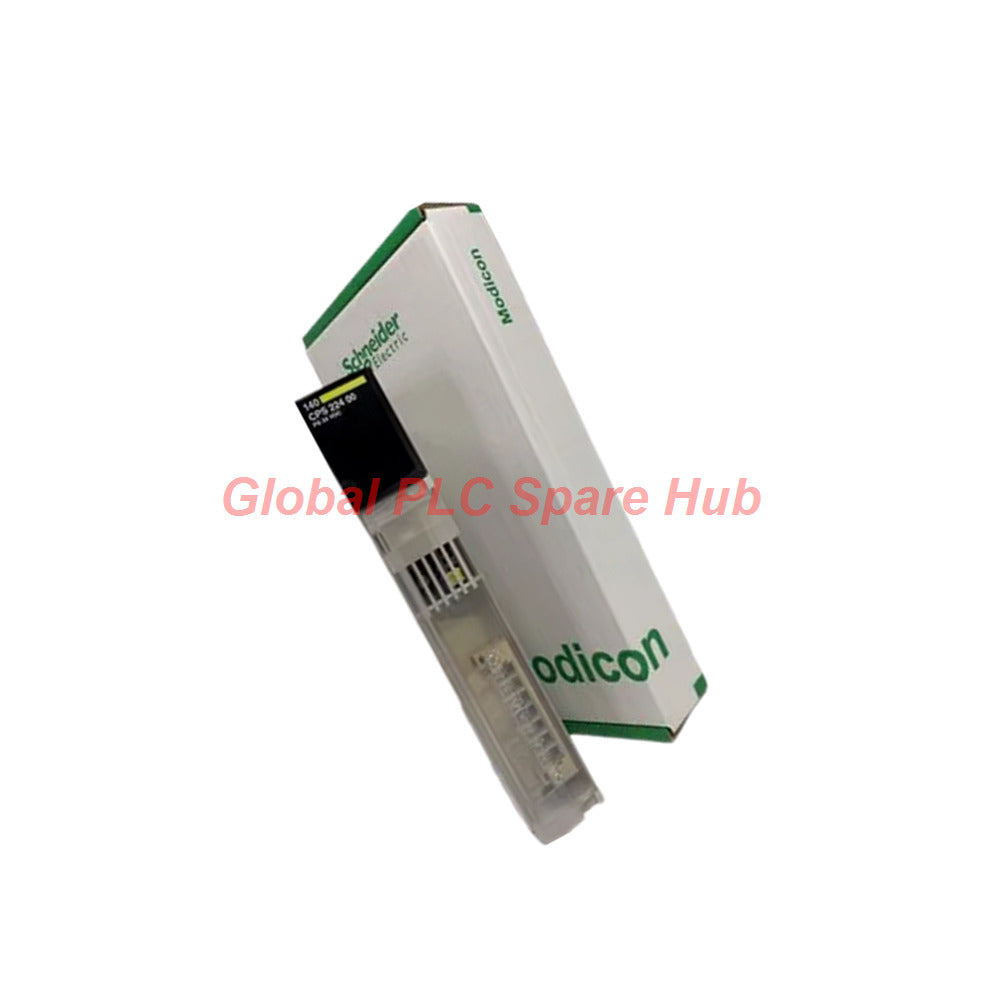

Schneider Electric 140CPS22400 Modicon Quantum Power Supply

Product Overview

The Schneider Electric 140CPS22400 serves as a critical component in the Modicon Quantum automation platform. This power supply module provides stable 24V DC power for demanding industrial environments. Its redundant design ensures continuous operation and high system availability. It integrates seamlessly into existing rack-based automation architectures.

Technical Specifications

• Brand: Schneider Electric
• Model: 140CPS22400
• Series: Modicon Quantum
• Input Voltage: 20V to 30V DC
• Output Voltage: 5.1V DC
• Output Current: 8A in redundant configuration
• Inrush Current: 14A at 20V, 25A at 24V
• Power Interruption Tolerance: Up to 100ms
• Fuse Rating: 5A, slow-blow
• Operating Temperature: 32°F to 140°F (0°C to 60°C)
• Storage Temperature: -40°F to 85°C
• Environmental Protection: 95% relative humidity (non-condensing)
• Electromagnetic Compatibility: IEC 801-3 standard (9.1 V/m)
• Altitude Tolerance: Up to 16,404 ft (5,000 m)
• Net Weight: 1.43 lbs (0.65 kg)

Installation and Maintenance

• Installation: Direct mounting into standard Modicon Quantum backplanes.
• Diagnostics: Equipped with a green LED for real-time "PWR OK" monitoring.
• Alarm Output: 1 NC contact (6A at 220V) for remote system fault reporting.
• Maintenance: Designed for high-reliability applications with simple modular replacement procedures.
• Compatibility: Fully compatible with the Modicon Quantum series rack ecosystem.

Certifications and Compliance

• Safety Standards: UL 508, CSA C22.2 No 142
• Certifications: FM Class 1 Division 2, cUL
• Marking: CE compliance certified

Logistics and Warranty

• Applications: Critical power delivery for manufacturing, energy infrastructure, and process control.
• Shipping: Fast worldwide dispatch via FedEx, UPS, or DHL.
• Handling Time: Orders ship within 24-48 hours.
• Package Contents: 1x 140CPS22400 module and technical documentation.
• Warranty: Comprehensive 12-month quality guarantee.

Global PLC Spare HUB Insight

The 140CPS22400 is a high-performance solution for systems requiring maximum uptime. Our engineering review confirms its stability in harsh industrial settings. This module is the preferred choice for Quantum users managing high-density automation tasks.

Buying Guide and FAQ

• Selection Guide: Verify your backplane slot availability. Ensure your total system current demand remains within the 8A output limit.
• FAQ:
• Q: How do I implement redundant power?
• A: Install two 140CPS22400 modules in the dedicated power slots of your Quantum rack.
• Q: What does the alarm signal indicate?
• A: It signals a module-level power fault or internal voltage drop.
• Q: What is the recommended service interval?
• A: We suggest annual visual inspections of terminal connections and airflow pathways.
• Q: Is this module suitable for high-vibration areas?
• A: Yes, it is built to rigid industrial standards for fixed infrastructure applications.
