Schneider Electric 140CFK00400 Modicon Quantum CableFast Terminal Block

Product Description & Technical Overview

Global PLC Spare HUB Review

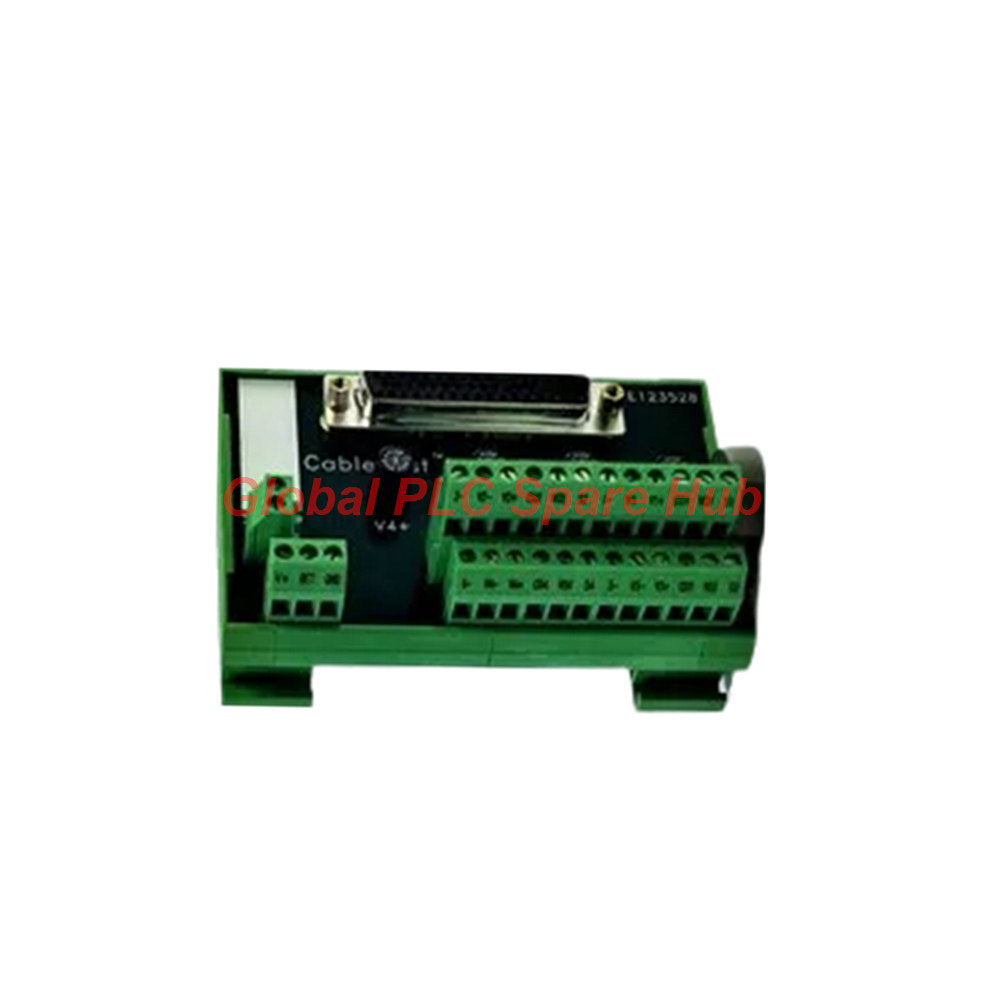

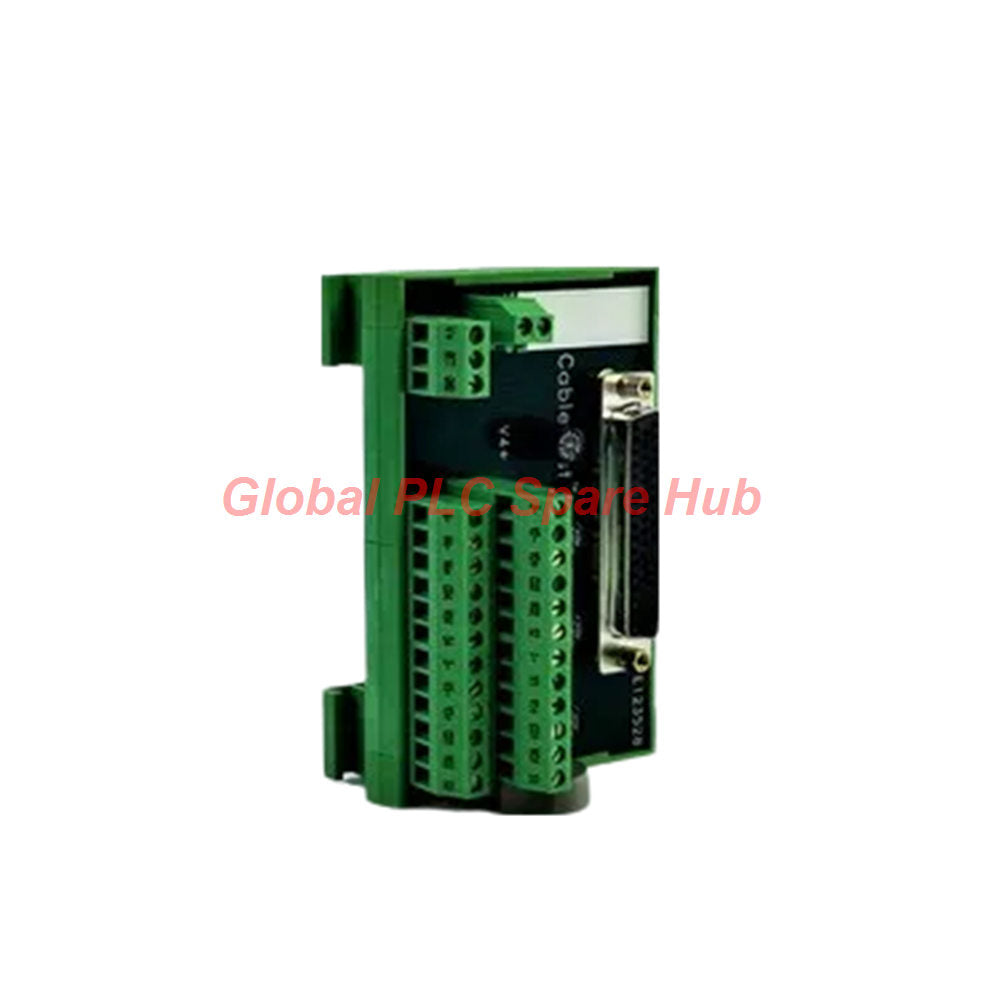

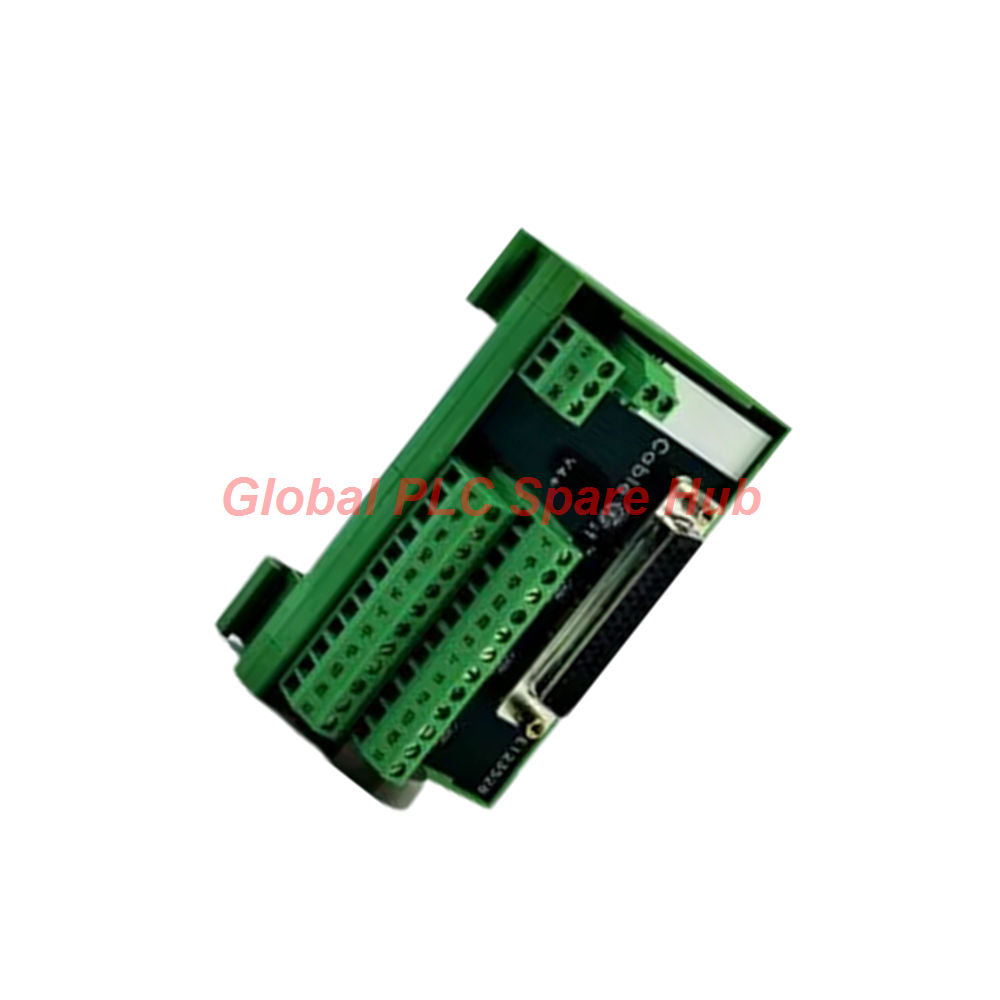

The Schneider Electric 140CFK00400 is an engineered CableFast terminal block designed specifically for the Modicon Quantum automation platform. This non-fused analog output block provides dedicated interfaces for plus, minus, shield, and power supply connections. It supports complex industrial control architectures by delivering four connection point sets tailored for analog modules. Engineers utilize this hardware to manage both field and loop power configurations securely within high-density control cabinets.

Technical Specifications

Installation Guidelines

• Mount the 140CFK00400 securely onto a standard industrial DIN rail inside the control cabinet.
• Verify system power is fully isolated before connecting the SUB-D 50 female connector.
• Terminate field wires firmly using the captive screw terminals to prevent loose connections under vibration.
• Ensure proper shielding and grounding lines are linked to the designated shield terminals to maintain signal integrity.

Commissioning & Maintenance Convenience

• Features a modular layout that significantly reduces panel wiring time during initial commissioning.
• Captive screw design ensures secure wire retention without requiring specialized proprietary crimping tools.
• Clear terminal allocation simplifies loop verification and multi-meter testing during routine plant maintenance cycles.
• Non-fused architecture provides a direct, low-resistance signal path for precise analog output execution.

Compatibility & Certifications

• Fully compatible with Schneider Electric Modicon Quantum analog modules including 140AVO02000 and 140ACO02000.
• Manufactured in compliance with recognized international industrial automation quality and safety standards.
• Global shipping ready with standard commercial compliance documentation for customs clearance.

Package Contents & Warranty

• 1 x Schneider Electric 140CFK00400 Terminal Block
• Standard protective packaging unit (PCE)
• Comprehensive 12-month warranty covering manufacturing defects

Shipping & Logistics

• Global PLC Spare HUB's Insight: We maintain robust stock levels to support urgent industrial MRO requirements.
• Fast dispatch within 24 to 48 hours upon order confirmation.
• Reliable international courier delivery options available via FedEx, UPS, and DHL.

Typical Application Sectors

• Distributed Control Systems (DCS) in chemical processing plants.
• Continuous manufacturing lines requiring high-precision analog signal routing.
• Power generation and substation automation control panels.
• Water and wastewater treatment facility monitoring nodes.

Diagnostic & Troubleshooting Capabilities

• Provides accessible test points to isolate loop power failures quickly during system faults.
• Visual inspection of captive screw terminals allows technicians to spot oxidation or loose wiring instantly.
• SUB-D 50 connection interface isolates multi-core cable issues from individual field I/O points.

Frequently Asked Questions (FAQ)

Question:

Can the 140CFK00400 terminal block be used with PLC modules outside the Quantum series?

Answer:

No. This specific CableFast accessory is engineered exclusively for the Modicon Quantum automation platform and designated compatible modules like the 140AVO02000 and 140ACO02000.

Question:

What field experience should engineers consider when wiring the SUB-D 50 connector on this unit?

Answer:

Field Experience: Always support the weight of the heavy multi-core pre-fabricated cable so that mechanical strain is not transferred directly onto the SUB-D pins, which can cause intermittent signal drift in high-vibration environments.

Question:

How do I choose between fused and non-fused terminal blocks for my analog loops?

Answer:

Selection Guide: Choose the non-fused 140CFK00400 when your central cabinet architecture already incorporates dedicated external circuit protection or fusing at the power distribution level, allowing a direct, unhindered analog signal loop.
