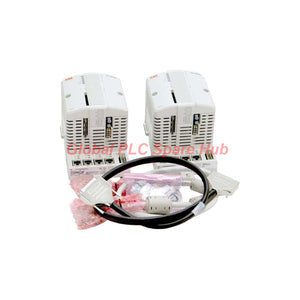

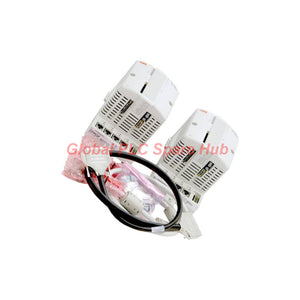

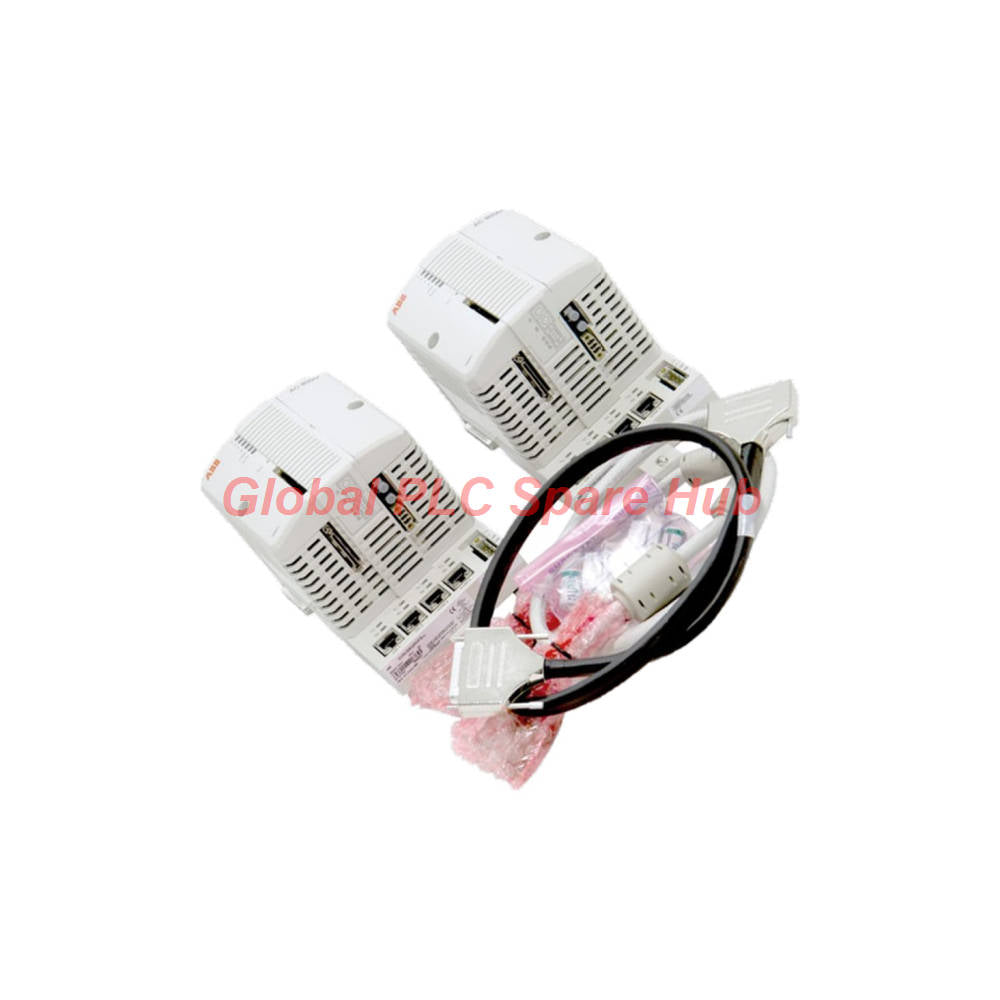

PM867K01 High Performance Processor Module ABB AC 800M In Stock

PM867K01 ABB AC 800M Processor Kit Engineering Architecture

The PM867K01 (part number 3BSE076355R1) represents the high-performance processor unit within the ABB AC 800M control system family.

Driven by an MPC866 32-bit RISC microprocessor running at 133 MHz, this module delivers double the processing throughput of legacy PM865 controllers.

Featuring 64 MB of high-speed SDRAM and 4 MB of flash PROM, the PM867K01 handles memory-intensive control programs effortlessly.

Integrated redundancy control links enable seamless bump-less switchovers between primary and backup CPUs in under 10 milliseconds.

Engineers deploy the PM867K01 alongside the SM812 safety module to execute safety-critical applications up to SIL1-3 classification standards.

Technical Performance Parameters

Subsystem Integration & Expansion Topologies

• Processor Core Architecture
• High-clock 133 MHz processing core optimized for real-time task schedule execution.
• Dedicated non-volatile flash memory guarantees firm protection against firmware corruption.
• Sub-millisecond task execution latency enables stable control of high-speed industrial processes.
• Redundant Control and Network Topologies
• Dual Ethernet ports CN1 and CN2 enable deterministic fault-tolerant network rings.
• Hardware-driven optical redundancy link maintains continuously synchronized memory states.
• Configurable serial channel COM3 supports remote PPP modem telemetry connections.
• I/O Expansion Bus Interfaces
• Electrical ModuleBus supports direct local connection of 12 S800 I/O signal conditioning units.
• Side-mounted CEX-Bus backplane interface links up to 12 additional fieldbus communication modules.

Installation & Commissioning Guidelines

Mount the PM867K01 base unit firmly onto a grounded 35 mm DIN-rail inside an IP54-rated metal enclosure.

Connect the primary 24 VDC system power lines directly to terminals L+ and L- using insulated wire ferrule ends.

Wire the dual power status monitoring lines to terminals SA and SB to enable redundant power supervision logic.

Attach the optical redundancy sync cable between primary and secondary PM867K01 units before applying field power.

Ensure cabinet cooling airflow maintains ambient temperatures below 55°C to prevent thermal throttling of the processor core.

Diagnostic Capabilities & Field Troubleshooting

Front panel LED diagnostic indicators provide instantaneous visual verification of CPU operational states.

Connect an engineering laptop directly to the COM4 service port to extract hardware fault logs and event stacks.

Monitor status registers on inputs SA and SB to isolate external supply degradation from CPU hardware faults.

Observe system log alarms for battery charge depletion indicators to schedule timely preventive cell replacement.

Utilize System 800xA hardware diagnostic structures to continuously monitor CPU memory error-checking states.

Target Equipment & Industry Application Scenarios

Serves as the primary master controller for large-scale boiler control systems and steam turbine automation in power generation facilities.

Executes complex safety instrumented functions (SIF) on offshore oil production platforms and gas compression plants.

Controls continuous chemical reaction processes and multi-stage distillation columns requiring uncompromised SIL3 availability.

Logistics Delivery & Warranty Guarantee

• Standard Kit Packaging: Complete PM867K01 processor kit with factory seals intact.
• Express Global Dispatch: Shipped worldwide within 24 to 48 hours using priority courier services via FedEx, UPS, or DHL.
• Comprehensive Guarantee: Backed by a full 12-Month Warranty covering all internal hardware components.

Global PLC Spare HUB's Insight

In our technical evaluation of the PM867K01, we frequently observe its deployment in high-availability critical control loops.

During a recent field diagnostic service at a petrochemical plant, the customer reported random redundancy switchover alarms on an AC 800M rack.

Our engineering team analyzed the event log and discovered that transient voltage sags on auxiliary input terminal SA dropped below 8 VDC.

This false low-level signal triggered unnecessary failovers, despite the primary L+ power rail remaining perfectly stable at 24 VDC.

Re-wiring the status inputs to a stable power monitoring circuit restored complete redundancy stability without requiring a unit replacement.

For installations undergoing extended plant turnarounds, we strongly advise installing external SB821 battery modules to prevent memory loss during long outages.

Engineering Selection Guide

Select the PM867K01 processor when your control loop demands high-speed computation and redundant CPU hardware safety.

Verify whether your system architecture requires the SM812 safety module integration to meet SIL2 or SIL3 functional safety mandates.

Calculate total current draw across the ModuleBus and CEX-Bus adapters to ensure 24 VDC distribution supplies remain within limits.

Frequently Asked Questions

Question: How does the execution performance of the PM867K01 compare to older generation CPU units?

Answer: The 133 MHz clock speed of the PM867K01 delivers roughly double the processing performance of the legacy PM865 CPU module.

Question: What happens to the process control loop during a CPU failover in a redundant configuration?

Answer: The switchover time from the primary processor to the standby processor occurs seamlessly in less than 10 milliseconds, maintaining unbroken process operation.

Question: How can field engineers extend program memory retention during prolonged plant shutdowns?

Answer: Connect an optional external battery unit like the SB821 to extend SRAM data backup retention from 158 hours up to 15 weeks.

Question: What critical check should be performed if the PM867K01 reports a power status fault despite full 24 VDC input?

Answer: Check terminals SA and SB; these status monitoring inputs require at least 15 VDC to register a high logic level, independent of main L+ power.

Question: Is the PM867K01 compatible with High Integrity SIL-rated safety installations?

Answer: Yes, when paired with the SM812 module and certified software, the unit is certified to execute SIL1 to SIL3 safety applications.
