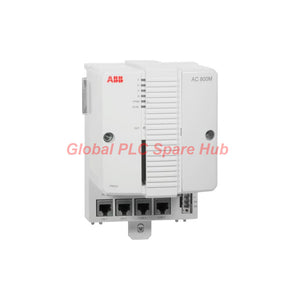

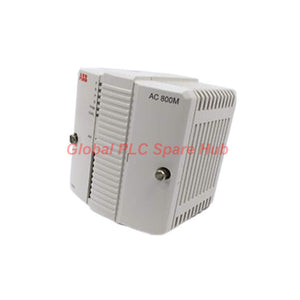

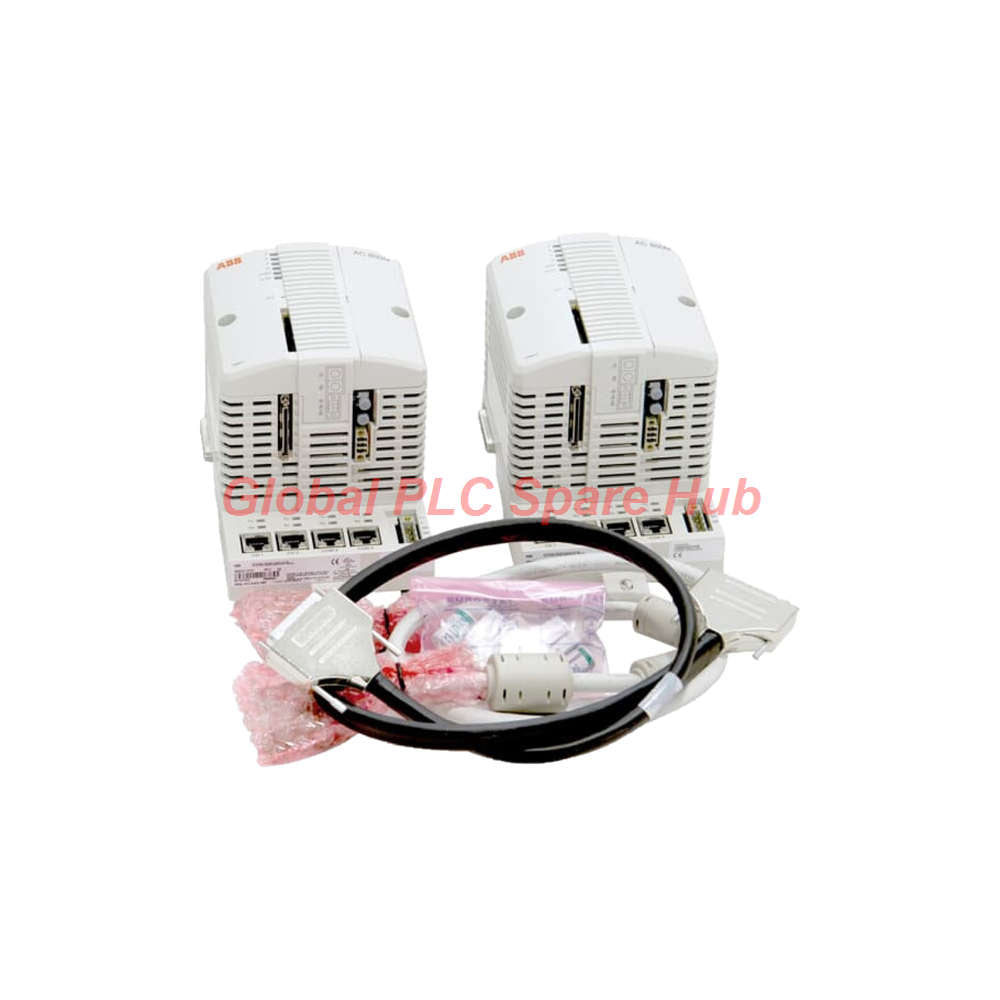

PM865K01 ABB System 800xA High Integrity Processor Module

PM865K01 Architecture & High Integrity Capabilities

The PM865K01 (Article Number: 3BSE031151R1) functions as a powerhouse central processing unit designed for demanding ABB System 800xA applications. Driven by an MPC862P microprocessor operating at 96 MHz, this controller handles standard tasks alongside safety-critical applications when paired with SM810/SM811 expansion cards for SIL1-3 certified operations. It integrates 32 MB of SDRAM and 4 MB of flash PROM for firmware handling, ensuring high reliability in critical control networks.

Technical Specifications Breakdown

• Brand & Model: ABB PM865K01
• Series Identification: System 800xA Ethernet Port Controller
• Processor Core: MPC862P RISC architecture at 96 MHz
• System Memory: 32 MB SDRAM with battery back-up capability
• Firmware Storage: 4 MB flash PROM
• Power Metrics: 6.9 W typical dissipation (up to 11.9 W max with full Modulebus load); 287 mA typical current consumption
• Power Input: 24 V nominal (19.2 to 30 V DC range) via screw terminals with dedicated SA/SB status lines
• Physical Footprint: Width 119 mm x Height 186 mm x Depth 135 mm, weighing 1200 g

Communication Interfaces & Redundancy Structure

• Dual 10BaseT Ethernet ports (CN1, CN2) supporting IEEE 802.3 standards for primary control network traffic.
• COM3 serial port featuring full RS-232C modem control support for remote communication setups.
• COM4 dedicated isolated RS-232C port tailored for direct configuration service tool hookups.
• Redundancy Control Link providing sub-10 ms switch-over times between primary and backup CPU units.

Diagnostic Suite & Power Safety Features

• Internal 5 ms power reservoir allows the CPU to execute a controlled, safe shutdown during sudden power dips.
• Redundant power status input monitoring (SA, SB) with logical threshold levels to flag supply variations.
• IP20 enclosure protection rating complying with EN60529 standards for industrial panel mounting.

Target Application Scenarios & Environment

• Safety Instrumented Systems (SIS): High Integrity process loops requiring SIL1-3 compliance and S800 I/O High Integrity integration.
• Continuous Process Control: Oil and gas refineries, petrochemical complexes, and power generation facilities requiring redundant fault-tolerant architectures.
• Heavy Industrial Automation: Large-scale manufacturing plants demanding robust overvoltage protection and internal voltage supervision.

Global Logistics, Warranty, and Fulfillment

• Shipping Logistics: Express dispatch within 24 to 48 hours globally via trusted couriers including FedEx, UPS, and DHL.
• Warranty Assurance: Protected by a full 12-month replacement warranty covering hardware integrity and craftsmanship.

Global PLC Spare HUB's Insight

Field commissioning data indicates that deploying the PM865K01 in a High Integrity configuration yields up to 50 percent sustained performance gains over older PM860 architectures. Engineers must carefully monitor backup battery health—internal capacitors and backup options like the SB821 or SB822 provide between 235 hours to 24 weeks of retention support. During routine maintenance windows, verifying the optical Modulebus links ensures that the 12 maximum connected S800 units communicate without packet jitter.

Frequently Asked Questions

Q: What distinguishes the PM865K01 when running in a High Integrity setup compared to a standard process automation loop?

A: When paired with SM810 or SM811 modules and certified safety software, the PM865K01 executes both non-SIL and SIL1-3 application codes with strict internal voltage supervision and S800 High Integrity I/O compatibility.

Q: How does the internal power reservoir behave during an unexpected facility power failure?

A: The processor incorporates an internal 5 ms power reservoir that supplies sufficient energy during voltage drops to allow the CPU to perform a safe, controlled power-down sequence.

Q: What are the recharge requirements for depleted backup power sources like the SB821 or internal battery?

A: A fully drained backup battery requires approximately 7 hours of continuous operation under normal power conditions to reach a fully charged state.

Q: What purchasing factors should engineers evaluate when replacing legacy controllers with the PM865K01?

A: Always verify the exact article number (3BSE031151R1) and check that your control builder project file matches the 32 MB SDRAM and 4 MB flash PROM parameters to prevent memory mapping faults.

Q: Can the serial ports handle simultaneous service tool connections and modem communications?

A: Yes, the board separates these functions cleanly by assigning modem control signaling to COM3 and dedicating the isolated COM4 port strictly to local configuration tools.
