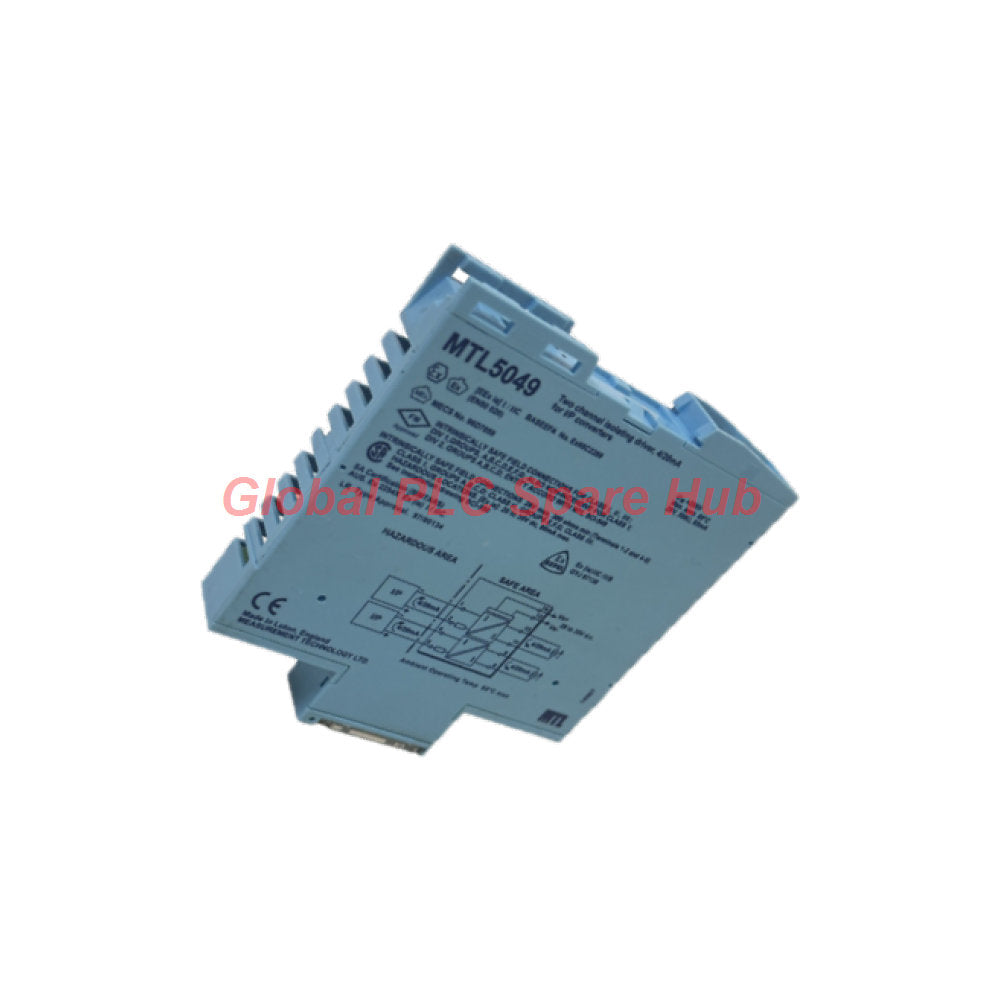

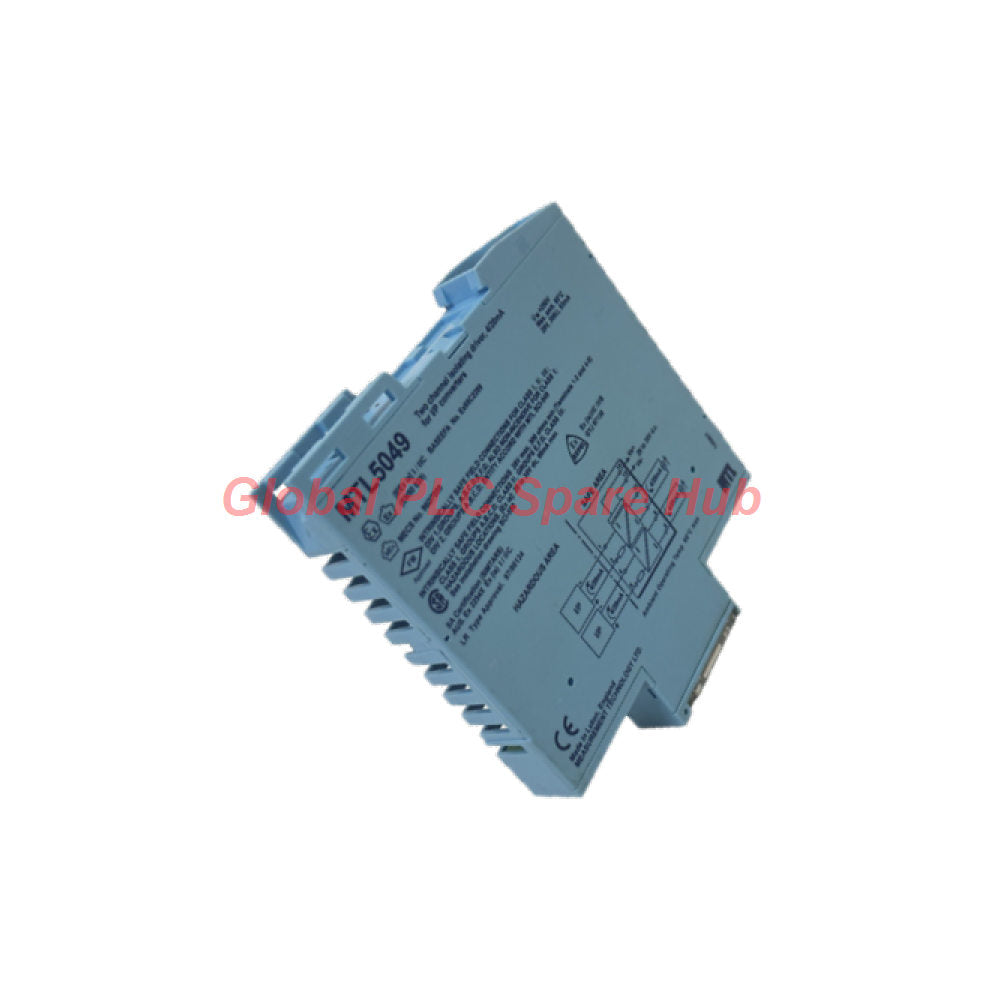

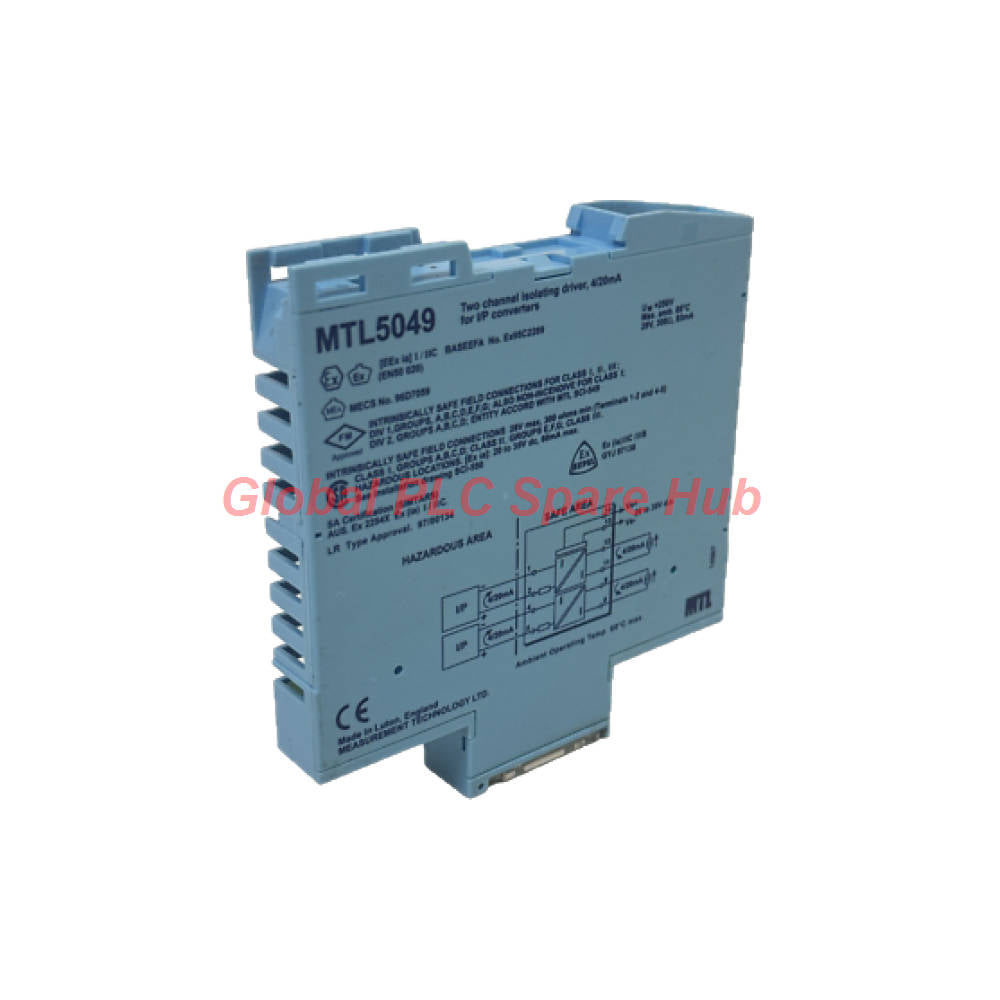

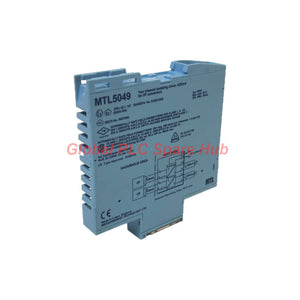

MTL5049 Dual-Channel 4–20 mA Signal Isolator

Model: MTL5049

Product Type: Dual-Channel Signal Isolator / Signal Transfer Interface

Signal Type: 4–20 mA DC

Application: Safe-area controller signals to hazardous-area loads

Product Overview | Two Signal Loops, One Isolation Interface

The MTL5049 is a two-channel signal isolation interface designed to pass two 4–20 mA signals from a controller in the safe area to two loads in a hazardous area. It provides separate input and output connections for each channel, allowing two current-signal loops to be handled by one interface unit.

The specified hazardous-area output supports a maximum load resistance of 550 Ω, equivalent to 11 V at 20 mA. The unit operates from a 20–35 V DC supply and provides a green LED for power indication. Its compact signal-interface role makes it relevant to industrial control systems that must transfer analog commands across a safe-area/hazardous-area boundary.

Before installation, confirm the complete loop design, load resistance, power supply, terminal assignments, and applicable hazardous-area certification. The stated safety parameters do not, by themselves, establish suitability for every hazardous-area installation.

01 | Signal Path — How the MTL5049 Works in a Control Loop

Channel 1

Safe-area controller 4–20 mA output → MTL5049 input terminals 11 (+) and 12 (−) → MTL5049 output terminals 2 (+) and 1 (−) → Hazardous-area load

Channel 2

Safe-area controller 4–20 mA output → MTL5049 input terminals 9 (+) and 8 (−) → MTL5049 output terminals 5 (+) and 4 (−) → Hazardous-area load

Power supply: Connect the 20–35 V DC supply to terminal 14 (+) and terminal 13 (−).

The two channels have separate signal terminals. Follow the manufacturer's wiring diagram when integrating the unit into a specific control system. Do not assume that the input and output terminals can be interchanged or that an arbitrary external loop supply is compatible.

02 | Technical Specification Register

Specification note: The figures above are reproduced from the supplied product information. Confirm the applicable common specifications, operating temperature, isolation ratings, and certification details against the current manufacturer's datasheet before final engineering approval.

03 | Terminal Assignment Matrix

Use the terminal numbers printed on the actual unit and the manufacturer's wiring diagram during commissioning. Isolate the power supply and follow the site's safe-work procedures before changing field wiring.

04 | Load and Loop Design Checks

The output load limit is a key selection constraint. The specified maximum is 550 Ω, corresponding to an 11 V output requirement at 20 mA. The connected load and wiring must remain within the permitted loop conditions.

• Calculate the total load: Include the receiving instrument input resistance and any other series resistance that affects the output loop.
• Check controller compliance: Confirm that the safe-area controller can provide the required current while meeting the MTL5049 input voltage-drop specification.
• Verify polarity: Use the assigned positive and negative terminals for each channel.
• Confirm supply margin: Keep the supply within 20–35 V DC and size it for the actual load and operating conditions.
• Validate both channels: Test each loop independently before commissioning the complete process.

Do not interpret the 550 Ω output-load specification as a universal guarantee that every transmitter, controller, and receiving instrument can operate together. The complete loop must satisfy the electrical requirements of every connected device.

05 | Equipment and Application Scenarios

• PLC and DCS analog outputs: Passing two configured 4–20 mA control signals from safe-area controller outputs to compatible hazardous-area loads.
• Control valves and positioners: Potential use where a compatible current signal is required by the field device and the loop design meets the interface specifications.
• Process control skids: Analog command transfer across the safe-area/hazardous-area boundary in compatible instrumentation architectures.
• Industrial process instrumentation: Signal transfer to compatible current-input devices located in classified areas.
• Maintenance and replacement: Replacement of an existing MTL5049 after confirming the original terminal layout, loop arrangement, load requirements, and certification.

These are application examples based on the unit's stated signal-transfer function. Confirm the receiving device type and the complete hazardous-area system design before using the unit in a particular installation.

06 | Commissioning and Diagnostic Workflow

1. Check the power LED. Confirm that the green power indicator is illuminated. If it is off, measure the supply at terminals 14 and 13 and verify that it is within 20–35 V DC.
2. Verify input current. Measure the controller signal at the correct input terminals. Confirm that the current is within the intended 4–20 mA operating range and investigate values outside the configured range.
3. Check output current. Measure the current delivered to the field load using an approved test method. Compare it with the controller command and the expected transfer behavior.
4. Review load resistance. Confirm that the total hazardous-side load does not exceed 550 Ω and that the receiving device is compatible with the output interface.
5. Isolate channel faults. Compare channel 1 and channel 2 using the same known-good input and a suitable test load, where permitted by the site procedure.
6. Check polarity and wiring. Inspect input, output, and supply connections against the terminal matrix. Correct any swapped or loose conductors after the circuit has been safely isolated.
7. Confirm signal stability. If the output is noisy or slow to settle, check controller behavior, loop wiring, load conditions, and the connected field device before concluding that the isolator is defective.

07 | Troubleshooting Matrix

Diagnostic limitation: The MTL5049 provides a green power indicator, but the supplied specifications do not identify dedicated channel-fault LEDs or diagnostic codes. A lit power LED confirms only a power-indication condition; it does not prove that both current loops are operating correctly.

08 | Hazardous-Area Installation Considerations

The supplied safety description is 28 V, 300 Ω, 93 mA, with Um = 250 V RMS or DC. The product information also describes use with loads in Zone 0, gas group IIC, temperature class T4–T6 where suitably certified, and Class I, Division 1, Group A hazardous locations.

• Verify the exact certificate and installation control drawing for the particular unit and application.
• Confirm that the connected field device, wiring, and associated equipment are suitable for the intended hazardous-area classification.
• Do not assume that a general product description replaces site-specific intrinsic-safety calculations or regulatory review.
• Follow applicable installation rules for separation of safe-area and hazardous-area wiring, grounding, and maintenance.

09 | Global PLC Spare HUB's Insight

When selecting an MTL5049 replacement, the most important checks are the two-channel wiring arrangement, the 550 Ω maximum output load, the 20–35 V DC supply, and the exact hazardous-area approval. A physically compatible module is not sufficient if the current loop or field-device requirements differ.

For troubleshooting, measure the input and output of each channel separately. If the controller signal is correct but the receiving device does not respond, check the output load, polarity, and receiver requirements before replacing the isolator. If only one channel fails, a channel-by-channel comparison can help separate wiring or field-device faults from a possible module problem.

For a replacement order, provide the full model number, photographs of the terminal markings, supply voltage, field-device type, loop load, and hazardous-area requirements. This helps verify that the proposed unit matches the installed control architecture.

10 | Frequently Asked Questions

Q1: Can the MTL5049 drive two separate field devices at the same time?

It is specified as a two-channel interface for passing two 4–20 mA signals to two hazardous-area loads. Each channel must be wired to its assigned terminals, and each output loop must satisfy the load and electrical requirements. Confirm the field devices and system wiring before commissioning.

Q2: What should I check if the output is inaccurate even though the input is within 4–20 mA?

Measure the output current, verify the load resistance, and check the input voltage drop and terminal polarity. Also confirm that the receiving instrument is configured for a 4–20 mA signal and that the controller output is stable. If the issue remains, test the loop using the manufacturer's approved procedure.

Q3: Is a 550 Ω load acceptable for every operating point?

The specification identifies 550 Ω as the maximum hazardous-area load and gives 11 V at 20 mA. The complete circuit must still meet the requirements of the receiver and wiring. Verify the actual load and operating conditions rather than treating the maximum as a guarantee for every installation.

Q4: How can I distinguish a faulty isolator from a failed field device?

Check the controller's input current first, then measure the isolator output using an approved test arrangement. If the output is correct at the interface but the field device does not respond, investigate the receiving device and its wiring. If the input is valid but the output is incorrect under a compliant load, further module testing may be required.

Q5: What details should be confirmed before ordering this module for a hazardous area?

Confirm the exact model, required number of channels, signal direction, DC supply, maximum loop load, field-device requirements, terminal arrangement, and hazardous-area certificate. Ask the supplier to confirm the condition of the supplied unit and the applicable warranty terms. Certification must match the actual installation, not just the product family name.

11 | Warranty, Shipping and Ordering

• Product: MTL5049 Dual-Channel 4–20 mA Signal Isolator
• Warranty: 12-month warranty, subject to the seller's written warranty terms and confirmation of the supplied item's condition and coverage.
• Shipping Methods: FedEx, UPS, and DHL, subject to destination and service availability.
• Dispatch Target: 24–48 hours after order and payment confirmation, subject to stock availability and processing requirements.
• Before Ordering: Confirm the exact model, loop requirements, terminal arrangement, and hazardous-area approval.

Contact Global PLC Spare HUB to request a quote for the MTL5049. Include the controller output details, receiving-device specifications, loop resistance, and hazardous-area requirements to support accurate product selection.
