MTL5032 MTL Pulse Isolator | Intrinsically Safe Galvanic Barrier

Product Overview

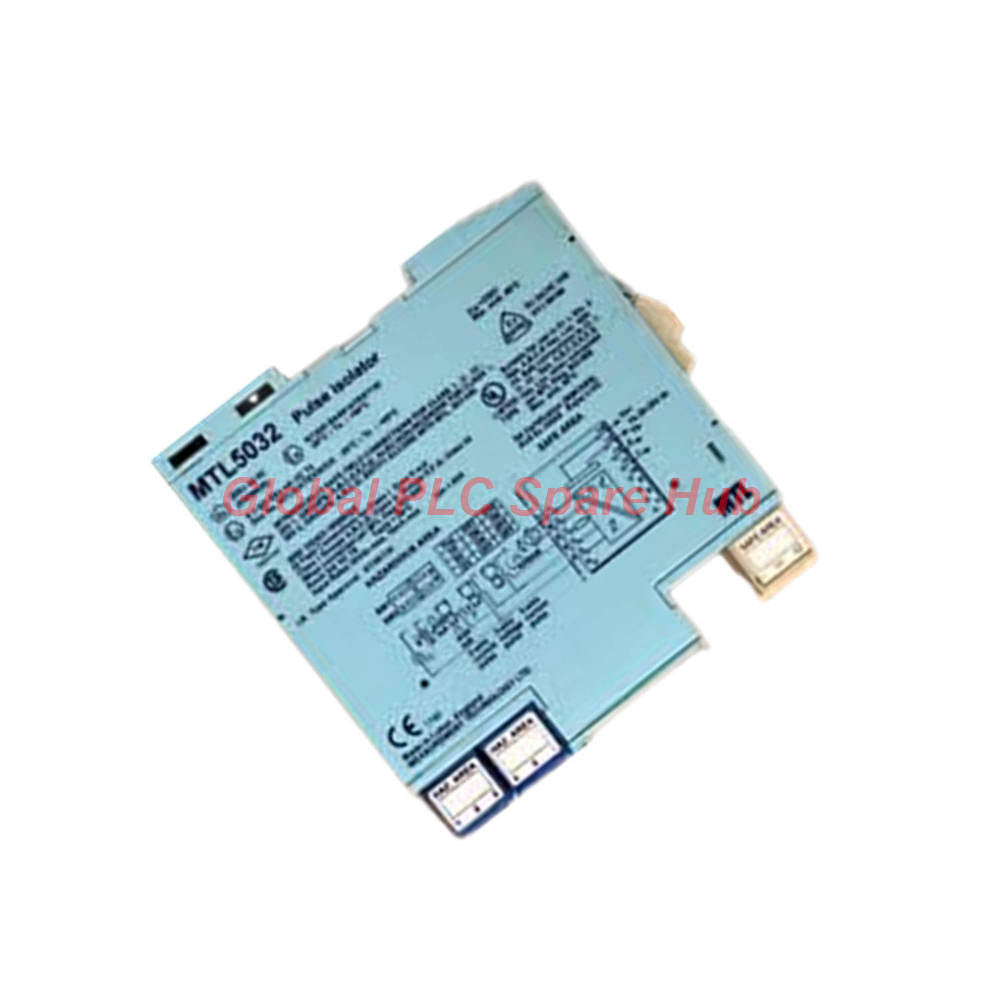

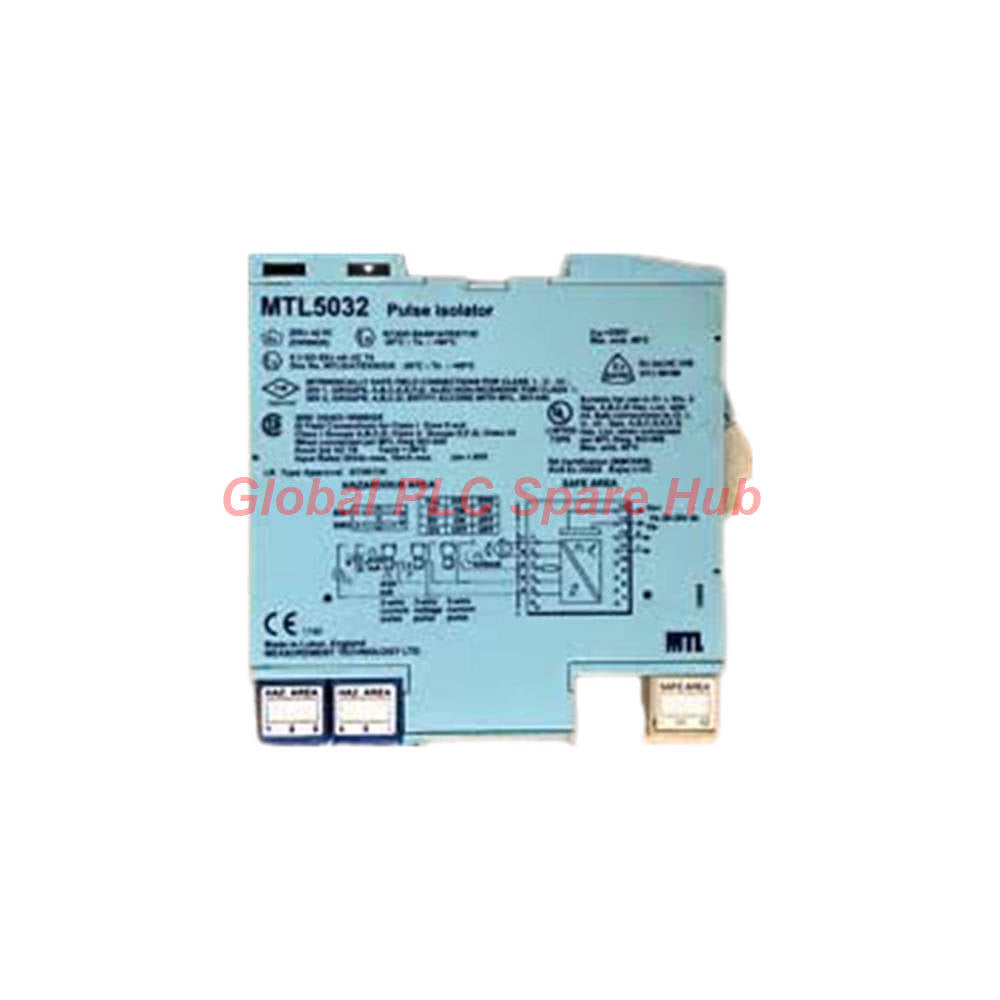

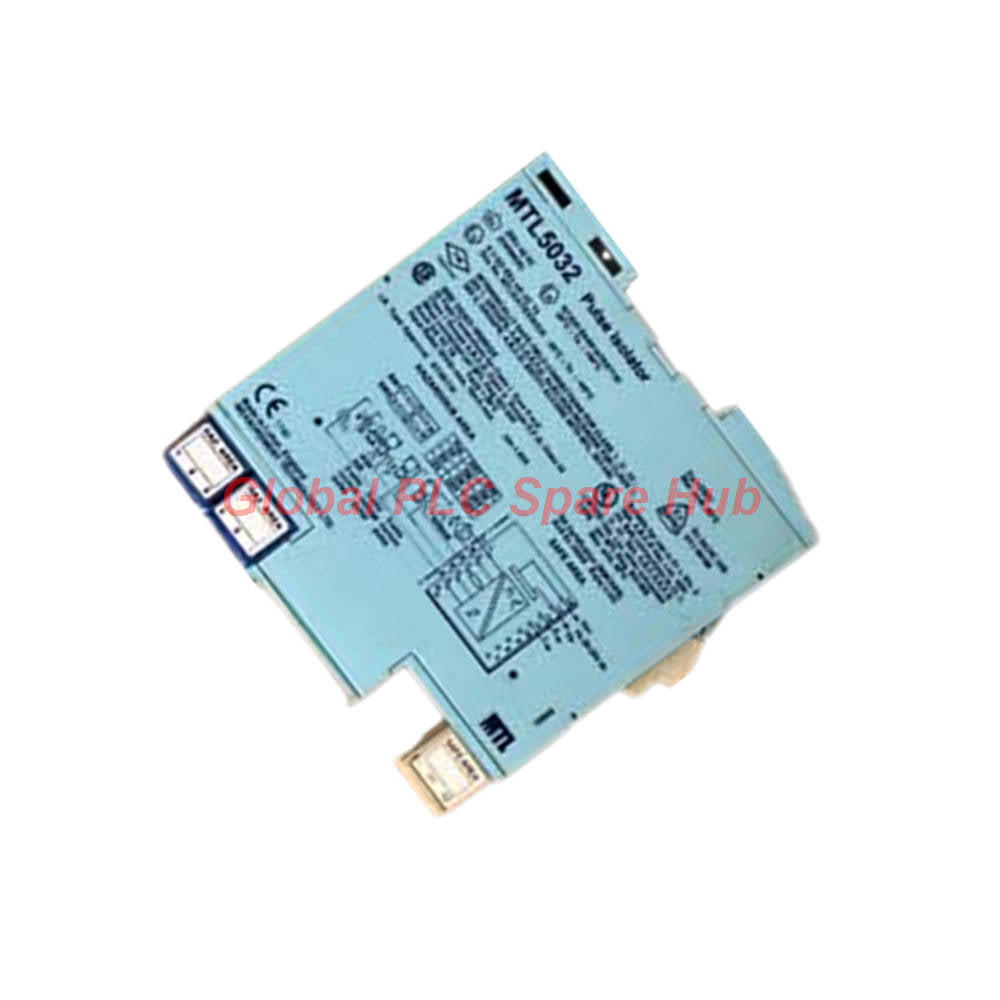

The MTL5032 is a high-performance, single-channel galvanic isolator designed by MTL Instruments. It belongs to the legendary MTL5000 series of DIN-rail mounted safety barriers. This module isolates pulse signals originating from hazardous area field devices and transmits them safely to control systems in the safe area.

Engineered with versatile input parameters, the MTL5032 interfaces seamlessly with dry contacts, NAMUR proximity detectors, and active current or voltage pulse transmitters. It prevents dangerous electrical energy from breaching explosive atmospheres while preserving signal speed and timing integrity.

Global PLC Spare HUB's Insight

Our senior instrumentation engineers have benchmarked the galvanic isolation of the MTL MTL5032 against competitive shunt-diode zener barriers. Zener barriers require a dedicated, high-integrity safety ground connection that can be incredibly costly to install and maintain. In contrast, the active galvanic isolation of the MTL5032 completely eliminates the need for an IS safety ground, greatly simplifying field loop designs.

With an operational frequency range stretching up to 50 kHz, this module maintains razor-sharp pulse tracking. This makes it ideal for high-speed shaft speed sensing, turbine flowmeter pulse counting, and positive displacement metering. The selectable voltage switching threshold is a massive benefit, allowing field engineers to adapt the barrier to different pulse transmitter logic levels without switching out physical hardware.

System Terminal Configuration Layout

The MTL5032 utilizes dedicated, pluggable terminals for ease of commissioning. The system wiring architecture is organized as follows:

• Hazardous-Area Terminals (Blue Housing)
•   ├── Terminal 1: Common negative (-ve) return path
•   ├── Terminal 2: NAMUR Proximity detector positive (+ve) input
•   ├── Terminal 3: Current pulse positive (+ve) input
•   ├── Terminal 4: Active pulse transmitter positive (+ve) power supply feed
•   └── Terminal 5: Voltage pulse positive (+ve) input
• Safe-Area Terminals (Gray Housing)
•   ├── Terminal 11: Isolated pulse output negative (-ve) return
•   └── Terminal 12: Isolated pulse output positive (+ve) collector
• Receiver Power Terminals (Black Housing)
•   ├── Terminal 13: 20 to 35 Vdc Supply negative (-ve) return
•   └── Terminal 14: 20 to 35 Vdc Supply positive (+ve) feed

Technical Specifications Table

Target Equipment & Applications

The MTL5032 provides optimal safety and signal processing for:

• Turbine flowmeters and positive displacement flow monitors in chemical lines
• NAMUR speed sensors and proximity probes on high-speed industrial fans
• Hazardous-area limit switches on motorized valves and process dampers
• Pneumatic stroke counters and pulse transmitter links

Diagnostic Capabilities

The front faceplate of the MTL5032 includes two LED indicators for real-time field troubleshooting. A solid green LED confirms the presence of DC control power. An active yellow status LED switches on and off in unison with the incoming pulses. This allows technicians to perform visual frequency tracking and quickly spot stuck-open or stuck-closed field sensors.

Logistics, Shipping & Warranty Terms

• Full Warranty Coverage: Global PLC Spare HUB provides a full 12-month quality replacement warranty on this safety barrier.
• Same-Day/Next-Day Dispatch: All orders are securely packaged and shipped within 24 to 48 hours.
• Global Express Partners: We coordinate fast air express delivery globally via DHL, FedEx, and UPS.

Frequently Asked Questions (FAQ)

How does the selectable voltage switching point (Vsp) assist with field tuning?
The MTL5032 allows you to select between 3V, 6V, or 12V thresholds for voltage pulse signals. This lets you tune out common-mode line noise. Selecting a higher Vsp prevents noise spikes from being registered as valid pulse signals, preserving system accuracy.

What is the primary advantage of a solid-state safe-area output over a mechanical relay output?
Solid-state outputs have no mechanical contacts to wear out, which is crucial for high-frequency pulse applications. For instance, a flowmeter running at 10 kHz would destroy a mechanical relay in minutes. The solid-state output easily handles high-speed switching with zero physical wear.

Can I use this barrier to isolate standard 4-20mA analog transmitter loops?
No, this module is designed exclusively for pulse and digital inputs. It does not possess the operational analog circuitry needed to pass a proportional 4-20mA loop. For analog signals, we recommend using the MTL5040 series isolators.

Why does the output turn off if the main power supply fails?
This is an integrated fail-safe design. If the 24Vdc supply fails, the safe-area solid-state output drops to its off-state (maximum 35V, 10µA leakage). This ensures the downstream PLC or controller registers a safe, zero-speed or zero-flow condition.

What is the maximum cable resistance allowed when connecting a NAMUR proximity sensor?
The input meets NAMUR standards (DIN 19234). We recommend keeping the total loop resistance below 50 Ohms to prevent signal attenuation. For long cable runs, using high-quality 16 to 20 AWG shielded triad cables is ideal.
