MTL5012 MTL Signal Conditioner for NAMUR Hazardous-Area Detection

MTL5012 | Hazardous-Area Switch Interface and Signal Control

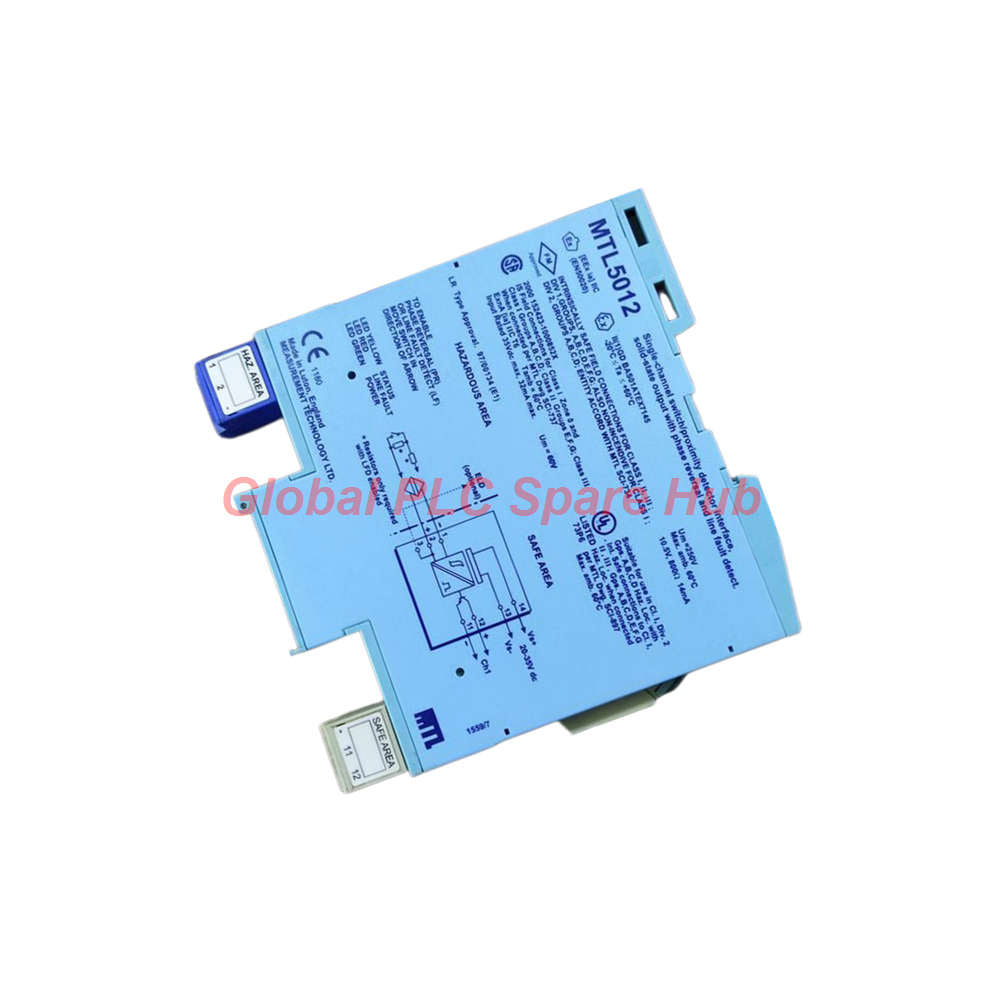

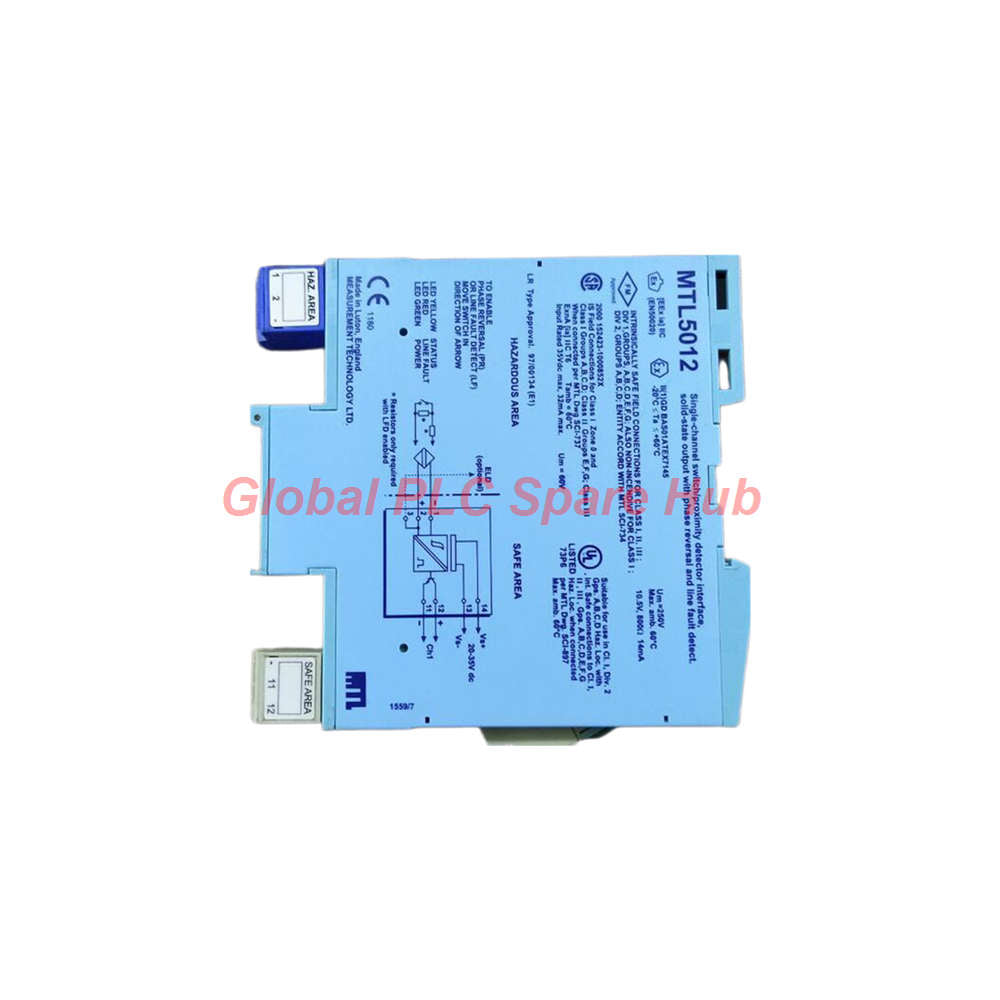

The MTL5012 is a single-channel interface module designed to connect a hazardous-area switch or proximity detector to safe-area logic circuits.

It accepts NAMUR-compatible proximity detector signals and controls a floating solid-state output. Selectable phase reversal changes the output response to the input state, while line fault detection identifies specified open-circuit and short-circuit conditions.

This architecture supports industrial control systems that require defined signal behavior between hazardous-area field devices and safe-area equipment.

01 | Signal Architecture at a Glance

Interface Element	Function
Hazardous-Area Input	Accepts compatible NAMUR/DIN 19234 proximity detector signals
Input Device	Compatible switch or proximity detector
Signal Evaluation	Distinguishes input states using current or resistance thresholds
Phase Reversal	User-selectable output logic inversion
Line Fault Detection	Selectable monitoring for specified open- and short-circuit conditions
Safe-Area Output	Floating solid-state output compatible with suitable logic circuits
Status Indication	LEDs indicate power, output status, and detected line faults
Channel Count	1

02 | Electrical Specifications and Switching Thresholds

Parameter	Specification
Model	MTL5012
Input Standard	NAMUR / DIN 19234
Sensor Supply	7–9 V from 1 kΩ ±10%
Input Threshold, Normal Phase	Output ON when input current exceeds 2.1 mA or input resistance falls below 2 kΩ
Input Threshold, Normal Phase	Output OFF when input current falls below 1.2 mA or input resistance exceeds 10 kΩ
Typical Hysteresis	200 µA
Operating Frequency	DC to 5 kHz
Maximum Off-State Voltage	35 V
Maximum Off-State Leakage	10 µA
Maximum On-State Voltage Drop	1 + (0.13 × current in mA) V
Maximum On-State Current	50 mA
Isolation	250 V AC or DC between power supply, input, and output
Maximum Current Consumption	28 mA at 20 V; 30 mA at 24 V; 32 mA at 35 V
Maximum Power Dissipation	0.8 W at 24 V; 1.2 W at 35 V

Threshold interpretation: The current and resistance values define switching behavior and hysteresis. Verify the sensor characteristics and wiring arrangement before commissioning.

03 | Line Fault Detection: Open and Short Circuit

The selectable LFD function monitors specified input-circuit faults. A detected fault activates the red LED and switches the output off.

Monitored Condition	Alarm ON Threshold	Alarm OFF Threshold
Open Circuit	Input current below 50 µA	Input current above 150 µA
Short Circuit	Input resistance below 100 Ω	Input resistance above 360 Ω

Contact-input requirement: When using LFD with a mechanical contact, fit the specified resistors:

• Series resistor: 500 Ω to 1 kΩ with the switch.
• Parallel resistor: 20 kΩ to 25 kΩ across the switch.

Follow the manufacturer's circuit diagram for resistor placement. Incorrect resistor values or wiring can prevent reliable fault detection.

04 | Output Logic and Phase Reversal

The module offers user-selectable normal and reverse output phases. Select the required behavior according to the receiving logic circuit and the intended process response.

Operating Mode	Input Condition	Output Response
Normal Phase	Input exceeds the ON threshold	Output ON
Normal Phase	Input falls below the OFF threshold	Output OFF
Reverse Phase	Input exceeds the ON threshold	Output OFF
Reverse Phase	Input falls below the OFF threshold	Output ON
LFD Activated	Detected input line fault	Output switches OFF

The switching thresholds include hysteresis, so the ON and OFF transitions occur at different input values. This helps reduce output chatter when the input signal fluctuates near a threshold.

Engineering caution: Do not treat phase reversal as a substitute for a safety-rated shutdown function. Confirm the receiving logic, fault response, and overall safety design independently.

05 | Terminal Assignment and Wiring Reference

Terminal	Function
1	Input negative
2	Input positive
3	Earth leakage detection
10, 11	Output negative
12	Output positive
13	Supply negative
14	Supply positive

Check the exact terminal layout against the manufacturer's wiring diagram before connecting field devices. Verify polarity, power supply limits, and the receiving logic input requirements.

06 | LED Diagnostics and Troubleshooting

LED Indicator	Meaning	Recommended Action
Green	Power indication	Check the supply voltage and power connections if the indicator remains off.
Yellow	Output status; illuminated when the output is ON	Compare the output state with the sensor condition and selected phase.
Red	Line fault detected	Inspect the input wiring, contact resistors, and field device.

Practical diagnostic sequence:

1. Confirm that the green power LED indicates normal supply presence.
2. Check the field sensor's state and measure its signal where safe and appropriate.
3. Compare the expected output with the selected normal or reverse phase.
4. If the red LED illuminates, inspect the circuit for an open wire, short circuit, or incorrect contact-input resistor arrangement.
5. Verify the receiving logic input and field wiring before replacing the interface module.

Field example: A proximity detector changes state, but the controller input does not follow. Check the yellow LED first. If it changes correctly, investigate the safe-area output wiring and receiving input. If the red LED appears, check the hazardous-area sensor circuit and its LFD configuration.

07 | Suitable Equipment and Industrial Applications

• Process plants: Interface compatible proximity detectors with safe-area control logic.
• Oil and gas facilities: Monitor suitable hazardous-area switch signals in approved installations.
• Chemical processing: Connect compatible field detection devices to suitable control-system inputs.
• Tank and vessel systems: Monitor switch positions or detector states where the instrument and installation approvals permit.
• Industrial machinery: Transfer compatible switch states to PLC or relay logic circuits.
• Hazardous-area instrumentation: Provide an interface for suitably certified sensors installed in the specified hazardous location.

Verify the area classification, sensor certification, gas group, temperature class, and system installation requirements before use. The interface specification alone does not certify the complete installation.

08 | Global PLC Spare HUB's Insight

In hazardous-area signal systems, engineers should evaluate the sensor, interface, and receiving logic as one complete circuit. A correct input signal does not guarantee correct controller behavior if the output phase or receiving logic configuration is wrong.

During commissioning, simulate both sensor states and confirm the corresponding output transitions. Then test the LFD response using an approved procedure. For contact inputs, verify the required series and parallel resistors before enabling line fault monitoring.

For example, a maintenance team may report an unexpected OFF signal after a detector cable becomes disconnected. Confirm whether the red LFD indicator is active and whether the output has switched off as specified. This check helps distinguish an intended fault response from a sensor or logic configuration problem.

Document the selected phase, input thresholds, LFD setting, terminal assignments, and expected fault response. These records improve future troubleshooting and reduce configuration errors during module replacement.

09 | Installation and Commissioning Checklist

• Confirm the model number and applicable manufacturer documentation.
• Verify the hazardous-area classification and the sensor's certification.
• Check the required supply voltage and current consumption.
• Confirm the NAMUR sensor or contact-input wiring arrangement.
• Select the required phase response and LFD setting.
• Install the specified contact resistors when the application requires them.
• Verify the receiving logic circuit's voltage, current, and switching requirements.
• Test normal operation and the specified fault response before releasing the circuit.

Qualified personnel must perform hazardous-area installation and testing under applicable site procedures. Never create an unsafe open or short circuit in an energized hazardous area to test LFD operation.

10 | Packaging, Shipping, and Warranty

• Product: MTL5012 single-channel switch/proximity detector interface.
• Packaging: Protective packaging for electronic instrumentation; confirm included accessories with the order.
• Shipping Options: FedEx, UPS, or DHL, subject to destination and service availability.
• Dispatch Target: 24–48 hours after order acceptance and stock confirmation, where available.
• Warranty: 12 months under the agreed sales terms.
• Technical Support: Assistance with model verification, wiring documentation, and compatibility checks.

Dispatch schedules depend on stock status and order processing. Transit times vary by destination, customs clearance, and carrier service.

11 | Frequently Asked Questions

Q1: How do I determine whether a NAMUR detector is suitable for this interface?

Check the detector's output characteristics, certification, and required hazardous-area protection method. Confirm that its current and resistance behavior matches the interface thresholds and the manufacturer's connection requirements.

Q2: Why can a contact switch require additional resistors when LFD is enabled?

A simple contact does not always provide enough information to distinguish normal switching from an open or shorted cable. The specified series and parallel resistors create detectable electrical conditions for the line fault monitoring circuit.

Q3: What should I verify if the yellow LED behaves opposite to the controller logic?

Check the selected phase setting and the receiving input's logic convention. Then compare the detector state, module output, and controller status. Do not change field wiring until the intended logic response is clear.

Q4: Can this module directly drive a high-current solenoid or actuator?

The specified maximum ON-state current is 50 mA. Check the load current, voltage drop, leakage current, and receiving circuit requirements. Use a suitable intermediary interface when the load exceeds the module's ratings.

Q5: What should purchasing teams confirm before ordering a replacement?

Confirm the exact model, input device type, phase requirements, LFD needs, supply voltage, and output load. Also verify hazardous-area documentation and the required system wiring. Share the installed unit's label and application details when requesting a compatibility review.
