MTL4032 MTL Pulse Signal Isolator | Fast-Response Hazardous Area Interface

MTL4032 Pulse Isolator | High-Speed Intrinsically Safe Signal Interface

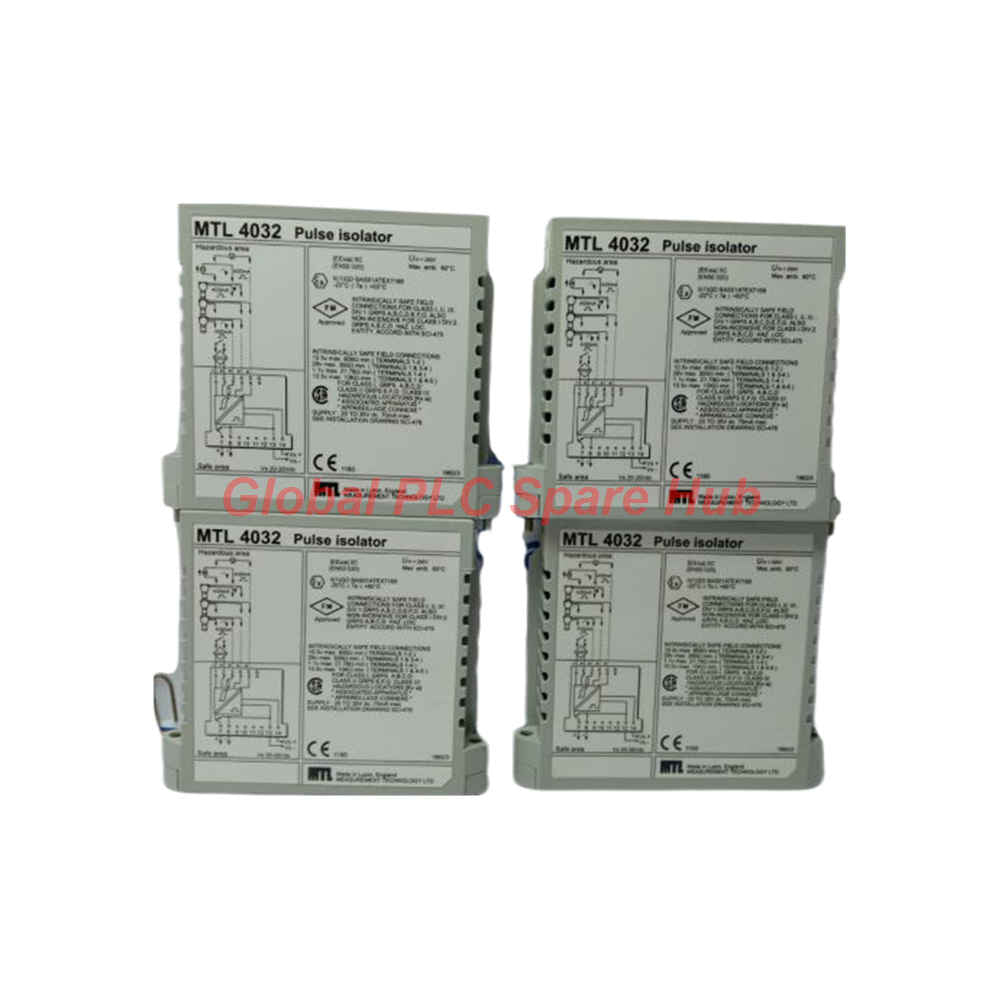

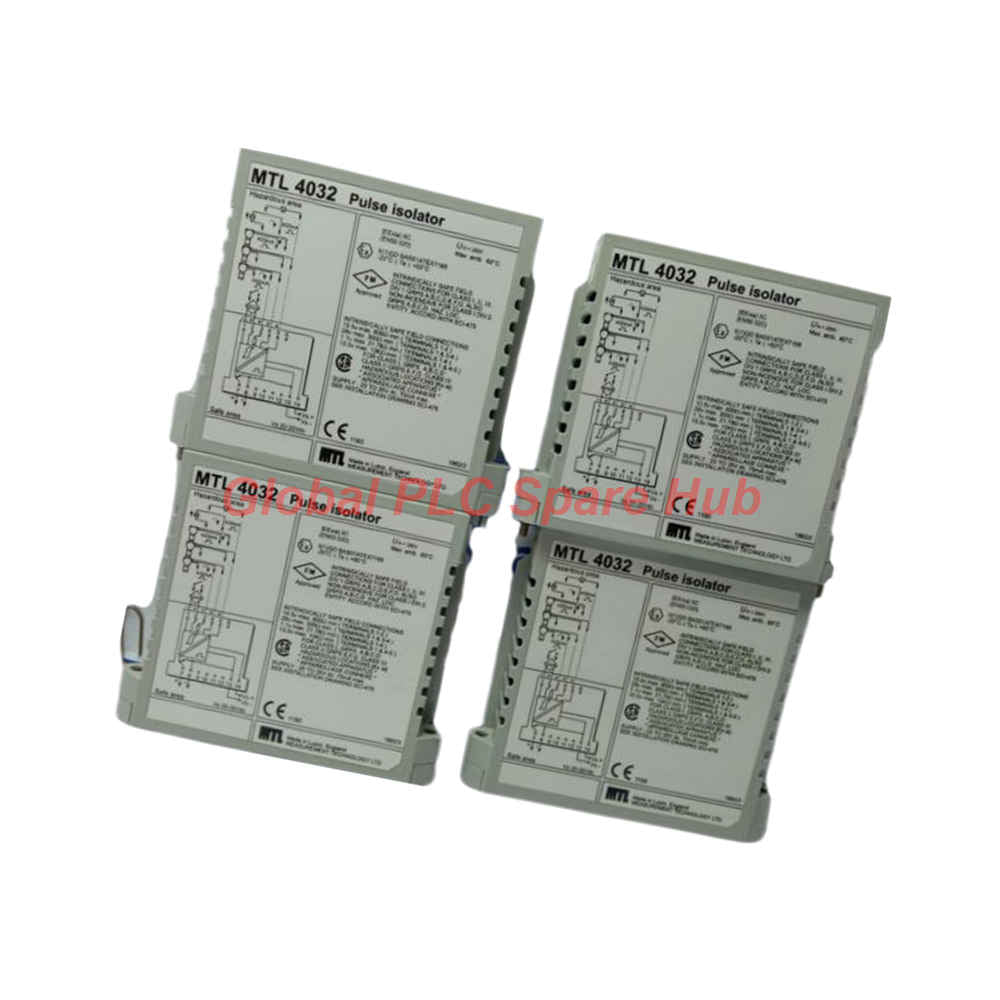

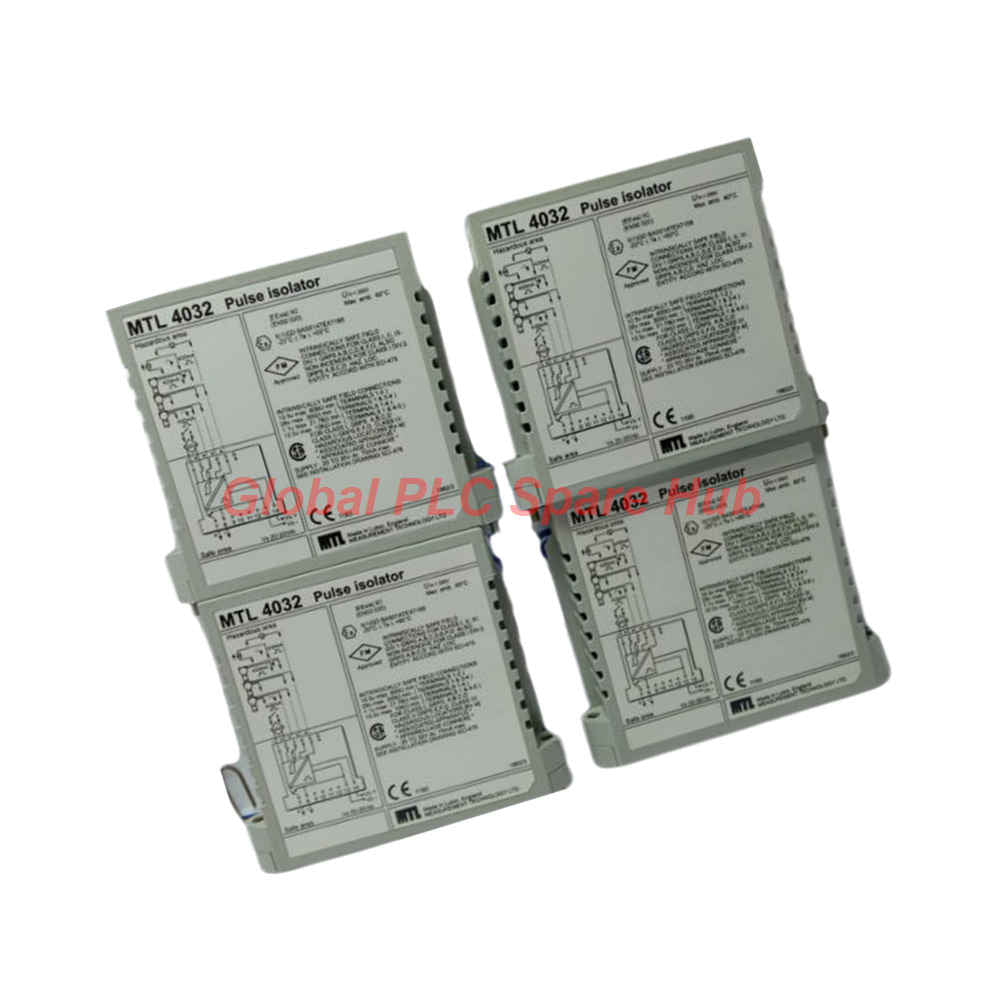

The MTL4032 is a single-channel pulse isolator for industrial instrumentation. It transfers switching and pulse signals from hazardous areas to safe-area control equipment.

This interface supports switches, NAMUR proximity detectors, and compatible 2-wire or 3-wire pulse transmitters. Its 0–50 kHz frequency range and minimum 10 μs high and low pulse widths suit demanding signal acquisition tasks.

The module provides electrical isolation between hazardous-area and safe-area circuits. It also offers configurable voltage thresholds, input status indication, and a defined output state during power failure.

01 | Signal Processing Architecture

• Product model: MTL4032
• Product type: Single-channel pulse isolator
• Channel arrangement: One fully floating channel
• Supported inputs: Switch, NAMUR proximity detector, current pulse, and voltage pulse
• Frequency range: 0–50 kHz
• Minimum pulse width: 10 μs high and 10 μs low
• Safe-area output: Switched pulse output
• Electrical isolation: 250 V AC between safe-area and hazardous-area circuits
• Supply requirement: 20–35 V DC, according to the supplied current specifications
• Power consumption: 55–70 mA across the specified supply points
• Maximum power dissipation: 1.35 W at 24 V DC; 1.75 W at 35 V DC

Engineering note: The 250 V AC isolation rating does not replace intrinsic safety assessment. Verify the applicable approval documents and complete loop parameters before installation.

02 | Input Types and Switching Thresholds

A. Dry Contact Switch

• Output ON when the switch closes.
• Output OFF when the switch opens.
• Suitable for compatible mechanical contacts and switching devices.

B. NAMUR Proximity Detector

• Excitation: 7.0–9.0 V DC from a nominal 1 kΩ source.
• ON threshold: Input current above 2.1 mA, typically below 2 kΩ.
• OFF threshold: Input current below 1.2 mA, typically above 10 kΩ.
• Hysteresis: Approximately 0.2 mA or 650 Ω nominal.

C. Current Pulse Transmitter

• Transmitter supply: 16.5 V DC at 20 mA.
• Short-circuit current: 24 mA.
• ON threshold: Input current above 9.0 mA.
• OFF threshold: Input current below 7.0 mA.
• Hysteresis: 0.5 mA.

D. Voltage Pulse Transmitter

• Input impedance: Greater than 10 kΩ.
• Selectable switching thresholds: 3 V, 6 V, or 12 V nominal.
• ON state: Input voltage above the selected threshold.
• OFF state: Input voltage below the selected threshold.
• Typical hysteresis: 100 mV + 0.1 × selected threshold voltage.

Choose the correct input type before wiring. The available terminals and switching thresholds differ by signal type.

03 | Output Characteristics and Indicators

• Maximum OFF-state voltage: 35 V.
• Maximum OFF-state leakage current: 10 μA.
• Maximum ON-state current: 50 mA.
• Maximum ON-state voltage drop: 1 + (0.1 × output current in mA) V.
• Power failure response: Output OFF when the supply fails.
• Output protection: Zener diode protection against inductive loads.

LED indication

• Amber LED: Indicates the input/output circuit's active state.
• Green LED: Indicates the presence of supply power.

Use these indicators as initial diagnostic evidence. Confirm actual signal conditions with suitable test equipment and the control system's input status.

04 | Terminal Identification

• Terminal 1: Common input negative.
• Terminal 2: Switch or proximity input positive.
• Terminal 3: Current pulse input positive.
• Terminal 4: Transmitter supply positive.
• Terminal 5: Voltage pulse input positive.
• Terminal 7: Pulse output positive.
• Terminal 8: Pulse output negative.
• Terminal 13: Supply negative.
• Terminal 14: Supply positive.

Confirm the terminal diagram on the actual unit before connecting conductors. Do not assume that every input type uses the same terminal combination.

05 | Intrinsic Safety and Hazardous-Area Parameters

The MTL4032 supports interfaces with appropriately certified field devices in hazardous locations. Final suitability depends on the installation classification, device certification, and complete intrinsically safe loop assessment.

Specified hazardous-area locations

• Switch input: Zone 0, IIC, T6; Division 1, Group A.
• Proximity detector or transmitter: Zone 0, IIC, T4–T6 when suitably certified; Division 1, Group A.

Safety description

• Terminals 2 to 1: 10.5 V, 800 Ω, 14 mA.
• Terminals 4 to 3 and 1: 28 V, 300 Ω, 93 mA.
• Terminals 3 to 1: Non-energy-storing apparatus parameters of ≤1.2 V, ≤0.1 A, ≤20 μJ, and ≤25 mW.
• Terminals 5 to 4 and 1: Vmax ≤28 V, Imax ≤94 mA, Pmax ≤0.66 W.

FM entity parameters

• Terminals 1, 4, and 5: Vt = 27.6 V, It = 94 mA, Ca = 0.12 μF, La = 4.2 mH.
• Terminals 1 and 2: Voc = 10.5 V, Isc = 13 mA, Ca = 2.4 μF, La = 200 mH.
• Terminals 1, 3, and 4: Vt = 27.6 V, It = 155 mA, Ca = 0.12 μF, La = 1.57 mH.
• Terminals 1 and 3: Voc = 1.1 V, Isc = 51 mA, Ca = 1000 μF, La = 13.8 mH.

These values are supplied for technical reference. Confirm the exact approval schedule, terminal combinations, cable capacitance, cable inductance, and associated apparatus parameters before approving an installation. Do not treat individual values as interchangeable across circuits.

06 | Installation and Commissioning Procedure

1. Verify the application: Identify the sensor type, pulse amplitude, frequency, and minimum pulse width.
2. Review the hazardous-area design: Confirm the area classification and associated apparatus requirements.
3. Check the supply: Verify the DC supply voltage and available current.
4. Select the voltage threshold: For voltage pulse inputs, set the switch to 3 V, 6 V, or 12 V as required.
5. Wire the input: Use the correct terminals for the selected signal type.
6. Wire the output: Connect terminals 7 and 8 to the compatible receiving circuit.
7. Power the module: Confirm the green LED indicates supply power.
8. Test the pulse response: Compare the source waveform with the receiving system's input status.
9. Record commissioning data: Document threshold settings, pulse frequency, and measured response.

Follow site isolation procedures and the manufacturer's installation instructions. Qualified personnel must perform hazardous-area wiring and verification.

07 | Equipment Compatibility and Typical Applications

This pulse interface suits control systems that accept compatible discrete pulse inputs. The receiving equipment must support the module's output voltage, current, and switching characteristics.

• PLC and DCS systems: Transfer field pulse signals to digital input channels.
• Flow measurement systems: Interface compatible pulse-output flowmeters with control equipment.
• Rotating machinery: Transfer proximity pulses used for speed or event monitoring.
• Tank farms and process plants: Isolate switching signals from certified hazardous-area instruments.
• Oil and gas installations: Interface pulse transmitters in classified process areas.
• Chemical plants: Transfer sensor pulses across hazardous-area boundaries.
• Industrial counting systems: Process compatible high-frequency event pulses.

For speed or flow calculations, verify the receiving controller's input bandwidth and pulse-counting capability. The isolator's 50 kHz rating does not guarantee that the complete control system can count at that rate.

08 | Field Diagnostics and Troubleshooting

• Green LED OFF: Check the DC supply, polarity, fuse, and terminals 13 and 14.
• Green LED ON, amber LED OFF: Check the input signal, sensor supply, wiring, and selected threshold.
• Amber LED ON, no controller response: Inspect output wiring, load requirements, and the receiving input configuration.
• Missing high-frequency pulses: Verify pulse width, source frequency, cable condition, and receiver bandwidth.
• Unstable switching: Check whether the signal crosses the required threshold reliably. Review electrical noise and grounding practices.
• Unexpected output state: Check the power supply and confirm the documented fail-safe behavior.

Field example: A flowmeter generates pulses, but the PLC records a lower flow rate. First compare the source pulse frequency with the PLC counter value. Then check the selected input type, output wiring, pulse width, and counter configuration. Replace the isolator only after these checks identify a likely module fault.

09 | Global PLC Spare HUB's Insight

High-speed pulse applications require more than matching a nominal frequency rating. Engineers should verify signal amplitude, pulse width, switching thresholds, and receiver performance as one complete signal path.

For example, a proximity sensor may operate correctly at low speed but lose counts when a machine accelerates. The source sensor, isolator, cable, and PLC input each have response limits. Check the waveform at both sides of the isolation barrier when suitable test equipment and approved procedures permit.

Practical selection tip: Confirm the exact sensor technology and hazardous-area approval before purchasing. A NAMUR input, current pulse input, and voltage pulse input have different electrical requirements. Selecting by model family alone can cause wiring errors or unreliable switching.

10 | Maintenance and Service Life Considerations

• Inspect terminals and wiring during scheduled maintenance.
• Check supply voltage and LED indications after cabinet work.
• Review pulse integrity when process readings become inconsistent.
• Keep the voltage threshold setting documented for future replacement.
• Do not dismantle or modify the module without manufacturer authorization.
• Use approved replacement equipment that matches the required safety parameters.

Maintenance intervals should follow site procedures, operating conditions, and applicable safety requirements. No calibration interval is specified in the supplied information.

11 | Packaging, Warranty, and Worldwide Shipping

• Product: MTL4032 pulse isolator.
• Packaging: Protective packaging for transportation.
• Warranty: 12-month warranty under the agreed sales terms.
• Dispatch: Typically within 24–48 hours after order confirmation and stock verification.
• Express Shipping: FedEx, UPS, or DHL, subject to destination and service availability.
• Order Support: Contact our team to confirm stock, delivery time, and compatibility.

Confirm the product condition, exact model identification, and included accessories in your quotation. Shipping times depend on destination, customs clearance, and carrier service.

12 | Frequently Asked Questions

Q1: How do I choose between the 3 V, 6 V, and 12 V voltage thresholds?

Select a threshold that matches the transmitter's output levels and noise margin. Verify the actual high and low voltages under operating conditions. The signal must cross the switching threshold reliably without unwanted transitions.

Q2: Can the MTL4032 connect directly to every PLC digital input?

No. Compare the output's maximum voltage, leakage current, voltage drop, and current rating with the PLC input specifications. Confirm the receiving input's ON and OFF thresholds before connecting the circuits.

Q3: What should I consider when transmitting pulses over long cables?

Check cable capacitance, interference exposure, grounding, and the signal source's drive capability. Measure pulse edges at the receiver when possible. Long cables can distort fast transitions even when the nominal frequency appears acceptable.

Q4: Can this isolator support a high-speed flowmeter or turbine speed signal?

It supports compatible pulse inputs up to the specified 50 kHz range. Verify minimum pulse widths, input type, receiving counter bandwidth, and hazardous-area loop requirements. The complete system must meet the required counting accuracy.

Q5: What information helps confirm the correct replacement before ordering?

Provide the full model number, sensor type, output signal, supply voltage, pulse frequency, receiving device model, and hazardous-area classification. Include terminal or nameplate photos when available. These details help assess electrical and application compatibility.
