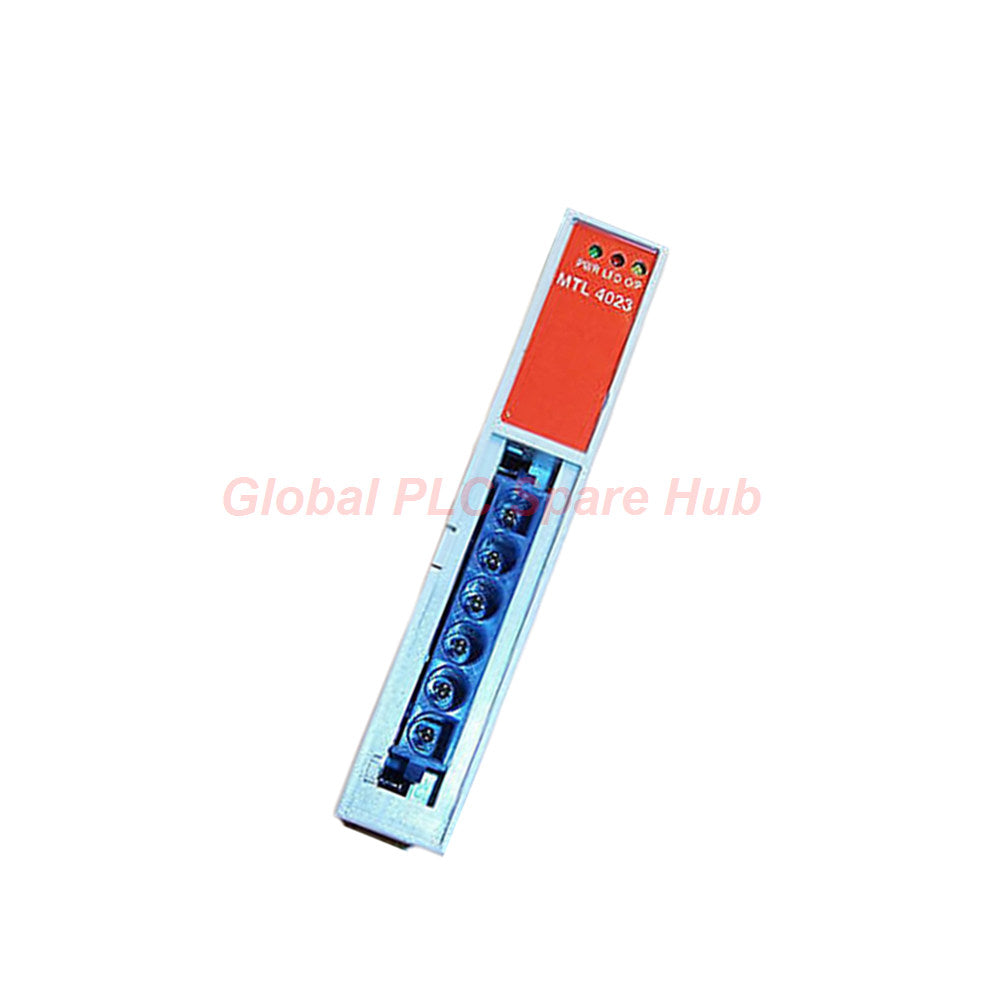

MTL4023 MTL 4000 Series Solenoid Alarm Driver with Line Fault Detection

MTL4023 Hazardous Area Control Interface

MTL4023 belongs to the trusted MTL 4000 Series intrinsic safety interface family. It provides dependable switching control for hazardous-area solenoids and alarm devices.

The module combines galvanic isolation, line fault monitoring, and stable output driving capability inside one compact DIN rail solution.

Engineers deploy this interface in shutdown systems, valve actuation loops, burner management systems, and critical process automation applications.

The integrated line fault detection function continuously supervises field wiring conditions. Monitoring remains active even when the output channel stays OFF.

Why Engineers Select MTL4023

• Designed for hazardous Zone 0 applications
• Stable 25V output for solenoid driving
• Continuous field cable integrity monitoring
• Fast fault indication response
• Reliable isolation between safe and hazardous areas
• Supports logic signals and dry contact inputs
• Compact installation footprint
• Suitable for SIL-oriented process environments

Engineering Snapshot

• Brand: MTL
• Model: MTL4023
• Series: MTL 4000 Series
• Module Type: Solenoid Alarm Driver
• Channel Quantity: 1 Channel
• Maximum Output Voltage: 25V
• Maximum Output Current: 147mA
• Output Resistance: 170Ω
• Output Ripple: Less than 0.5%
• Response Time: Within 100ms
• Isolation Voltage: 250V AC
• Supply Voltage: 20VDC to 35VDC
• Typical Power Consumption: 100mA at 24VDC
• Maximum Power Dissipation: 2.0W
• Hazardous Area Compatibility: Zone 0, IIC, T4-T6
• Environmental Protection: Industrial EMI resistant design
• Fault Monitoring: Open circuit and short circuit detection
• Diagnostic Interface: Solid-state line fault output

Functional Architecture

• Control Input Section
  • Accepts logic signal or dry contact control
  • Compatible with PLC transistor outputs
  • Supports open collector interfaces
• Hazardous Area Output
  • Drives intrinsically safe solenoids
  • Supports certified field devices
  • Maintains stable output switching
• Diagnostic Monitoring
  • Detects cable short circuits
  • Detects open field wiring
  • Supports optional earth leakage supervision
• Visual Indication
  • Green LED for power status
  • Amber LED for output activation
  • Red LED for fault condition

Terminal Assignment

• Terminal 1: Output Positive
• Terminal 4: Output Negative
• Terminal 6: Optional MTL4220 Connection
• Terminal 7: Line Fault Positive
• Terminal 8: Line Fault Negative
• Terminal 10: Control Positive
• Terminal 11: Control Negative
• Terminal 13: Supply Negative
• Terminal 14: Supply Positive

Global PLC Spare HUB's Insight

MTL4023 performs especially well in process industries requiring uninterrupted field device supervision.

The module offers practical advantages in installations where field cable damage creates operational risk. Continuous LFD monitoring improves maintenance response speed.

Compared with conventional isolators, this module simplifies fault localization during commissioning and plant troubleshooting.

Engineers often integrate this interface inside:

• Emergency shutdown systems
• Tank farm valve controls
• Refinery automation cabinets
• Gas distribution skids
• Chemical dosing systems
• Burner management systems
• Explosion-proof process control panels

Typical Application Scenarios

• Hazardous area solenoid control
• Valve actuation systems
• Fire and gas shutdown logic
• Petrochemical automation
• Pharmaceutical process lines
• Oil and gas instrumentation
• Offshore platform control systems
• Industrial alarm management

Diagnostic Capability

• Continuous cable integrity supervision
• Short-circuit identification
• Open-loop detection
• Earth leakage monitoring support
• Real-time fault indication through LED status
• Fast maintenance troubleshooting assistance

Installation Recommendations

• Install inside grounded control cabinets
• Separate hazardous and safe-area wiring
• Use shielded cables near high-noise equipment
• Verify field impedance before commissioning
• Check terminal tightening torque periodically
• Avoid routing near high-current power lines

Compatible Equipment

• PLC digital output modules
• DCS control systems
• Intrinsically safe solenoid valves
• Emergency shutdown panels
• Industrial annunciator systems
• Process safety systems

Package Contents

• 1 × MTL4023 Solenoid Alarm Driver
• Protective industrial packaging
• Quality inspection documentation
• Technical support assistance

Shipping & Delivery

• 24-48 hour fast dispatch
• FedEx international delivery
• UPS worldwide express service
• DHL priority logistics support
• Secure export-grade packaging

Warranty Information

• 12-month warranty coverage
• Pre-shipment functionality testing
• Technical support during warranty period
• Professional after-sales response

Professional FAQ

• Can the module detect faults while the solenoid remains inactive?

  Yes. The line fault detection remains operational regardless of output state.

• What field impedance range supports reliable fault monitoring?

  The recommended field circuit impedance stays above 50Ω and below 7kΩ.

• Why do engineers combine MTL4023 with MTL4220?

  MTL4220 adds earth leakage detection for improved field circuit supervision.

• What causes unstable fault indication during commissioning?

  Incorrect grounding, excessive cable resistance, or unsuitable field impedance often cause instability.

• How should users select the correct intrinsic safety interface?

  Select according to hazardous area classification, load current, diagnostic needs, and control signal compatibility.
