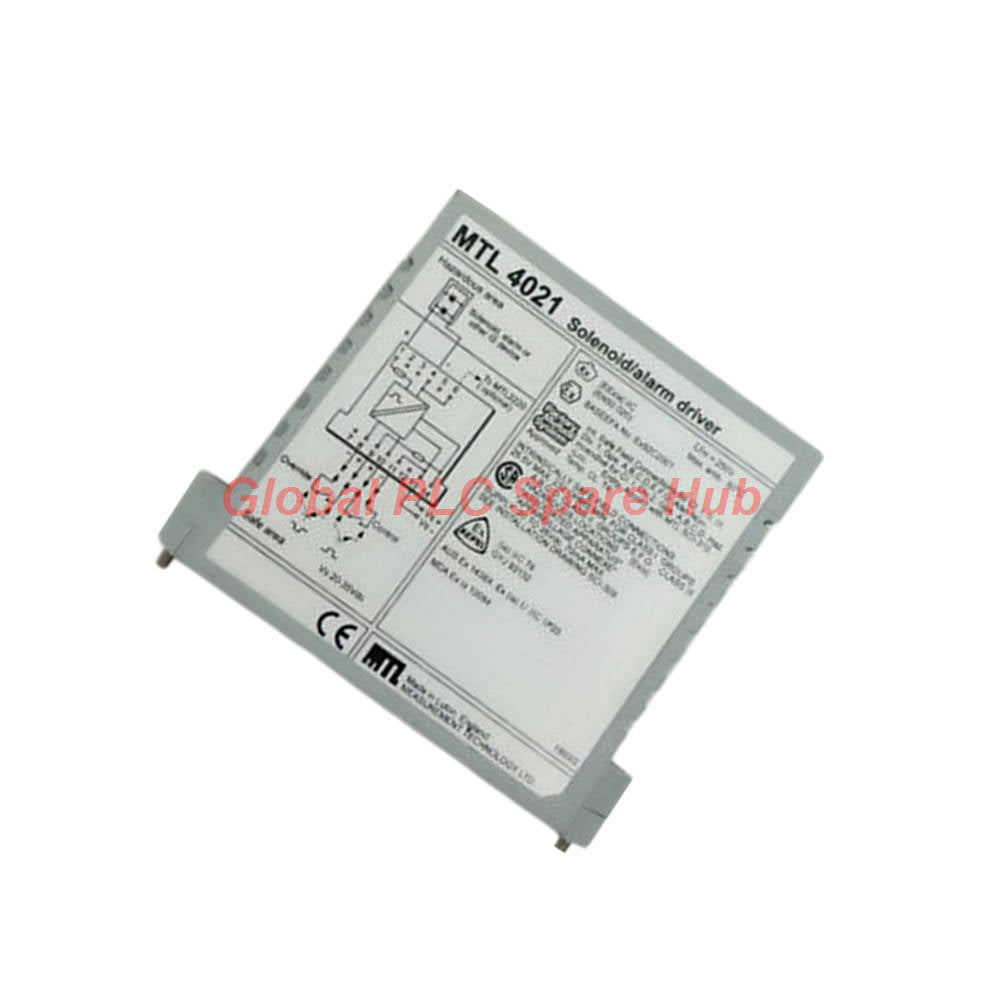

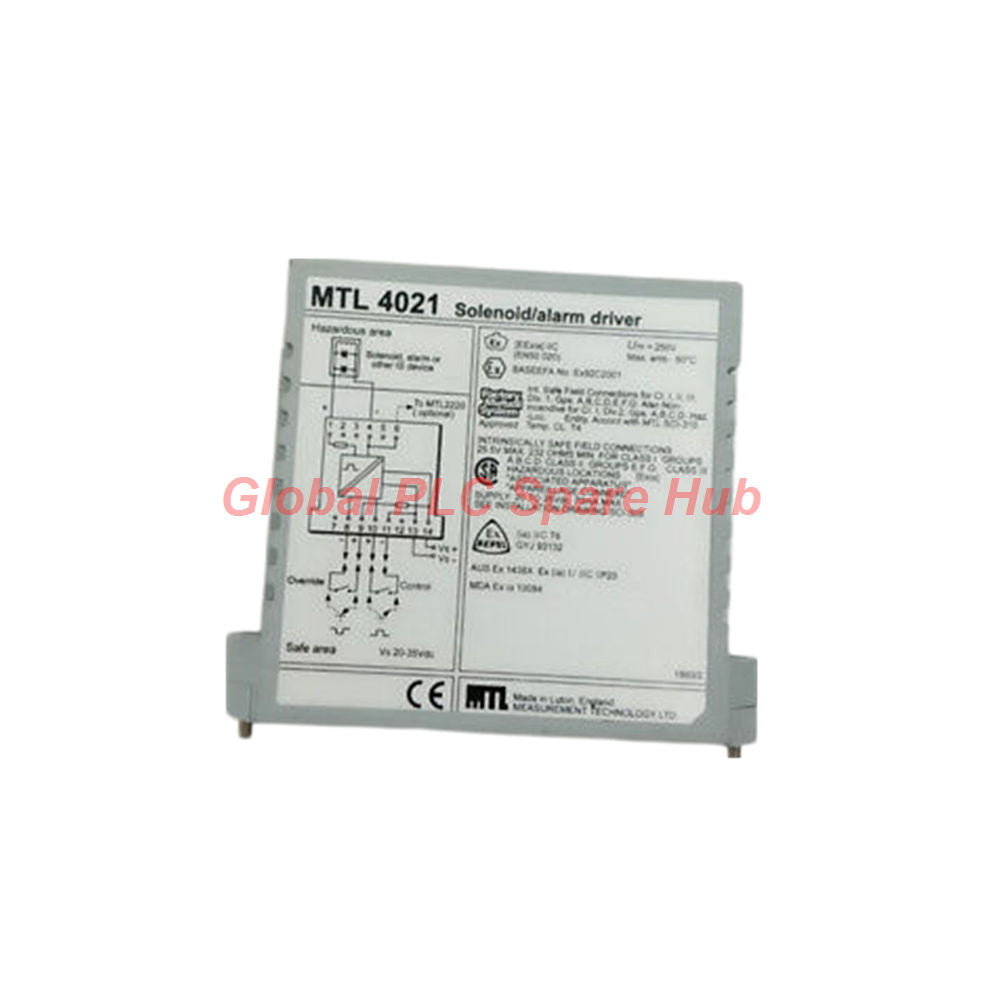

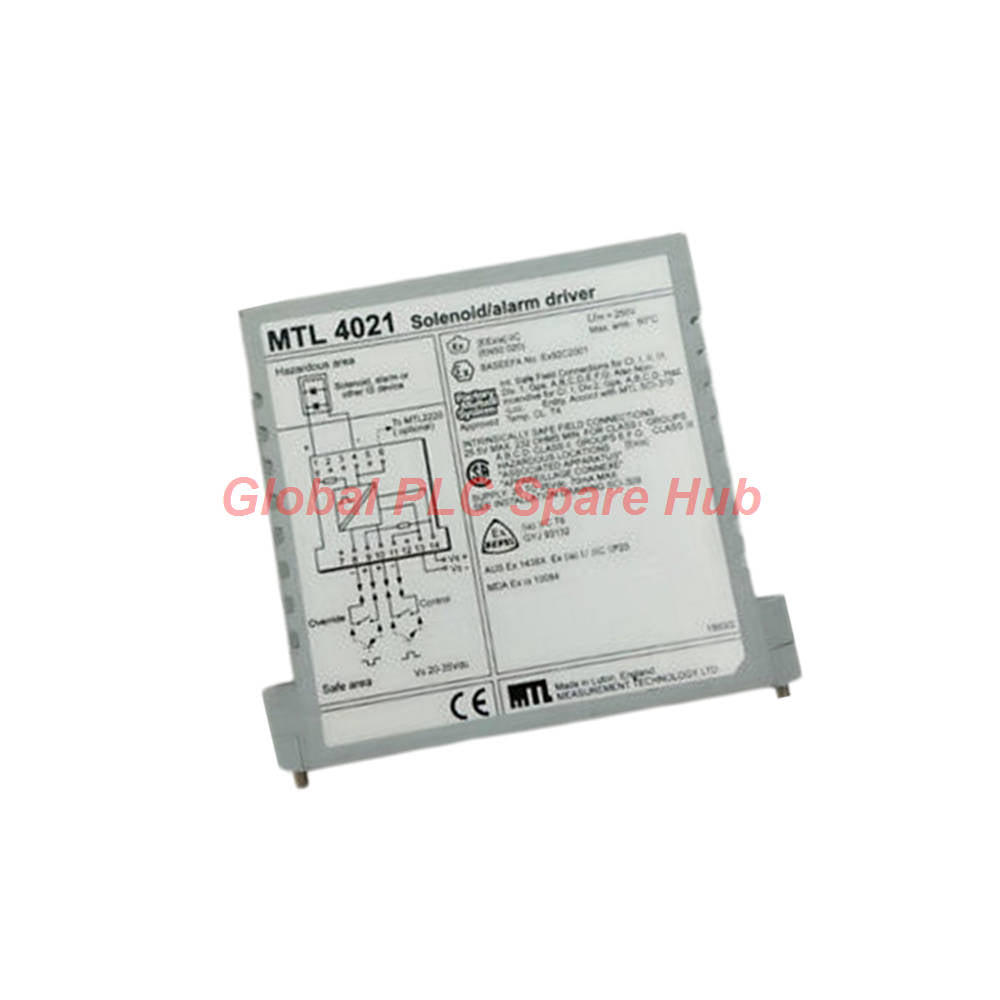

MTL4021 Switch/Logic Driver — Intrinsically Safe Hazardous-Area Interface

The MTL4021 is a single-channel switch/logic driver designed to control compatible on/off devices in hazardous areas from a safe-area contact or logic signal. It provides an interface between the control system and field loads such as solenoid valves, alarms, and LEDs.

For applications requiring an independent control override, a second safe-area switch or open-collector signal can disable the output regardless of the primary control input. The module also supports optional earth-fault monitoring when connected to an MTL4220 earth leakage detector.

Typical engineering priorities include verifying the field load's intrinsic-safety certification, checking the control and override logic, confirming the entity parameters, and validating the terminal connections before commissioning.

1. Functional Architecture — From Safe Area to Hazardous Area

Interface section	Function	Engineering purpose
Safe-area control input	Accepts a volt-free switch, open-collector transistor, or suitable logic signal	Receives the normal operating command.
Override input	Accepts a separate switch or open-collector signal	Forces the output off when the override is active.
Hazardous-area output	Drives a compatible on/off field load	Interfaces with suitable solenoids, alarms, LEDs, or other low-power devices.
Optional earth-fault connection	Connects to an MTL4220 earth leakage detector	Provides the specified earth-fault monitoring function.
Status indication	Amber output-status LED and green power LED	Helps distinguish output activity from module power indication.

2. Technical Specifications

Specification	MTL4021 details
Manufacturer / product family	MTL / MTL interface and intrinsic-safety equipment
Model	MTL4021
Number of channels	1
Control input	Volt-free switch contact, open-collector transistor, or compatible logic drive
Control input logic 0	Switch closed, transistor on, or less than 1.4 V across terminals 10 and 11
Control input logic 1	Switch open, transistor off, or greater than 4.5 V across terminals 10 and 11
Override input	Switch or open-collector transistor across terminals 8 and 9
Output voltage specification	25.5 V from 232 Ω, as supplied
Output ripple	Less than 0.5% of maximum output, peak-to-peak
Response time	Output reaches within 10% of its final value within 100 ms
Supply current at 24 V DC	100 mA
Supply current at 20 V DC	120 mA
Supply current at 35 V DC	75 mA
Power dissipation	1.3 W with a typical solenoid valve and output on; 1.9 W worst case
Safe-area to hazardous-area circuit isolation	250 V AC
Safety description	25.5 V, 232 Ω, 110 mA
FM entity parameters	Voc = 25.5 V DC; Isc = 110 mA; Ca = 0.17 µF; La = 3 mH
Hazardous-area applications	Zone 0, IIC, T4–T6 when suitably certified; Division 1, Groups A as specified
Earth-fault monitoring	Optional connection to an MTL4220 earth leakage detector
LED indicators	Amber: output circuit active; green: power indication

Safety note: The hazardous-area classifications above are conditional on the applicable approvals and installation requirements. Confirm the exact certification, temperature class, gas group, entity compatibility, and installation conditions for the complete loop before use.

3. Control and Override Logic

The MTL4021 output logic is important when integrating normal process commands with an independent override signal. The output is active only when the control input is logic 0 and the override input is logic 1.

Control input	Override input	Output state
0	0	OFF
0	1	ON
1	0	OFF
1	1	OFF

• Normal control: A closed control switch or an active open-collector transistor represents logic 0.
• Override active: Closing the override switch or turning on its transistor forces the output off.
• Output enable condition: The control input must be logic 0 while the override input remains logic 1.

Use this truth table when checking PLC output logic, interlock wiring, and commissioning results. Verify signal polarity in the actual control design instead of assuming that a high PLC output always energizes the field load.

4. Terminal Assignment and Wiring Reference

Terminal	Function	Connection guidance
1	Output positive	Hazardous-area load circuit positive connection
4	Output negative	Hazardous-area load circuit negative connection
6	Optional earth-fault detector link	Connect to an MTL4220 as specified by the approved wiring arrangement
8	Override negative	One side of the override switch or transistor circuit
9	Override positive	Other side of the override switch or transistor circuit
10	Control positive	Control signal connection
11	Control negative	Control signal return
13	Supply negative	DC power supply negative
14	Supply positive	DC power supply positive

Follow the manufacturer's wiring diagram and site isolation procedures during installation. Confirm polarity and terminal numbering before connecting power or field wiring.

5. Compatible Loads and Typical Applications

Load or system	Typical use	Selection checks
Solenoid valve	On/off actuation in process plants	Verify operating current, coil characteristics, and intrinsic-safety compatibility.
Audible alarm	Remote annunciation in hazardous process areas	Check load requirements and applicable hazardous-area approval.
LED indicator	Local status indication	Confirm current demand, polarity, and device certification.
Other low-power on/off devices	Discrete field actuation or indication	Confirm the device qualifies as suitably certified intrinsically safe equipment or permitted simple apparatus.
PLC or control-system interface	Safe-area logic controls a field output	Verify control polarity, input voltage thresholds, and override behavior.
Interlock or shutdown-related circuit	Independent signal disables a normal output command	Assess the complete safety function and required system certification separately.

Important application boundary: The override input can disable the MTL4021 output, but this feature alone does not establish a certified safety instrumented function. Confirm the safety architecture, required integrity level, and applicable approvals for the complete installation.

6. Diagnostic Capability and Fault Investigation

The MTL4021 provides local LED indications and supports optional earth-fault monitoring through the MTL4220. These features assist troubleshooting, but they do not replace loop testing or verification of the connected control system.

Observation	Possible cause	Recommended investigation
Green power LED is off	Missing supply, incorrect polarity, or supply wiring fault	Measure the DC supply at the designated power terminals and check polarity.
Green LED is on, but the output remains inactive	Control input state, active override, wiring issue, or field-load problem	Check both input states against the truth table and inspect the output circuit.
Amber output LED is on, but the load does not operate	Open field circuit, incompatible load, wiring error, or load failure	Verify the field wiring and load requirements using approved test procedures.
Output switches off unexpectedly	Override input has entered logic 0 or the control input no longer meets the enable condition	Measure the signals across terminals 8–9 and 10–11 and compare them with the specified logic states.
Earth-fault monitoring reports a problem	Possible earth leakage on either line or a detector/wiring issue	Inspect the MTL4220 connection and investigate the affected circuit under approved site procedures.

The supplied specification states that the optional no-fail earth-fault protection can report a fault on either line while the unit continues working. Confirm the detector's indication method and system response in the relevant MTL documentation.

7. Global PLC Spare HUB's Insight

When replacing an MTL4021, Global PLC Spare HUB recommends validating the output load and control logic before installation. Many apparent interface faults originate from override polarity, field-load compatibility, or wiring differences rather than from the module alone.

• Check the output load first: Confirm that the solenoid, alarm, or indicator meets the permitted electrical and intrinsic-safety conditions.
• Test the override separately: Verify that the override signal forces the output off in every relevant control state.
• Review entity parameters: Compare the interface's output parameters with the field device's certified input parameters and the approved cable parameters.
• Confirm earth-fault monitoring: If the installation uses an MTL4220, check the terminal 6 connection and the intended monitoring response.
• Document commissioning results: Record supply voltage, input states, output response, LED status, and any earth-fault indication.

Practical example: If a solenoid fails to energize after replacement, check whether the control input is logic 0 and the override input is logic 1. If the amber LED indicates an active output, continue with approved field-circuit and load checks rather than assuming the module has failed.

8. Five Professional FAQs

Q1: How do I determine whether my field solenoid is suitable for the MTL4021?

Check the solenoid's certified documentation, operating current, voltage requirements, and applicable intrinsic-safety parameters. Compare these values with the interface specification and approved loop design. Do not select a device based only on its nominal operating voltage.

Q2: Can the override input replace a dedicated safety relay or safety controller?

Not by itself. The override input can disable the interface output, but the MTL4021 specification alone does not establish a complete safety function. The required safety architecture, integrity, and certification must be assessed for the whole system.

Q3: What should I verify if the original module uses a different interface model?

Compare channel count, control-input thresholds, output characteristics, load compatibility, entity parameters, terminal assignments, and approval requirements. Similar appearance or terminal count does not establish electrical interchangeability.

Q4: What is the practical value of connecting an MTL4220 earth leakage detector?

It adds the specified earth-fault monitoring capability to the interface circuit. Before adding one, confirm the approved connection to terminal 6, the detector's indication method, and how the plant control or maintenance procedure should respond to a reported fault.

Q5: What details help prevent ordering the wrong MTL4021 interface?

Provide the full model number, required quantity, field-load type, control signal type, hazardous-area classification, and any existing detector connection. If replacing an installed unit, include the current wiring diagram or terminal details so the configuration can be checked before quotation.
