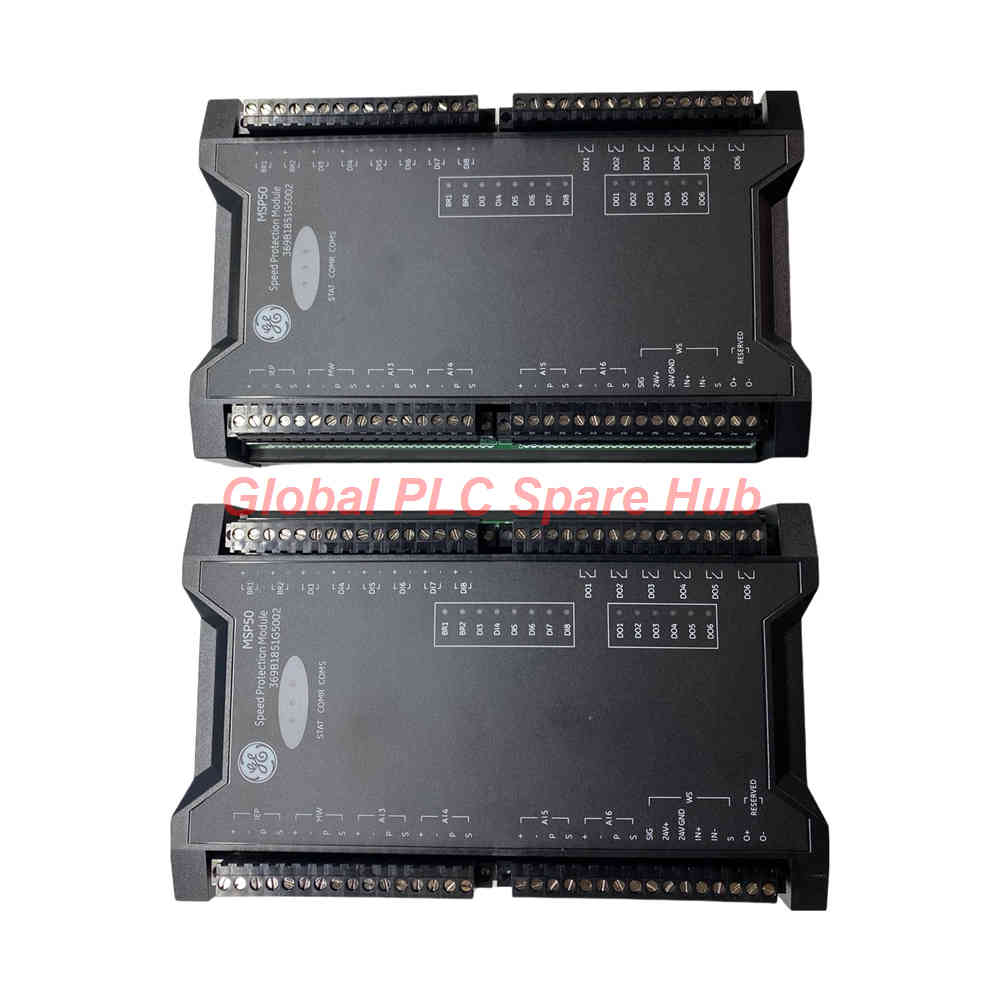

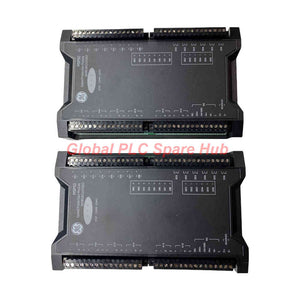

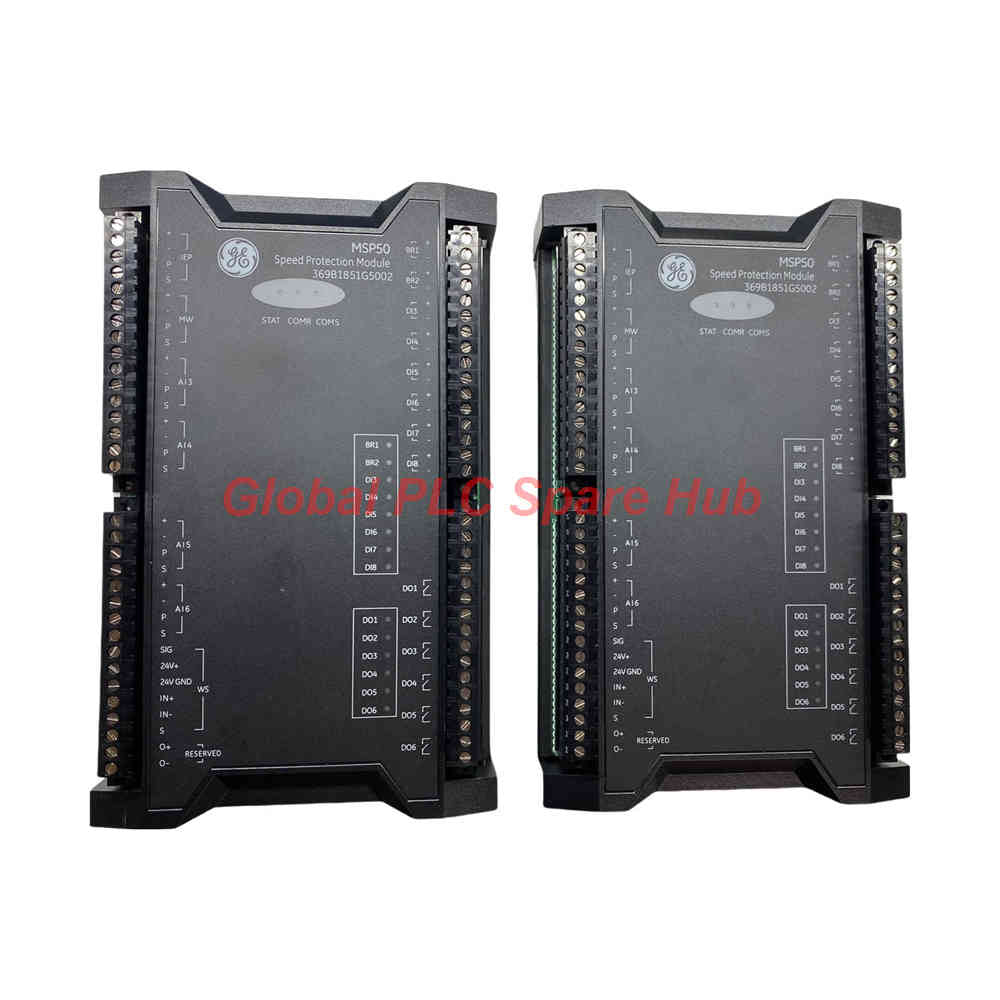

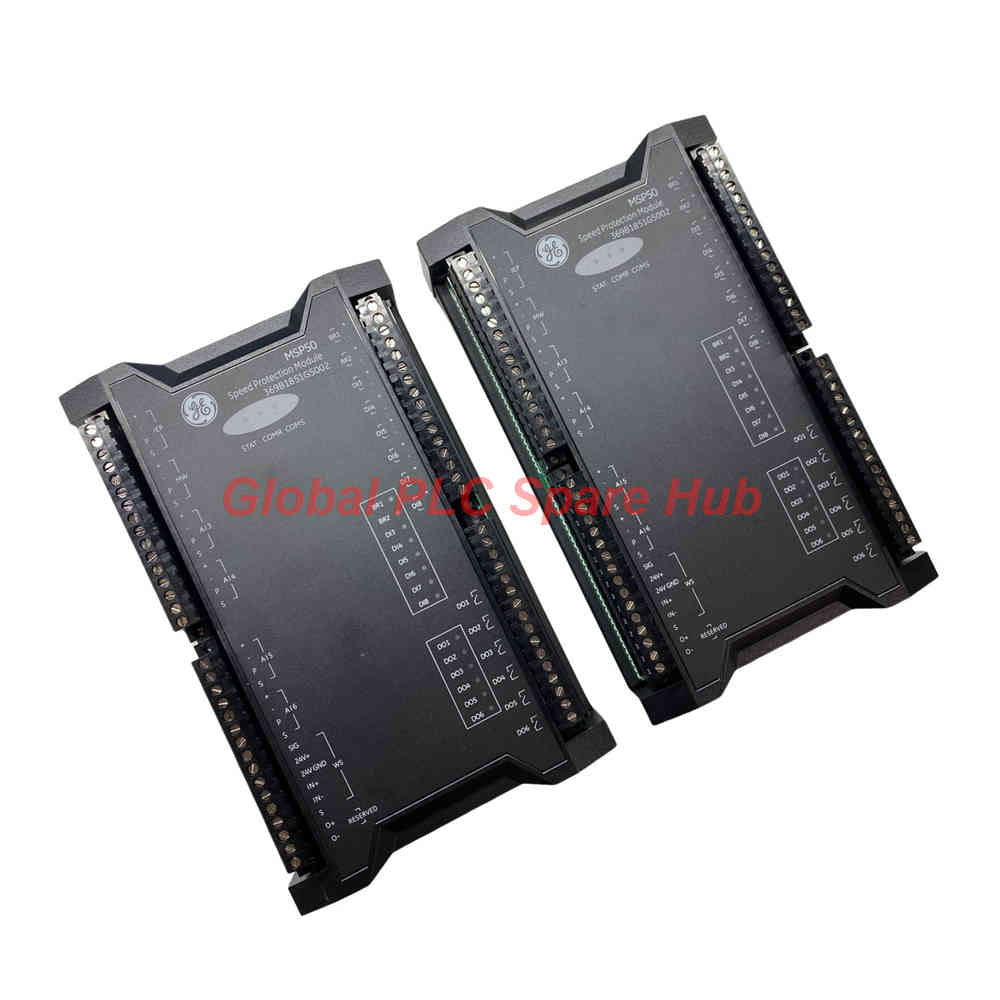

MSP50 GE Nexus 369B1851G5002 Speed Measurement & Protection Module

Precision Speed Protection for Critical Rotating Equipment

MSP50 is a high-performance GE Nexus Speed Measurement and Protection Module developed for mission-critical rotating machinery.

The module combines speed acquisition, process I/O, protection logic, and real-time control into one intelligent hardware platform.

369B1851G5002 MSP50 supports high-resolution speed measurement together with redundant communication, making it suitable for industrial applications where response time and reliability are essential.

Engineering Value at a Glance

Core Capability	Engineering Benefit
Integrated Speed Protection	Combines monitoring, logic control, and protection functions.
Multi-Sensor Compatibility	Supports magnetic pickup, Hall-effect, and eddy current probes.
Redundant Architecture	Improves controller availability for continuous processes.
Gigabit Ethernet Networks	Supports high-speed controller and I/O communication.
Real-Time Operating System	Ensures deterministic industrial control performance.

Technical Specifications

Brand	GE
Model	MSP50
Part Number	369B1851G5002
Series	GE Nexus
Module Type	Speed Measurement and Protection Module
Speed Channels	1
Speed Measurement Range	1–20,000 Hz
Measurement Resolution	0.01%
Supported Sensors	Magnetic Pickup, Hall Sensor, Eddy Current Probe
Analog Inputs	6 Channels (0–20 mA, 0–5 V, ±10 V)
Analog Accuracy	0.1%
Digital Inputs	8 Channels with 1–50 ms Adjustable Filter
Digital Outputs	6 Channels, 250 VAC @ 0.1 A
SOE Support	Yes, 1 ms Resolution
Time Synchronization	NTP ±1 ms
Processor	Intel® 1.66 GHz 64-bit Embedded CPU
Memory	1 GB DDR2
Flash Storage	2 GB On-board Non-Volatile Flash
Controller Network	Dual Redundant 1 Gbps Ethernet
I/O Network	Dual Redundant 1 Gbps Ethernet
Serial I/O Bus	4 Intelligent Redundant Buses, 1 Mbps
Maximum Nexus I/O Modules	48
Maximum Configuration Pages	999
Operating System	QNX® Real-Time Multitasking OS
Fastest Control Cycle	40 ms
Operating Temperature	0°C to 60°C
Channel-to-Ground Isolation	500 VAC
Channel-to-System Isolation	1500 VAC
Power Consumption	Typical 1.76 W, Maximum 10.2 W
Certification	CE Certified within the Nexus System

Industrial Applications

The MSP50 is designed for rotating machinery requiring continuous speed supervision and fast protective response.

• Steam turbine control systems
• Gas turbine auxiliary systems
• Large centrifugal compressors
• Industrial fans and blowers
• Power generation equipment
• Oil and gas compressor stations
• Pump protection systems
• Critical process automation platforms

Global PLC Spare HUB's Insight

In rotating equipment projects, accurate speed acquisition is only one part of machine protection. Reliable event recording and deterministic control are equally important during abnormal operating conditions.

One turbine retrofit project experienced intermittent overspeed alarms during startup. The engineering team reviewed SOE records together with speed input history. The root cause proved to be an unstable magnetic pickup bracket rather than the controller itself.

Engineers often deploy the redundant Ethernet architecture for applications where production downtime carries significant operational costs. The controller continues maintaining communication during single-network failures.

Built-in Diagnostic Capability

Diagnostic Function	Maintenance Benefit
Speed Signal Monitoring	Identifies abnormal frequency fluctuations.
SOE Event Recording	Reconstructs fault sequences accurately.
Communication Status LEDs	Quickly verifies network health.
Module Alarm Indicators	Simplifies controller fault localization.
Network Redundancy Monitoring	Detects communication path failures immediately.

Recommended Installation Practices

• Route speed sensor cables separately from power wiring.
• Verify probe type before configuring measurement parameters.
• Synchronize system time using the NTP service.
• Enable redundant Ethernet during commissioning.
• Confirm isolation grounding before energizing the cabinet.

Compatibility Overview

• Designed for GE Nexus control platforms.
• Supports magnetic, Hall-effect, and eddy current speed probes.
• Compatible with Nexus distributed I/O architecture.
• Supports redundant industrial Ethernet networks.
• Works with intelligent Nexus serial I/O modules.

Packaging, Logistics & Warranty

Package Contents	1 × MSP50 Speed Measurement and Protection Module
Packaging	Industrial anti-static packaging with reinforced protection
Warranty	12-Month Warranty
Courier Services	FedEx, UPS, DHL
Lead Time	Orders normally ship within 24–48 hours

Technical FAQ

How should engineers choose the correct speed sensor for MSP50?

Select the sensor according to shaft design, installation distance, rotational speed range, and environmental conditions. Magnetic pickups perform well in harsh industrial environments, while eddy current probes provide high measurement precision.

What is the advantage of integrating speed monitoring and protection into one module?

A unified hardware platform reduces communication latency between measurement and protection logic. It also simplifies system architecture and maintenance.

How can intermittent overspeed alarms be investigated efficiently?

Compare SOE records with speed trends and inspect sensor mounting stability. Loose brackets and cable interference are common field findings before controller faults.

When is redundant networking strongly recommended?

Power generation, compressor control, and continuous process industries benefit most because communication remains available if one network path becomes unavailable.

Which technical factors should be evaluated before selecting MSP50?

Review sensor compatibility, speed range, required protection strategy, available I/O capacity, communication architecture, and future expansion requirements before deployment.

Engineering Selection Advice

• Select MSP50 for applications requiring integrated speed protection and real-time control.
• Choose this module when redundant networking is part of the project specification.
• Verify probe technology before defining measurement parameters.
• Reserve sufficient I/O resources for future equipment expansion.
• Plan time synchronization early to maximize SOE analysis accuracy.
